Product details

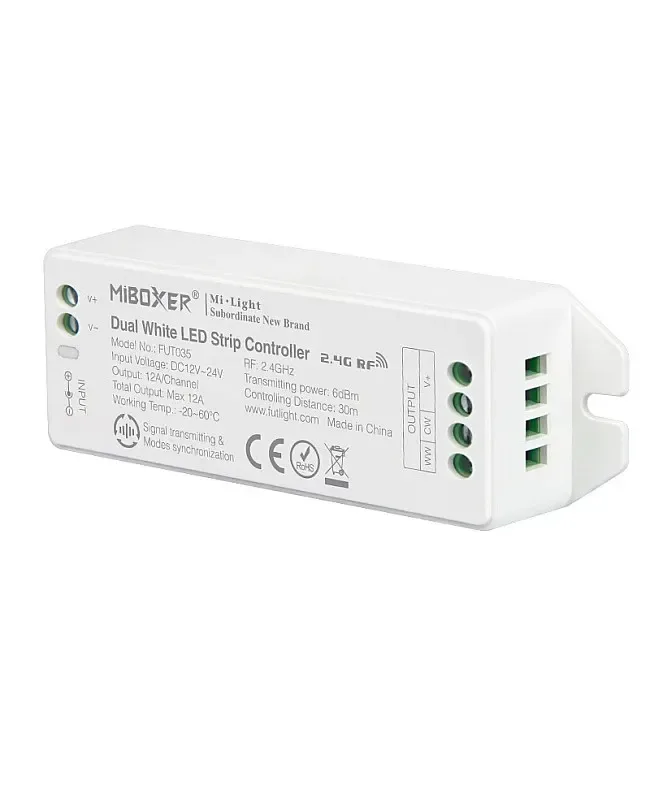

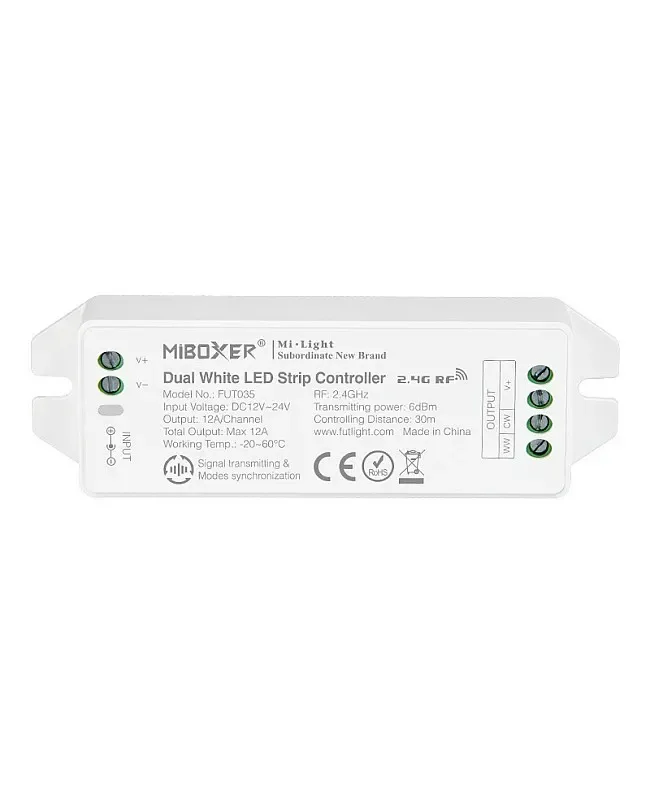

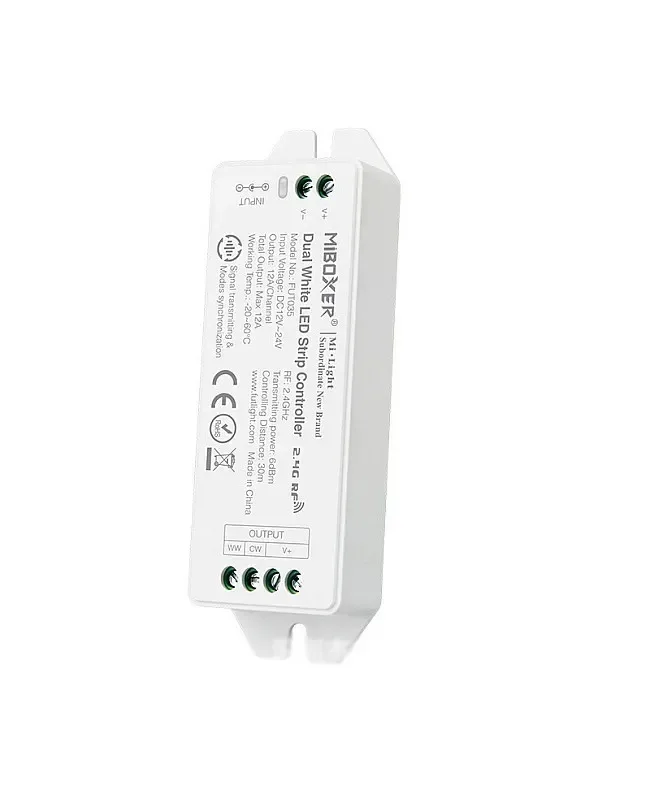

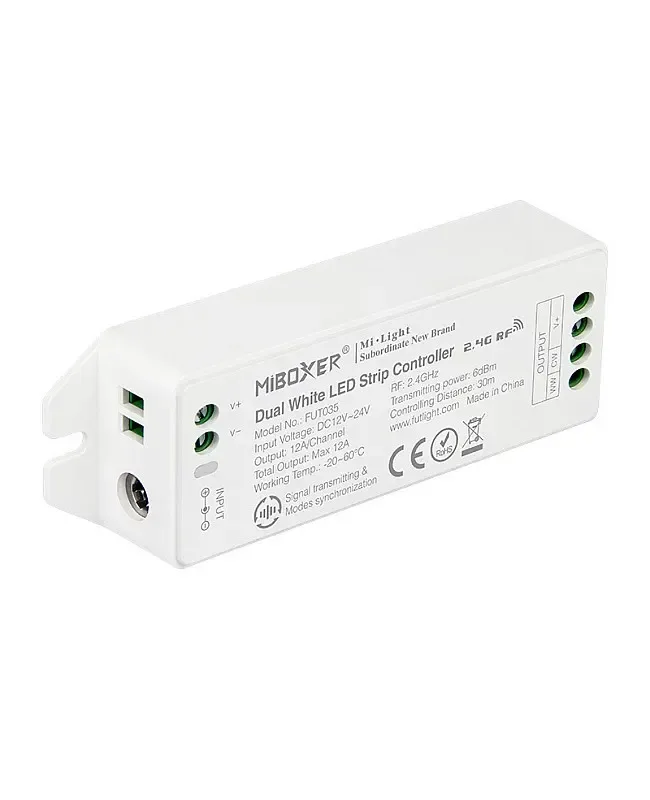

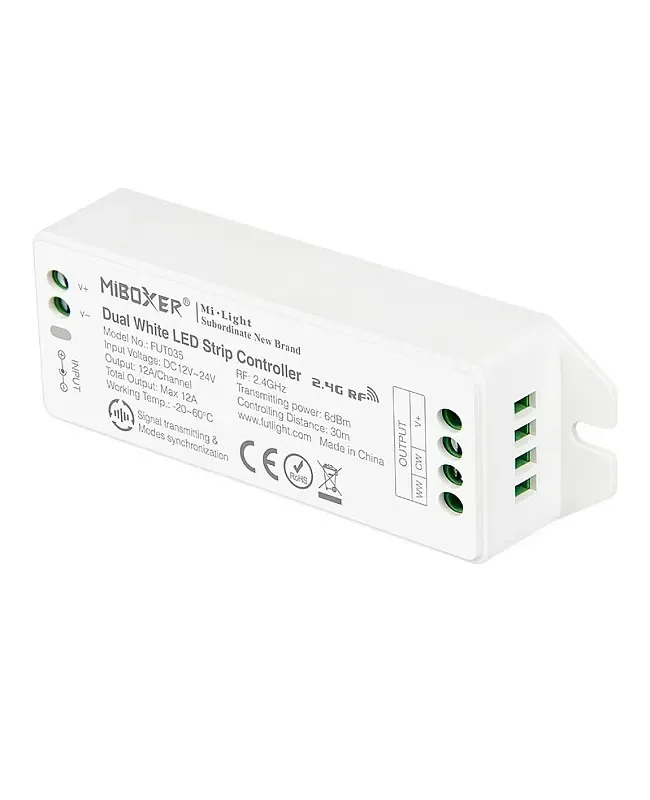

RF Wireless Dual White LED Controller
LumaCircuit offers RF Wireless Dual White LED Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller Dual White Controller Manual Size (L x W x H ): 119 mm x 37.5 mm x 22 mm ( 4.69" x 1.48" x 0.87" ) Transmitting power: 6 dBm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RF wireless LED controllers are designed for the CCT LED strips and other color temperature LED lights. With RF 2 remote control compatibility, it allows seamless adjustment of brightness and color temperature(warm white to cool white) to create the perfect lighting atmosphere. They have two output channels, and the maximum output current of each channel is up to 6A. The utilizes 2.4G RF wireless signal transmission technology, making it compatible with most wireless controller remotes.
- wireless controller Dual White Controller Manual
- Size (L x W x H ): 119 mm x 37.5 mm x 22 mm ( 4.69" x 1.48" x 0.87" )
- Transmitting power: 6 dBm
- Output connection: Common anode
- 4G RF wireless signal transmission
- Brightness and color temperature are adjustable
- Compatible with T2, T1, WL
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- Size (L x W x H ): 119 mm x 37.5 mm x 22 mm ( 4.69" x 1.48" x 0.87" )
- Working voltage: -24V
- Output: 6A/channel
- Total output: 10A Max
- Transmitting power: 6 dBm
- Control distance: ≤30m
- Output connection: Common anode
- Working temperature: -10-40℃
- LumaCircuit model: LC-CTL-3GHQDM
- Dimensions found: 119 mm / 37.5 mm / 22 mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RF wireless LED controllers are designed for the CCT LED strips and other color temperature LED lights. With RF 2 remote control compatibility, it allows seamless adjustment of brightness and color temperature(warm white to cool white) to create the perfect lighting atmosphere. They have two output channels, and the maximum output current of each channel is up to 6A. The utilizes 2.4G RF wireless signal transmission technology, making it compatible with most wireless controller remotes. The installer can use the remote to adjust the brightness and color temperature stepless. After pairing with a wireless controller 2.4G gateway, the dual white LED controller can be controlled via a smartphone app and third-party voice control, supporting Amazon Alexa and Google Home Assistant. This allows you to control the LED lights using either your phone or voice commands. The dual white controller will automatically receive the remote's signal and transmit it to the same controllers within 30 meters. All of them will work in synchronization. The dual white light dimmers support smooth dimming, memory function, and group control, making it suited to residential, commercial, and decorative lighting projects.
Quick Links
wireless controller Dual White Controller Manual
Specifications
Size (L x W x H ): 119 mm x 37.5 mm x 22 mm ( 4.69" x 1.48" x 0.87" )
Working voltage: -24V
Output: 6A/channel
Total output: 10A Max
RF: 2.
Transmitting power: 6 dBm
Control distance: ≤30m
Output connection: Common anode
4G RF wireless signal transmission
Brightness and color temperature are adjustable
Compatible with T2, T1, WL
Supports smartphone APP control and third-party voice control ( 2 gateway needed )
Work with Amazon Alexa, Google Assistant ( 2.4G gateway needed)
Auto signal transmitting
Working temperature: -10-40℃
Applications
suited to home ambient lighting, office illumination, retail displays, hotels, restaurants, and architectural projects where flexible dual white lighting control is needed.
Includes
1 * dual white LED controller
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
