PWM Dimmer 12V With 2.4G Remote
LumaCircuit offers PWM Dimmer 12V With 2.4G Remote as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Models: (Single Color), (Dual White) Size: 74.5*36*17mm(L*W*H) Total Output Current: 12A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller PWM dimmer is a versatile, adjustable dimmer switch that can control the brightness of LED lights. It features a 2.4G remote control that allows you to adjust the light levels easily without adjusting the switch physically. Working in DC12V or DC24V, the max output current is 12A and adopts 2.4G transmitting technology, with strong anti-interference, long-distance transmission, and control distance of up to 30 meters.
- Models: (Single Color), (Dual White)
- Size: 74.5*36*17mm(L*W*H)
- Total Output Current: 12A
- Output Connection: Common Anode
- Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
- PWM High Frequency( And Low Frequency(500Hz) Can Be Switched
- wireless controller Manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V
- Light engine: CCT
- Models: (Single Color), (Dual White)
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Total Output Current: 12A
- Output Connection: Common Anode
- Control Distance: ≤30m
- Working Temperature: -10-40℃
- LumaCircuit model: LC-CTL-EV87O0
- Size: Φ70*24mm
- Colors: Black, White, Grey
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

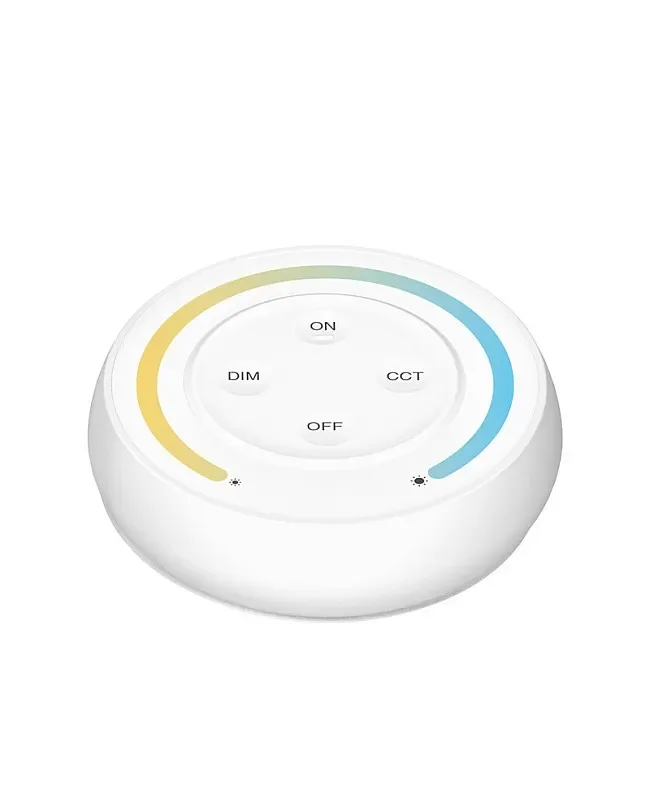

The wireless controller PWM dimmer is a versatile, adjustable dimmer switch that can control the brightness of LED lights. It features a 2.4G remote control that allows you to adjust the light levels easily without adjusting the switch physically. Working in DC12V or DC24V, the max output current is 12A and adopts 2.4G transmitting technology, with strong anti-interference, long-distance transmission, and control distance of up to 30 meters. The 24V LED dimmer can be controlled by a smartphone APP and third-party voice control after adding a 2.4G Gateway, which can work with Amazon Alexa and Google Assistant. The installer can use the voice commands to turn ON/OFF and adjust the brightness. The installer can touch the dimming slider on the remote control to adjust the brightness from 1% to 100% and press the buttons to turn ON/OFF the LED lights. The remote control has a magnetic base holder, which the installer can easily remove and put back. The working frequency of the PWM dimmer is switchable, and the installer can choose the 8 KHz high frequency or the 500 Hz low frequency. The remote dimmer for LED lights will receive the signals from the remote control and transmit to other dimmers within 30 meters; all LED dimmers will work at the same status. This device is an excellent choice for those looking for an easy way to control the lighting in their home or office.
Quick Links
wireless controller Manual

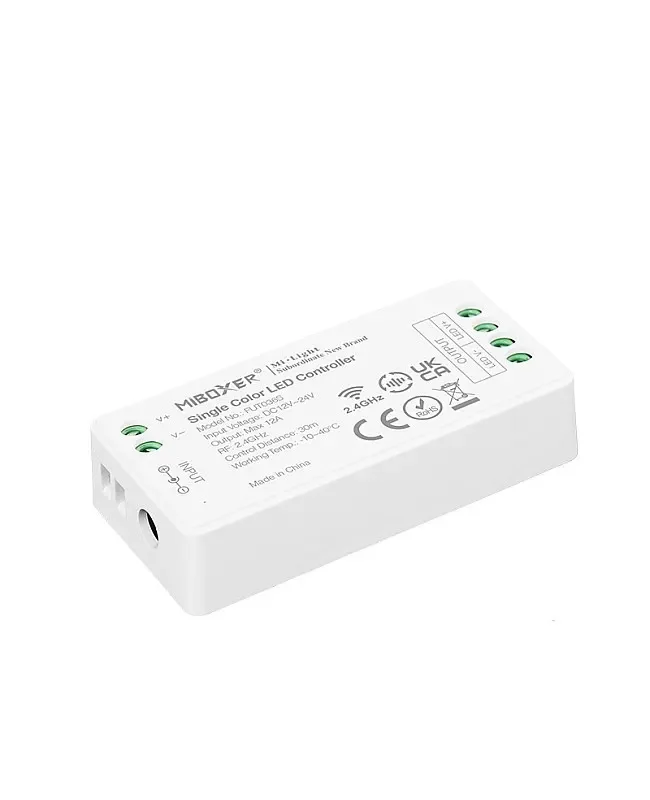

Controller Specifications
Models: (Single Color), (Dual White)
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Total Output Current: 12A
RF: 2.
Output Connection: Common Anode
Control Distance: ≤30m
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
PWM High Frequency( And Low Frequency(500Hz) Can Be Switched
Signal Transmitting
Working Temperature: -10-40℃
Remote Specifications
Size: Φ70*24mm
Colors: Black, White, Grey
Working Voltage: DC3V
Powered By 2PCS AAA Batteries
Transmitting Power: 6 dBm
Standby Power
RF: 2.
Modulation Method: GFSK
Control Distance: ≤30m
Magnetic Base Holder

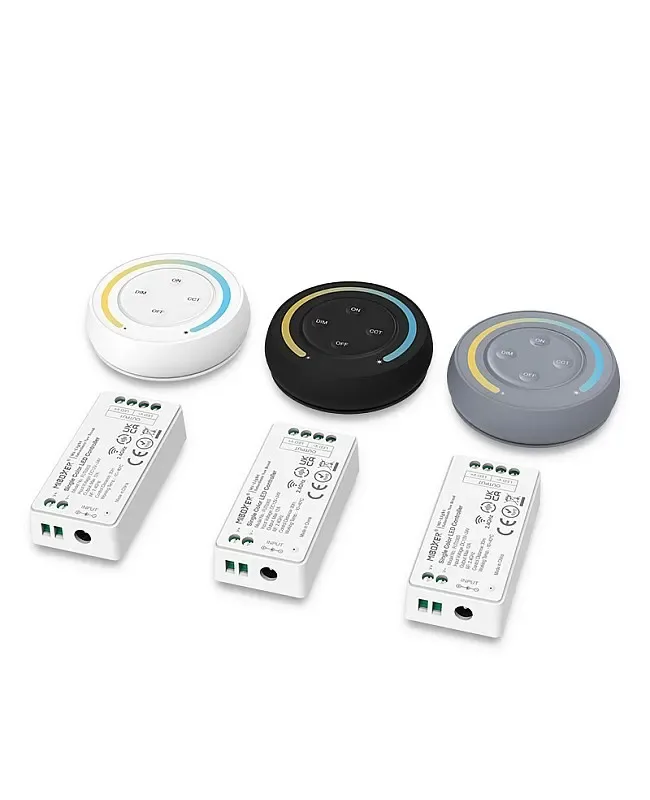

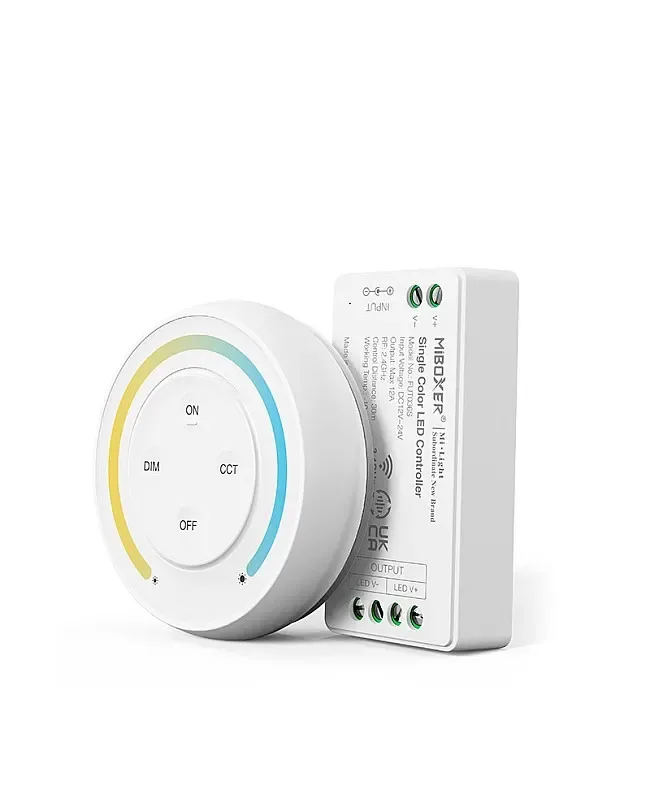

Includes
1 * PWM Dimmer
1 * 2.4G Sunrise Remote
1 * User Manual
