Product details
4G Dual White Waterproof Outdoor Controller Dimmable
LumaCircuit offers 4G Dual White Waterproof Outdoor Controller Dimmable as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 150*46.5*20mm(L*W*H) IP Rate: IP66 Waterproof RF Remote Controllable WL T1, T2, The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The dual white waterproof outdoor controller has a waterproof level of up to IP66 and can be used for outdoor dual white lighting projects. The working voltage is DC12V-24V, with dual output channels, and the maximum output current is 12A. The tunable white LED controller has an auto signal transmitting design; one controller can transmit the signals from the remote to another controller within 30m. The remote control distance can be limitless if a controller is within 30m.
- Size: 150*46.5*20mm(L*W*H)
- IP Rate: IP66 Waterproof
- RF Remote Controllable WL T1, T2,
- Stepless Dimming Brightness: 1%-100%
- Color Temperature Adjustable From 2700K To 6500K
- Output Connection: Common Anode
- Support PWM High Frequency/Low Frequency(500Hz) Switched
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-QC9TXT

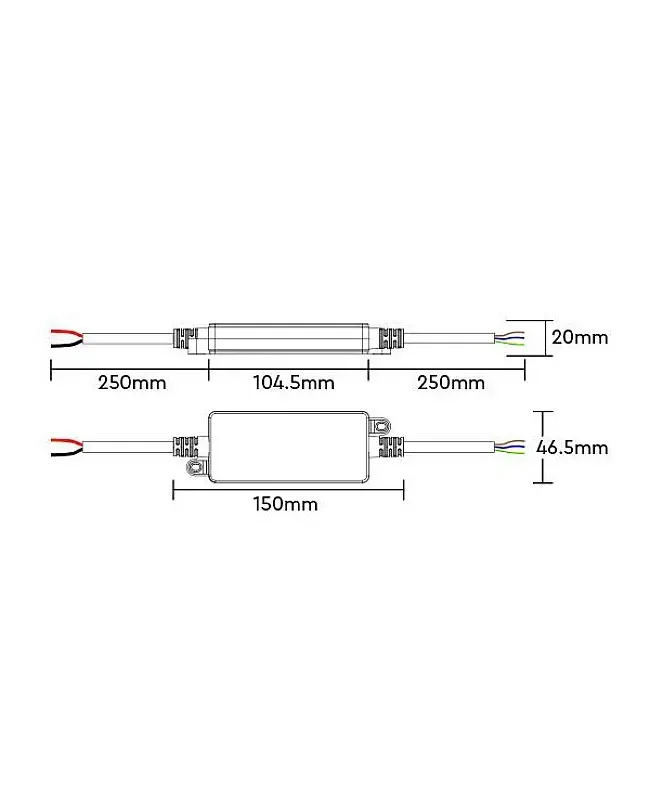

- Size: 150*46.5*20mm(L*W*H)
- Working Voltage: -24V
- Output Current: 12A Max
- IP Rate: IP66 Waterproof
- RF Remote Controllable: WL T1, T2,
- Control Distance: ≤30m
- Output Connection: Common Anode
- Working Temperature: -20-45℃
- Dimensions found: 150x46.5x20mm / 20mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

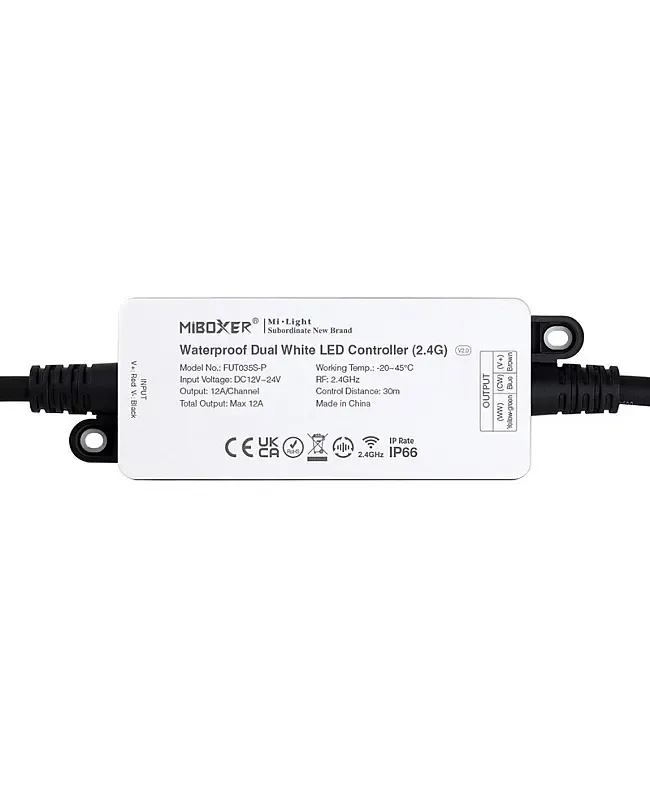

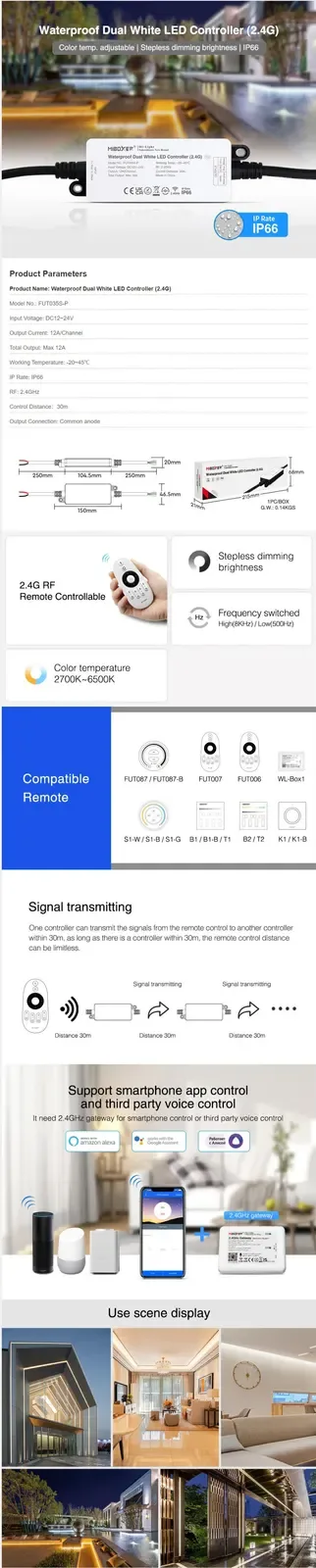

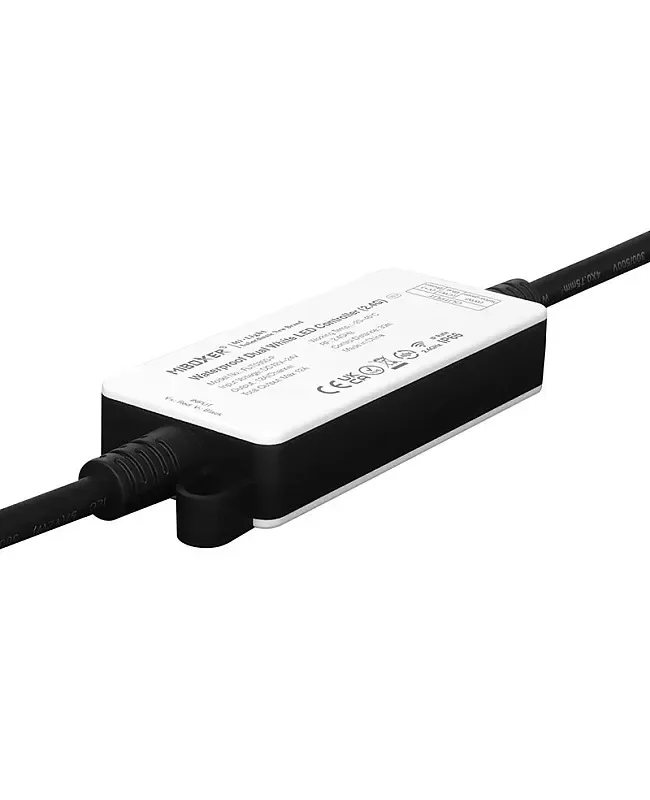

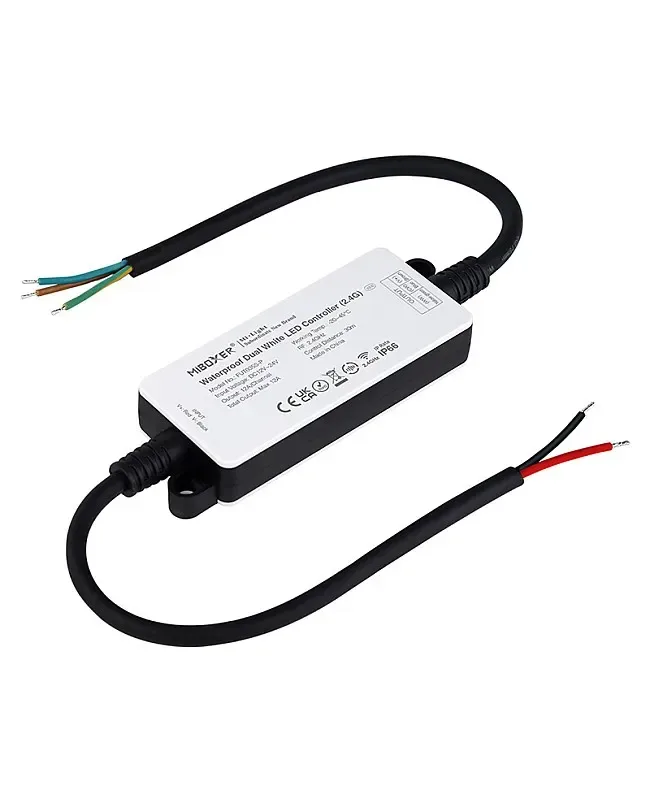

The dual white waterproof outdoor controller has a waterproof level of up to IP66 and can be used for outdoor dual white lighting projects. The working voltage is DC12V-24V, with dual output channels, and the maximum output current is 12A. The tunable white LED controller has an auto signal transmitting design; one controller can transmit the signals from the remote to another controller within 30m. The remote control distance can be limitless if a controller is within 30m. Compatible with 2.4G RF remote controls T1, T2, etc. The installer can use the remote to adjust the brightness from 1% to 100% steplessly and control the color temperature from 2700K to 6500K for various scenes. After adding a 2.4G gateway, the outdoor CCT controller supports smartphone APP Control and third-party voice control and can work with Amazon Alexa and Google Assistant. The working PWM frequency can be switched from high-frequency 8 KHz to low-frequency 500 Hz.
Specifications
Model
Size: 150*46.5*20mm(L*W*H)
Working Voltage: -24V
Output Current: 12A Max
IP Rate: IP66 Waterproof
RF: 2.
RF Remote Controllable WL T1, T2,
Stepless Dimming Brightness: 1%-100%
Color Temperature Adjustable From 2700K To 6500K
Control Distance: ≤30m
Output Connection: Common Anode
Support PWM High Frequency/Low Frequency(500Hz) Switched
Auto Signal Transmitting
Support Smartphone APP Control And Third-Party Voice Control(WL- 2.4G Gateway Needed)
Working Temperature: -20-45℃

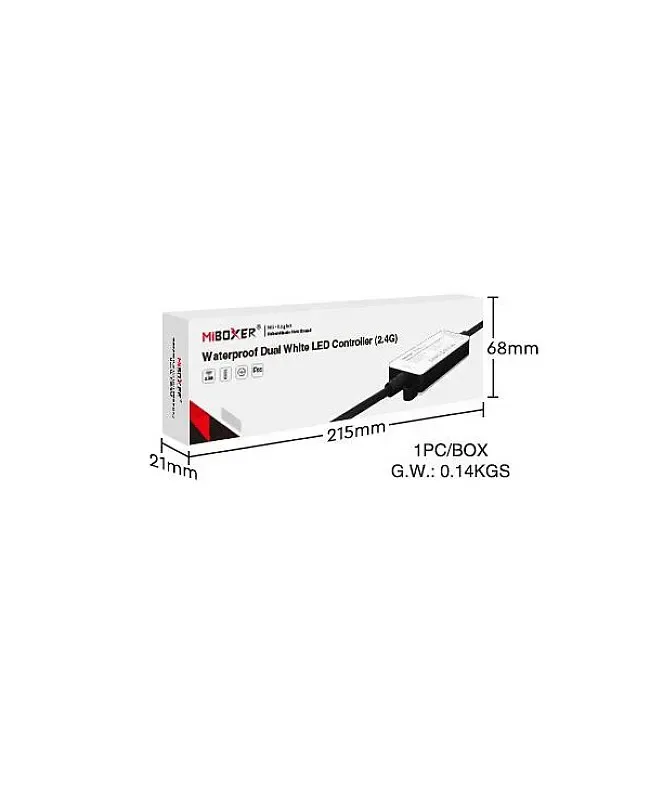

Includes
1 * Dual White Waterproof Outdoor Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
