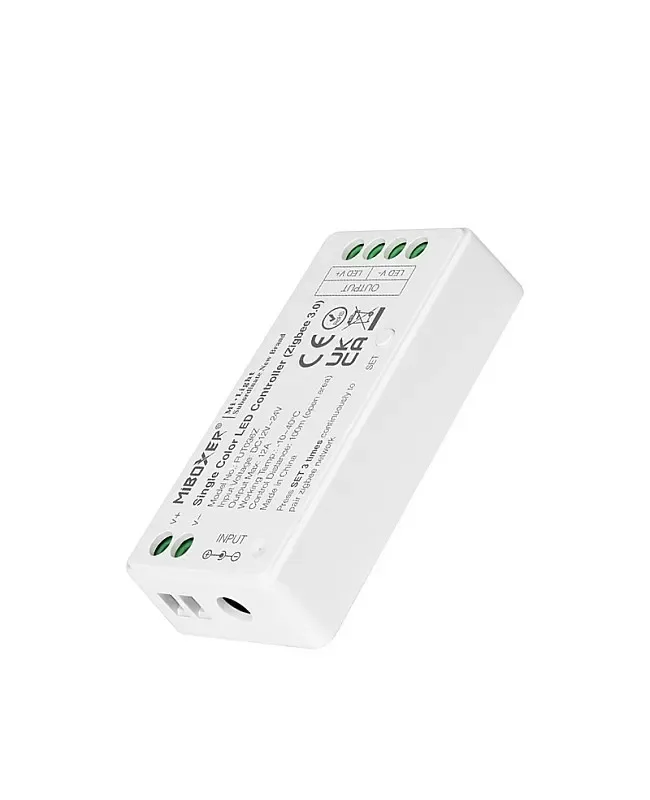

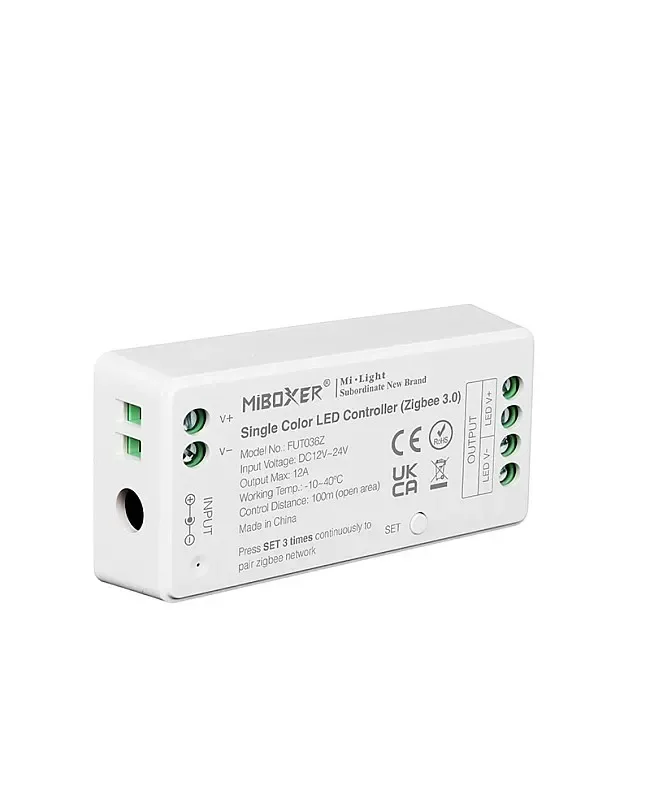

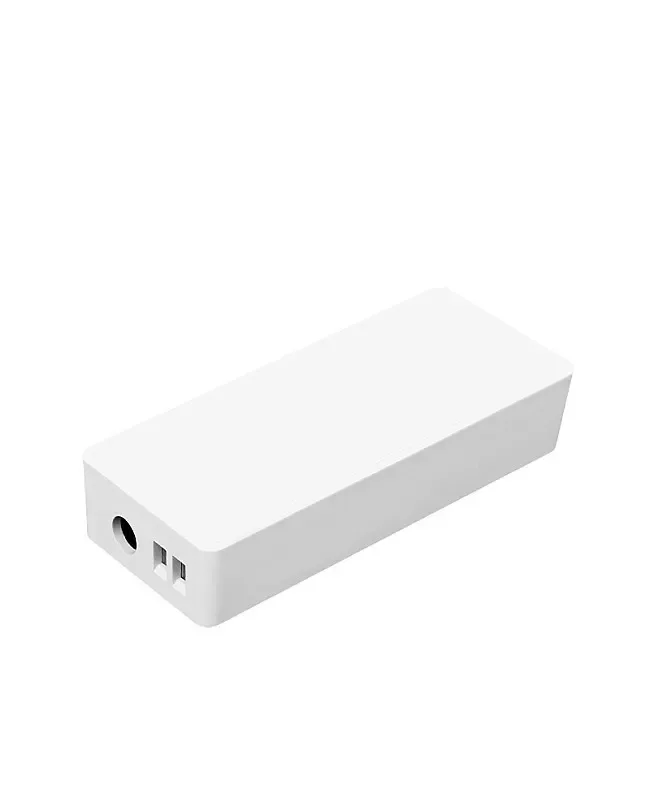

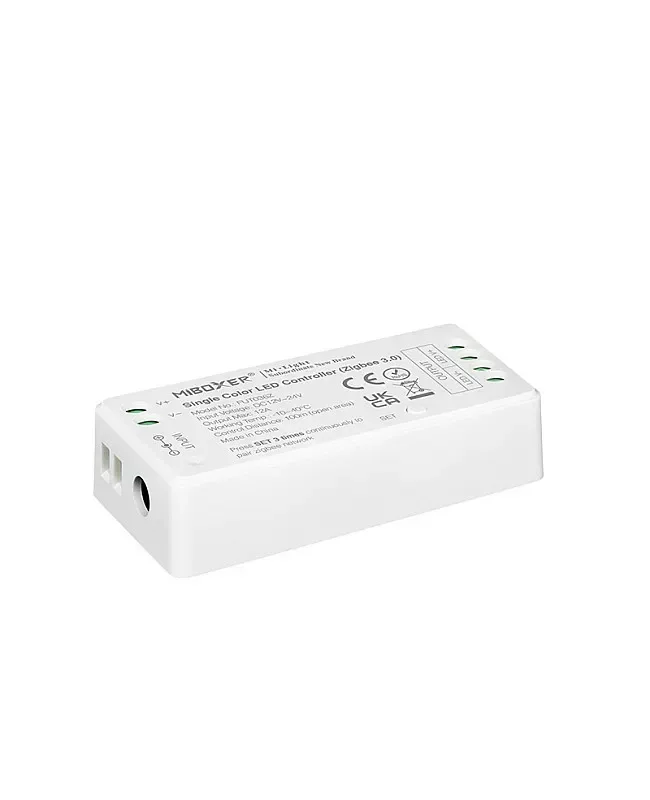

Zigbee Dimmer 12V
LumaCircuit offers Zigbee Dimmer 12V as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller + 2 In 1 Zigbee Controller For Single Color/Dual White Size: 74.5*36*17mm(L*W*H) Wireless Technology: Zigbee 802.15.4 The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller Zigbee dimmers integrate Zigbee 3.0 standard protocols and can easily adjust the brightness with single-color LED lights the product has a small size and lightweight design, works in DC12V or DC24V, can be controlled by Zigbee remote controls, Smartphone APP, and third-party voice commands after adding a Zigbee gateway, and can work with Amazon Alexa and Google Assistant.
- wireless controller + 2 In 1 Zigbee Controller For Single Color/Dual White
- Size: 74.5*36*17mm(L*W*H)
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Technology: 2.400- 2.
- Brightness Adjustable From 1% To 100%
- Control Distance:≤100m(Open Area)
- Support Smartphone APP And Third-Party Voice Control( ZB Zigbee 3.0 Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output Current: 12A
- Control Distance: ≤100m(Open Area)
- Working Temperature: -10-40℃
- LumaCircuit model: LC-CTL-3EUMJT
- Dimensions found: 74.5x36x17mm / 17mm / 100m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller Zigbee dimmers integrate Zigbee 3.0 standard protocols and can easily adjust the brightness with single-color LED lights the product has a small size and lightweight design, works in DC12V or DC24V, can be controlled by Zigbee remote controls, Smartphone APP, and third-party voice commands after adding a Zigbee gateway, and can work with Amazon Alexa and Google Assistant. The installer can adjust the brightness from 1% to 100% for various scenes, also can enter into other Zigbee gateways like Philips Hue, IKEA TRADFRI, Amazon Echo Plus( Gen), Echo( Gen), Echo Studio, Echo Show(2. Gen), etc. The installer can use the smartphone APP "mobile app" to achieve more functions like timing, biorhythm, music rhythm, scene customization, sleep/wakeup, device sharing, etc.
wireless controller + 2 In 1 Zigbee Controller For Single Color/Dual White
Specifications
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output Current: 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Technology: 2.400- 2.
Brightness Adjustable From 1% To 100%
Control Distance:≤100m(Open Area)
APP Name: mobile app
Support Smartphone APP And Third-Party Voice Control( ZB Zigbee 3.0 Gateway Needed)
Working Temperature: -10-40℃
Includes
1 * wireless controller Zigbee 3.0 Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
