12V 24V Mini LED Dimmer With Sensor
LumaCircuit offers 12V 24V Mini LED Dimmer With Sensor as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: 0-45℃ Output Power: 72W(DC12V)/144W(DC24V) Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12V-24V mini LED dimmer with sensor adopts the advanced PWM(Pulse Width Modulation) digital control technology for controlling constant voltage single color LED lights in the cabinet or furniture application. The mini LED dimmers come with two sensors, which the installer can order separately. The A Model will automatically switch on or off the light when people close the door to block the ITR sensor or open the door to release the blocking.
- Working Temperature: 0-45℃
- Output Power: 72W(DC12V)/144W(DC24V)
- Static Power Consumption: <1W
- Model A: Automatically Switch On/Off By Closing The Door Or Opening
- Model B: Switch On/Off By Operation Of People's Hand Goes Through Without Touch
- 1 * Mini LED Dimmer With Sensor
- The Mini LED Dimmers work in DC12V or DC24V, only one channel output and the max output current is 6A, two different sensors available, will switch on or switch off the light automatically.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 12-24 V
- Size: 48*26*13mm
- Working Temperature: 0-45℃
- Size: * * mm
- Working Voltage: -24V
- Output Current: 6A*1CH
- Output Power: 72W(DC12V)/144W(DC24V)
- Static Power Consumption: <1W
- PWM Frequency: 490Hz
- Model A: Automatically Switch On/Off By Closing The Door Or Opening
- Model B: Switch On/Off By Operation Of People's Hand Goes Through Without Touch
- LumaCircuit model: LC-CTL-5ZTF4I
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

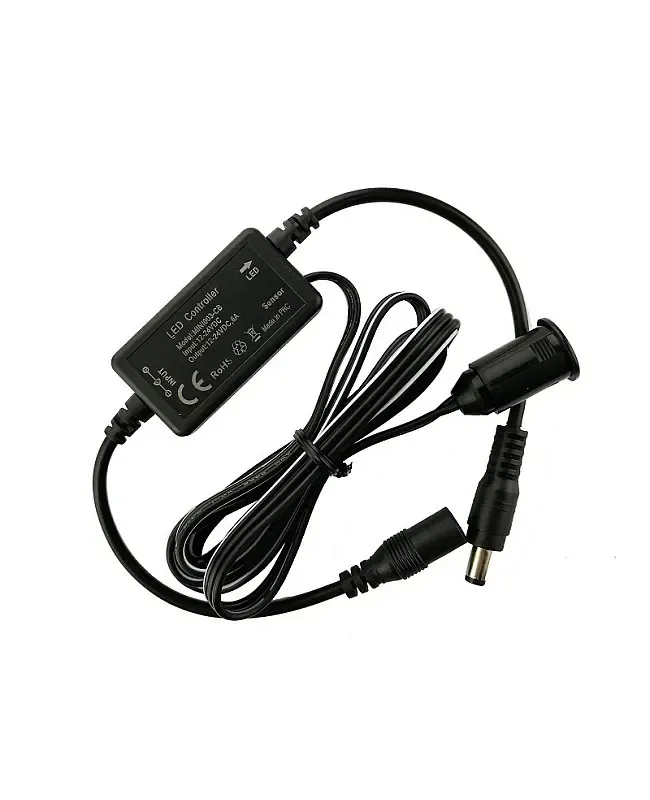

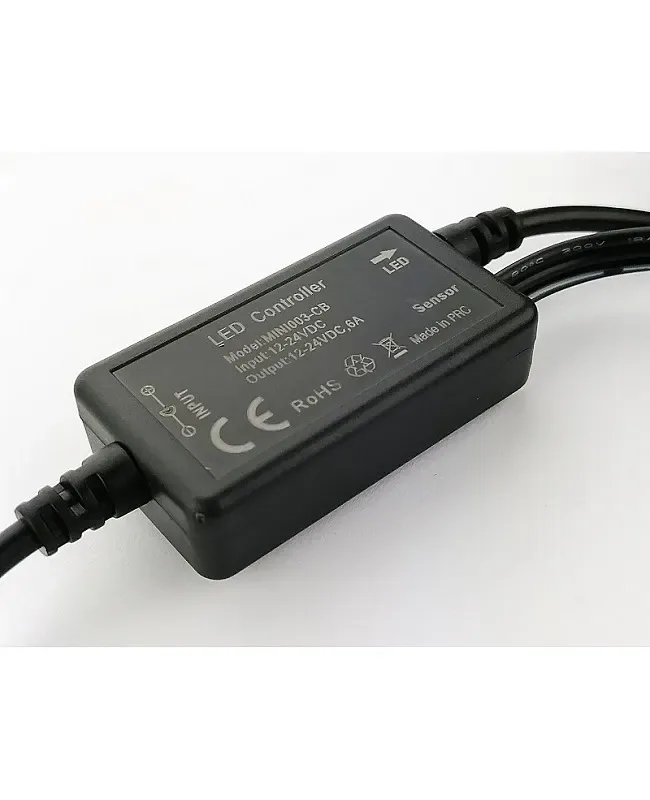

The 12V-24V mini LED dimmer with sensor adopts the advanced PWM(Pulse Width Modulation) digital control technology for controlling constant voltage single color LED lights in the cabinet or furniture application. The mini LED dimmers come with two sensors, which the installer can order separately. The A Model will automatically switch on or off the light when people close the door to block the ITR sensor or open the door to release the blocking. The B Model will switch on or off the light by operating people's hands going through the ITR sensor without touching. The LED mini dimmer has a stable sensitivity feature, an ITR sensor, and soft light up and down.
Specifications
Size: 48*26*13mm
Working Temperature: 0-45℃
Size: * * mm
Working Voltage: -24V
Output Current: 6A*1CH
Output Power: 72W(DC12V)/144W(DC24V)
Static Power Consumption: <1W

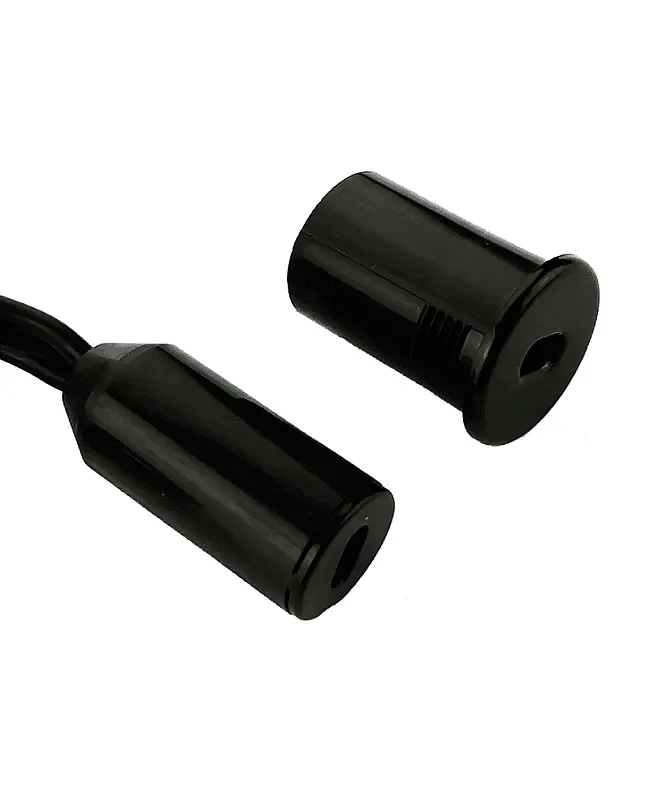

Sensor: ITR
Sensor Range: 0-8cm
Sensor Cable: 1 Meter
PWM Frequency: 490Hz
Model A: Automatically Switch On/Off By Closing The Door Or Opening
Model B: Switch On/Off By Operation Of People's Hand Goes Through Without Touch
1 * Mini LED Dimmer With Sensor
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
