DC12V LED Music Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

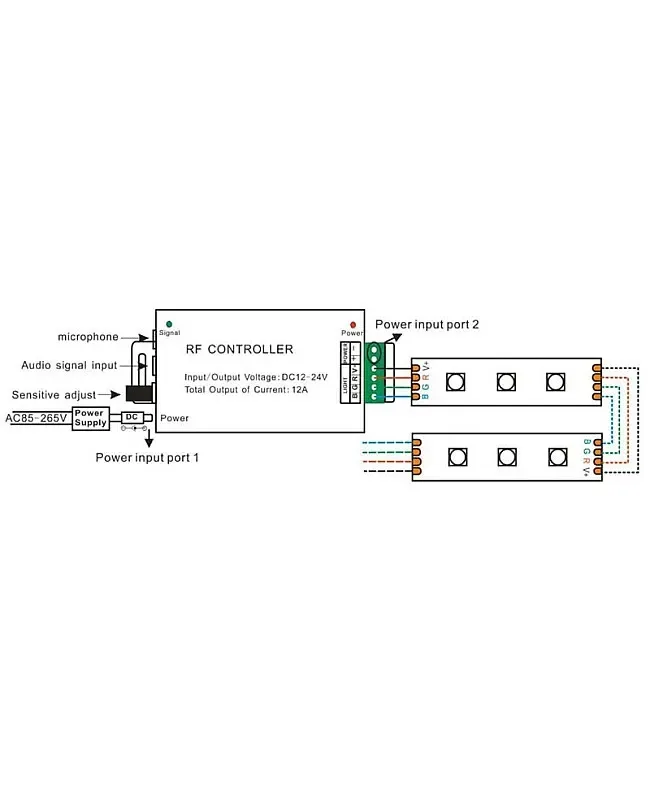

• The LED music controllers are enclosed in an aluminum housing for better heat dissipation. It works on DC12V or DC24V and adopts the advanced micro control unit, used for controlling a variety of LED lights. It has three output channels designed, with a max output of each channel up to 4A, and a max loading power of up to 288W when working in DC24V. It adopts the conventional power transposon as a DC power input interface, a microphone, and standard 3.5 mm headphone ports for signal input.
• Working temperature: -20-60℃

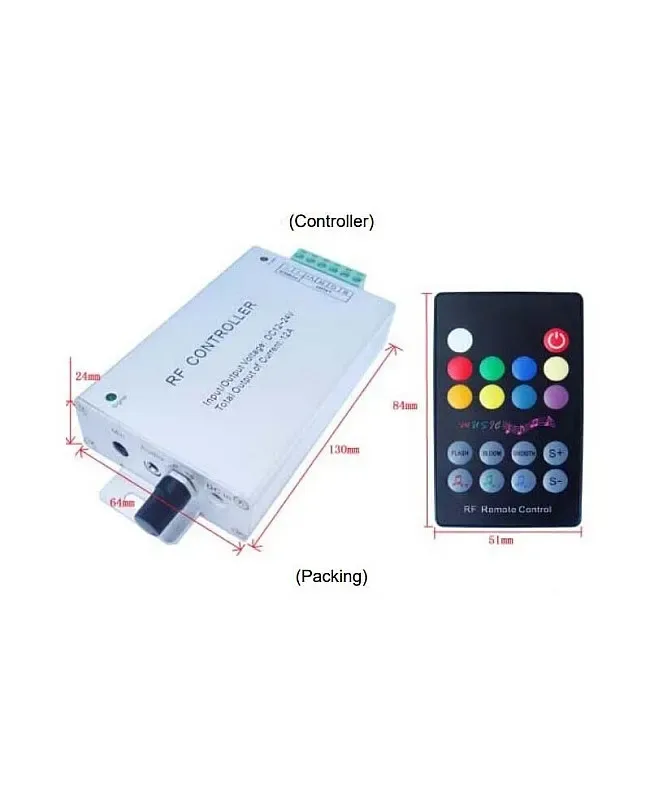

• Size: 130mm*64mm*24mm(L*W*H)
• Connecting Mode: Common Anode
• Working voltage: DC12V-DC24V
• Max Output Current: <4A(Each Channel)
• Power: DC12V:≤144W 24V:≤288W
• Static power consumption: <1W

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 24 V
• LumaCircuit model: LC-CTL-FWFVKR
• Working temperature: -20-60℃
• Size: 130mm*64mm*24mm(L*W*H)
• Connecting Mode: Common Anode
• Working voltage: DC12V-DC24V
• Output Channels: 3
• Max Output Current: <4A(Each Channel)
• Power: DC12V:≤144W 24V:≤288W
• Static power consumption: <1W
• Dimensions found: 130mm / 64mm / 24mm

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The LED music controllers are enclosed in an aluminum housing for better heat dissipation. It works on DC12V or DC24V and adopts the advanced micro control unit, used for controlling a variety of LED lights. It has three output channels designed, with a max output of each channel up to 4A, and a max loading power of up to 288W when working in DC24V. It adopts the conventional power transposon as a DC power input interface, a microphone, and standard 3.5 mm headphone ports for signal input. With the 18-key RF remote control included, the installer can adjust the brightness, static color choices, and various dynamic changes in lighting effects through wireless remote control. All static modes are adjustable. Press the color button once, and the brightness changes one level in a circle, 5 levels in total. S+/S- means speed adjust key for the dynamic functions and sensitivity adjust key for the music functions. There are three music modes available: sound control I(FT): fast track; sound control II(MT): my track; sound control III(CT): cool track. The different buttons are for various music and other modes.

Specifications

Model

Working temperature: -20-60℃

Size: 130mm*64mm*24mm(L*W*H)

Connecting Mode: Common Anode

Working voltage: DC12V-DC24V

Output Channels: 3

Max Output Current: <4A(Each Channel)

Power: DC12V:≤144W 24V:≤288W

Static power consumption: <1W

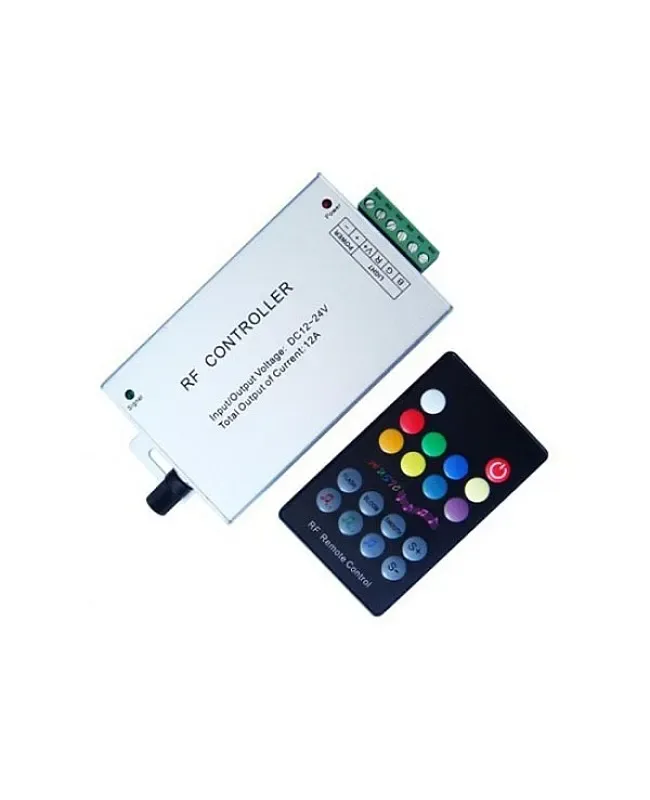

18 Keys RF Remote Control Included

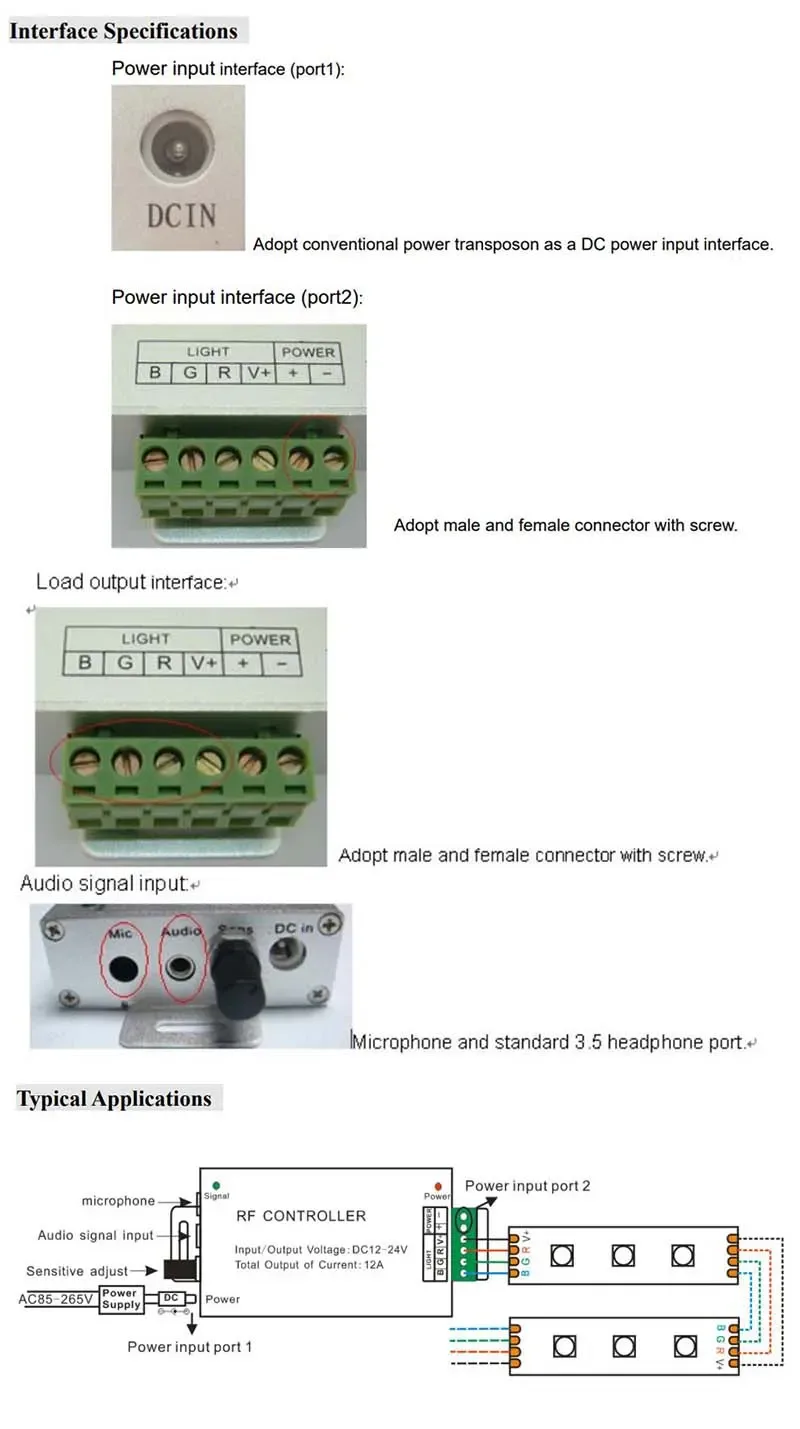

Adopts Conventional Power Transposon As A DC Power Input Interface

Adopts Male And Female Connectors With Screws

Adopts Microphone And Standard 3.5 mm Headphone Port

9 Static Colors, 3 Dynamic Modes, And 3 Music Modes Available

Weight: 215g

1 * LED Music Controller
