Product details
12V 8A 96W Adjustable Brightness LED Single Color Dimmer
LumaCircuit offers 12V 8A 96W Adjustable Brightness LED Single Color Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Item Type: Single Color LED Dimmer Working temperature: -20 ℃-60 ℃ Power: 96W(12V); 192W(24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RF LED single color dimmer works on DC12V and DC24V, with one channel output and a max output current of 8A, and the max loading power is up to 192W when working in 24V. The LED dimmer adopts the most advanced PWM digital brightness technology. Comes with an RF remote control to adjust brightness from a distance. Extend the life tenure of LED and save energy.
- Item Type: Single Color LED Dimmer
- Working temperature: -20 ℃-60 ℃
- Power: 96W(12V); 192W(24V)
- Static power consumption: <1W
- 1 * Single Color LED Dimmer
- A production-ready controller family with a replaceable Zigbee control path.
- The configured light engine is System component.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- LumaCircuit model: LC-CTL-58AFM5
- Working temperature: -20 ℃-60 ℃
- Voltage: DC12V-24V
- Output: 1 Channel
- Current: 8A
- Power: 96W(12V); 192W(24V)
- Static power consumption: <1W
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

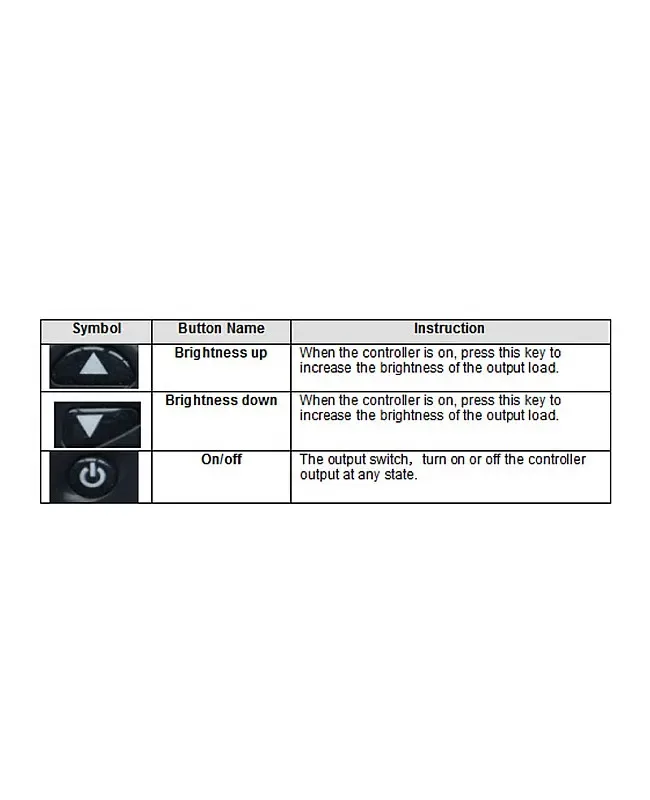

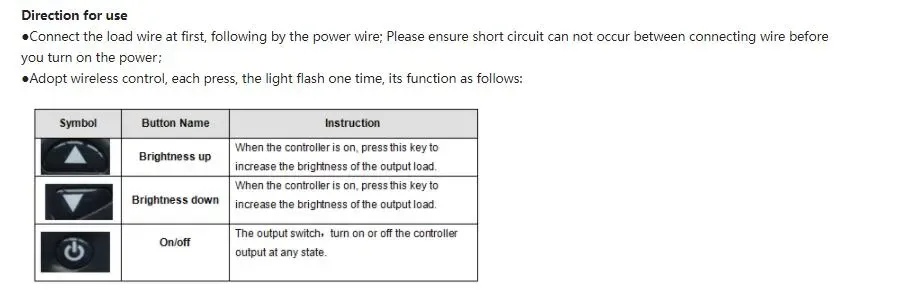

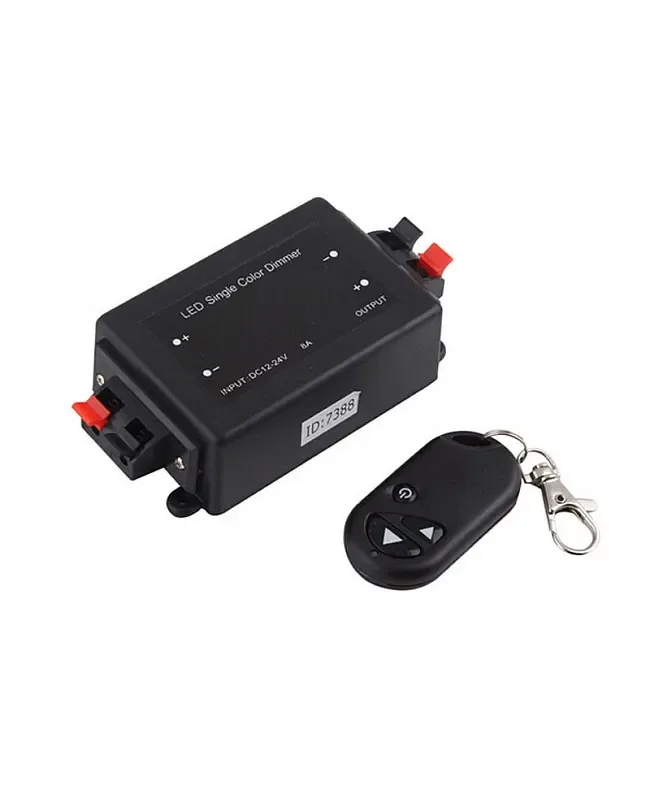

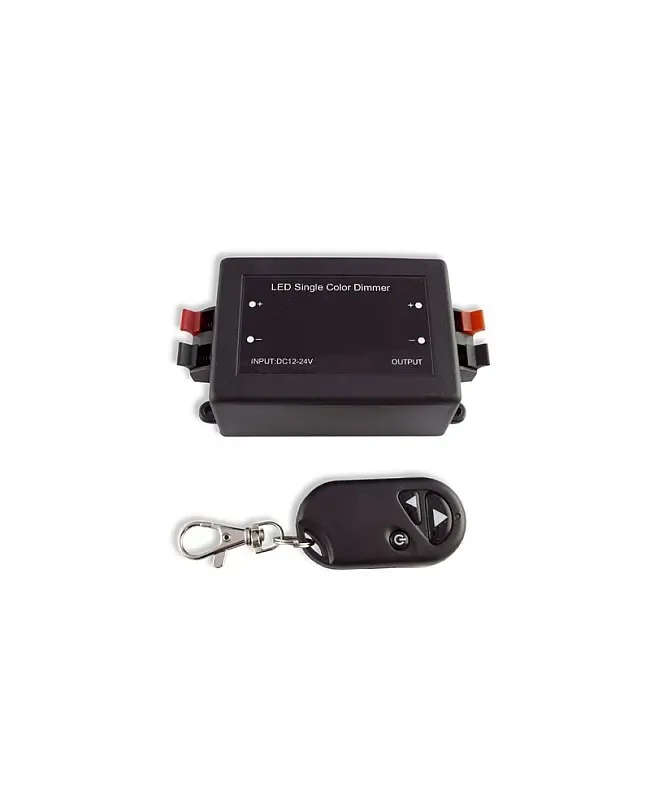

The RF LED single color dimmer works on DC12V and DC24V, with one channel output and a max output current of 8A, and the max loading power is up to 192W when working in 24V. The LED dimmer adopts the most advanced PWM digital brightness technology. Comes with an RF remote control to adjust brightness from a distance. Extend the life tenure of LED and save energy. There are three buttons on the remote; the installer can use them to power on or off the single color LED light, and adjust the brightness of the LED light strips.
Specifications
LB-L-D-01
Manufacturer
Item Type: Single Color LED Dimmer
Dimension: **
Working temperature: -20 ℃-60 ℃
Voltage: DC12V-24V
Output: 1 Channel
Current: 8A
Power: 96W(12V); 192W(24V)
Static power consumption: <1W
Weight: 130g
Package Contents
1 * Single Color LED Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
