Multi Zones 2.4G RF RGB LED Controller
LumaCircuit offers Multi Zones 2.4G RF RGB LED Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Size: 127*41*32mm(L*W*H) Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The multi-zone 2.4G RF RGB LED controllers include the RGB LED controller and RF remote control to achieve integrated control of multiple areas within the effective distance range, and meet the growing demands of LED lighting environmental control. Working on DC12V or DC24V, has a 3-output channel design, the max output current of each channel up to 6A, and the max loading power up to 432W when working in 24V.
- Working Temperature: -20-60℃
- Size: 127*41*32mm(L*W*H)
- Connecting Mode: Common Anode
- Output Current: <6A Each Channel
- Output Power: <216W(DC12V), <432W(DC24V)
- Size: 150*62*25mm(L*W*H)
- Working Voltage: 3V(AAA*2)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12-24 V / 12 V
- Light engine: RGB
- Working Temperature: -20-60℃
- Size: 127*41*32mm(L*W*H)
- Working Voltage: -24V
- Standby Power: <1W
- Connecting Mode: Common Anode
- Output Channels: 3
- Output Current: <6A Each Channel
- Output Power: <216W(DC12V), <432W(DC24V)
- LumaCircuit model: LC-CTL-98QKJH
- Dimensions found: 127x41x32mm / 32mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

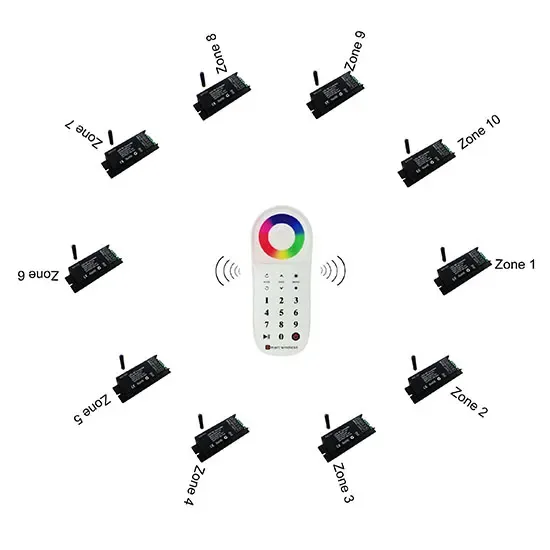

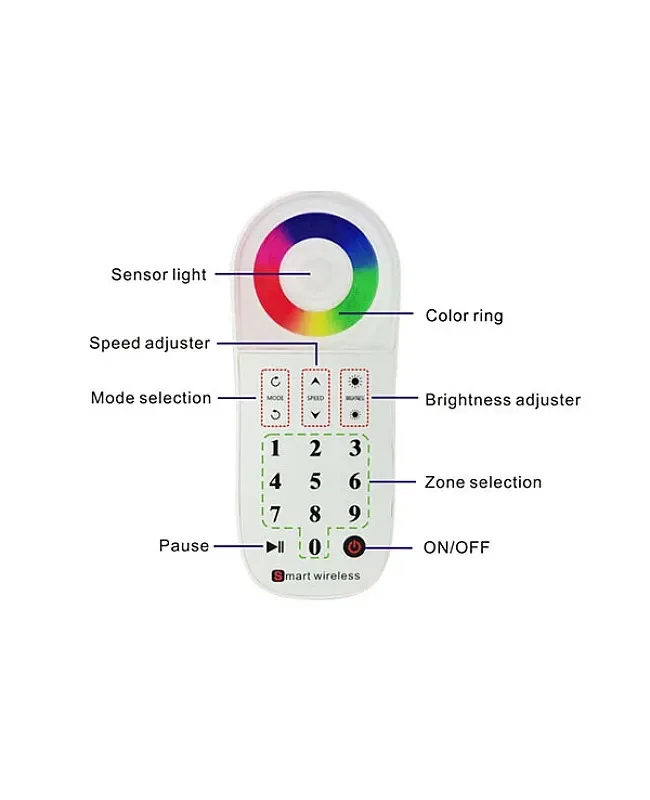

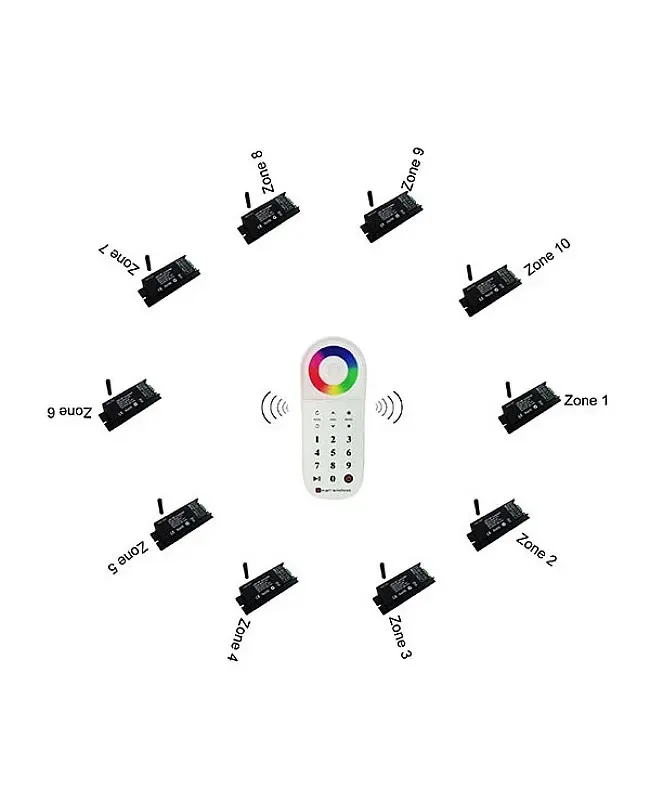

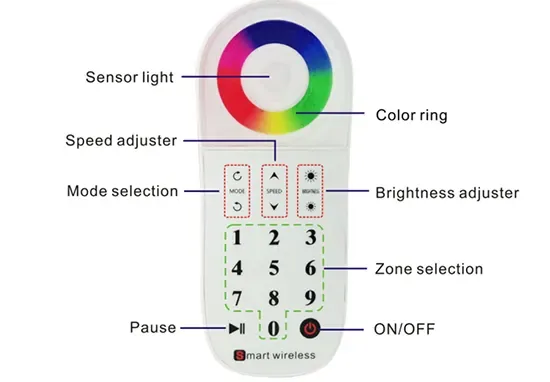

The multi-zone 2.4G RF RGB LED controllers include the RGB LED controller and RF remote control to achieve integrated control of multiple areas within the effective distance range, and meet the growing demands of LED lighting environmental control. Working on DC12V or DC24V, has a 3-output channel design, the max output current of each channel up to 6A, and the max loading power up to 432W when working in 24V. The installer can use them for the RGB LED strips, color-changing LED modules, LED string lights, or other color LED lights. The 18-key RF remote control is included to achieve independent control for up to 10 areas, including switching, pause, speed, and brightness adjustment. The installer can adjust the color conveniently by pressing the color ring.
RGB LED Controller Specifications
Working Temperature: -20-60℃
Size: 127*41*32mm(L*W*H)
Working Voltage: -24V
Standby Power: <1W
Connecting Mode: Common Anode
Brightness Level: 256
Speed Levels: 100
Output Channels: 3
Output Current: <6A Each Channel
Output Power: <216W(DC12V), <432W(DC24V)
Memory Function: YES
Effect: 11
Weight: 200g
RF Remote Control Specifications
Size: 150*62*25mm(L*W*H)
Working Temperature: -20℃-60℃
Working Voltage: 3V(AAA*2)
Standby Current: 6.
Working Current
Standby Power: 0.
Working Power: 0.192W
Weight: 120g

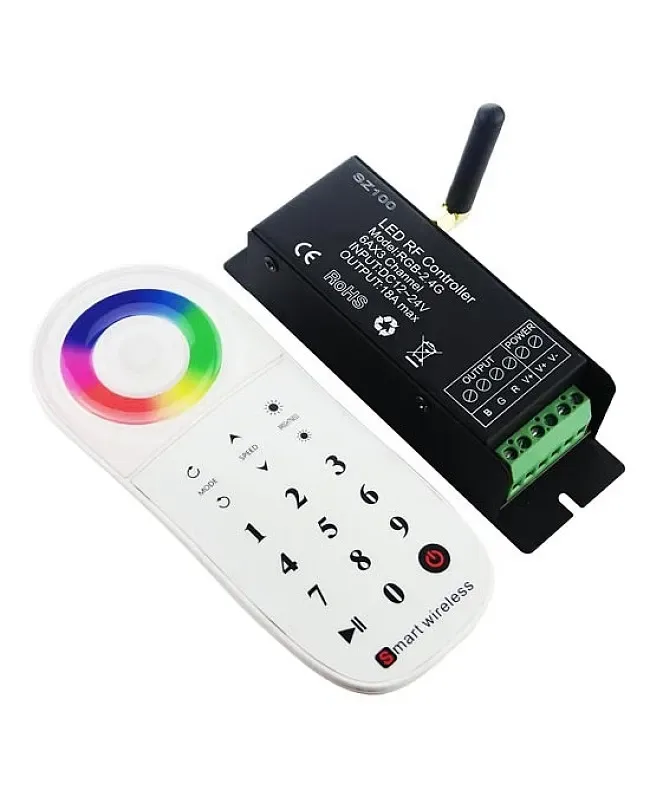

1 * Multi-Zone LED Controller
1 * RF Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
