12V Mini LED Lamp Dimmer With ITR Sensor
LumaCircuit offers 12V Mini LED Lamp Dimmer With ITR Sensor as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20-60℃ Static Power Consumption: <1W Sensor Cable Length: 1 Meter The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The mini LED lamp dimmer with an ITR sensor is designed for single-color constant-voltage LED lights in kitchen worktop lighting or bathroom mirror applications. The mini LED dimmer works in DC12V-24V, with one output channel design, the max output current up to 6A, stable sensitivity with an ITR sensor, and soft light up and down. The ITR sensor will switch on/off and dim the light by operating people's hands going through the ITR sensor without touching them. The dimming range is from 0.4% to 100%.
- Working Temperature: -20-60℃
- Static Power Consumption: <1W
- Sensor Cable Length: 1 Meter
- Max Loading Power: 72W(12V)/144W(24V)
- Dimming Range: 0.4%-100%
- Stable Sensitivity With ITR Sensor, Soft Light Up And Down
- Applications: Kitchen Worktop Lighting/Bathroom Mirror Application
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V / 24 V
- LumaCircuit model: LC-CTL-5HTHHF
- Size: 48*26*13mm(L*W*H)
- Working Temperature: -20-60℃
- Working Voltage: -24V
- Static Power Consumption: <1W
- Sensor Cable Length: 1 Meter
- Output Channel: 1
- Output Current: ≤6A
- Max Loading Power: 72W(12V)/144W(24V)
- PWM Frequency: 490Hz
- Applications: Kitchen Worktop Lighting/Bathroom Mirror Application
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

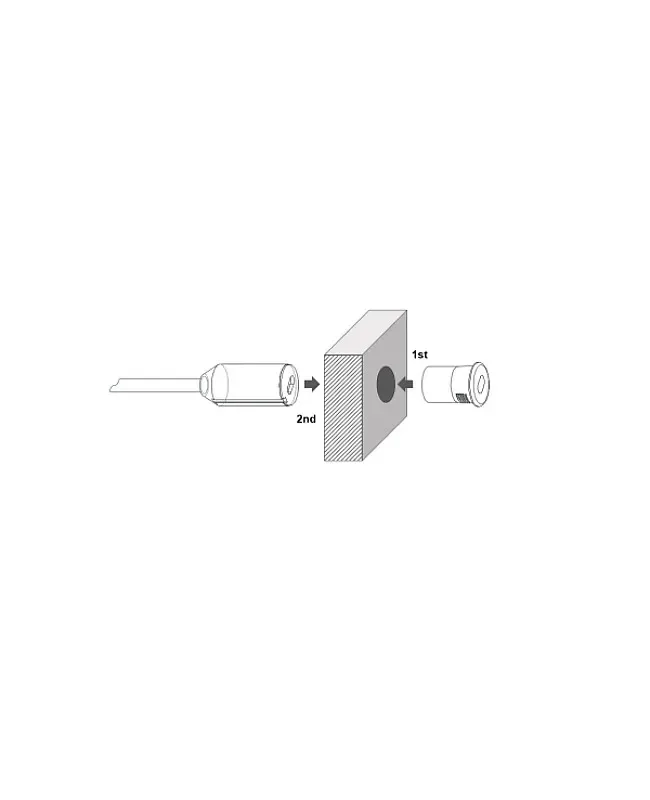

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

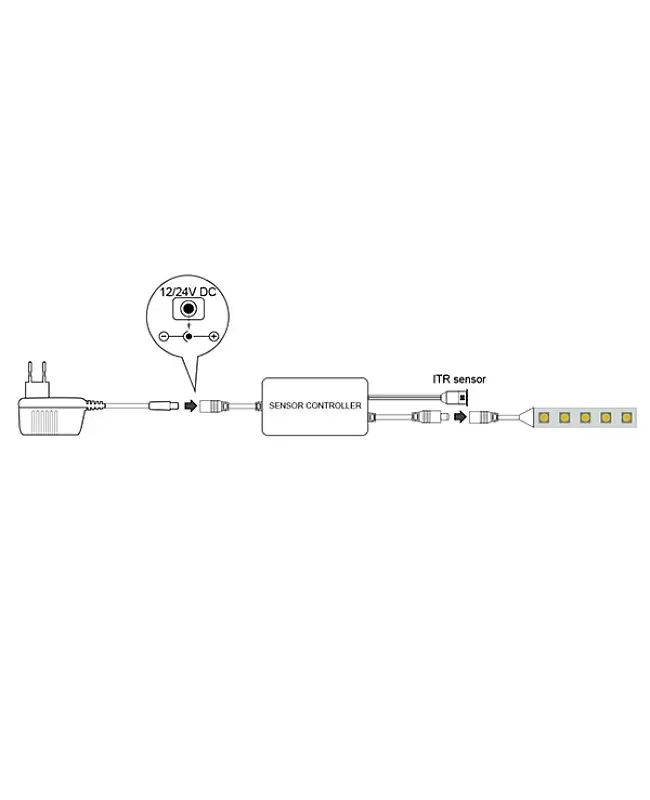

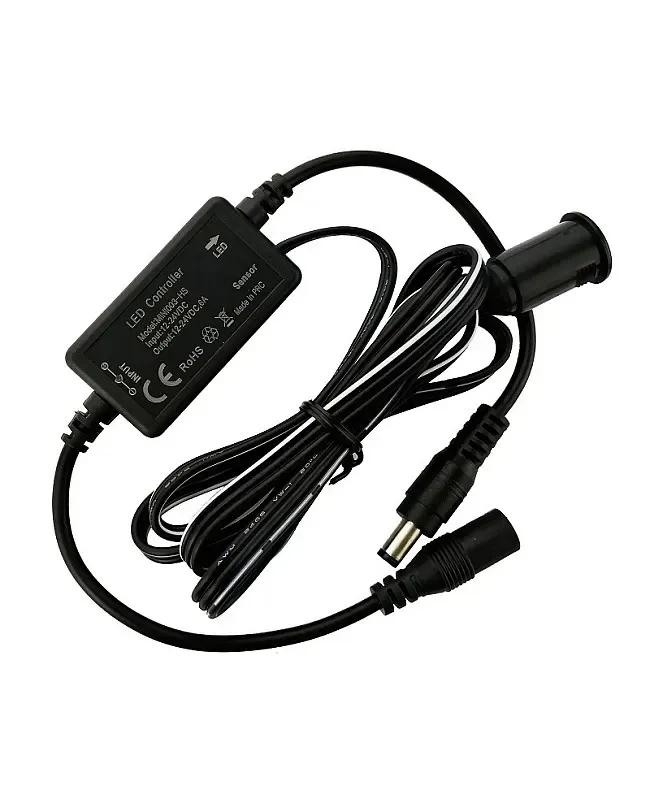

The mini LED lamp dimmer with an ITR sensor is designed for single-color constant-voltage LED lights in kitchen worktop lighting or bathroom mirror applications. The mini LED dimmer works in DC12V-24V, with one output channel design, the max output current up to 6A, stable sensitivity with an ITR sensor, and soft light up and down. The ITR sensor will switch on/off and dim the light by operating people's hands going through the ITR sensor without touching them. The dimming range is from 0.4% to 100%. With both ends of the lamp dimmer with LED DC connectors, the installer can easily connect to the LED transformer and the single-color LED lights.
Specifications
Model

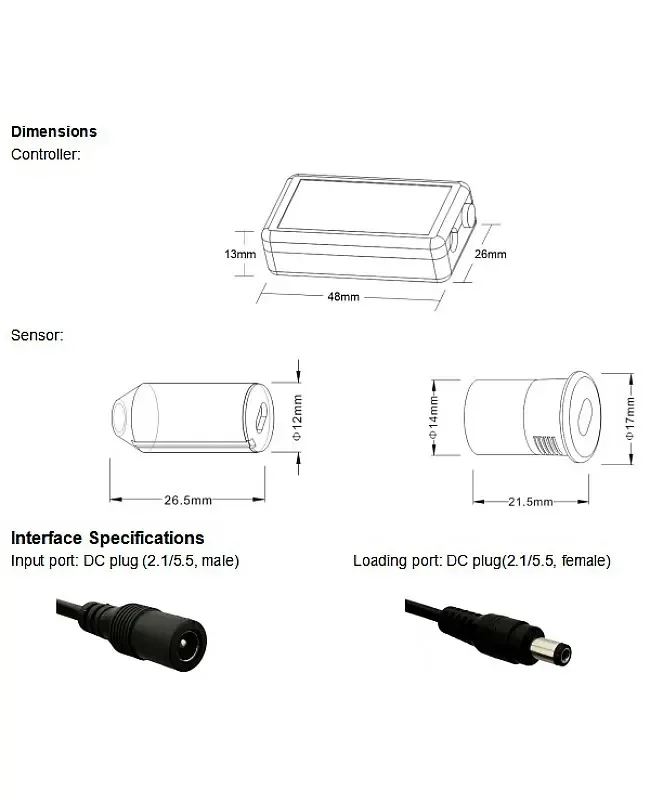

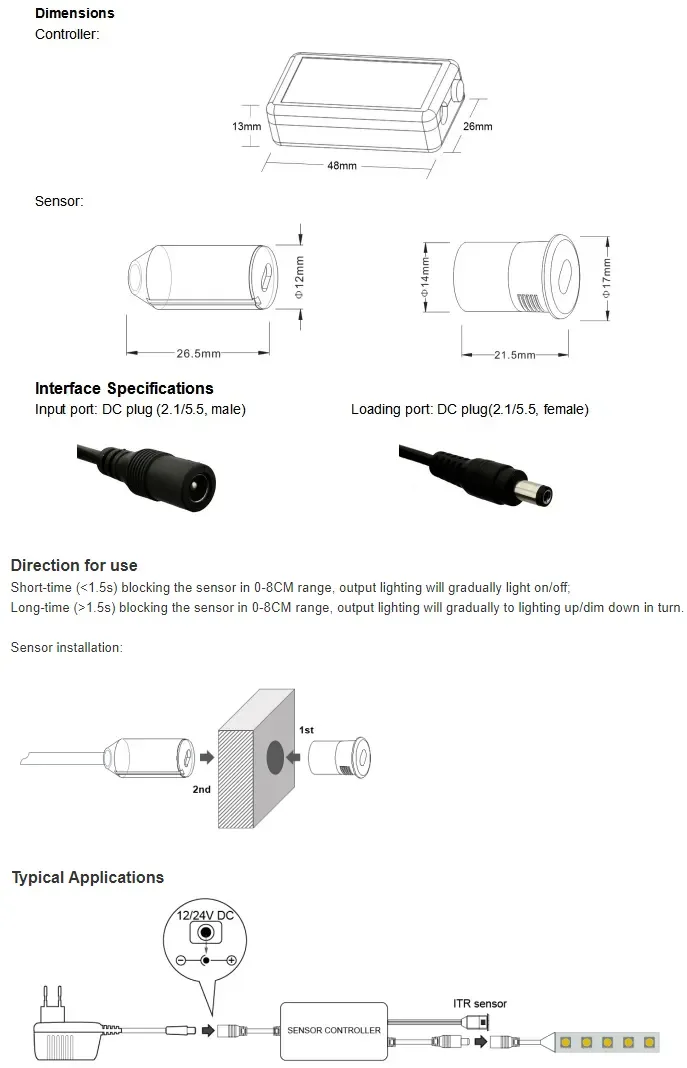

Size: 48*26*13mm(L*W*H)
Model: HX--CB
Working Temperature: -20-60℃
Working Voltage: -24V
Static Power Consumption: <1W

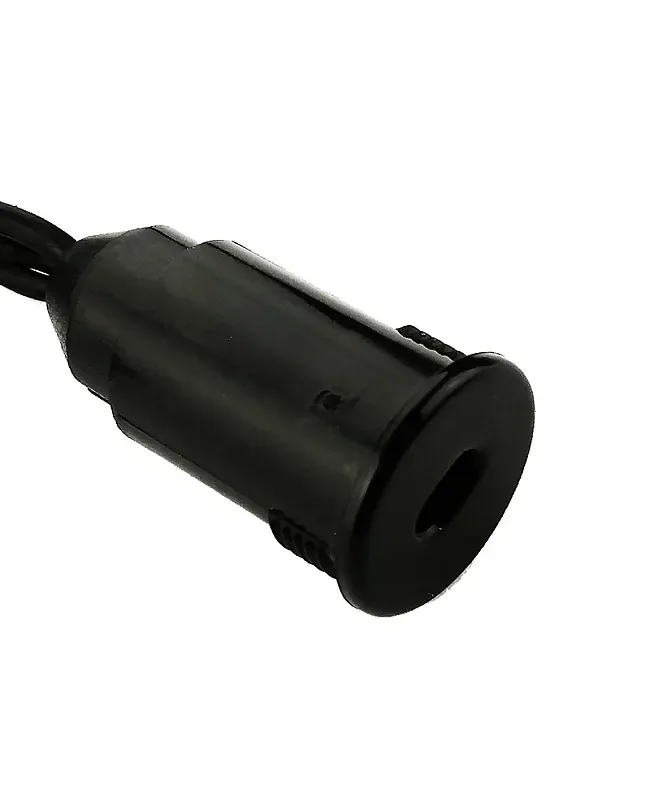

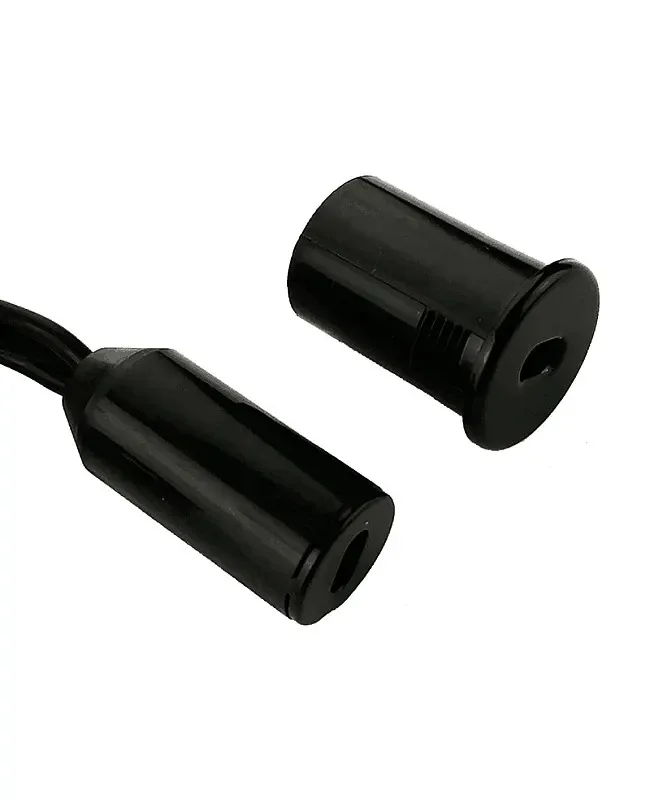

Sensor: ITR
Sensor Range: 0- 8 cm
Sensor Cable Length: 1 Meter
Output Channel: 1
Output Current: ≤6A
Max Loading Power: 72W(12V)/144W(24V)
PWM Frequency: 490Hz
Dimming Range: 0.4%-100%
Stable Sensitivity With ITR Sensor, Soft Light Up And Down
Applications: Kitchen Worktop Lighting/Bathroom Mirror Application
Includes
1 * LED Lamp Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
