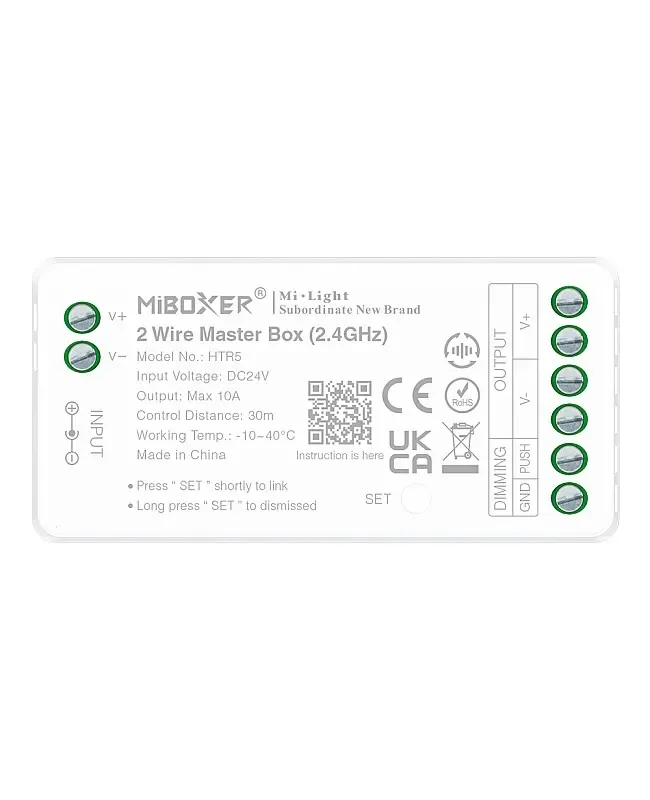

2 Wire Master Box Controller APP Control
LumaCircuit offers 2 Wire Master Box Controller APP Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Note: Must be used with wireless controller Two-Wire Control Series Subordinate Lamps Type: 2-Wire Maxter Box Controller(2.4G) Size: 74.5*36*17mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 2-wire master box controllers have a two-wire design to reduce cables, reduce costs, and connect quickly. The 2-Wire controllers adopt the widely used 2 wireless technology that wireless controller remote controls can control to set the color and adjust the brightness for various senses. One remote control can control many at the same time. After pairing with a 2.4G gateway, the 2-wire controllers can be controlled by a smartphone APP and voice commands.
- Note: Must be used with wireless controller Two-Wire Control Series Subordinate Lamps
- Type: 2-Wire Maxter Box Controller(2.4G)
- Size: 74.5*36*17mm(L*W*H)
- Output Type: Constant Voltage
- 4G RF Control Distance: 2. RF
- Compatible With 2.4G RF Remote Controls +
- Support Tuya Smart APP Control(2. Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGBW
- LumaCircuit model: LC-CTL-8DS2W0
- Size: 74.5*36*17mm(L*W*H)
- Input Voltage: DC24V
- Output Current: 10A Max
- Output Power: 240W
- Output Type: Constant Voltage
- 2.4G RF Control Distance: 2. RF
- Control Distance: ≤30M
- Compatible With 2.4G RF Remote Controls: +
- IP Rate: IP20 Non-waterproof
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

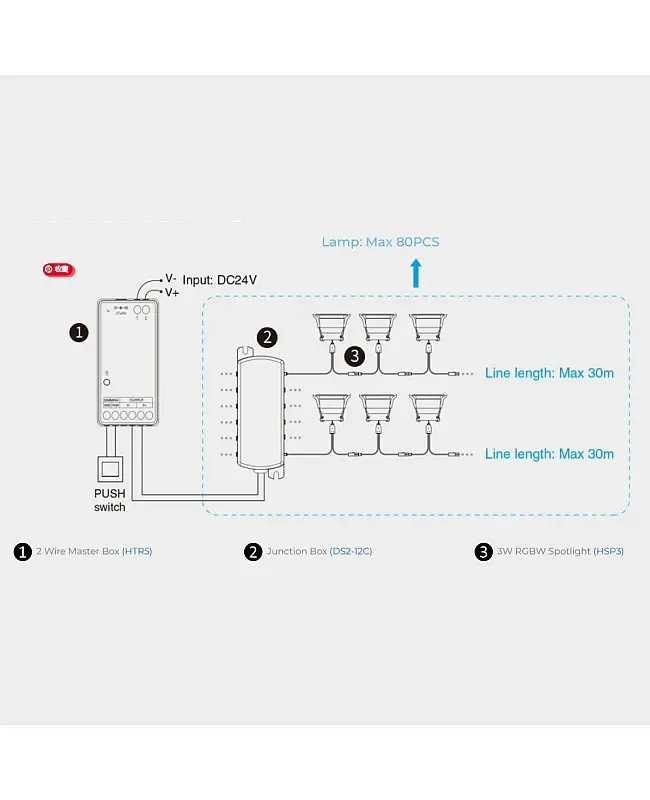

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller 2-wire master box controllers have a two-wire design to reduce cables, reduce costs, and connect quickly. The 2-Wire controllers adopt the widely used 2 wireless technology that wireless controller remote controls can control to set the color and adjust the brightness for various senses. One remote control can control many at the same time. After pairing with a 2.4G gateway, the 2-wire controllers can be controlled by a smartphone APP and voice commands.
Note: Must be used with wireless controller Two-Wire Control Series Subordinate Lamps
Specifications
Type: 2-Wire Maxter Box Controller(2.4G)
Model

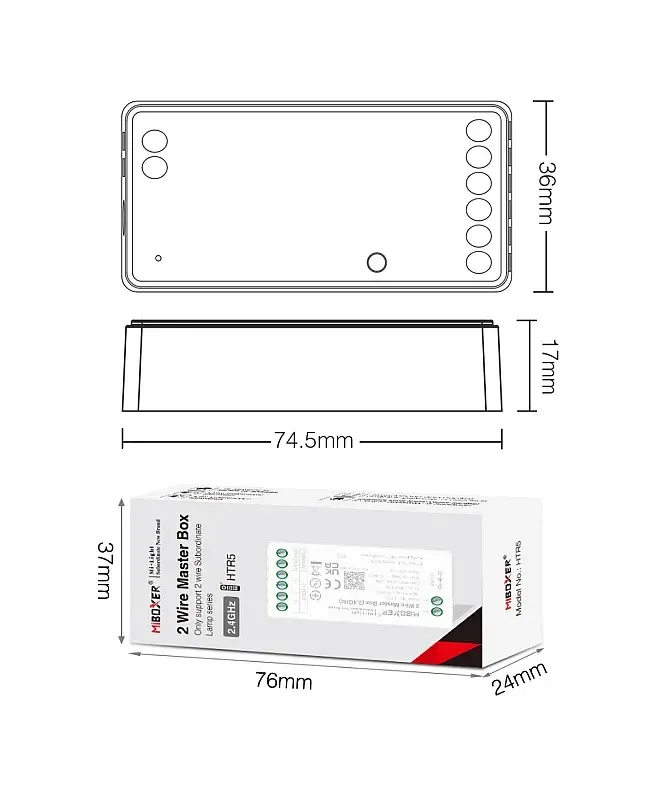

Size: 74.5*36*17mm(L*W*H)
Input Voltage: DC24V
Output Current: 10A Max
Output Power: 240W
Output Type: Constant Voltage
4G RF Control Distance: 2. RF
Control Distance: ≤30M
Compatible With 2.4G RF Remote Controls +
Support Tuya Smart APP Control(2. Gateway Needed)
Support Third-party Voice Control: Amazon Alexa, Google Assistant(2. Gateway Needed)
Dimming Grayscale: 4096 Levels
Dimming Range: 0-100%
Dimming Curve: Logarithmic
EMC Standard(EMC): ETSI EN 301 489-1.2.3 ETSI EN 301 489-3.1.1
Safety Standard(LVD): EN 61347-1: 2015+:2021 EN 61347-2-11: 2001+:2019
Radio Equipment(RED): ETSI EN 300 440.2.1
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes

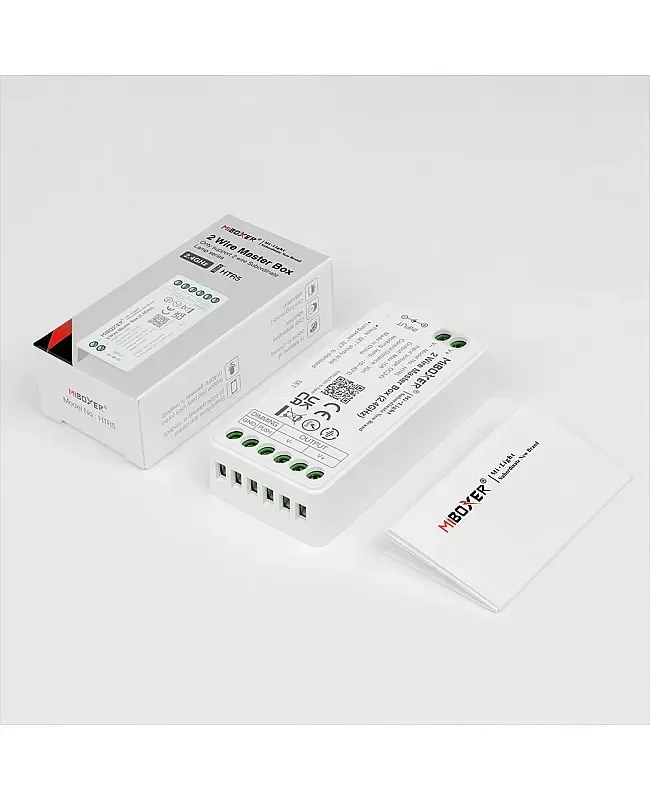

1 * 2 Wire Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
