IR LED RGB Controller
LumaCircuit offers IR LED RGB Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 61mm*35mm*22mm(L*W*H) Working temperature: -20-60℃ Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The IR LED RGB controllers with 44 keys infrared LED remote adopt the advanced micro control unit, which the installer can use to control various constant voltage RGB LED lights. The working voltage is between DC5V and DC24V, with 3 3-output channel design, the max output current of each channel is 2A. The LED RGB controller comes with a 44-key infrared remote, which the installer can use to adjust the brightness of static colors or make dynamic changes in lighting effects.

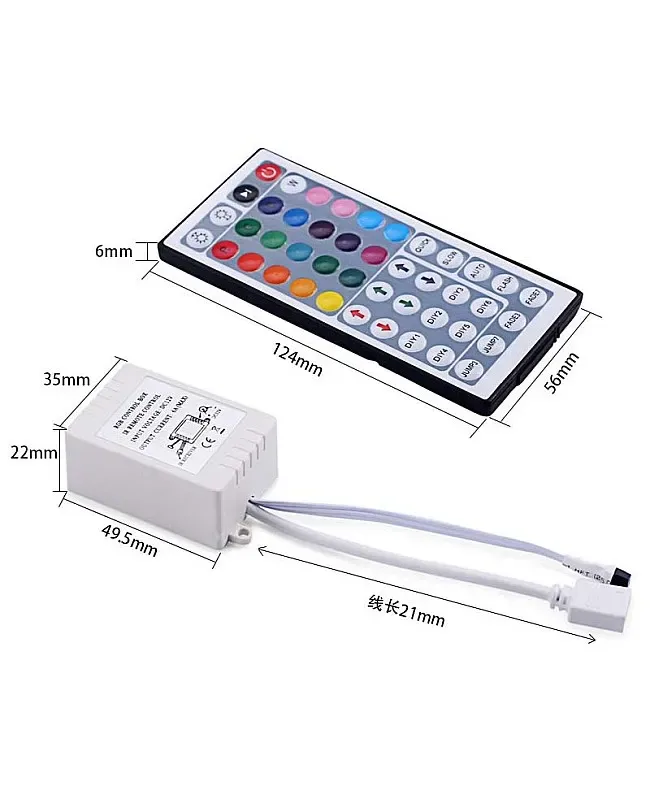

- Size: 61mm*35mm*22mm(L*W*H)
- Working temperature: -20-60℃
- Connecting Mode: Common Anode
- Working voltage: DC12V-DC24V
- Static power consumption: <1W
- Max Output Current: ≤3*2A
- Power: DC12V: ≤72W / 24V: ≤144W
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: RGB
- LumaCircuit model: LC-CTL-AYN4MZ
- Size: 61mm*35mm*22mm(L*W*H)
- Working temperature: -20-60℃
- Connecting Mode: Common Anode
- Working voltage: DC12V-DC24V
- Output Channels: 3
- Static power consumption: <1W
- Max Output Current: ≤3*2A
- Power: DC12V: ≤72W / 24V: ≤144W
- Dimensions found: 61mm / 35mm / 22mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The IR LED RGB controllers with 44 keys infrared LED remote adopt the advanced micro control unit, which the installer can use to control various constant voltage RGB LED lights. The working voltage is between DC5V and DC24V, with 3 3-output channel design, the max output current of each channel is 2A. The LED RGB controller comes with a 44-key infrared remote, which the installer can use to adjust the brightness of static colors or make dynamic changes in lighting effects. There are 28 modes, 20 static colors, and 8 dynamic changes. The brightness of static colors and the speed of dynamic changes are adjustable. The installer can use it for the 3528 or 5050 RGB LED strip lights.
Specifications
TY-L-C-003
Size: 61mm*35mm*22mm(L*W*H)
Working temperature: -20-60℃
Connecting Mode: Common Anode
Working voltage: DC12V-DC24V
Output Channels: 3
Static power consumption: <1W
Max Output Current: ≤3*2A
Power: DC12V: ≤72W / 24V: ≤144W
Weight: 85g
Infrared LED Remote With 44 Keys Included
28 Modes In Total, 20 Static Colors And 8 Dynamic Modes
1 * IR LED RGB Controller
1 * Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
