Constant Voltage Single Color Dimmer For LED Lights
LumaCircuit offers Constant Voltage Single Color Dimmer For LED Lights as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20-60℃ Size: 127*41*32mm（L*W*H) Working Voltage: DC12V-24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

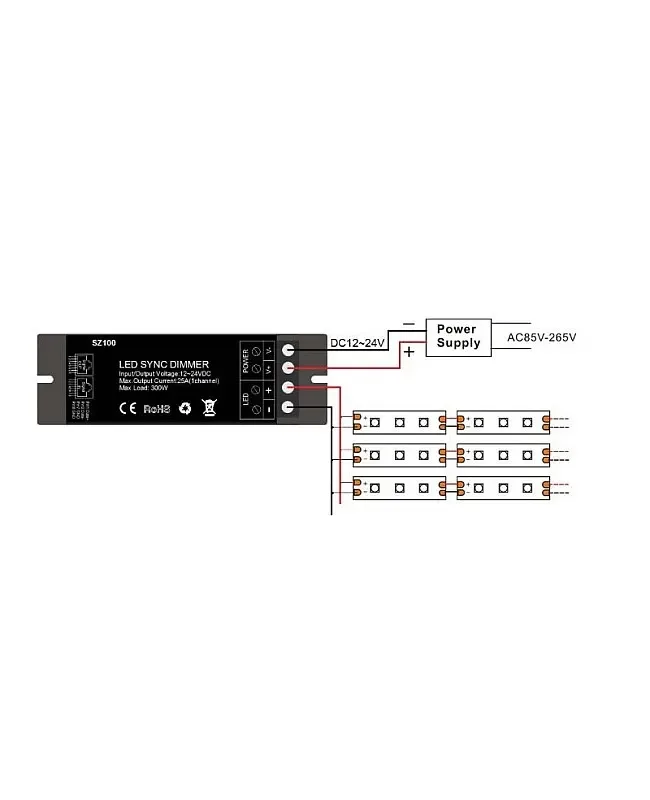

- The constant voltage single dimmer for LED lights is designed for single-color constant working voltage LED lights like LED strips, point LED lamps, LED modules, etc. The LED dimmer works on DC12V or DC24V, with only one output channel; the max output current can reach 25A, and the max output power can reach 600W when working in DC24V. With memory function, it powers on each time. It resumes the mode that was stopped at the last power off.
- Working Temperature: -20-60℃
- Size: 127*41*32mm（L*W*H)
- Working Voltage: DC12V-24V
- Static Power Consumption: <1W
- Output Power: 300W(12V). 600W(24V)
- With Dual Ports To Achieve The Synchronization Function
- Memory Function: Support
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Working Temperature: -20-60℃
- Size: 127*41*32mm（L*W*H)
- Working Voltage: DC12V-24V
- Static Power Consumption: <1W
- Mode: 3
- Output: 1 Channel
- Max Output Current: 25A
- Output Power: 300W(12V). 600W(24V)
- RF Frequency: 433.
- LumaCircuit model: LC-CTL-5MP0ST
- Dimensions found: 127x41x32mm / 32mm / 20m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

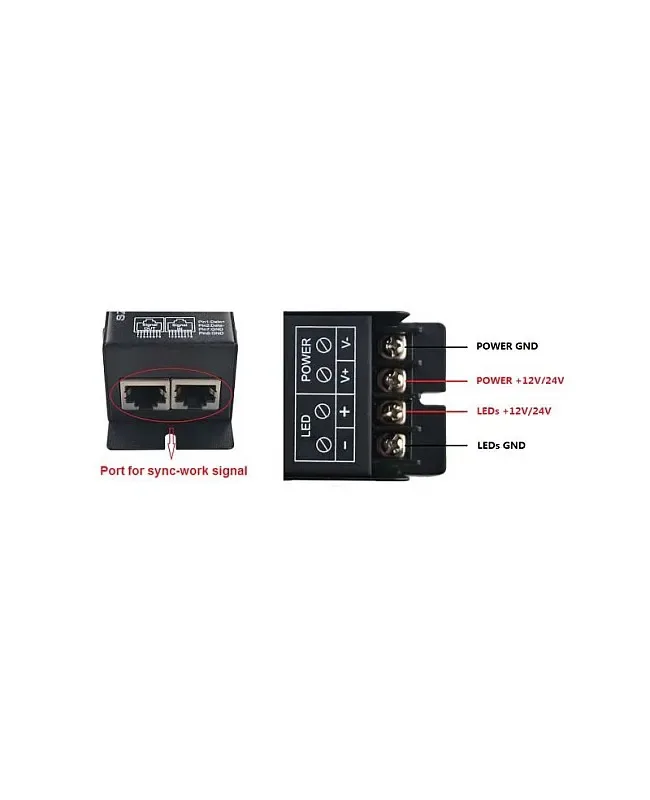

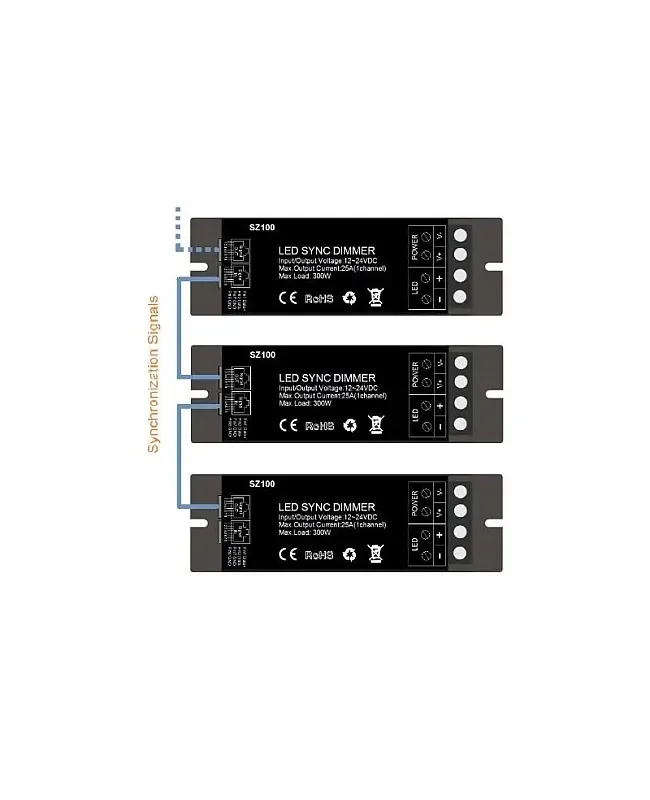

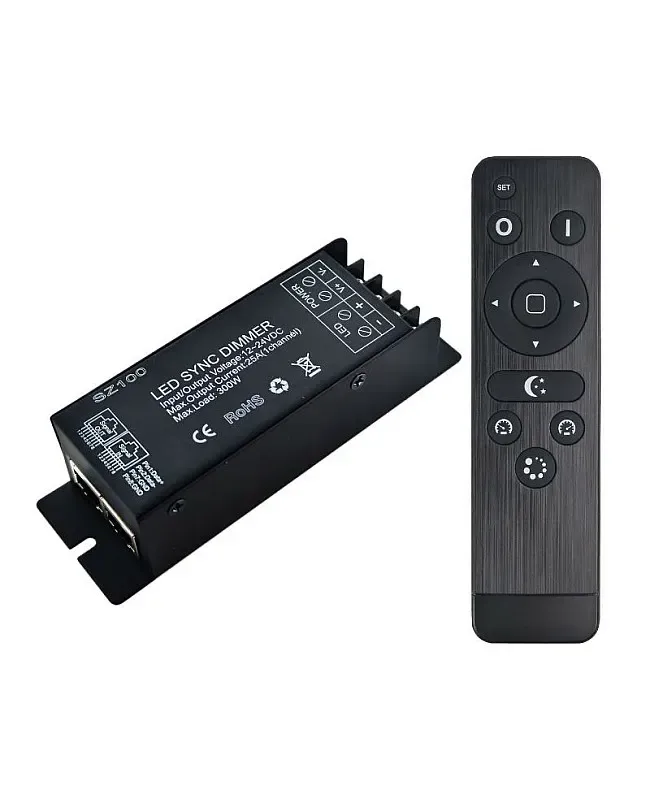

The constant voltage single dimmer for LED lights is designed for single-color constant working voltage LED lights like LED strips, point LED lamps, LED modules, etc. The LED dimmer works on DC12V or DC24V, with only one output channel; the max output current can reach 25A, and the max output power can reach 600W when working in DC24V. With memory function, it powers on each time. It resumes the mode that was stopped at the last power off. The LED dimmer for LED lights with dual Ports, easy connection to achieve multiple dimmers sync work through the terminal. The LED light dimmer comes with the RF remote, which has a fashionable appearance, a control range of up to 20 meters, and long-pressing the brightness and speed keys can get fast adjustments, making it convenient for operation.
Dimmer For LED Lights Specifications
Working Temperature: -20-60℃
Size: 127*41*32mm（L*W*H)
Working Voltage: DC12V-24V
Static Power Consumption: <1W
Grayscale: 256 Levels
Speed Stage: 100 Grade
Output: 1 Channel
Max Output Current: 25A
Output Power: 300W(12V). 600W(24V)
RF Distance: <20m
RF Frequency: 433.
With Dual Ports To Achieve The Synchronization Function
Memory Function: Support
Weight: 200g

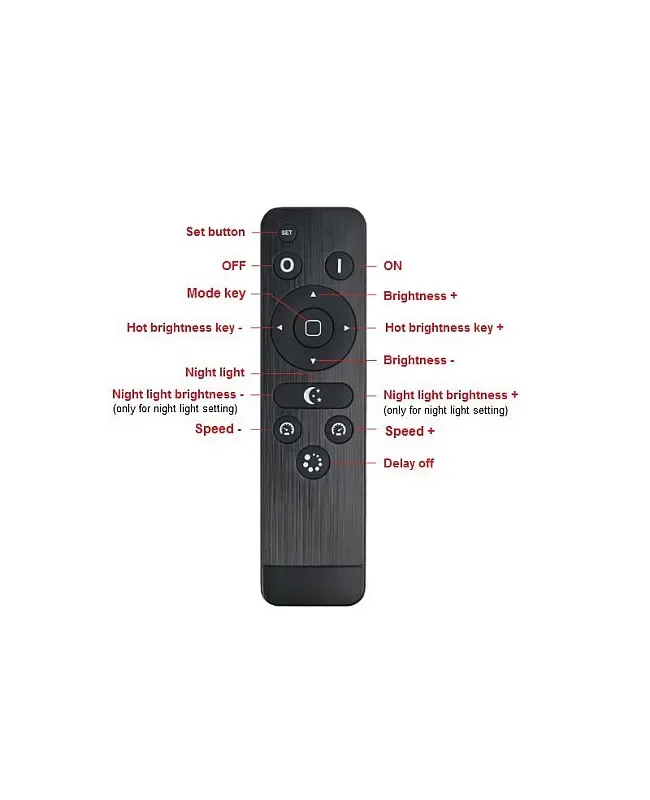

Remote Features
Working Temperature: -20-60℃
Size: 150*40*20mm（L*W*H)
Working Voltage: DC3V
Powered By 2PCS AAA Batteries(Included)
Standby Current: <
Working Current: <
Standby Power
Working Power
RF Frequency: 433.92 MHz
RF Distance: <20m
Weight: 65g
Includes
1 * Dimmer For LED Lights
1 * Remote
2 * AAA Batteries
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
