4G CCT Adjustable LED Panel Controller
LumaCircuit offers 4G CCT Adjustable LED Panel Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller 2.4G RF Adjustable CCT LED Panel Controller User Manual Output Current: Max 5A/Channel Total Output Current: Max 10A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller CCT adjustable LED panel controller has a sensitive touch panel design, which allows you to touch the panel to adjust the color temperature from 2700K to 6500K, and dim the brightness from 1% to 100% the installer can touch the button "" to delay the LED light, which will be turned off automatically after 60 seconds. There are nine dynamic modes available, and the installer can touch the button"Mode" to switch the mode for various scenes.
- wireless controller 2.4G RF Adjustable CCT LED Panel Controller User Manual
- Output Current: Max 5A/Channel
- Total Output Current: Max 10A
- Color Temperature Adjustable From 2700 K- 6500 K
- Dimmable Control: 1%-100%
- RF Wireless Transmission Technology
- Smartphone APP Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- Size: 86*86*26mm(L*W*H)
- Working Voltage: -24V
- Output Current: Max 5A/Channel
- Total Output Current: Max 10A
- Dimmable Control: 1%-100%
- Compatible 2.4G RF Remote Controls: T2
- Saving Mode: YES
- Control Distance: ≤30M
- IP Rating: IP20 Non-Waterproof
- Working Temperature: -20-60℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

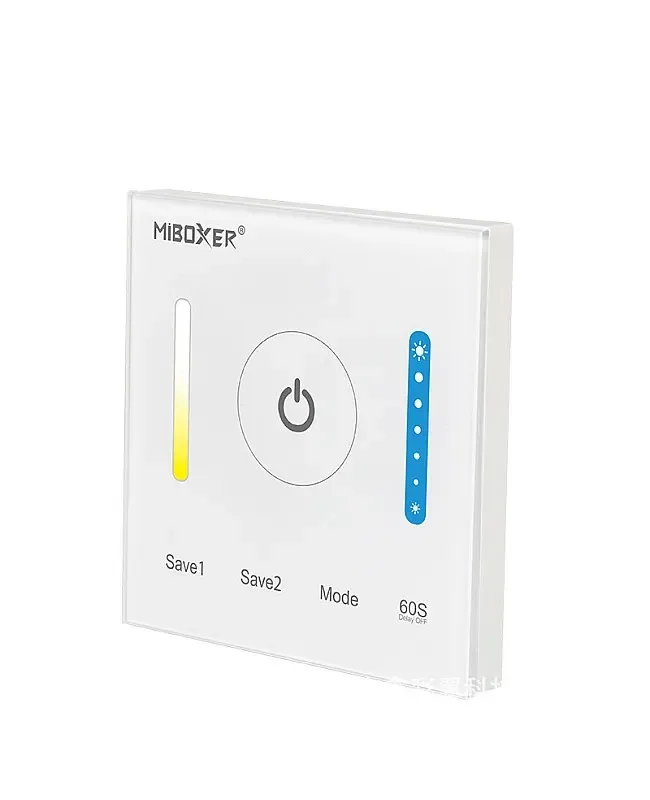

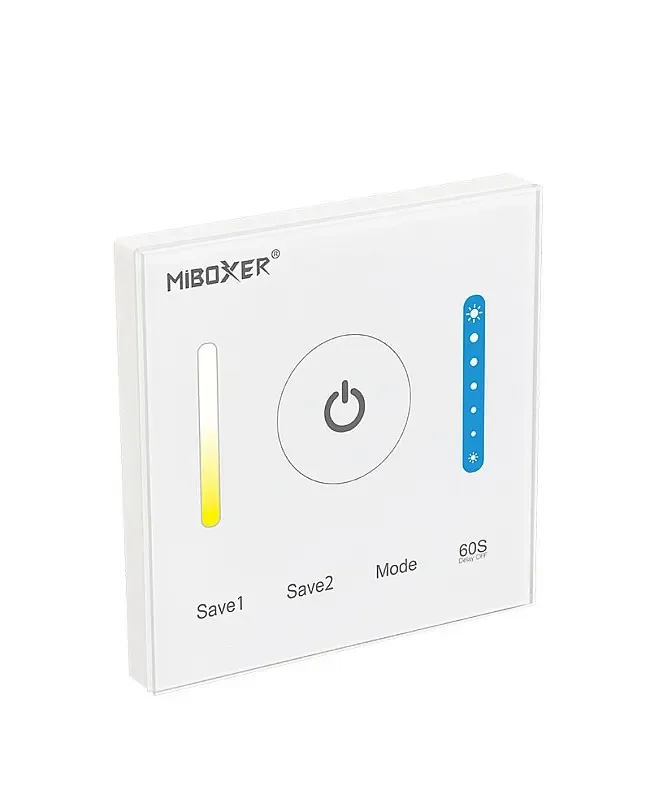

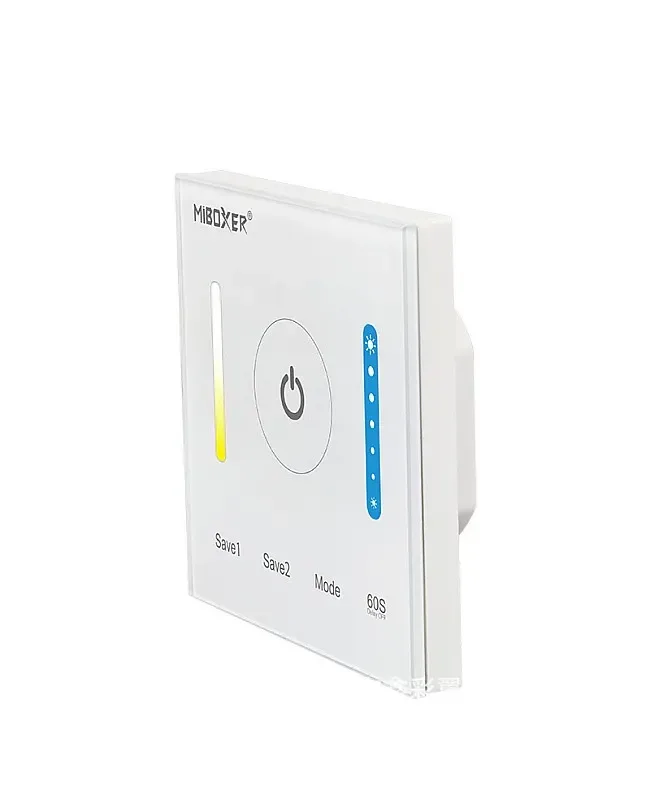

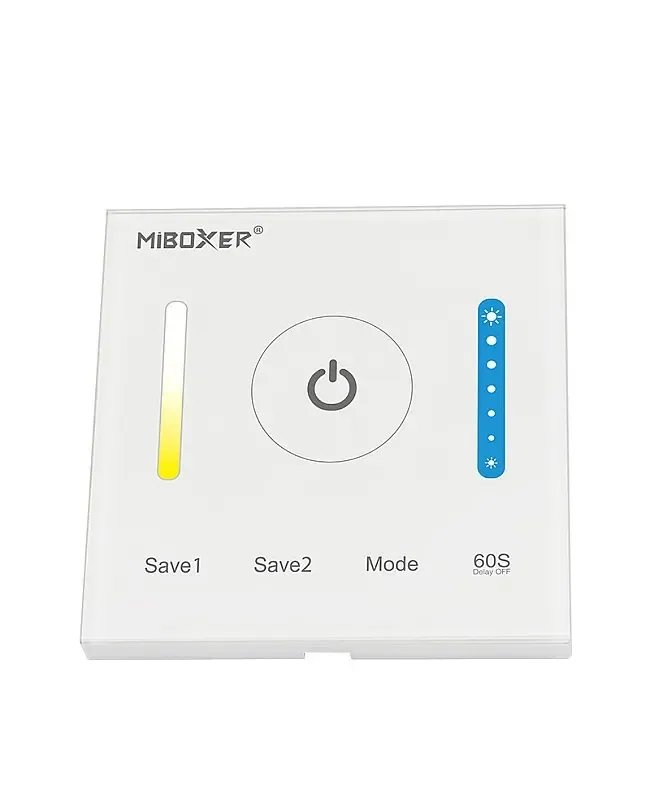

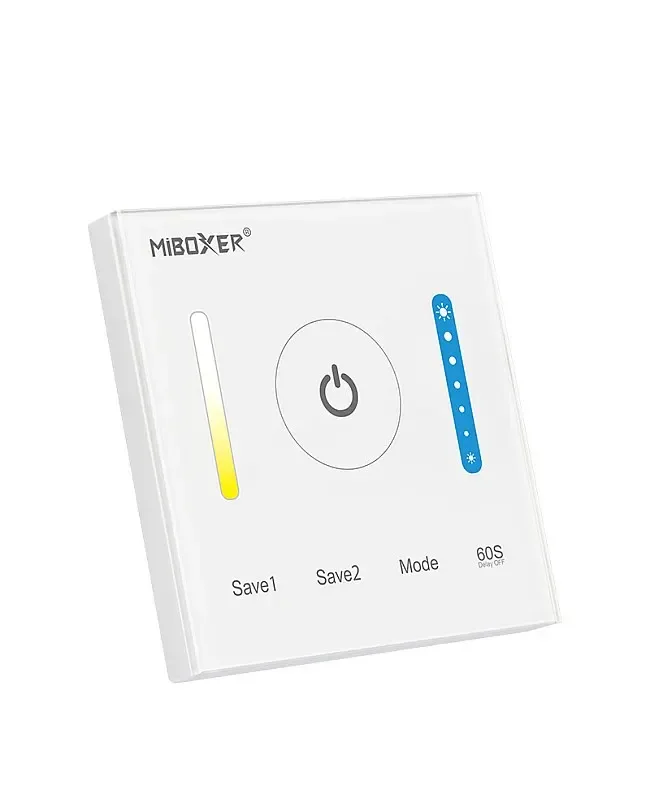

The wireless controller CCT adjustable LED panel controller has a sensitive touch panel design, which allows you to touch the panel to adjust the color temperature from 2700K to 6500K, and dim the brightness from 1% to 100% the installer can touch the button "" to delay the LED light, which will be turned off automatically after 60 seconds. There are nine dynamic modes available, and the installer can touch the button"Mode" to switch the mode for various scenes. When the buttons are touched, the LED indicator light will flash with different sounds. The wireless controller adopts 2.4G RF transmission technology, compatible with wireless controller RF remotes. The installer can adjust the LED light remotely after adding the 2.4G gateway WL a smartphone APP can control the LED light and third-party voice commands(Amazon Alexa and Google Assistant), and the Panel Controller will receive the signals and transmit them to other controllers within 30 meters. Different controllers will work synchronously. The installer can save the present CCT, brightness, and mode randomly and easily get the saved mode by touching the save 1 or save 2 buttons.
Quick Links
wireless controller 2.4G RF Adjustable CCT LED Panel Controller User Manual
Specifications
Size: 86*86*26mm(L*W*H)
Working Voltage: -24V
Output Current: Max 5A/Channel
Total Output Current: Max 10A
Color Temperature Adjustable From 2700 K- 6500 K
Dimmable Control: 1%-100%
RF Wireless Transmission Technology
Smartphone APP Control(2.4G Gateway Needed)
Support Third-Party Voice Control(2.4G Gateway Needed)
Delay OFF
9 Dynamic Modes Available
Compatible 2.4G RF Remote Controls T2
PWM High Frequency/Low Frequency(500Hz) Switching
Signal Transmitting And Modes Synchronization
Saving Mode: YES
Night Light Function: YES
Control Distance: ≤30M
IP Rating: IP20 Non-Waterproof
Working Temperature: -20-60℃
Includes
1 * wireless controller CCT LED Panel Controller
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
