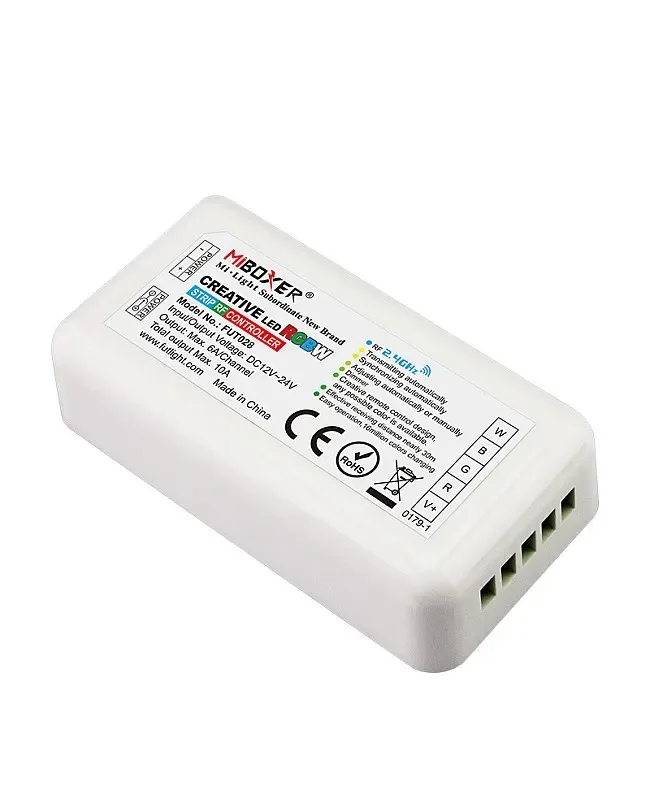

4G RF RGBW Remote Controller
LumaCircuit offers 4G RF RGBW Remote Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Control Size: 85*45*22.5mm(L*W*H) Remote Size: 120*52.5*21mm(L*W*H) Brightness Of Static Color And Speed Of Dynamic Mode Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RGBW remote controller can control RGBW light fixtures. The 2.4G RF remote is included, works in DC12V or DC24V, the max output current is 10A, and with 5 5-channel output design, the installer can use it for the RGB+W LED lights. The RF remote can set the static color or dynamic mode. There are 16 million colors and nine dynamic modes available. The installer can adjust the brightness and speed conveniently. The wireless remote has a color ring and a dimming slider.
- Control Size: 85*45*22.5mm(L*W*H)
- Remote Size: 120*52.5*21mm(L*W*H)
- Brightness Of Static Color And Speed Of Dynamic Mode Adjustable
- Connection Method: Common Anode
- Automatic Signal Transmission
- Automatic Group Synchronization
- IP Rating: IP20 Non-Waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGBW
- Control Size: 85*45*22.5mm(L*W*H)
- Remote Size: 120*52.5*21mm(L*W*H)
- Working Voltage: -24V
- Output Max: 6A/Channel
- Total Output Max: 10A
- Control Distance: ≤30m
- IP Rating: IP20 Non-Waterproof
- Working Temperature: -20-60℃
- LumaCircuit model: LC-CTL-89OQPJ
- Dimensions found: 85x45x22.5mm / 22.5mm / 120x52.5x21mm / 21mm / 30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

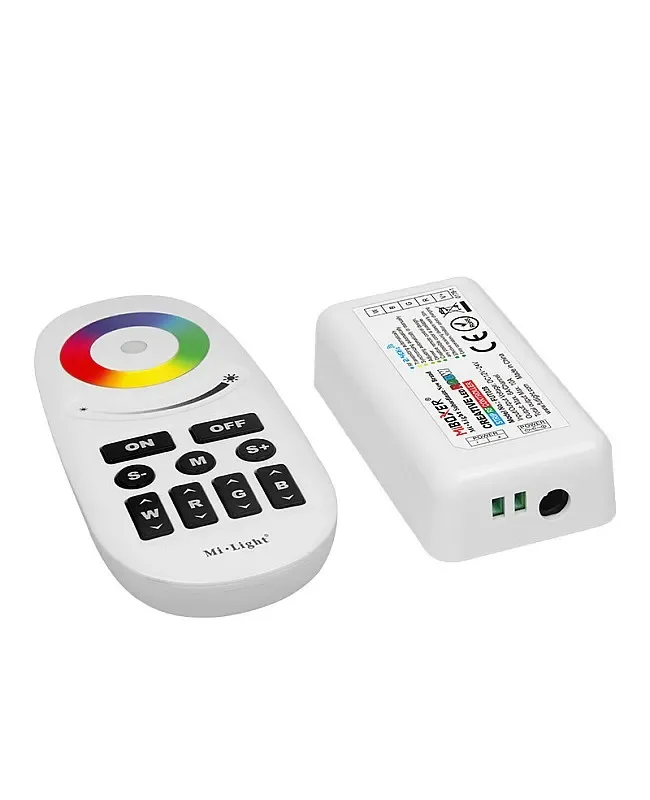

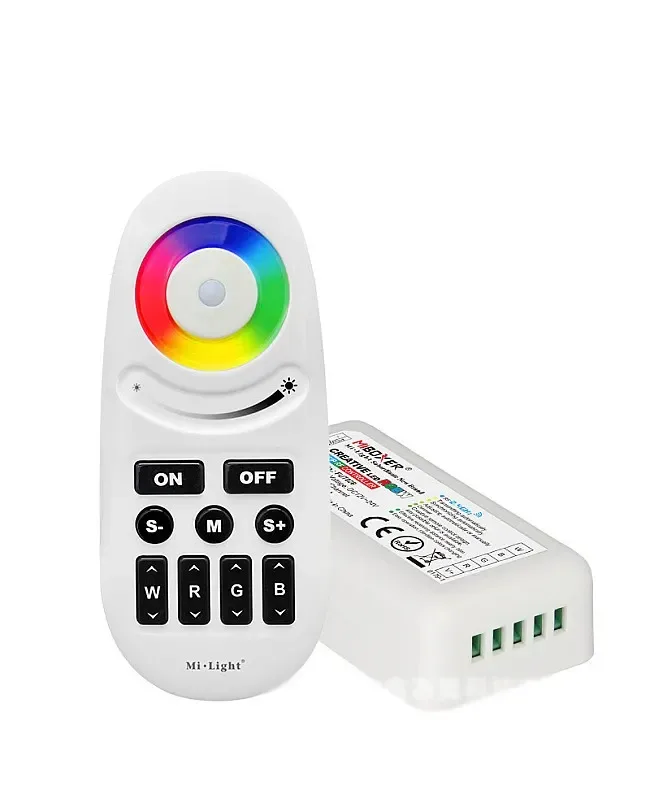

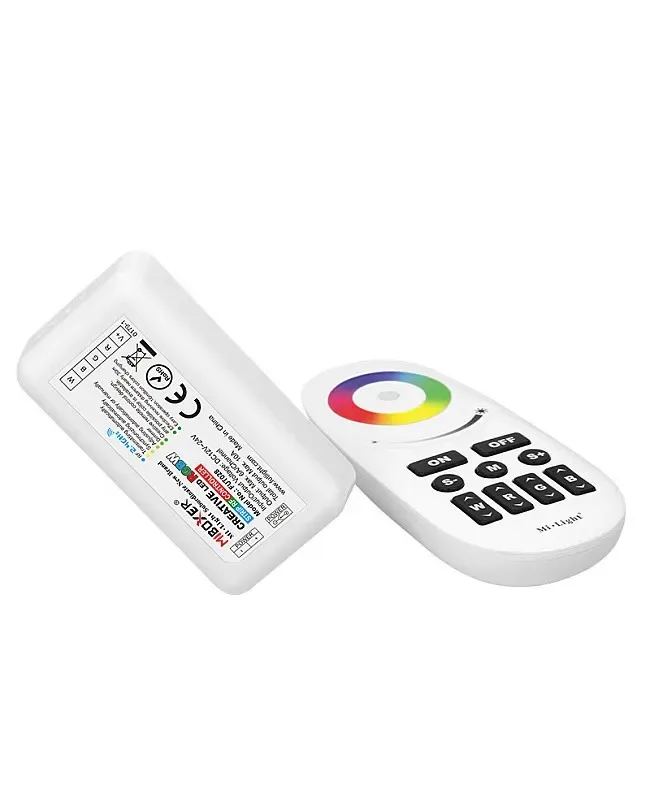

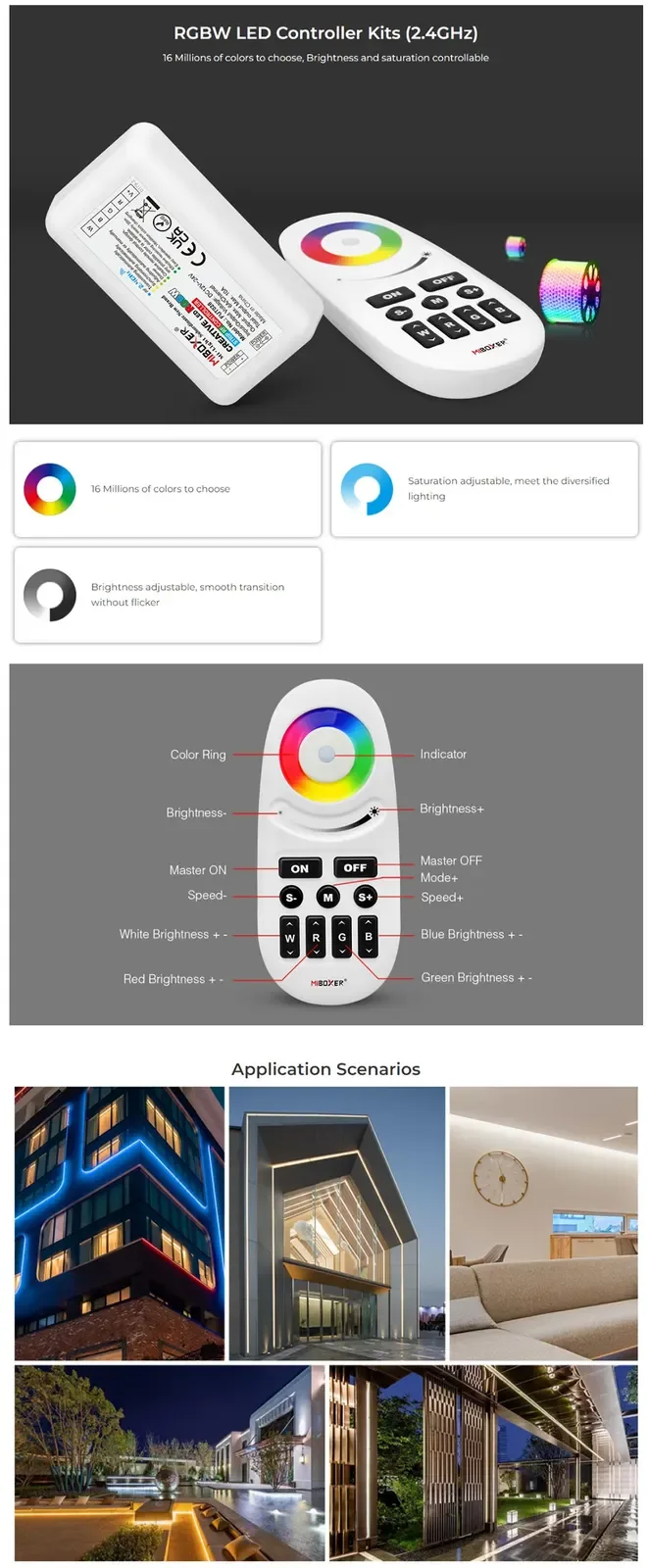

The wireless controller RGBW remote controller can control RGBW light fixtures. The 2.4G RF remote is included, works in DC12V or DC24V, the max output current is 10A, and with 5 5-channel output design, the installer can use it for the RGB+W LED lights. The RF remote can set the static color or dynamic mode. There are 16 million colors and nine dynamic modes available. The installer can adjust the brightness and speed conveniently. The wireless remote has a color ring and a dimming slider. The installer can touch them to set the color and adjust the brightness conveniently. There are 9 physical buttons, and the installer can use them to turn ON/OFF the LED light, set the working mode, and adjust the speed of the dynamic mode. There are four buttons on the bottom, and the installer can press them to adjust the brightness of white, blue, red, and green. The RGBW controller is non-waterproof and only recommended for indoor lighting applications.
Specifications
Control Size: 85*45*22.5mm(L*W*H)
Remote Size: 120*52.5*21mm(L*W*H)
Working Voltage: -24V
Output Max: 6A/Channel
Total Output Max: 10A
16 Million Colors Available
9 Dynamic Modes Available
Brightness Of Static Color And Speed Of Dynamic Mode Adjustable
Control Distance: ≤30m
Connection Method: Common Anode
Automatic Signal Transmission
Automatic Group Synchronization
Signal Modulation: GFSK
IP Rating: IP20 Non-Waterproof
Working Temperature: -20-60℃
Includes
1 * RGBW Remote LED Controller With RF Remote Control
1 * User Manual
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
