480W Tunable White LED Controller With 14 Keys RF Remote
LumaCircuit offers 480W Tunable White LED Controller With 14 Keys RF Remote as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20-60℃ Size: 127*41*32mm(L*W*H) Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The tunable white LED controller with 14 Keys RF remote uses advanced PWM digital control technology and is specifically designed for cool white and warm white LED strips. It has two output channels and a maximum load power of 480W at 24V. The CCT LED controller has a dual port for sync-work and can connect multiple controllers via the Ports to achieve synchronization, with a network cable length of up to 80 meters. The 14-key RF remote control includes nine modes: one static color and eight dynamic modes.
- Working Temperature: -20-60℃
- Size: 127*41*32mm(L*W*H)
- Connecting Mode: Common Anode
- Max Output Current: <10A(Each Channel)
- Max Loading Power: 240W(12V), 480W(24V)
- 14 Keys RF Remote Control Included
- 9 Working Modes In Total, 1 Static Mode And 8 Dynamic Modes
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12-24 V / 12 V
- Light engine: CCT
- Working Temperature: -20-60℃
- Size: 127*41*32mm(L*W*H)
- Connecting Mode: Common Anode
- Working Voltage: -24V
- Output Channels: 2
- Max Output Current: <10A(Each Channel)
- Max Loading Power: 240W(12V), 480W(24V)
- RF Frequency: 433.
- Output Gray: 256 Levels
- Short Circuit Protection: YES
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

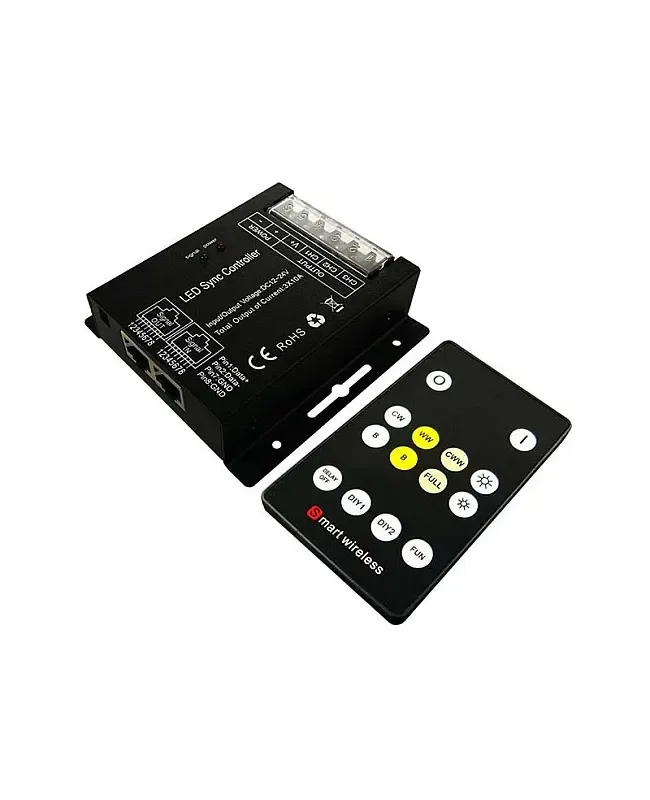

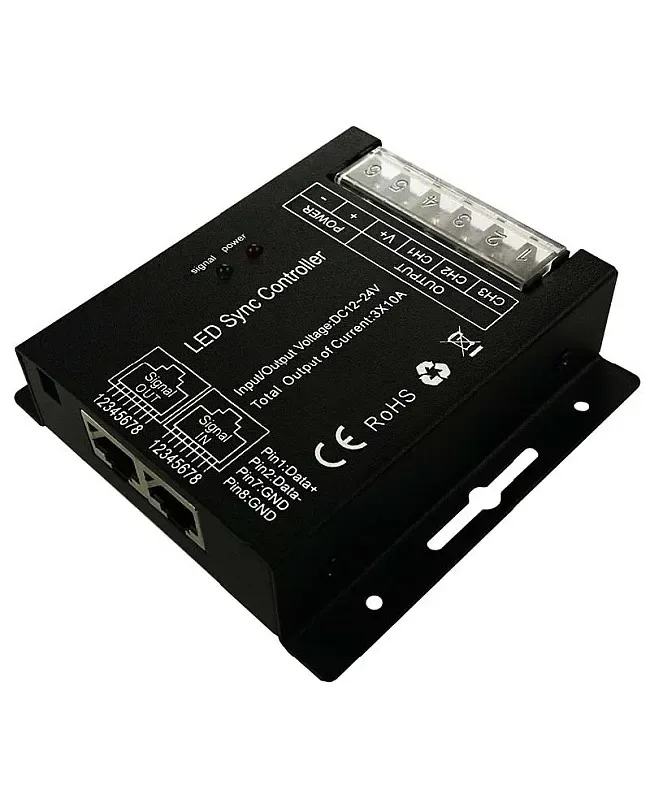

The tunable white LED controller with 14 Keys RF remote uses advanced PWM digital control technology and is specifically designed for cool white and warm white LED strips. It has two output channels and a maximum load power of 480W at 24V. The CCT LED controller has a dual port for sync-work and can connect multiple controllers via the Ports to achieve synchronization, with a network cable length of up to 80 meters. The 14-key RF remote control includes nine modes: one static color and eight dynamic modes. The brightness of static color and the speed of dynamic modes are adjustable. There are 2 DIY buttons designed for scene memory.
Specifications
Working Temperature: -20-60℃
Size: 127*41*32mm(L*W*H)
Connecting Mode: Common Anode
Working Voltage: -24V
Output Channels: 2
Max Output Current: <10A(Each Channel)
Max Loading Power: 240W(12V), 480W(24V)
RF Frequency: 433.
Output Gray: 256 Levels

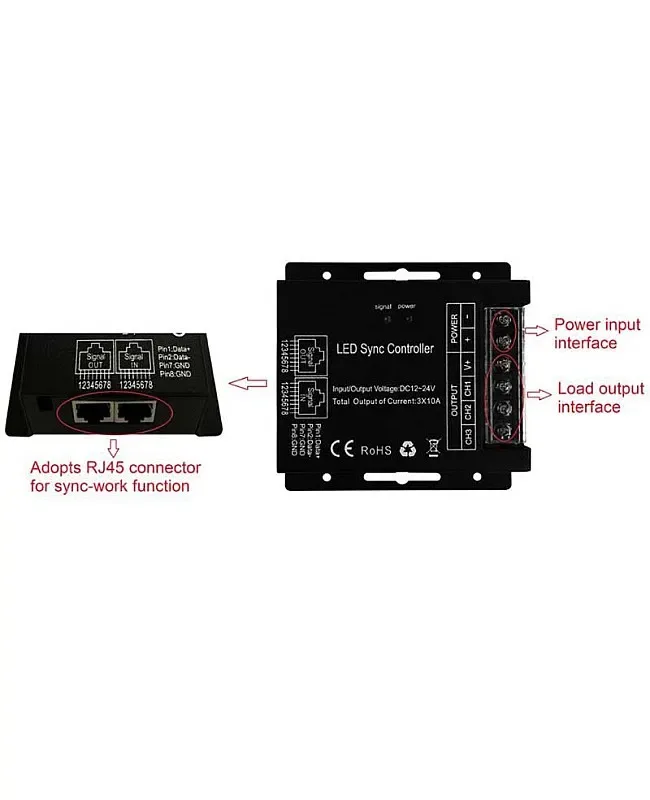

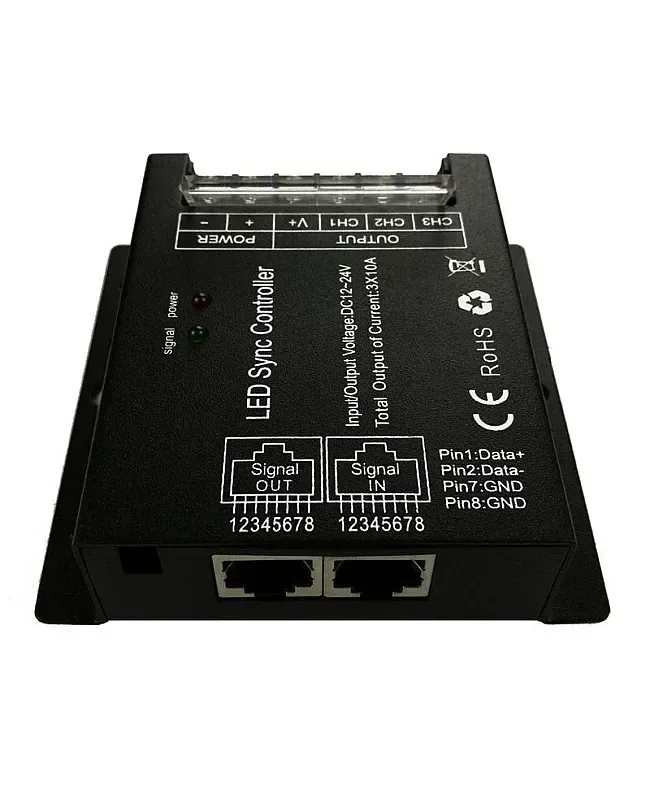

Dual Port For Sync-Wokr
14 Keys RF Remote Control Included
9 Working Modes In Total, 1 Static Mode And 8 Dynamic Modes
Short Circuit Protection: YES
Weight: 300g
Includes
1 * Tunable White LED Controller
1 * 14 Keys RF Remote
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
