768W RGBW LED Controllers With 24 Keys RF Remote Control
LumaCircuit offers 768W RGBW LED Controllers With 24 Keys RF Remote Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Connecting Mode: Common Anode Output Current: <8A(Each Channel) Max Output Power: 384W(12V), 768W(24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

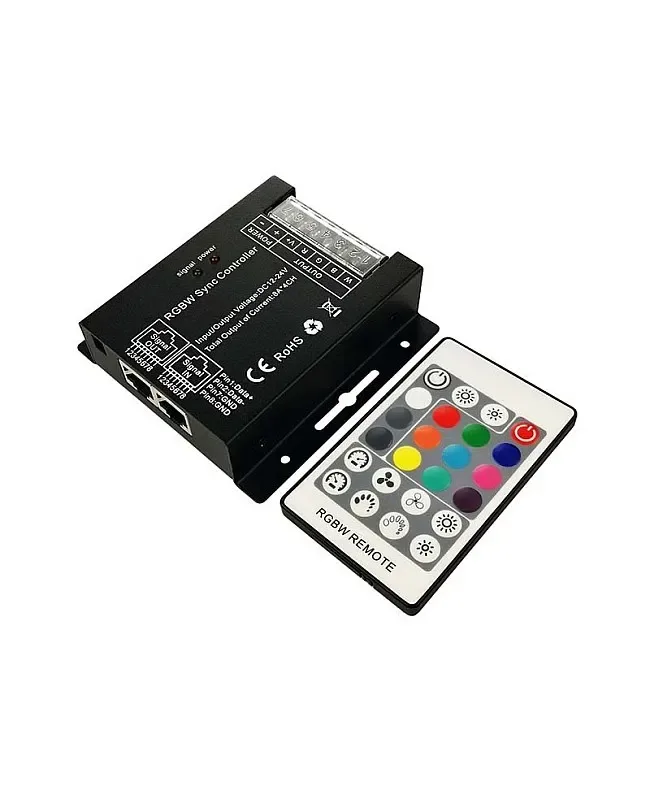

- The RGBW LED controllers with 24-key RF remote controls are enclosed in a black metal shell for improved heat dissipation. It adopts advanced PWM digital control technology and is designed for constant-voltage RGBW LED lights. It has four output channels designed; each channel's maximum output current is 8A, and the maximum load power is 768W at 24V. The 24-key RF remote control includes 13 working modes, nine static colors, and four dynamic modes.
- Connecting Mode: Common Anode
- Output Current: <8A(Each Channel)
- Max Output Power: 384W(12V), 768W(24V)
- Output Gray: 256 Levels(With Continuous Reception)
- 24 Keys RF Remote Control Included
- 13 Working Modes In Total, 9 Static Colors And 4 Dynamic Modes
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: RGBW
- Size: 91*88*24mm(L*W*H)
- Connecting Mode: Common Anode
- Working Voltage: -24V
- Output Channels: 4
- Output Current: <8A(Each Channel)
- Max Output Power: 384W(12V), 768W(24V)
- RF Frequency: 433.
- Output Gray: 256 Levels(With Continuous Reception)
- Working Temperature: -20℃-60℃
- LumaCircuit model: LC-CTL-PVJC3W
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

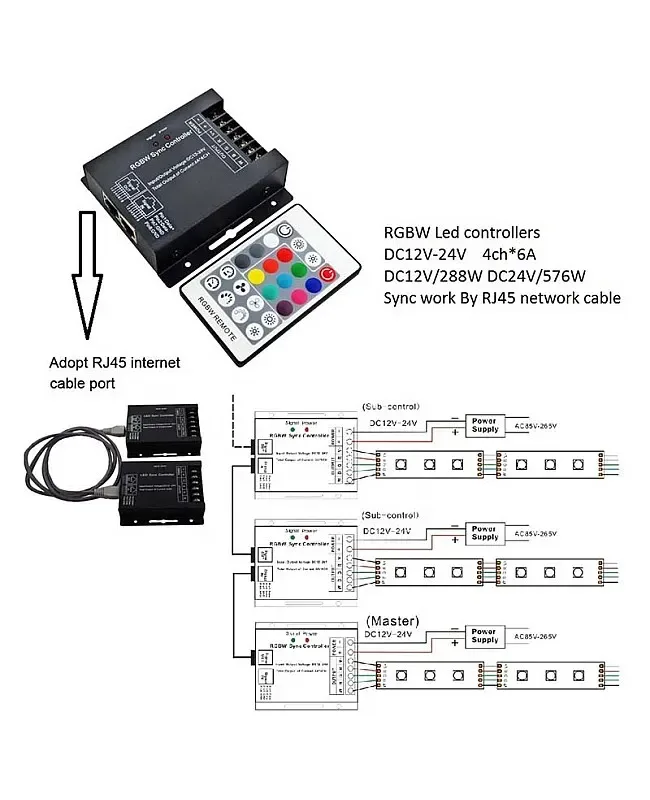

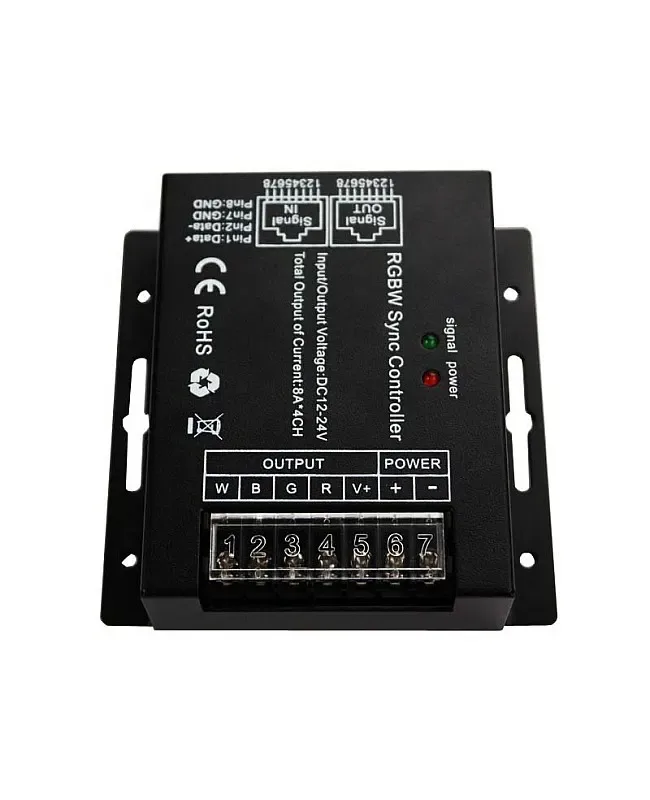

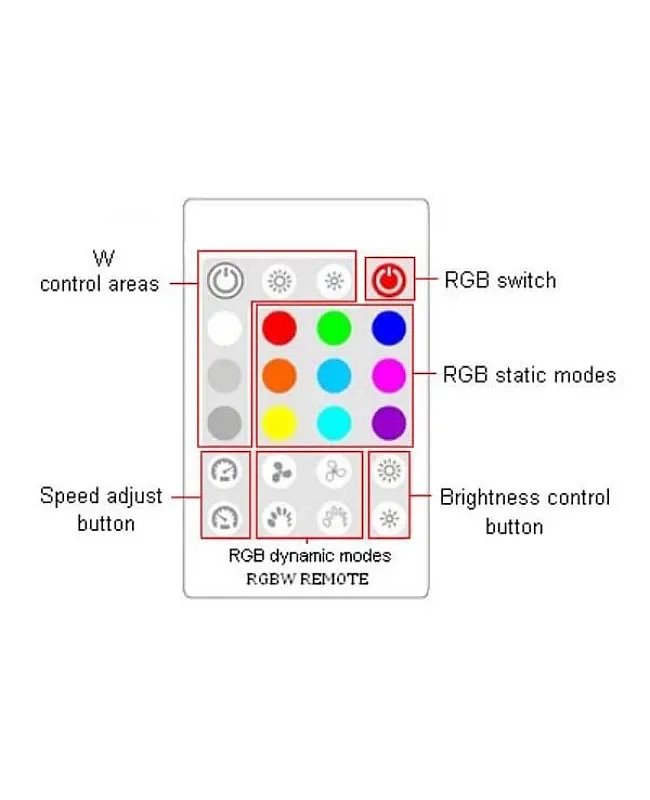

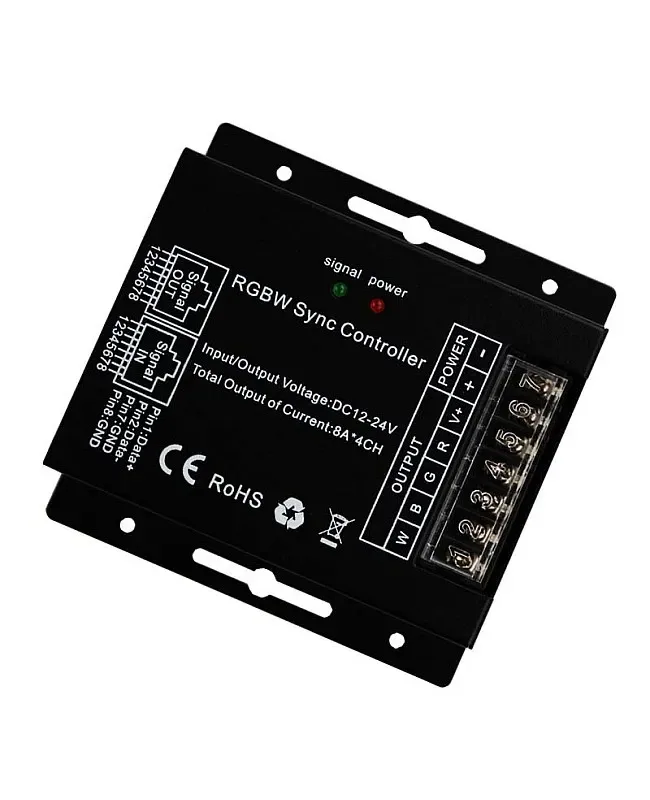

The RGBW LED controllers with 24-key RF remote controls are enclosed in a black metal shell for improved heat dissipation. It adopts advanced PWM digital control technology and is designed for constant-voltage RGBW LED lights. It has four output channels designed; each channel's maximum output current is 8A, and the maximum load power is 768W at 24V. The 24-key RF remote control includes 13 working modes, nine static colors, and four dynamic modes. The RGB and W each have a control area, and the brightness of static color and the speed of dynamic changes are adjustable independently. The LED RGBW controller has dual network cable ports to enable synchronized changes. The maximum network cable length is up to 80 meters.
Specifications
Size: 91*88*24mm(L*W*H)
Connecting Mode: Common Anode
Working Voltage: -24V
Output Channels: 4
Output Current: <8A(Each Channel)
Max Output Power: 384W(12V), 768W(24V)
RF Frequency: 433.
Output Gray: 256 Levels(With Continuous Reception)
24 Keys RF Remote Control Included
13 Working Modes In Total, 9 Static Colors And 4 Dynamic Modes
Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
Come With Dual Ports To Achieve Synchronization Function
Weight: 300g
Working Temperature: -20℃-60℃
Includes
1 * RGBW LED Controllers
1 * 24 Keys RF Remote Control
