Product details

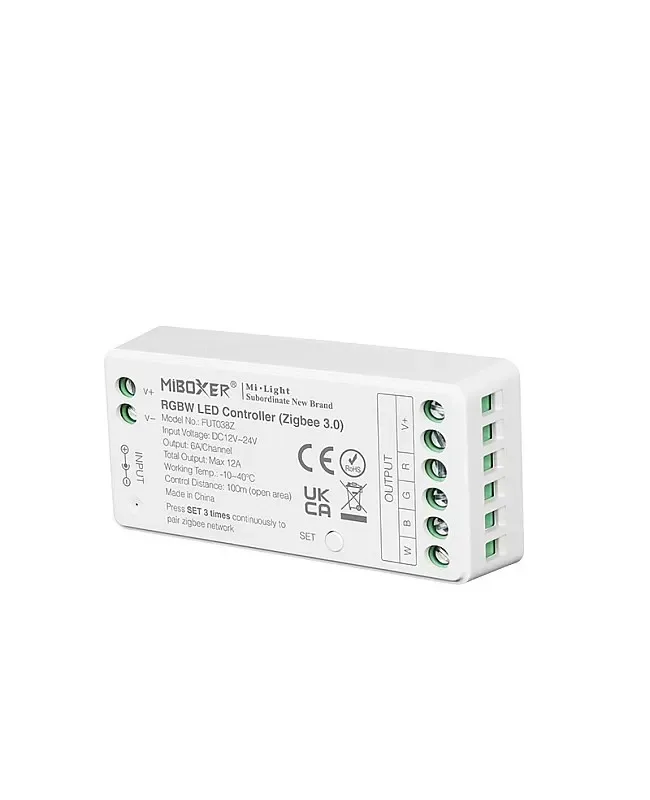

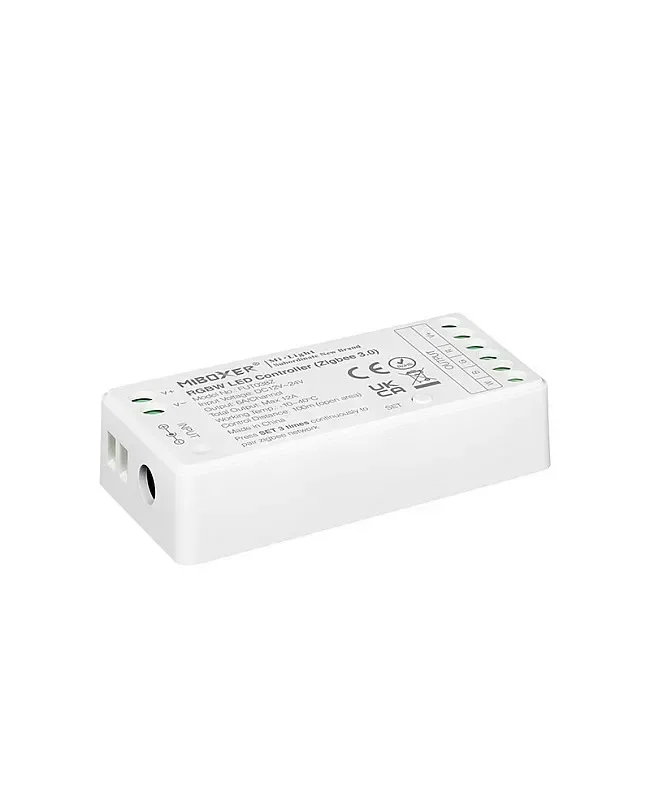

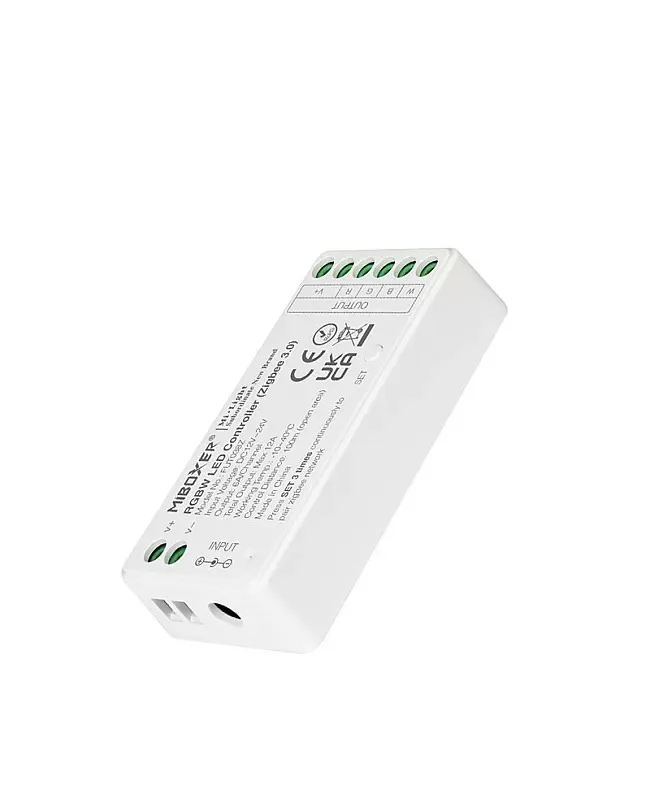

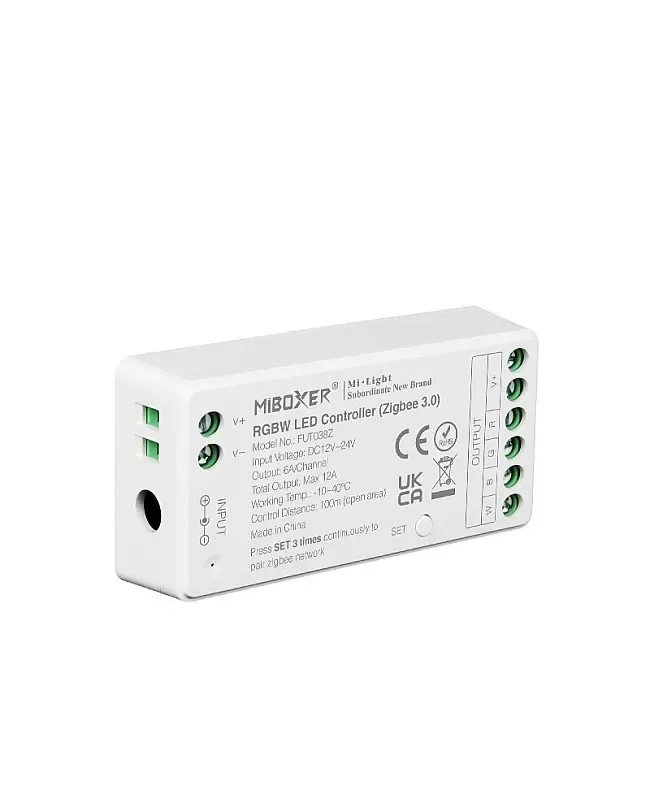

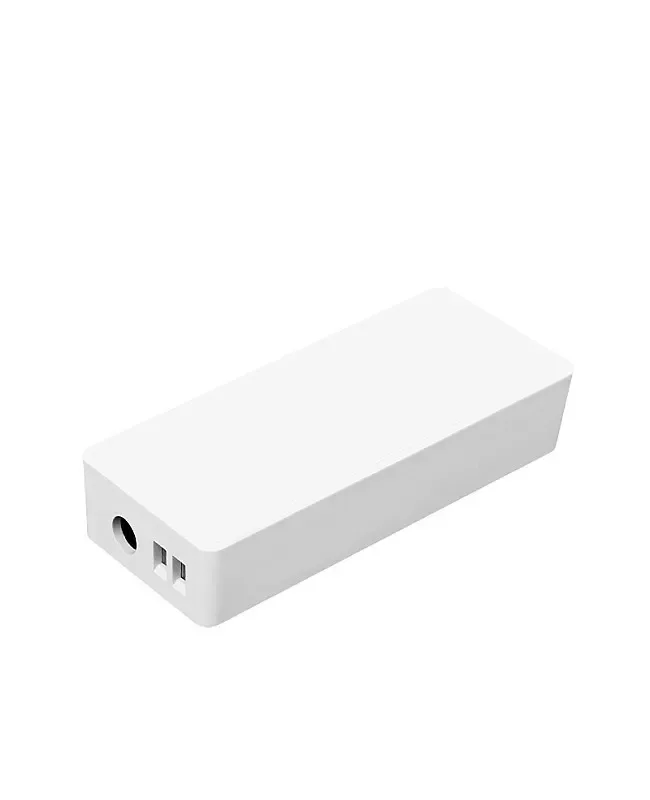

RGBW Zigbee LED Controller
LumaCircuit offers RGBW Zigbee LED Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller + 3 In 1 Zigbee 3.0 Light Controller For RGB/RGBW/RGB+CCT Size: 74.5*36*17mm(L*W*H) Max Output Current: 12A Total The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller Zigbee LED controller integrates the Zigbee 3.0 standard protocol, with a small size and lightweight, easy to install and use, and can work with RGBW LED lights. It can be controlled by a Zigbee remote to set the color, adjust the brightness, and saturation. After pairing the Zigbee 3.0 gateway, the wireless controller RGBW controller can be controlled by a smartphone app and third-party voice commands, and it can work with Amazon Alexa and Google Assistant.
- wireless controller + 3 In 1 Zigbee 3.0 Light Controller For RGB/RGBW/RGB+CCT
- Size: 74.5*36*17mm(L*W*H)
- Max Output Current: 12A Total
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
- Brightness And Saturation Adjustable
- Can Be Controlled By Zigbee 3.0 Remote Control, Smartphone APP, And Third-Party Voice Commands
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGBW
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 6A/Channel
- Max Output Current: 12A Total
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: ≤100m(Open Area)
- IP Rating: IP20 Non-Waterproof
- Working Temperature: -10-40℃
- LumaCircuit model: LC-CTL-6XE3V7
- Dimensions found: 74.5x36x17mm / 17mm / 100m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller Zigbee LED controller integrates the Zigbee 3.0 standard protocol, with a small size and lightweight, easy to install and use, and can work with RGBW LED lights. It can be controlled by a Zigbee remote to set the color, adjust the brightness, and saturation. After pairing the Zigbee 3.0 gateway, the wireless controller RGBW controller can be controlled by a smartphone app and third-party voice commands, and it can work with Amazon Alexa and Google Assistant. The installer can achieve more functions on the APP like biorhythm, music rhythm, timing, scene customization, device sharing, etc. The Zigbee 3.0 RGBW controller can connect to other Zigbee 3.0 gateways like Philips Hue, IKEA TRADFRI, Amazon Echo Plus, etc.
wireless controller + 3 In 1 Zigbee 3.0 Light Controller For RGB/RGBW/RGB+CCT
Specifications
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 6A/Channel
Max Output Current: 12A Total
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
16 Million Colors Available
Brightness And Saturation Adjustable
Can Be Controlled By Zigbee 3.0 Remote Control, Smartphone APP, And Third-Party Voice Commands
Can Work With Amazon Alexa And Google Assistant
APP Name: mobile app
Control Distance: ≤100m(Open Area)
IP Rating: IP20 Non-Waterproof
Working Temperature: -10-40℃
Includes
1 * RGBW Zigbee LED Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
