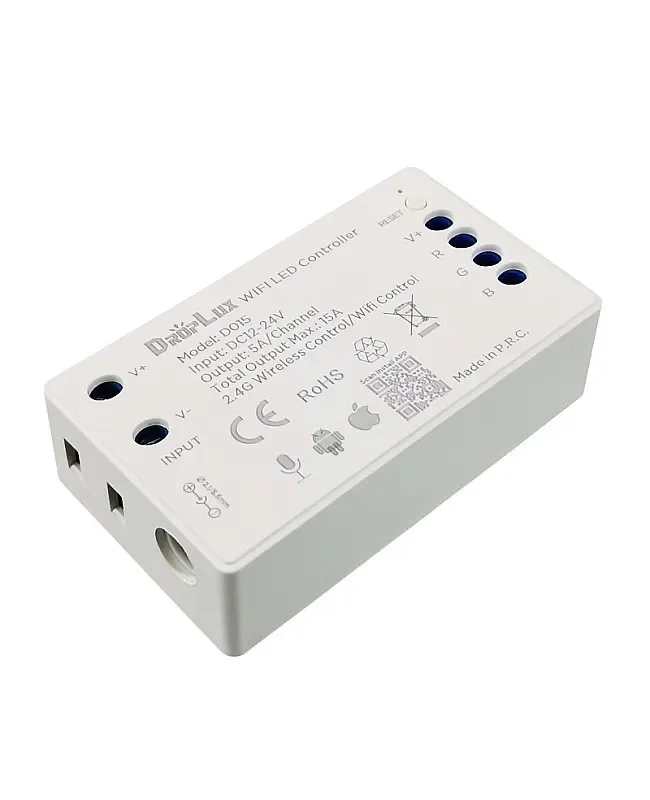

12 24V 360W WiFi RGB LED Controller
LumaCircuit offers 12 24V 360W WiFi RGB LED Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size ( L x W x H ):70 mm x 40 mm x 20 mm / 2.76" x 1.57" x 0.79" Output current: ≤5A ( Per channel ) Power: 180W ( DC12V ) / 360W ( DC24V ) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

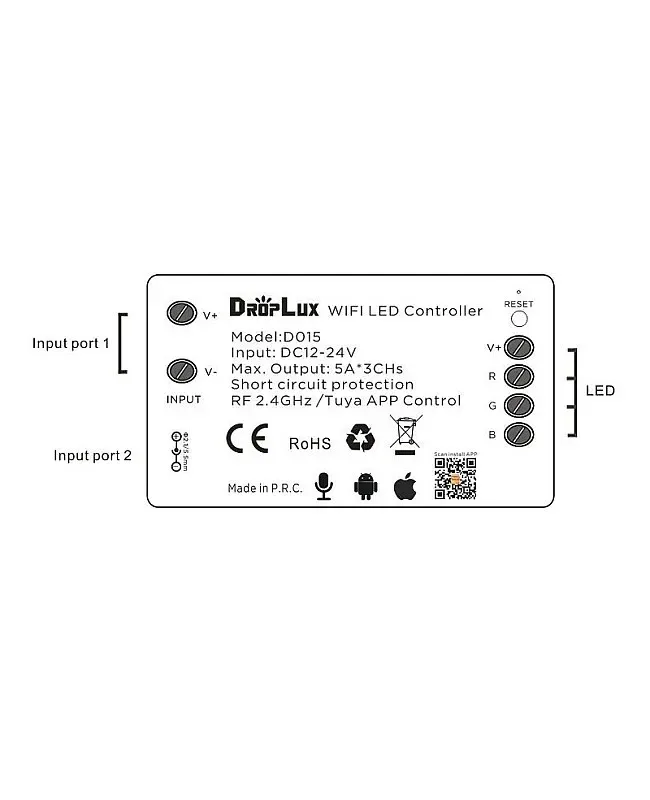

- The WiFi RGB LED controllers are designed to control your RGB strip lights in multiple ways. They can be controlled by smart voice speakers via voice commands via Amazon Alexa, Google Assistant, Yandex Alice, etc., to turn the lighting on/off and adjust it remotely. The installer can also control them with the included remote control or an APP. The LED WiFi controller operates on 12V-24V DC, features a 3-channel design, and delivers up to 5A per channel.

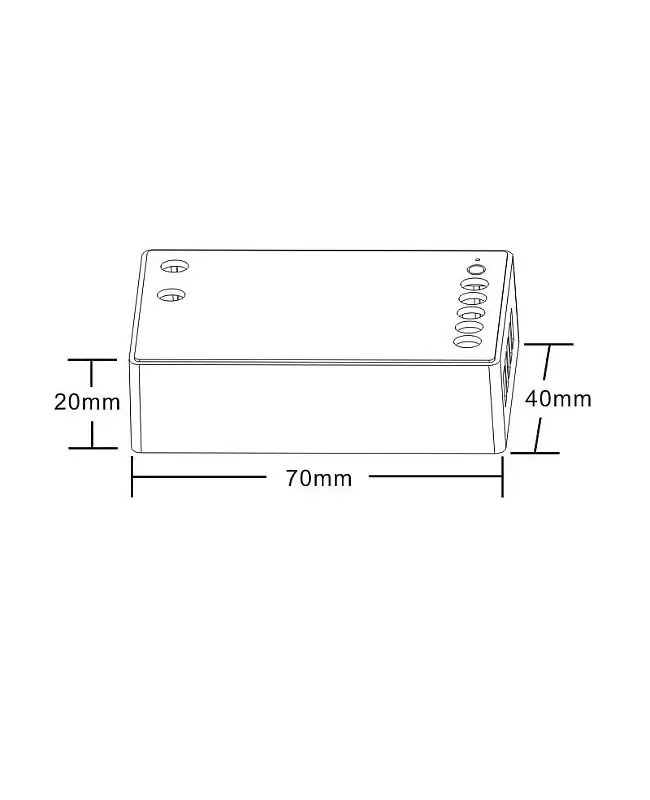

- Size ( L x W x H ):70 mm x 40 mm x 20 mm / 2.76" x 1.57" x 0.79"
- Output current: ≤5A ( Per channel )
- Power: 180W ( DC12V ) / 360W ( DC24V )
- Static power consumption: <1W
- Connecting mode: Common anode
- WIFI technology powered by Tuya
- Compatible with voice control by Amazon Alexa, Google Assistant, and Yandex Alice
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: RGB
- Size ( L x W x H ): 70 mm x 40 mm x 20 mm / 2.76" x 1.57" x 0.79"
- Working voltage: -24V
- Output: 3 channels
- Output current: ≤5A ( Per channel )
- Power: 180W ( DC12V ) / 360W ( DC24V )
- Static power consumption: <1W
- Connecting mode: Common anode
- PWM frequency: 1.95 KHz
- RF frequency: 2.
- Short circuit protection: YES
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

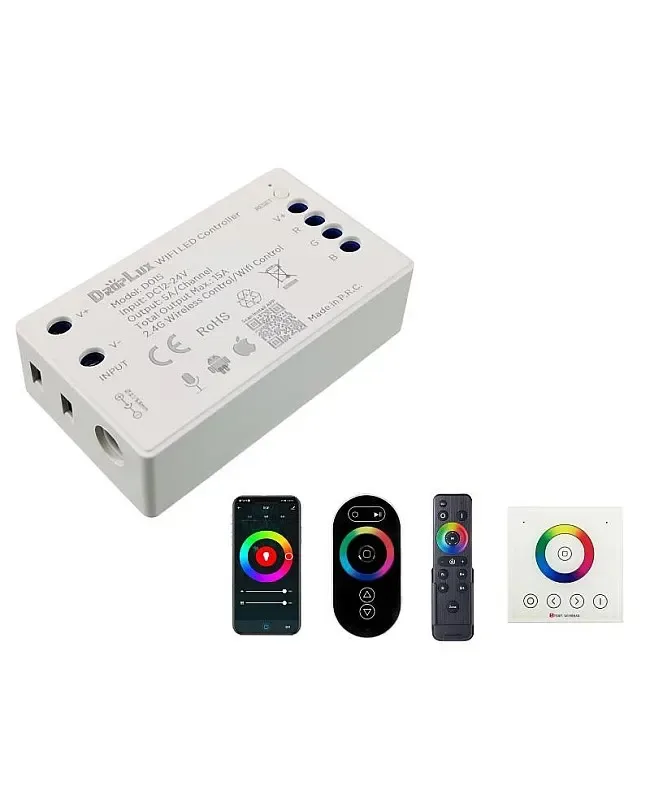

The WiFi RGB LED controllers are designed to control your RGB strip lights in multiple ways. They can be controlled by smart voice speakers via voice commands via Amazon Alexa, Google Assistant, Yandex Alice, etc., to turn the lighting on/off and adjust it remotely. The installer can also control them with the included remote control or an APP. The LED WiFi controller operates on 12V-24V DC, features a 3-channel design, and delivers up to 5A per channel. With the memory function, each time the power is turned on, it retains the mode which stops last turned off. There are three types of RF remote control available: RFBK-RGB-2.4G LED Remote is included, the installer can set the mode to RGB, and it works with the RGB WiFi LED controller. Can use the LED remote control to set 4 groups, each group can add many LED controllers, and the installer can control them synchronously. The installer can touch the color ring to adjust the static color steplessly, using 64 colors. The installer can also use it to adjust the brightness of static colors or the speed of dynamic modes. The installer can scan the QR code on the controller to download the TUYA APP, long-pressing the "Reset" button on the controller and hold for 5 seconds until the loading LEDs flash to start the connection with Tuya APP to achieve the intelligent control like group control, sense control, timer control, music control and so on the WiFi RGB controller will transmit the control signals from the remote control and self-inspection the work status for each other, multiple receivers can wireless-sync-work completely when being paired to the same one remote control, not only static mode but also dynamic mode. To achieve a wired-like operation experience.

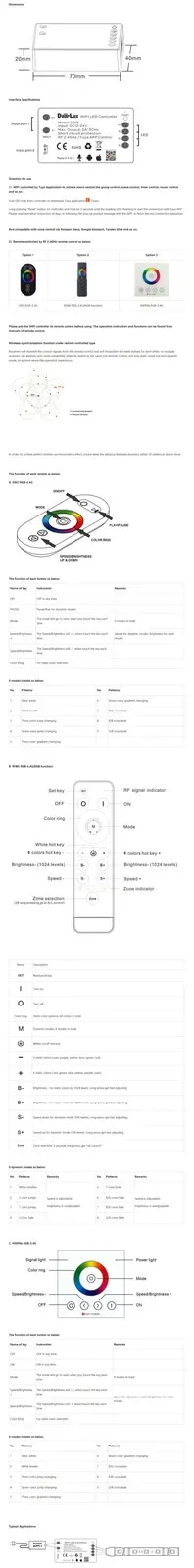

WiFi LED Controller Specifications
Size ( L x W x H ):70 mm x 40 mm x 20 mm / 2.76" x 1.57" x 0.79"
Working voltage: -24V
Output: 3 channels
Output current: ≤5A ( Per channel )
Power: 180W ( DC12V ) / 360W ( DC24V )
Static power consumption: <1W
Connecting mode: Common anode
WIFI technology powered by Tuya
Compatible with voice control by Amazon Alexa, Google Assistant, and Yandex Alice
PWM frequency: 1.95 KHz
Grayscale: 1024 Levels
Speed stage: 100 Levels
RF frequency: 2.
Wireless synchronization function under the remote-controlled type
Short circuit protection: YES
Memory function: YES
Weight: 80g
Working temperature: -20-60℃
LED Remote Specifications
Size ( L x W x H ): 150 mm x 40 mm x 20 mm / 5.91" x 1.57" x 0.79"
Color: Black
Working voltage: DC3V
Powered by 2PCS AAA batteries
Standby current: <
Working current: <
Standby power
Working power
RF frequency: 2.
RF control distance: <20m
Weight: 95g
Working Temperature: -20-60℃
Includes

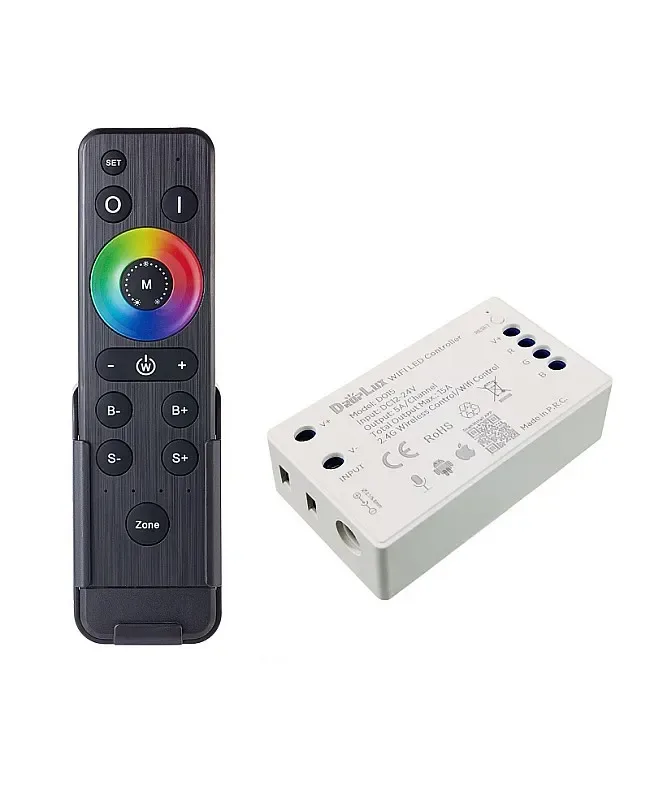

1 * WiFi RGB controller
1 * RFBK-RGB-2.4G remote control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
