IP66 Outdoor Waterproof LED Single Color Dimmer 2.4G

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The outdoor waterproof LED single color dimmer, with a waterproof level of up to IP66, can be used for outdoor lighting projects. The working voltage is DC12V-DC24V, with one output channel, and the maximum output current is 12A. The IP66 LED dimmer integrates a 2.4G transmit module, and the control distance is up to 30m. One dimmer can transmit the signals from the remote control to another; if the control distance is within 30m, the remote control distance can be limitless.
• Link: wireless controller Waterproof LED Dimmer User Manual

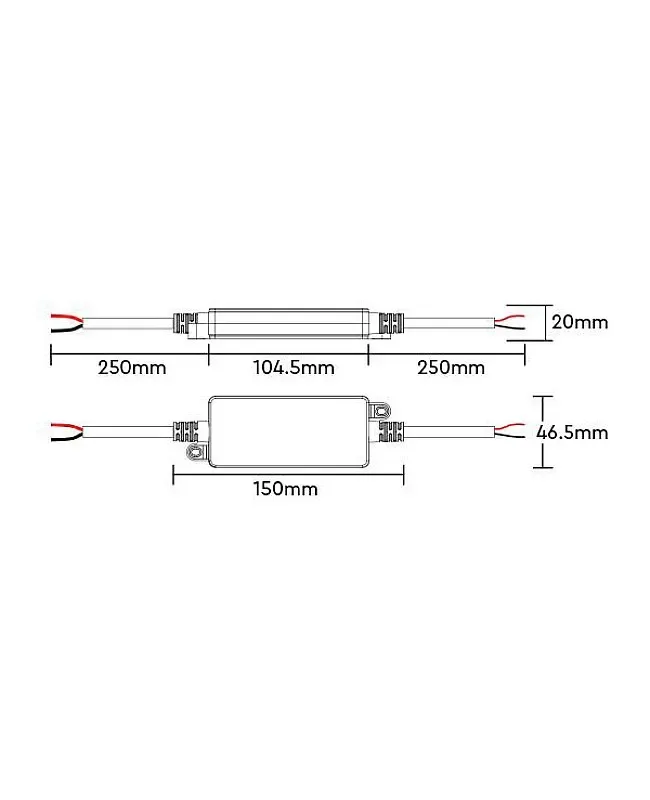

• Size: 150*46.5*20mm(L*W*H)
• Stepless Dimming Brightness: 1%-100%
• Output Connection: Common Anode
• 4G RF Remote Controllable WL T1, T2,
• Auto Signal Transmitting
• Frequency Switched High Low(500Hz)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V
• LumaCircuit model: LC-CTL-KQ7UCT
• Size: 150*46.5*20mm(L*W*H)
• Working Voltage: -24V
• Max Output Current: 12A
• IP Rate: IP66
• Control Distance: ≤30m
• Output Connection: Common Anode
• 2.4G RF Remote Controllable: WL T1, T2,
• Working Temperature: -20-45℃
• Dimensions found: 150x46.5x20mm / 20mm / 30m

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The outdoor waterproof LED single color dimmer, with a waterproof level of up to IP66, can be used for outdoor lighting projects. The working voltage is DC12V-DC24V, with one output channel, and the maximum output current is 12A. The IP66 LED dimmer integrates a 2.4G transmit module, and the control distance is up to 30m. One dimmer can transmit the signals from the remote control to another; if the control distance is within 30m, the remote control distance can be limitless. The outdoor light dimmer is compatible with most 2.4G RF single color light remotes T1, T2, and After adding a 2.4G gateway WL the wireless controller waterproof dimmer supports smartphone APP control and third-party voice control, supporting Amazon Alexa and Google Assistant. The installer can adjust the brightness from 1% to 100% for various scenes. It supports PWM high-frequency or low-frequency 500Hz switched.

Link: wireless controller Waterproof LED Dimmer User Manual

Specifications

Model

Size: 150*46.5*20mm(L*W*H)

Working Voltage: -24V

Max Output Current: 12A

IP Rate: IP66

RF: 2.

Stepless Dimming Brightness: 1%-100%

Control Distance: ≤30m

Output Connection: Common Anode

4G RF Remote Controllable WL T1, T2,

Auto Signal Transmitting

Frequency Switched High Low(500Hz)

Support Smartphone APP Control, Third-Party Voice Control(Amazon Alexa, Google Assistant)

Working Temperature: -20-45℃

Includes

1 * Outdoor LED Single Color Dimmer
