768W RGBW LED Remote Controller With Wall Panel RF Touch Control
LumaCircuit offers 768W RGBW LED Remote Controller With Wall Panel RF Touch Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Max Output Current: 8A Each Channel Max Output Power: 384W(12V), 768W(24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

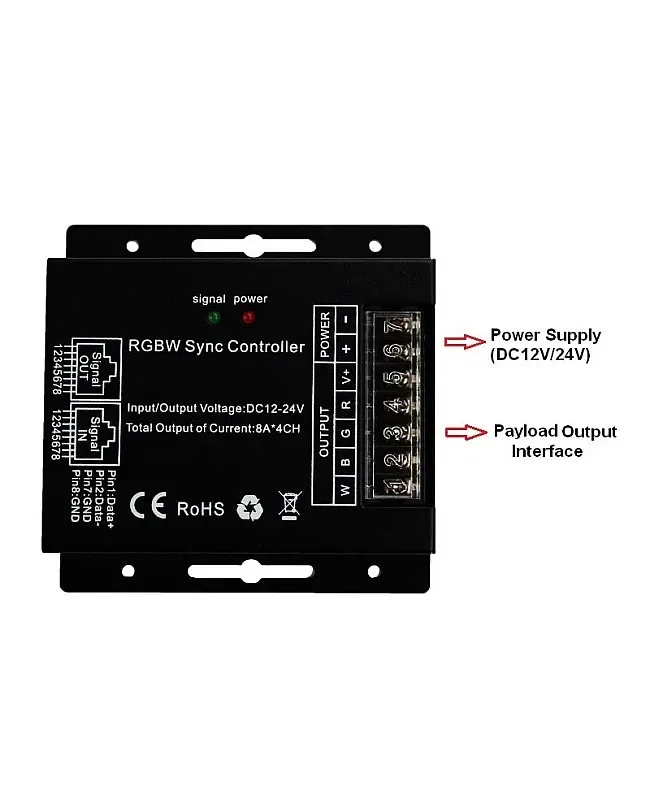

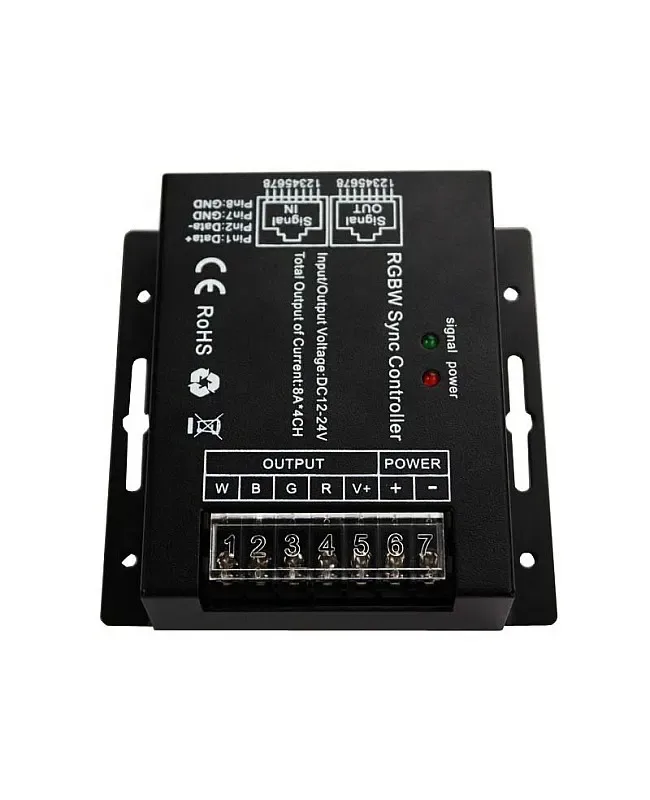

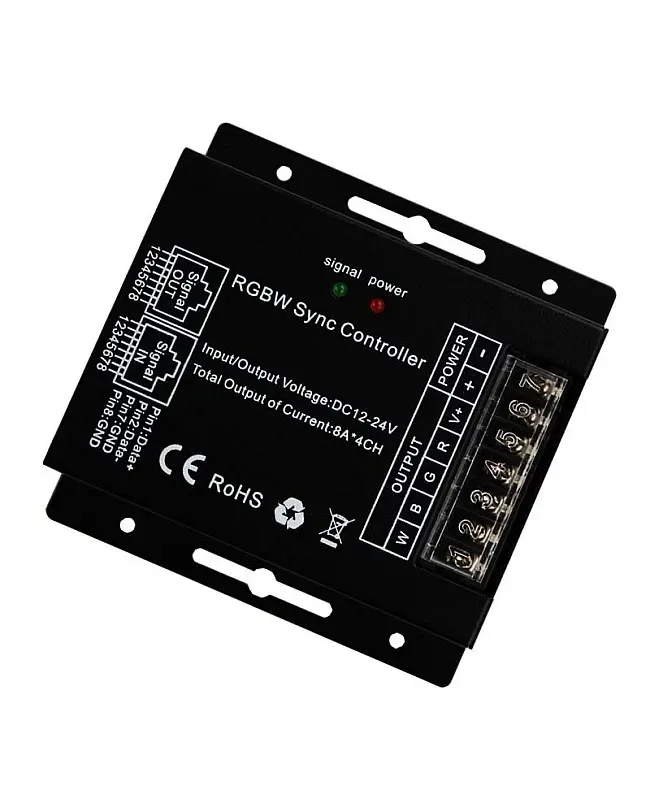

- The LED remote controller is designed for constant-voltage RGBW LED strips and is enclosed in a black metal shell for improved heat dissipation, with dual ports for synchronization. Multiple controllers can work synchronously when connected via a network cable using connectors; the maximum network cable length is 80 meters. The RGBW LED controller has four output channels. The max output current of each channel is 8A, and the max load power is 768W at DC24V.
- Working Temperature: -20-60℃
- Max Output Current: 8A Each Channel
- Max Output Power: 384W(12V), 768W(24V)
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Dual Ports For Synchronization Function
- Short Circuit Protection: YES
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: RGBW
- Working Temperature: -20-60℃
- Size: 91*88*24mm(L*W*H)
- Working Voltage: -24V
- Output Channels: 4
- Max Output Current: 8A Each Channel
- Max Output Power: 384W(12V), 768W(24V)
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Mode: 9
- PWM Frequency: 433.
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

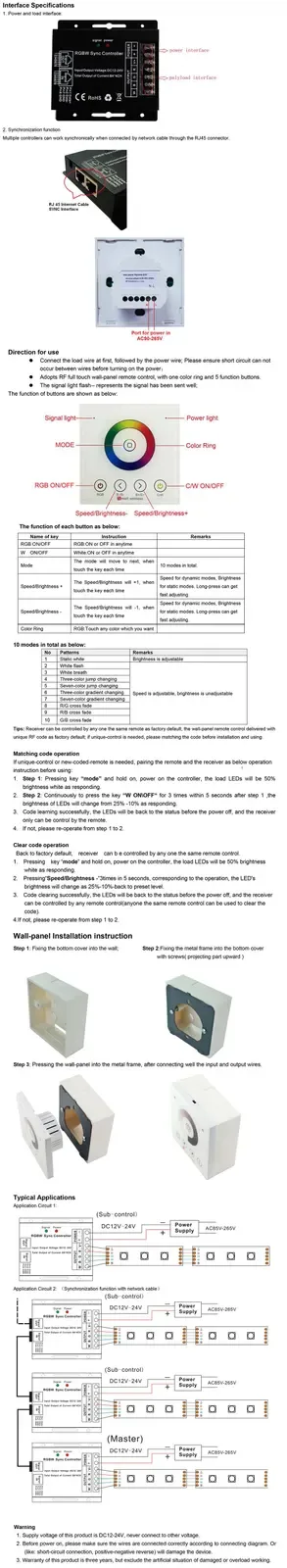

Product overview

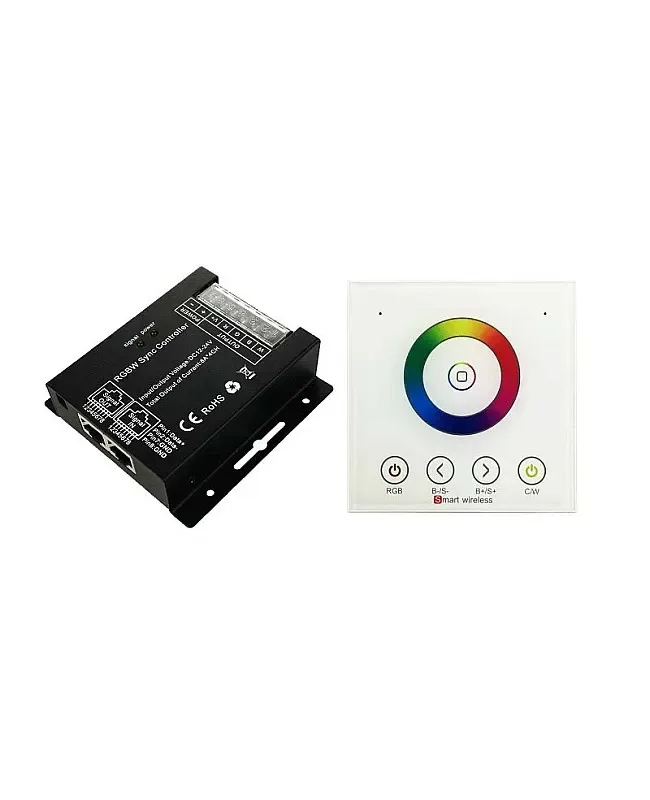

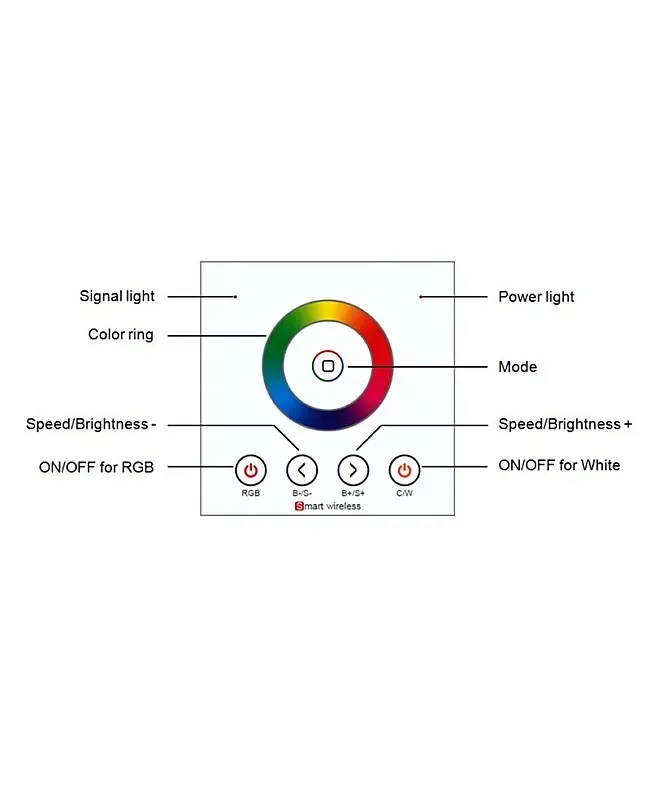

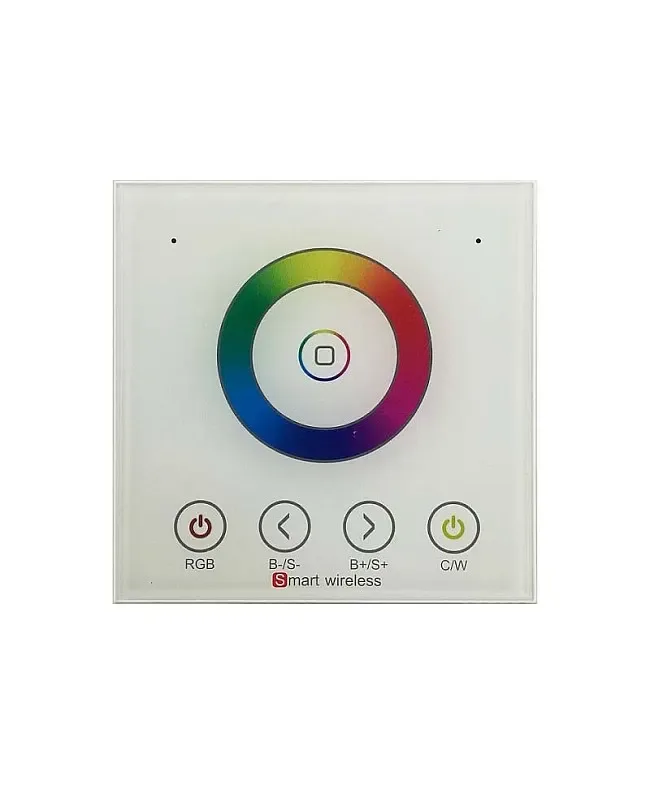

The LED remote controller is designed for constant-voltage RGBW LED strips and is enclosed in a black metal shell for improved heat dissipation, with dual ports for synchronization. Multiple controllers can work synchronously when connected via a network cable using connectors; the maximum network cable length is 80 meters. The RGBW LED controller has four output channels. The max output current of each channel is 8A, and the max load power is 768W at DC24V. The full-touch wall panel RF touch remote control includes a control range of up to 20 meters, a working voltage range from AC90V to AC265V, and can connect directly to the public power system without an extra adapter. The remote control has one color ring, five function buttons, nine working models in total, adjustable brightness for static colors, 256 levels in total, and adjustable speed for dynamic modes, 100 levels in total. The wall panel remote control's structure, dimensions, and installation comply with European 86-type standards and are easy to install and use. Long-pressing the brightness and speed keys can get a fast adjustment.
RGBW LED Remote Controller Specifications
Working Temperature: -20-60℃
Size: 91*88*24mm(L*W*H)
Working Voltage: -24V
Output Channels: 4
Max Output Current: 8A Each Channel
Max Output Power: 384W(12V), 768W(24V)
Static Power Consumption: <1W
Connecting Mode: Common Anode
Grayscale: 256 Levels
Speed Stage: 100 Grade
RF Distance: <20M
PWM Frequency: 433.
Dual Ports For Synchronization Function
Memory Function: YES
Short Circuit Protection: YES
Weight: 300g
Wall Panel Touch Control Specifications
Working Temperature: 0-45℃
Size: 86*86*34mm(L*W*H)
Working Voltage: -265V(50/60Hz)
Standby Power: 0.2W
Working Power: 2W
RF Frequency: 433.
RF Distance: 20m
86-Type European Standard
Weight: 130g
Includes
