4G 12V PWM Light Dimmer With WIFI Control

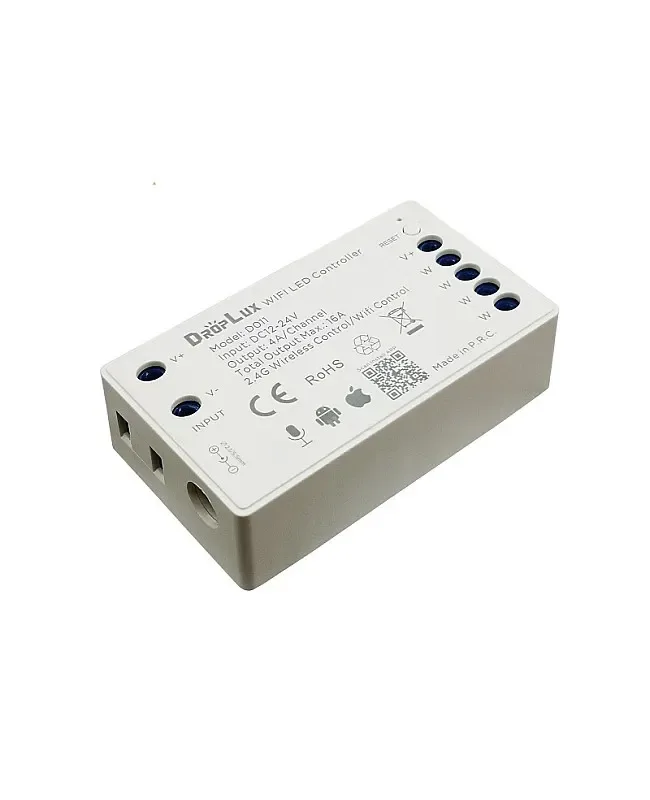

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The 2.4G light dimmer is designed for constant voltage LED products and has an integrated WiFi technology. The installer can download an app and connect the LED light dimmer to your mobile phone to adjust the brightness via WiFi. The surface of the LED dimmer has a QR Code, and the installer can scan the code to download the Tuya App, which supports Android and IOS systems. The lighting dimmer works in DC12V-24V, with a 4-channel output design.
• Working Temperature: -20-60℃
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Speed Stage: 1024 Levels
• Output Current: ≤4A(Each Channel)
• Max Power Output: 192W(12V)/384W(24V)
• 4G Wireless Control/WIFI Control Technology By Tuya

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 12-24 V / 24 V
• Light engine: CCT
• Models: (DIM), (CCT)

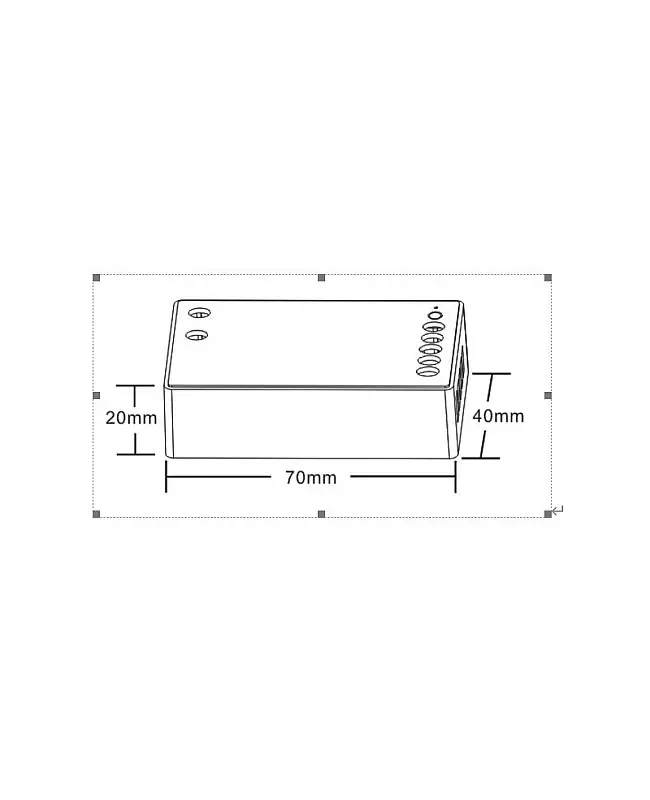

• Size: 70*40*20mm(L*W*H)
• Working Temperature: -20-60℃
• Working Voltage: -24V
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• RF Frequency: 2.
• Output: 4 Channels
• Output Current: ≤4A(Each Channel)
• PWM Frequency: 1 KHz

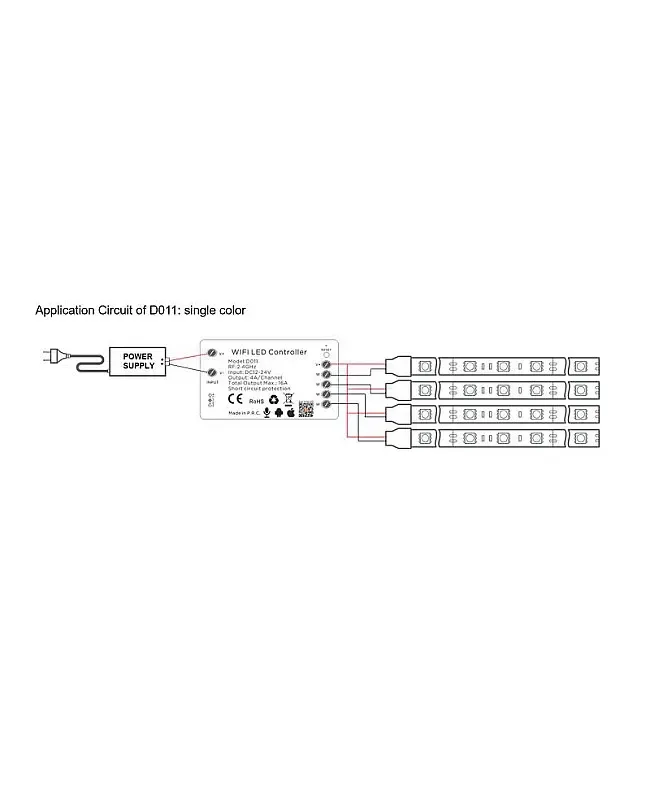

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

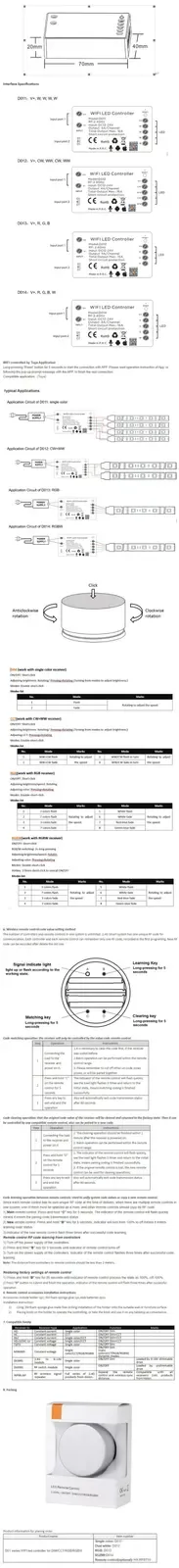

Product overview

The 2.4G light dimmer is designed for constant voltage LED products and has an integrated WiFi technology. The installer can download an app and connect the LED light dimmer to your mobile phone to adjust the brightness via WiFi. The surface of the LED dimmer has a QR Code, and the installer can scan the code to download the Tuya App, which supports Android and IOS systems. The lighting dimmer works in DC12V-24V, with a 4-channel output design. The max output current of each channel is 4A, and the max loading power reaches 384W when working in 24V. The rotary dimming LED remote control is included. The installer can use it to turn on or turn off the LED Light by a short or a long press when the LED remote is working, rotate it to adjust the brightness of the single-color LED light, or change the color temperature of the CCT LED lights.

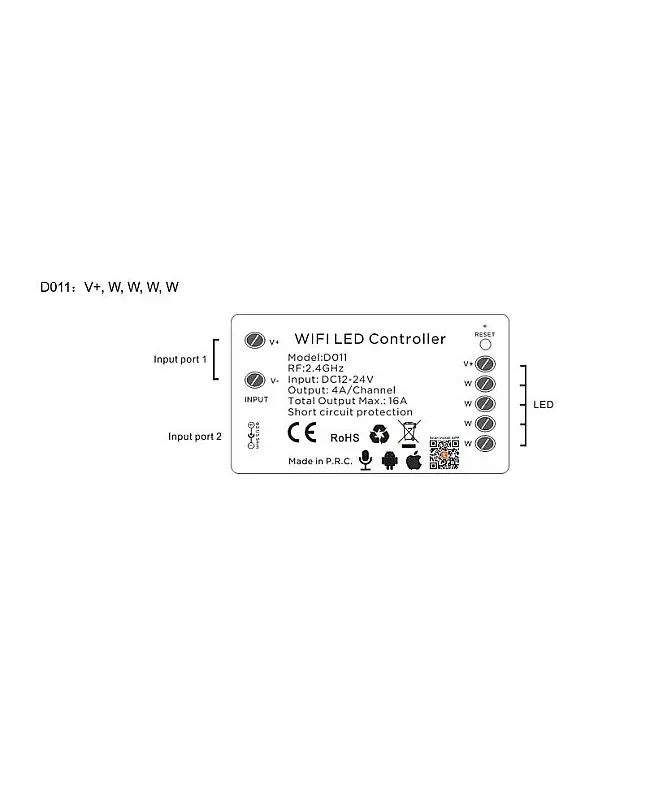

Dimmer Specifications

Models: (DIM), (CCT)

Size: 70*40*20mm(L*W*H)

Working Temperature: -20-60℃

Working Voltage: -24V

Static Power Consumption: <1W

Connecting Mode: Common Anode

Grayscale: 1024 Levels

Speed Stage: 1024 Levels

RF Frequency: 2.

RF Distance: ≤20M

Output: 4 Channels

Output Current: ≤4A(Each Channel)

PWM Frequency: 1 KHz

Max Power Output: 192W(12V)/384W(24V)

4G Wireless Control/WIFI Control Technology By Tuya

Short Circuit Protection: YES

Memory Function: YES

Weight: 80G

Remote Control Specifications

Size: 60*35mm

Working Temperature: -20-60℃

Working Voltage: 3V(AAA*2PCS)

Sleep Current: <

Emission Current: <

Sleep Power Consumption: <

Emission Power Consumption: <

RF Distance: ≤30m

RF Frequency: 2.

Weight: 80g

Holder And 3M Foam Sponge Glue Included

Includes

1 * PWM Light Dimmer

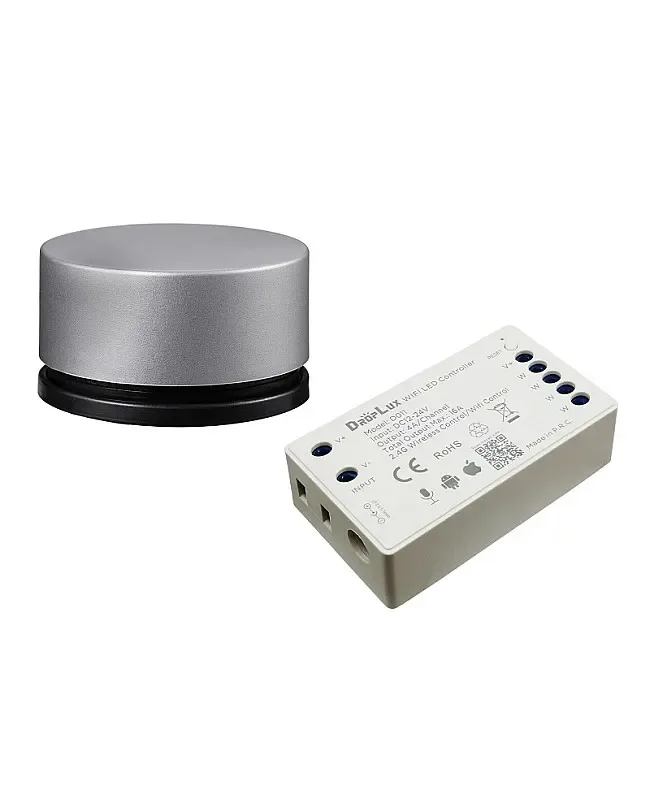

1 * 2.4G Rotary Dimming Remote Control
