RGBW Sound Activated Light Controller
LumaCircuit offers RGBW Sound Activated Light Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Connecting Method: Common Anode Static Power Consumption: <0.5W Output Current: Total: 16A, 4*4A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGBW sound-activated light controller has a dual-output port design. The RGBW LED strip controllers are available in slim and mini sizes, and the installer can install them in a narrow space or on furniture.
- Connecting Method: Common Anode
- Static Power Consumption: <0.5W
- Output Current: Total: 16A, 4*4A
- Output Power: DC5V: <80W; DC12V: <192W; DC24V: <384W
- Working Temperature: -20℃-+60℃
- 5*2.1mm DC Female Connector And 5Pin Female Connectors Included
- 21 Keys RF Remote Control Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V / 5 V / 12 V / 24 V
- Light engine: RGBW
- Size: 72*31*14mm(L*W*H)
- Working Voltage: -24V
- Static Power Consumption: <0.5W
- Output Current: Total: 16A, 4*4A
- Output Power: DC5V: <80W; DC12V: <192W; DC24V: <384W
- Working Temperature: -20℃-+60℃
- Color Order: +WRGB
- LumaCircuit model: LC-CTL-NJ99ZC
- Dimensions found: 72x31x14mm / 14mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

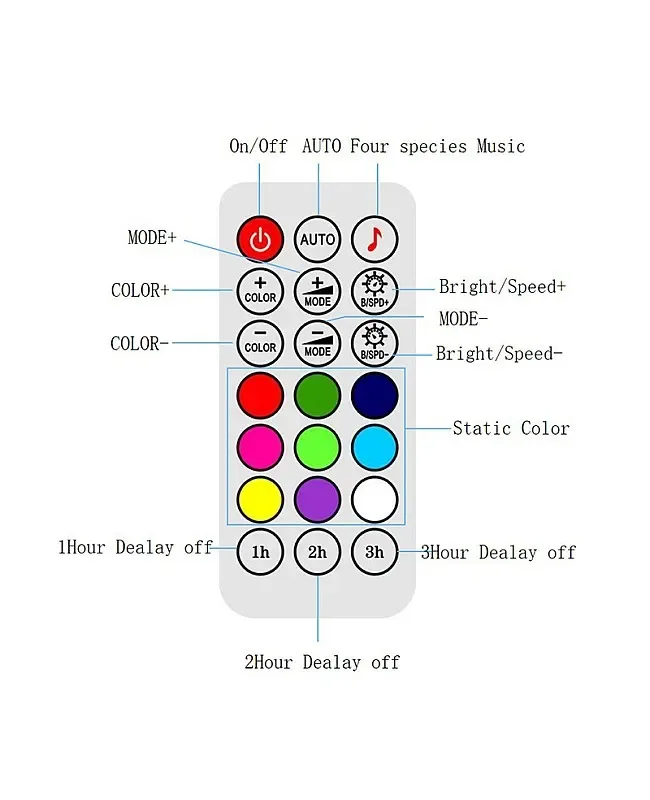

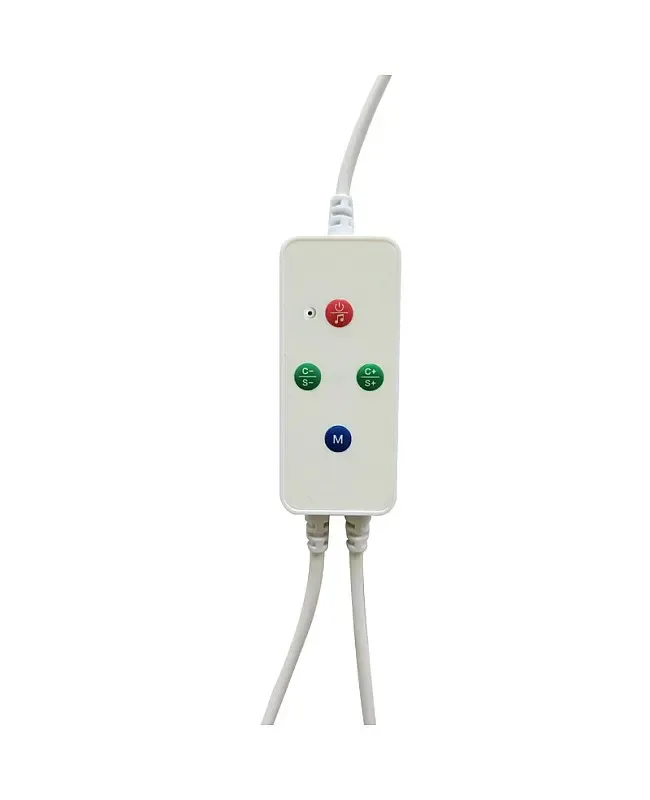

The RGBW sound-activated light controller has a dual-output port design. The RGBW LED strip controllers are available in slim and mini sizes, and the installer can install them in a narrow space or on furniture. The 5.5*2.1mm DC female connectors and 5Pin female connectors included, easy to connect to the LED adapter and RGBW strip lights, working in DC5V to DC24V, there are four buttons on the LED controller, the installer can use them to turn on/off the LED light, adjust the music modes, adjust the brightness of static color or the speed of dynamic mode and set the static color or dynamic mode. 14 static colors and 18 dynamic modes are available, including four sound-activated modes. The 21-key RF remote control includes a feature allowing you to control the LED lights remotely. It has a timer function enables you to turn off the RGBW strip lights after 1 hour, 2 hours, or 3 hours.
Specifications

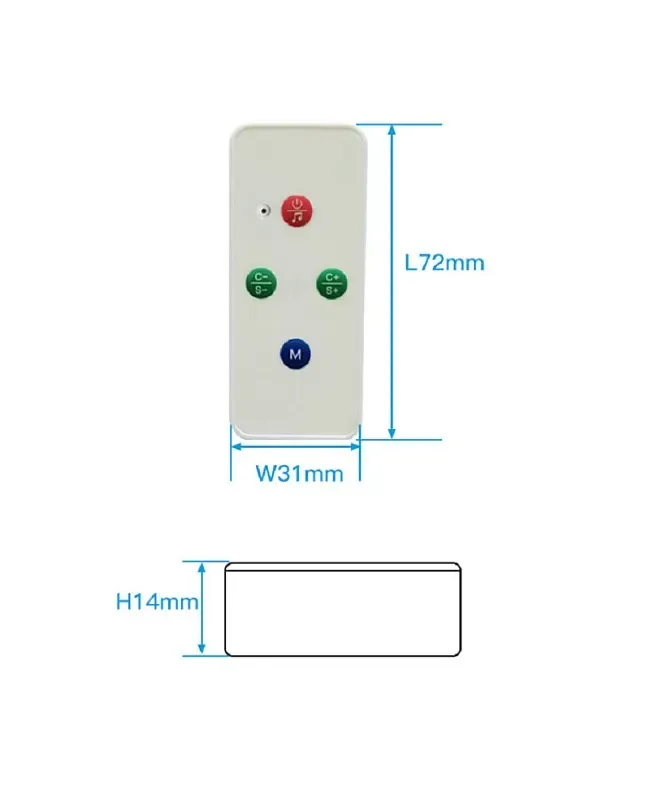

Size: 72*31*14mm(L*W*H)
Working Voltage: -24V
Connecting Method: Common Anode
Static Power Consumption: <0.5W
Output Current: Total: 16A, 4*4A
Output Power: DC5V: <80W; DC12V: <192W; DC24V: <384W
Working Temperature: -20℃-+60℃
5*2.1mm DC Female Connector And 5Pin Female Connectors Included
21 Keys RF Remote Control Included
14 Static Colors And 18 Dynamic Modes Available
Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable

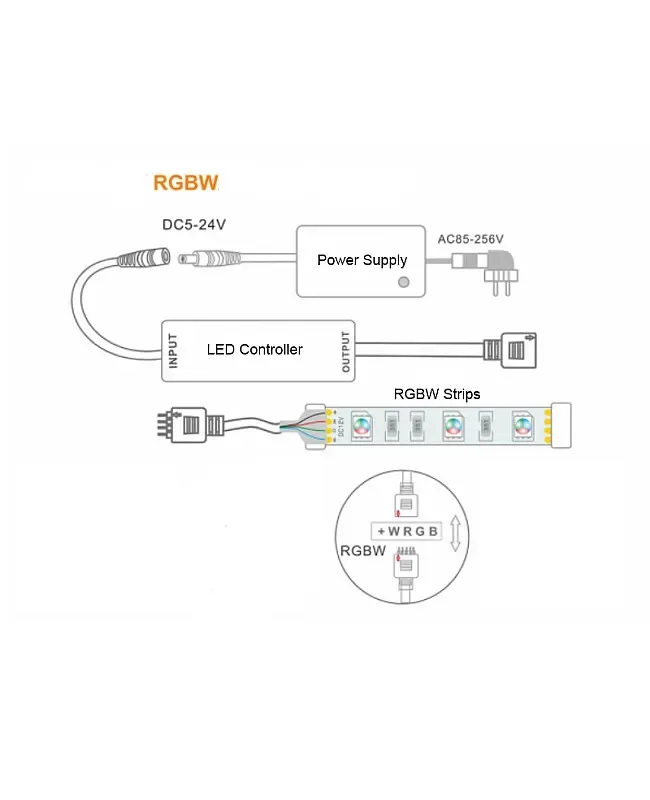

Color Order: +WRGB

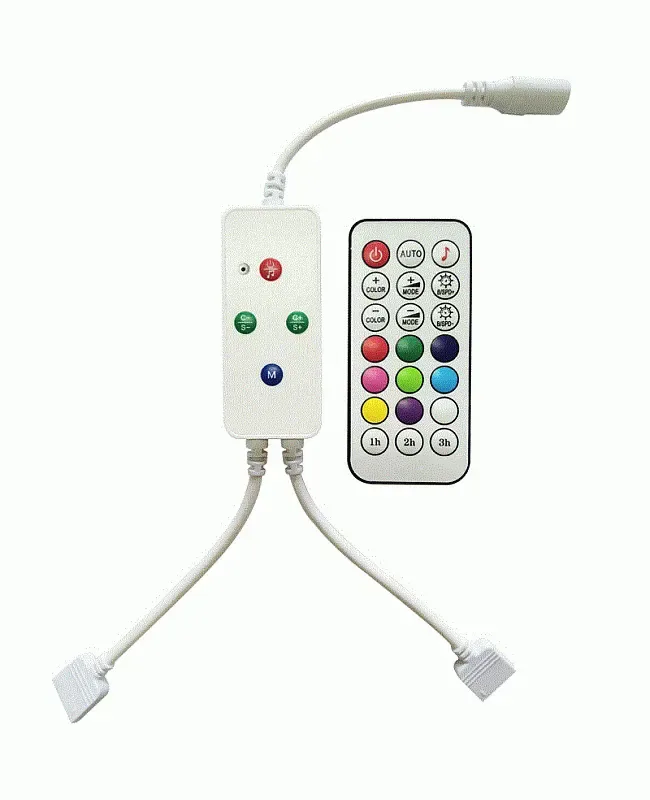

Includes
1 * Sound Activated Light Controller
1 * 21 Keys RF Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
