Product details

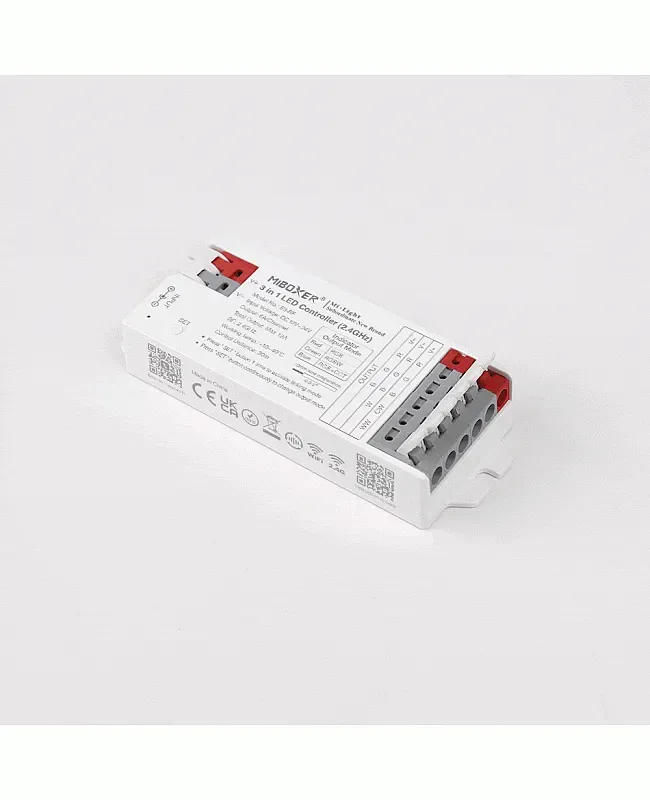

RF 3 In 1 RGBWW Wireless LED Controller
LumaCircuit offers RF 3 In 1 RGBWW Wireless LED Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 3 In 1 Wireless LED Controller For RGB, RGBW, RGBWW Size: 100.6*40*17.6mm(L*W*H) 16 Million Colors To Choose The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

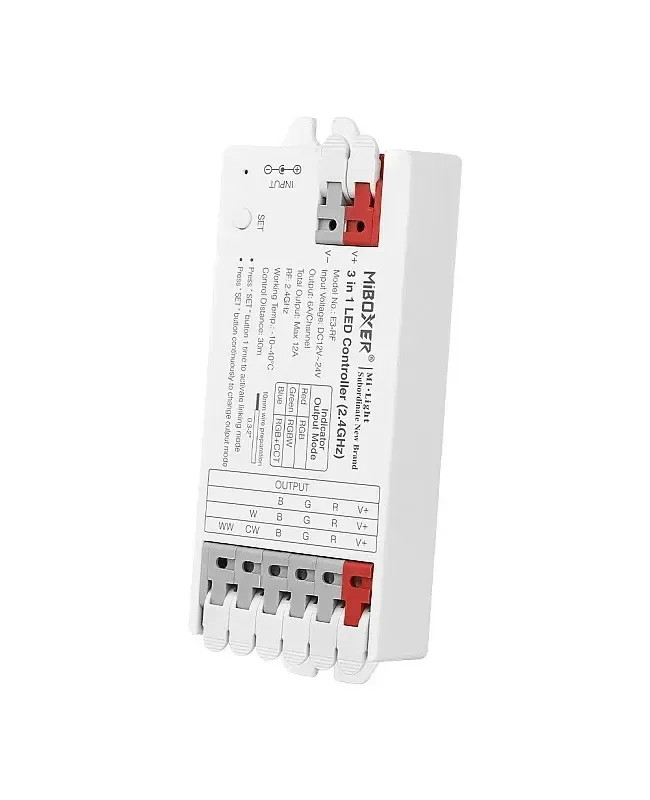

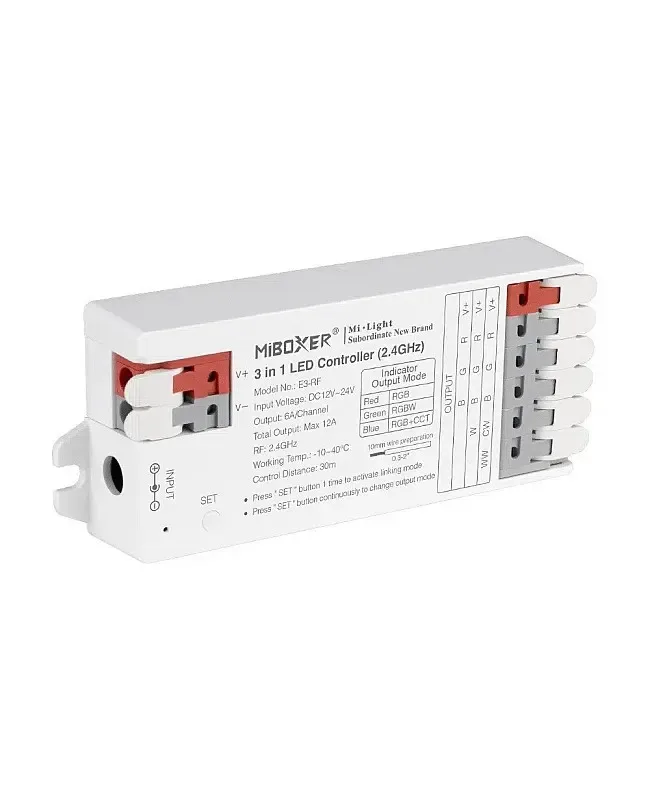

- The wireless controller RGBW wireless LED controller has a 3-in-1 design for RGB, RGBW, and RGB+CCT LED lights. There is a " SET " on the controller; press it to switch the output mode conveniently. It can be controlled by RF remote controls, smartphone apps, and third-party voice commands to set the colors and adjust the color temperature, brightness, and saturation for various scenes. The wire terminals with instant wiring tool-free design are super easy to connect to the power supply and LED lights.
- Type: 3 In 1 Wireless LED Controller For RGB, RGBW, RGBWW
- Size: 100.6*40*17.6mm(L*W*H)
- 16 Million Colors To Choose
- Color Temperature Adjustable
- 4G RF Remote Control B, B, B, B, B, T4, B, T3, B, W, G,
- Switching 3 Output Mode(RGB, RGBW, RGB+CCT) Via One Button
- Auto Signal Transmitting And Modes Synchronization
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-KNNUSV
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: -24V
- Output: 6A/Channel
- Total Output: 12A Max
- 2.4G RF Remote Control: B, B, B, B, B, T4, B, T3, B, W, G,
- Control Distance: ≤30m
- Output Connection: Common Anode
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RGBW wireless LED controller has a 3-in-1 design for RGB, RGBW, and RGB+CCT LED lights. There is a " SET " on the controller; press it to switch the output mode conveniently. It can be controlled by RF remote controls, smartphone apps, and third-party voice commands to set the colors and adjust the color temperature, brightness, and saturation for various scenes. The wire terminals with instant wiring tool-free design are super easy to connect to the power supply and LED lights. The wireless controller wireless light controllers can transmit the signals from the remote to another controller LED strip RGB within 30 meters, and different controllers can work synchronously. After pairing with a 2 light gateway, the RF can be controlled by a smartphone APP and third-party voice commands and can work with Amazon Alexa and Google Assistant.
Specifications
Type: 3 In 1 Wireless LED Controller For RGB, RGBW, RGBWW
Model
Size: 100.6*40*17.6mm(L*W*H)
Input Voltage: -24V
Output: 6A/Channel
Total Output: 12A Max
16 Million Colors To Choose
Color Temperature Adjustable
Brightness Adjustable
Saturation Adjustable
RF: 2.
4G RF Remote Control B, B, B, B, B, T4, B, T3, B, W, G,
Control Distance: ≤30m
Switching 3 Output Mode(RGB, RGBW, RGB+CCT) Via One Button
Auto Signal Transmitting And Modes Synchronization
High Frequency Low Frequency(250Hz) Can Be Switched
Support Smartphone APP Control And Third-party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Support DMX512 Controllable(Only for RGB+CCT Output Mode, DMX512 LED Transmitter Needed)
Output Connection: Common Anode
Instant Wiring Tool-free
Two Port Interfaces: Wiring Ports,5*2.1mm
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
1 * RF RGBWW LED Controller
1 * User Manual
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
