Product details
5 In 1 WiFi RGB Light Controller
LumaCircuit offers 5 In 1 WiFi RGB Light Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Type: 5 In 1 WiFi+2.4G Light Controller Size: 119*47*23mm(L*W*H) 16 Million Colors To Choose The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

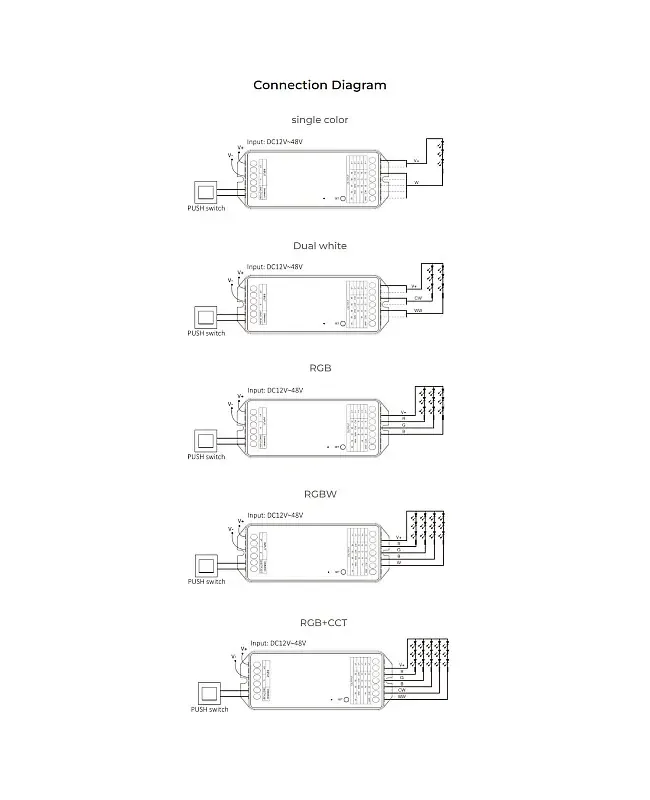

- The wireless controller WiFi RGB light controllers with 5 in 1 design, which can be used for single color, CCT, RGB, RGBW, and RGB+CCT LED lights, can be controlled by RF remotes, Tuya APP, and third-party voice commands to adjust the lighting for various scenes. The wireless controller LED controllers integrate WiFi, Bluetooth, and 2.4G wireless transmission technology, low power consumption, and strong anti-interference ability.
- Type: 5 In 1 WiFi+2.4G Light Controller
- Size: 119*47*23mm(L*W*H)
- 16 Million Colors To Choose
- Color Temperature, Brightness, And Saturation Adjustable
- Auto-transmitting & Synchronization(Only For Remote Control Dimming)
- Communication Protocol: WiFi + 2.4G
- WiFi Standard: IEEE 802./g/n 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: RGB
- LumaCircuit model: LC-CTL-VJSA5H

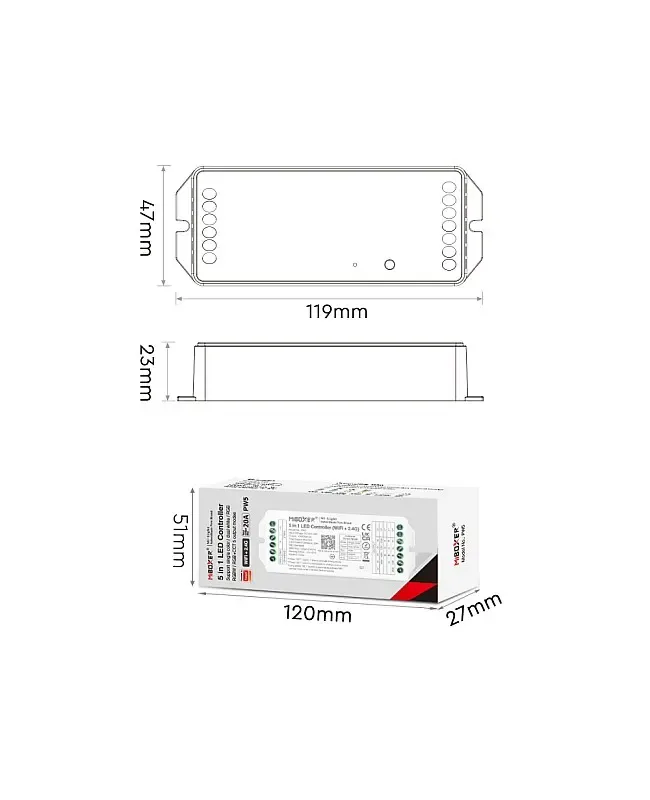

- Size: 119*47*23mm(L*W*H)
- Input Voltage: -48V
- Output: 10A/Channel
- Total Output: 20A Max
- Communication Protocol: WiFi + 2.4G
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
- 2.4G RF Remote Control Distance: ≤30M
- Compatible With RF Remote Controls: +
- Support Third-Party Voice Control: Amazon Alexa/Google Assistant
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller WiFi RGB light controllers with 5 in 1 design, which can be used for single color, CCT, RGB, RGBW, and RGB+CCT LED lights, can be controlled by RF remotes, Tuya APP, and third-party voice commands to adjust the lighting for various scenes. The wireless controller LED controllers integrate WiFi, Bluetooth, and 2.4G wireless transmission technology, low power consumption, and strong anti-interference ability. The WiFi and Bluetooth connected network can significantly enhance the connected network experience. When the router is disconnected, the Bluetooth can also directly connect and control the LED controllers at close range. The RF light controllers can be controlled by 2.4G remote controls and control distances up to 30 meters. The installer can select the color(16 million colors available) and adjust the color temperature, brightness, and saturation for various scenes. The controller will receive signals from a remote and transfer to the same ones within 30 meters; all will synchronize. The Tuya app and third-party voice commands can also control it. The installer can achieve more functions on the smartphone APP like scene control, timing control, music movement, biorhythm, sleep plan, wake plan, one key execution, automation, etc.
Specifications

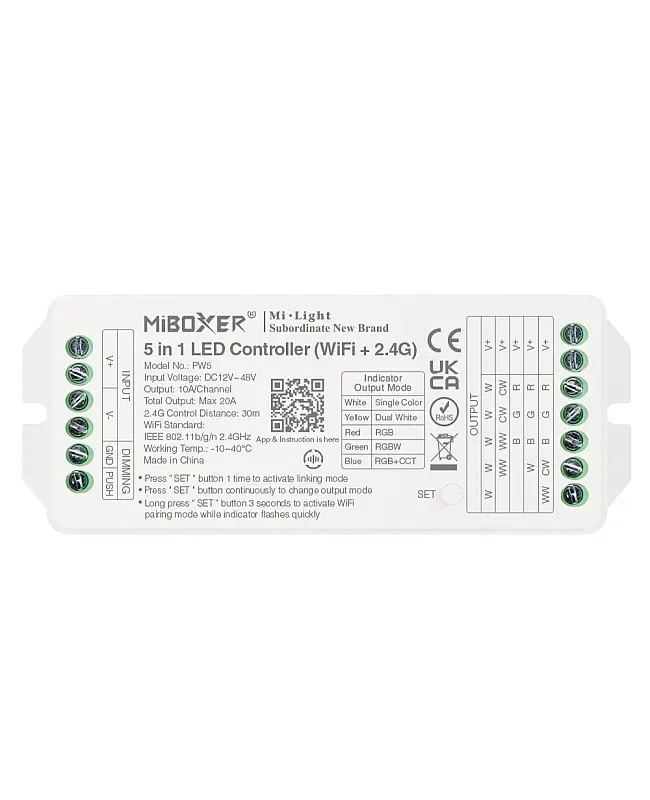

Type: 5 In 1 WiFi+2.4G Light Controller
Model
Size: 119*47*23mm(L*W*H)
Input Voltage: -48V
Output: 10A/Channel
Total Output: 20A Max
16 Million Colors To Choose
Color Temperature, Brightness, And Saturation Adjustable
Auto-transmitting & Synchronization(Only For Remote Control Dimming)
Communication Protocol: WiFi + 2.4G
WiFi Standard: IEEE 802./g/n 2.
Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
4G RF Remote Control Distance: ≤30M
Compatible With RF Remote Controls +
Support Tuya Smart APP Control, No Need 2.4G Gateway
Support Third-Party Voice Control: Amazon Alexa/Google Assistant
Device Sharing
Tap-to-Run & Automation
Timing/Countdown Turn On/Off
Biorhythm
Music Rhythm
Sleep/Wake Up Plan
DMX Control(Only 5-Channel Output, Transmitter Needed)
Support Scene Customization
Do Not Disturb Mode
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃

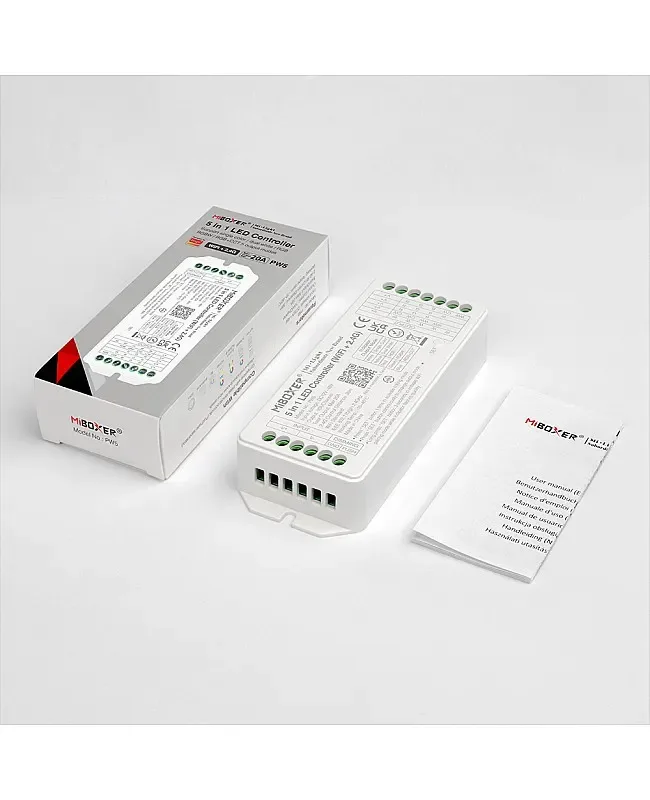

Includes
1 * WiFi Light Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
