Product details
480W CCT Tunable White Remote Light Controller
LumaCircuit offers 480W CCT Tunable White Remote Light Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20-60℃ Max Output Current: <10A(Each Channel) Max Output Power: 240W(12V), 480W(24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

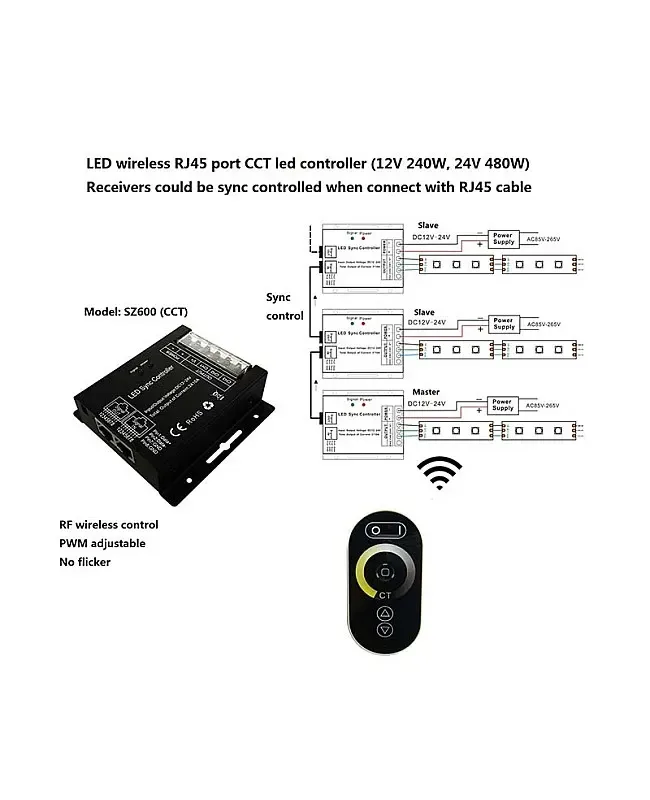

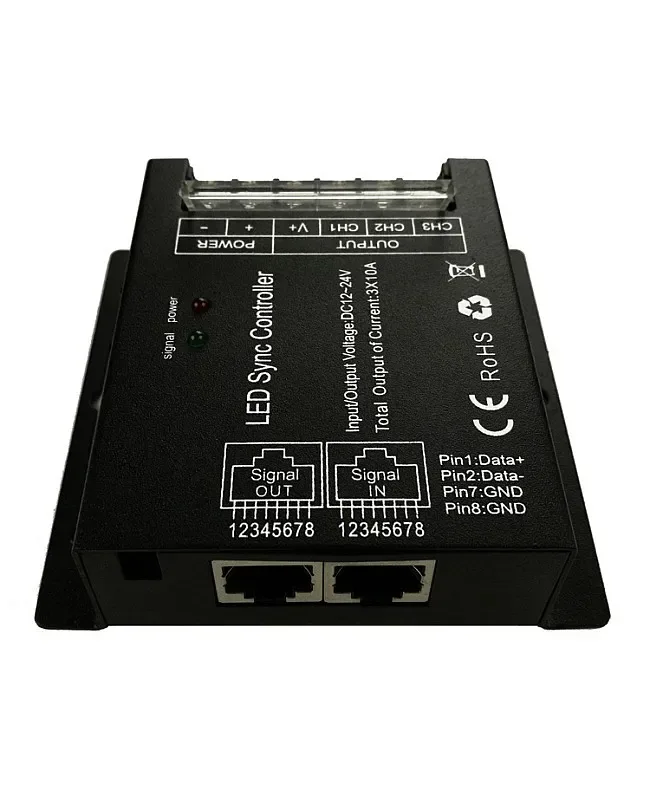

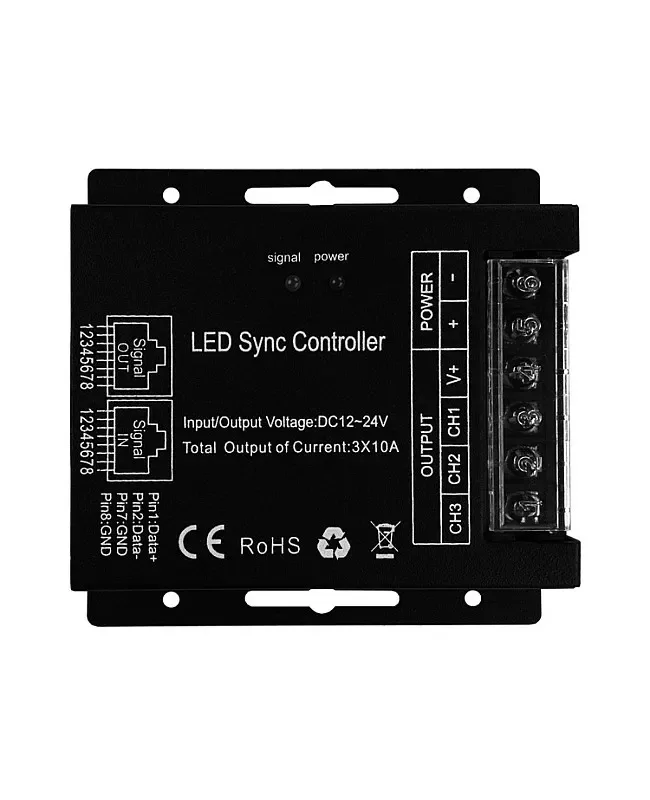

- The tunable white remote light controllers are designed for constant-voltage CW+WW LED lights, operating at DC12V-24V, with a two-output-channel design, and a maximum load power of 480W at 24V. The CCT remote controller adopts the most advanced PWM digital dimming technology, with dual ports to enable synchronous operation when connecting multiple LED controllers. The RF touch remote includes five function buttons and one color temperature ring.
- Working Temperature: -20-60℃
- Max Output Current: <10A(Each Channel)
- Max Output Power: 240W(12V), 480W(24V)
- Connecting Mode: Common Anode

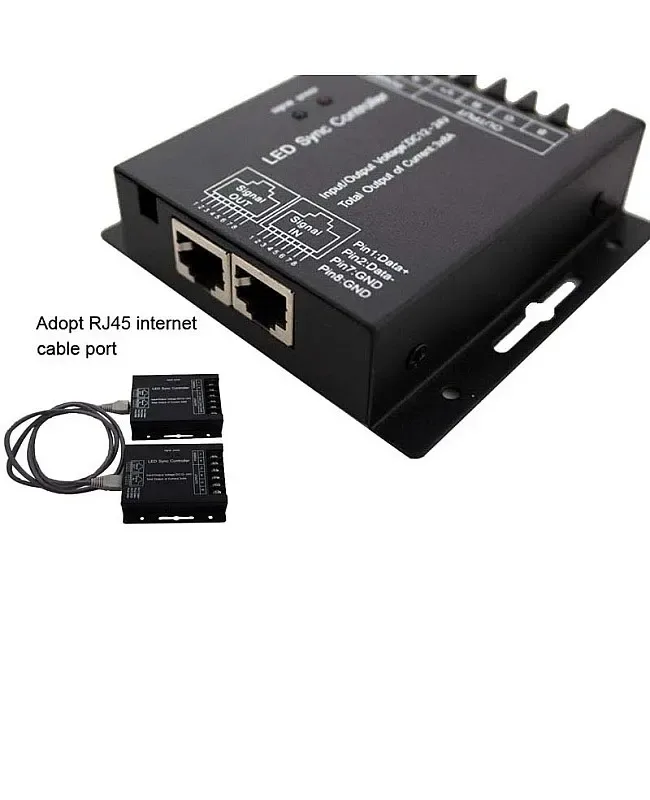

- Easy Connection To Achieve Multiple Controllers Sync-Work By Ports
- RF Full Touch Remote Control Included
- Remote With One CCT Ring And 5 Function Buttons
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: CCT
- Working Temperature: -20-60℃
- Working Voltage: -24V
- Output Channels: 2
- Max Output Current: <10A(Each Channel)
- Max Output Power: 240W(12V), 480W(24V)
- Connecting Mode: Common Anode
- Output Gray: 256 Levels
- RF Frequency: 433.
- LumaCircuit model: LC-CTL-7E7D5L
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

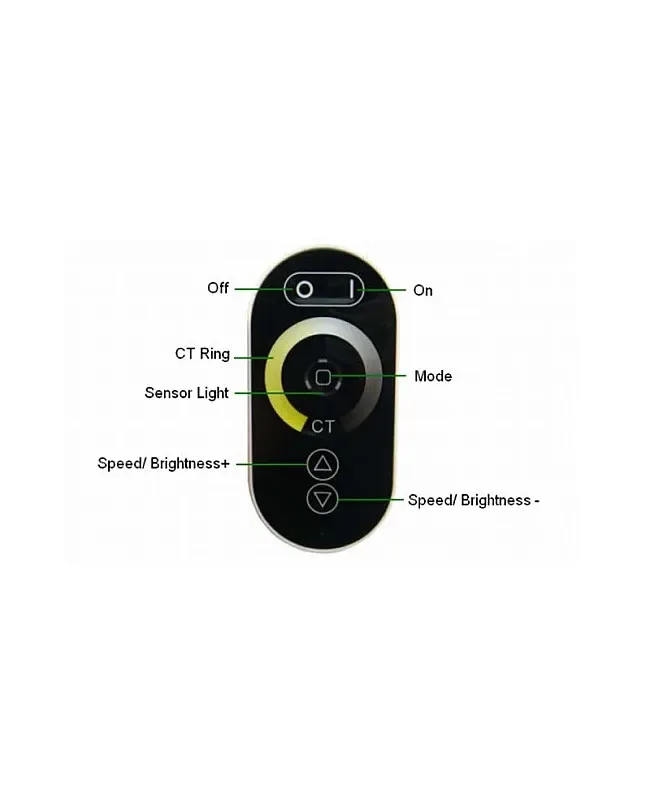

The tunable white remote light controllers are designed for constant-voltage CW+WW LED lights, operating at DC12V-24V, with a two-output-channel design, and a maximum load power of 480W at 24V. The CCT remote controller adopts the most advanced PWM digital dimming technology, with dual ports to enable synchronous operation when connecting multiple LED controllers. The RF touch remote includes five function buttons and one color temperature ring. All buttons are in the touch form, and the color ring has 128 levels in different color temperature values. There is a sense of light in the center to show the exact color that has been touched. There are nine dynamic modes, one static color, and eight dynamic modes. The brightness of static color and the speed of dynamic modes are adjustable.
Specifications
Working Temperature: -20-60℃
Working Voltage: -24V
Output Channels: 2
Max Output Current: <10A(Each Channel)
Max Output Power: 240W(12V), 480W(24V)
Connecting Mode: Common Anode
Output Gray: 256 Levels
RF Frequency: 433.
Easy Connection To Achieve Multiple Controllers Sync-Work By Ports
RF Full Touch Remote Control Included
Remote With One CCT Ring And 5 Function Buttons
9 Working Modes In Total, 1 Static Color And 8 Dynamic Modes
Weight: 300g

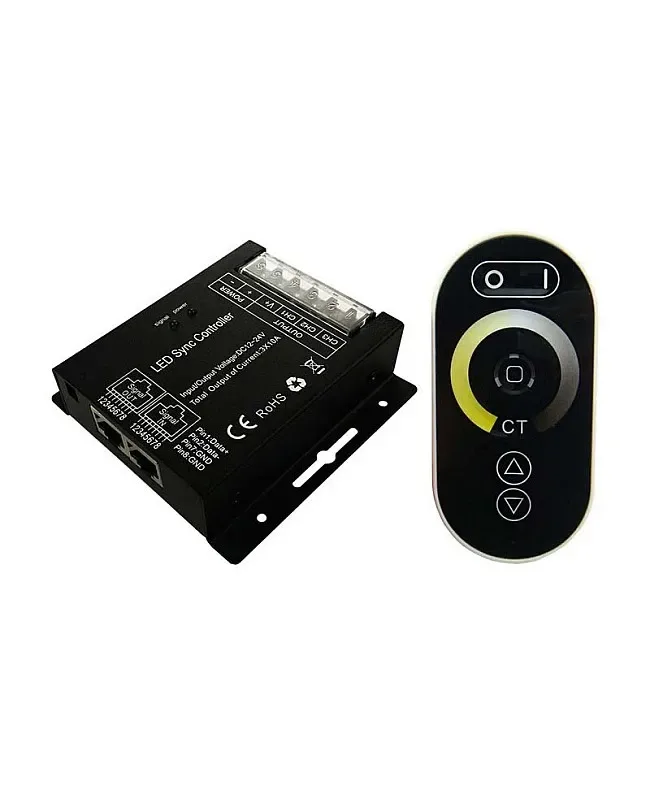

Includes
1 * Remote Light Controller
1 * RF Touch Remote Control
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
