24V DMX 512 Controller For RGB/RGBW/CCT/Single Color

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The DMX 512 controller supports DMX512 and RDM protocols, will transmit the DMX or RDM signals to the DMX or RDM decoders, with 4 in 1 functions for single color, CCT, RGB, and RGBW. The installer can choose the various dynamic modes and adjust the brightness or speed, identify the number of devices, and change the device address through the RDM function of the DMX512 controller.

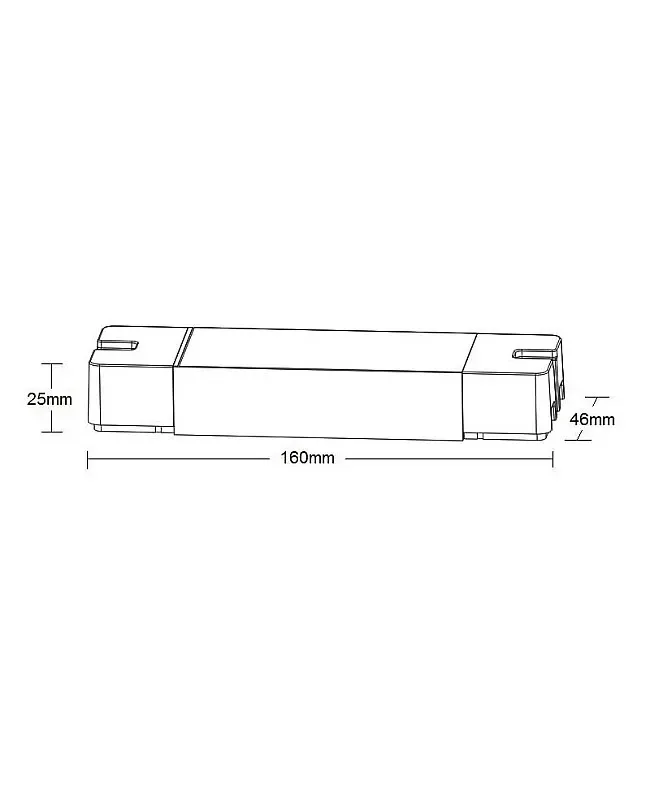

• Size: 162*46*25mm(L*W*H)
• Working Voltage: DC12V-DC24V
• Static Power Consumption: <1W
• Output Signal: DMX512/RDM
• Speed Of Modes: 100 Levels
• 4 In 1 Functions For Single Color/CCT/RGB/RGBW
• Compatible With RDM Protocols To Identify The Number Of Devices And Change The Device Address

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V / 12 V / 24 V
• Light engine: RGBW
• Size: 162*46*25mm(L*W*H)
• Working Voltage: DC12V-DC24V
• Static Power Consumption: <1W
• Output Signal: DMX512/RDM
• Output Gray: 100 Levels
• Speed Of Modes: 100 Levels
• Output Ports: 2 Groups
• DMX Profiles: 4 Profiles
• Working Temperature: -20℃-60℃
• LumaCircuit model: LC-CTL-BXRJK1

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

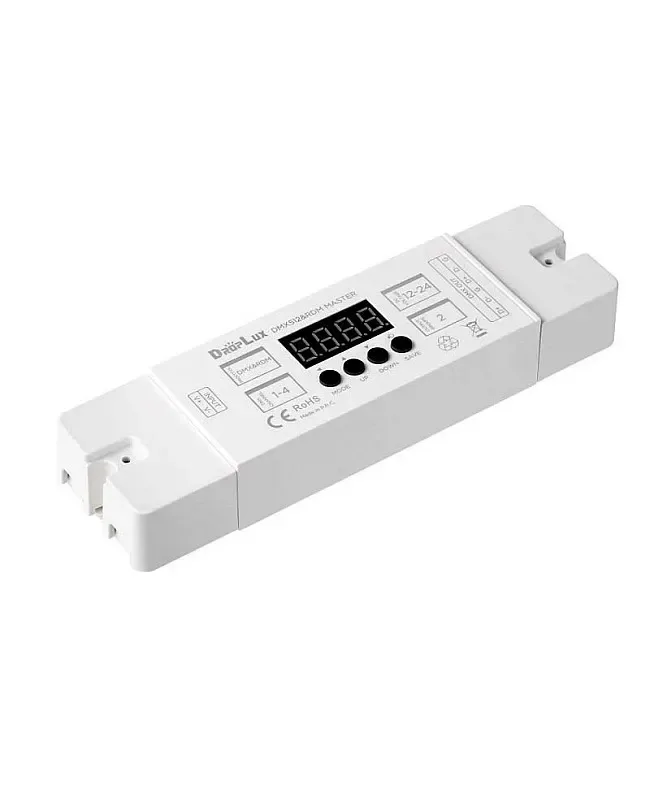

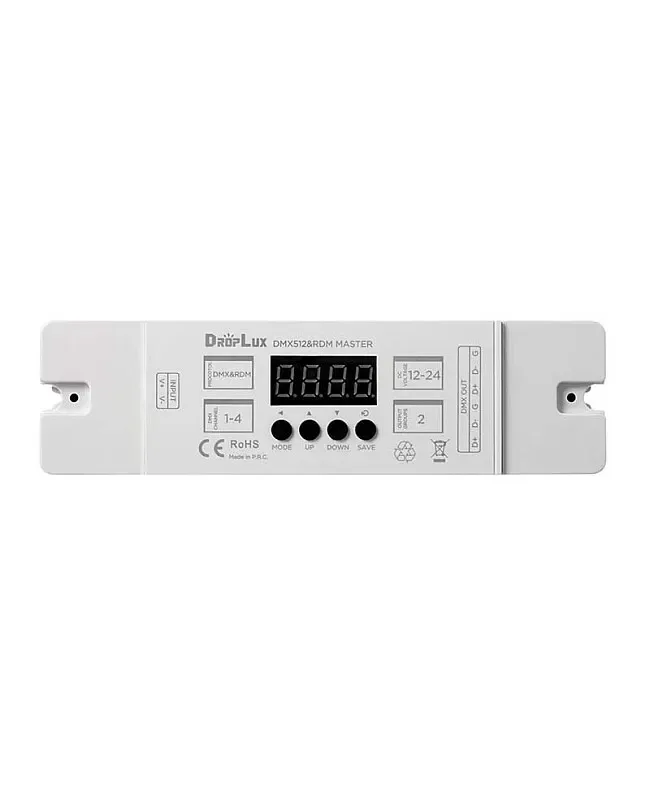

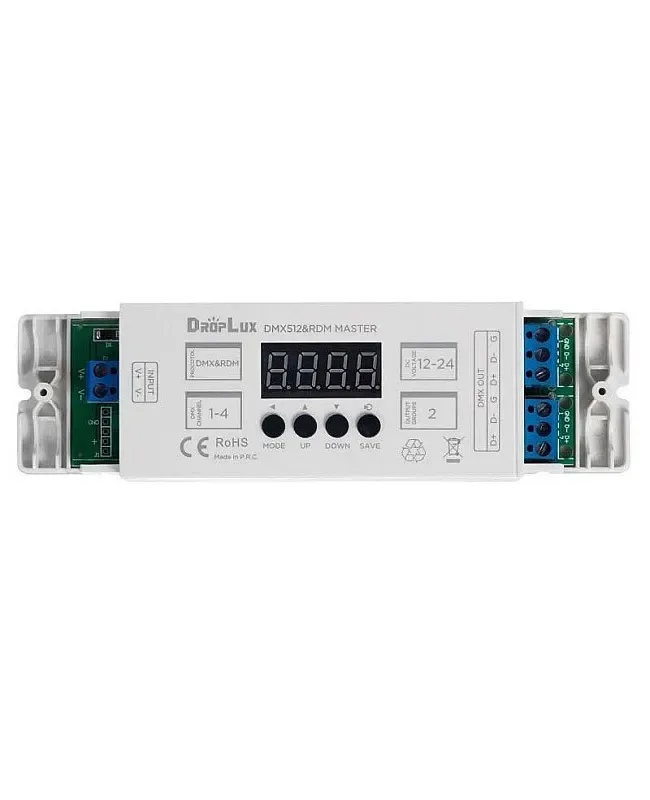

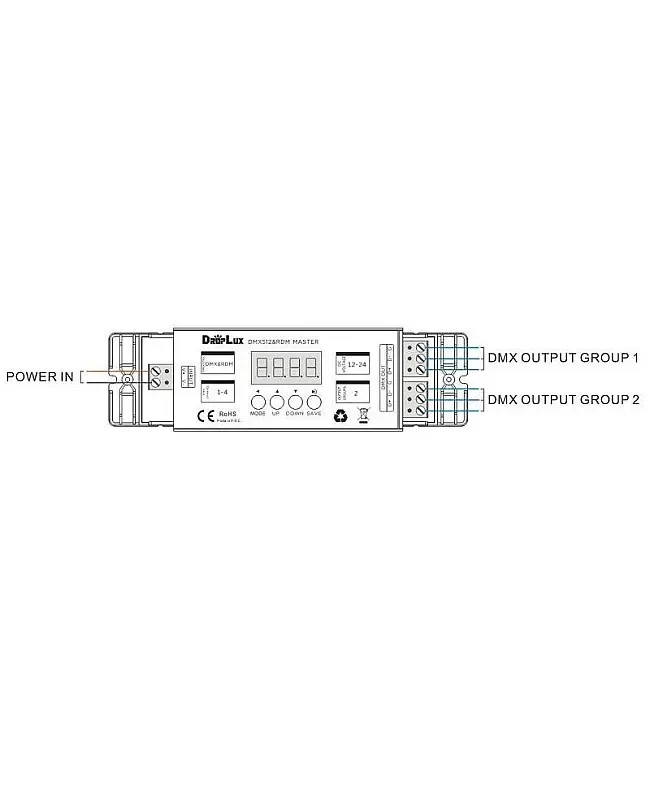

The DMX 512 controller supports DMX512 and RDM protocols, will transmit the DMX or RDM signals to the DMX or RDM decoders, with 4 in 1 functions for single color, CCT, RGB, and RGBW. The installer can choose the various dynamic modes and adjust the brightness or speed, identify the number of devices, and change the device address through the RDM function of the DMX512 controller. The LED master controller works in DC12V or DC24V, with two groups of output signals with the same control effect adopts the pushbuttons Mode, Up, Down, and Save to make settings and control, the 4-digit tube displays the setting status intuitively. The DMX controller supports DMX/RDM decoders up to 128 pieces.

Quick Links

DMX512 RDM LED Decoder

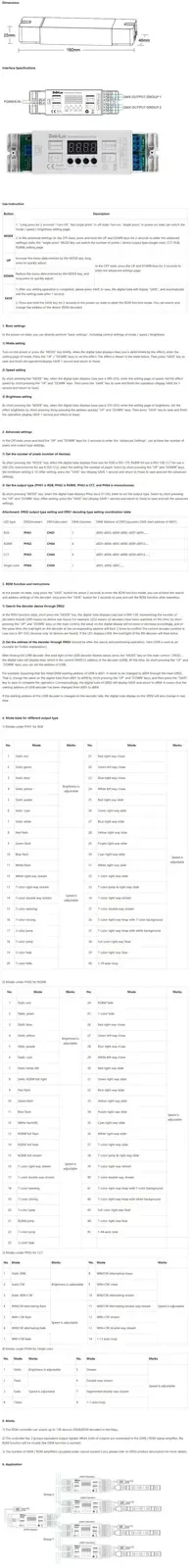

Specifications

Size: 162*46*25mm(L*W*H)

Working Voltage: DC12V-DC24V

Static Power Consumption: <1W

Output Signal: DMX512/RDM

Output Gray: 100 Levels

Speed Of Modes: 100 Levels

Output Ports: 2 Groups

4 In 1 Functions For Single Color/CCT/RGB/RGBW

Compatible With RDM Protocols To Identify The Number Of Devices And Change The Device Address

Adopts Push Buttons To Make Settings And Control, 4-Digital Tube Displays The Setting Status Intuitively

DMX Profiles: 4 Profiles

For RGB LED(3CH)

For RGBW LED(4CH)

For CCT LED(3CH)

For Single Color LED(1CH)

Supports Up To 128 DMX/RDM Decoders In The Max

Weight: 120g

Working Temperature: -20℃-60℃

Includes

1 * DMX512 Master Controller
