Product details
+ Smart Dimmer For Single Color/Dual White
LumaCircuit offers + Smart Dimmer For Single Color/Dual White as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 74.5*36*17mm(L*W*H) Color Temperature Range: 2700 K- 6500 K Stepless Dimming Brightness From 1% To 100% The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The smart dimmer wireless controller + with 2 in 1 function design, can press the button " SET " continuously to change the output mode from single color to dual white. Integrate a 2.4G communication module, compatible with 2.4 GHz wireless and wireless controller 2.4G remote controls to adjust the color temperature from 2700K to 6500K, stepless dimming brightness from 1% to 100% for various scenes.
- Size: 74.5*36*17mm(L*W*H)
- Color Temperature Range: 2700 K- 6500 K
- Stepless Dimming Brightness From 1% To 100%

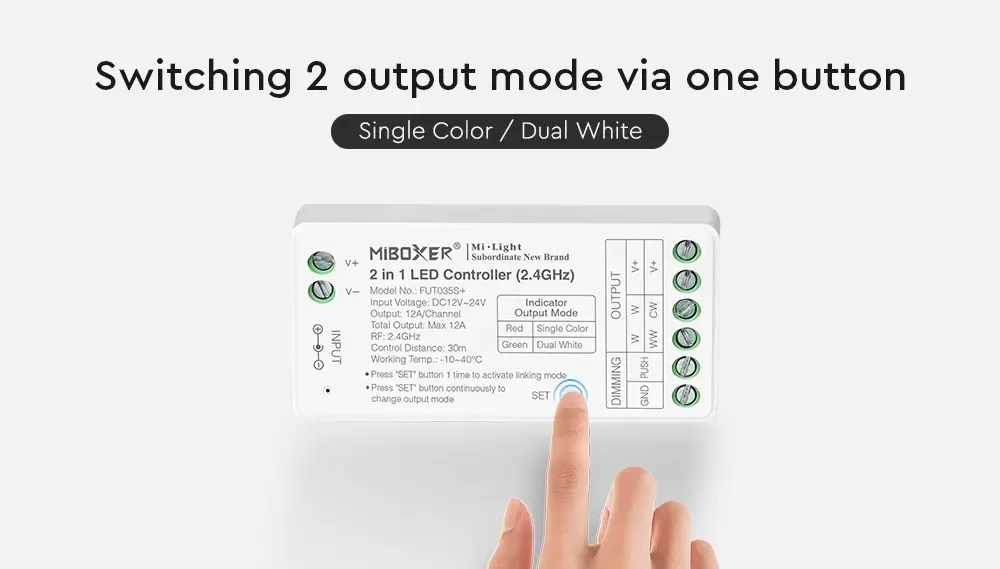

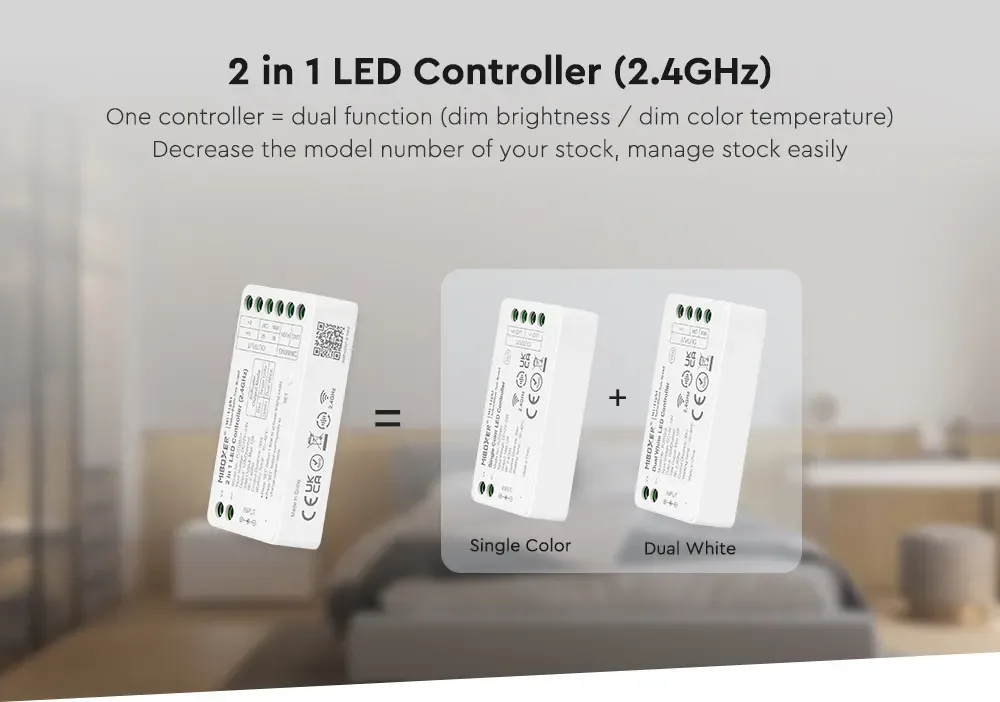

- Switching 2 Output Modes Via One Button From Single Color To Dual White
- Compatible With 2.4 GHz wireless wireless controller 2. Remote Controls T2, B, B, W, G
- Working Frequency Switched From High To Low(250Hz)
- Support Smartphone APP Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-AOOBGD
- Material: PC
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 12A/Channel
- Total Output: 12A Max
- Color Temperature Range: 2700 K- 6500 K
- Control Distance: ≤30m
- Compatible With 2.4 GHz wireless wireless controller 2. Remote Controls: T2, B, B, W, G
- Two Power Interfaces: Wiring Port.5*2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The smart dimmer wireless controller + with 2 in 1 function design, can press the button " SET " continuously to change the output mode from single color to dual white. Integrate a 2.4G communication module, compatible with 2.4 GHz wireless and wireless controller 2.4G remote controls to adjust the color temperature from 2700K to 6500K, stepless dimming brightness from 1% to 100% for various scenes. After being paired with a 2.4G gateway, the wireless controller light dimmer supports a smartphone APP and third-party voice control. It can work with Amazon Alexa and Google Assistant, and the installer can use the app or voice commands to control ON/OFF, adjust color temperature and brightness, etc. The smart dimmer will receive and transmit the signals from the remote control to other devices within 30 meters, and all of them will work synchronously.
Specifications
Model: +
Material: PC

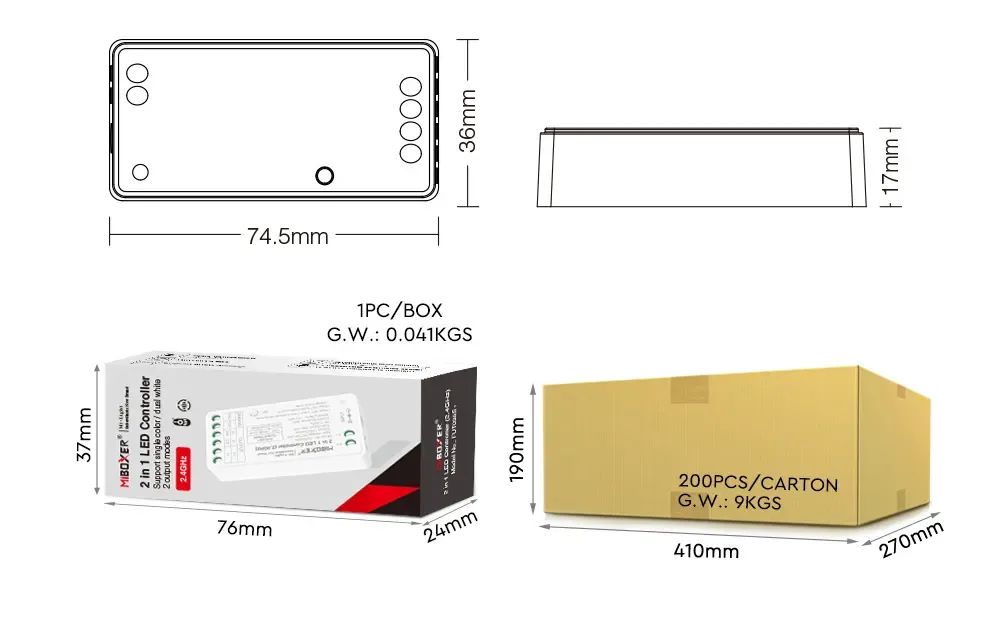

Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 12A/Channel
Total Output: 12A Max
Color Temperature Range: 2700 K- 6500 K
Stepless Dimming Brightness From 1% To 100%
Switching 2 Output Modes Via One Button From Single Color To Dual White
Support PUSH Dimming
RF: 2.
Control Distance: ≤30m

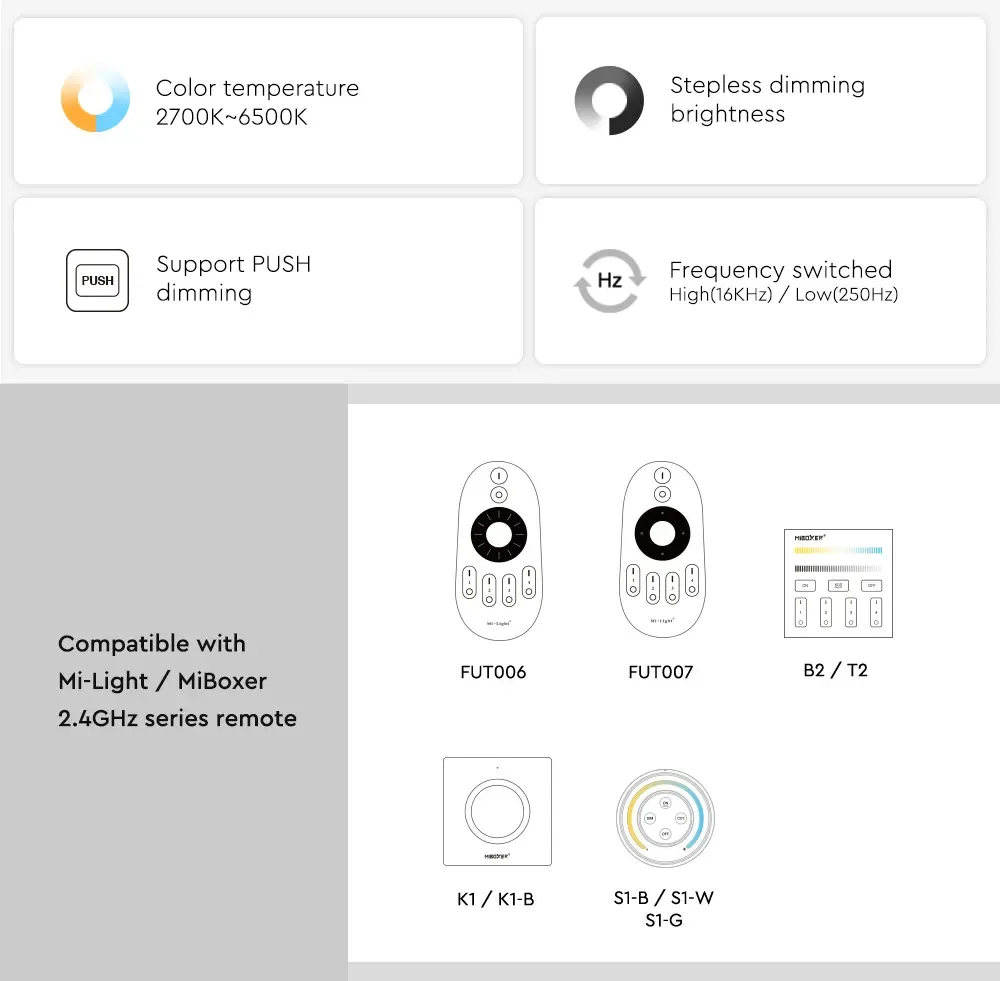

Compatible With 2.4 GHz wireless wireless controller 2. Remote Controls T2, B, B, W, G
Working Frequency Switched From High To Low(250Hz)
Support Smartphone APP Control(2.4G Gateway Needed)
APP Name: mobile app
Can Work With Amazon Alexa And Google Assistant(2.4G Gateway Needed)

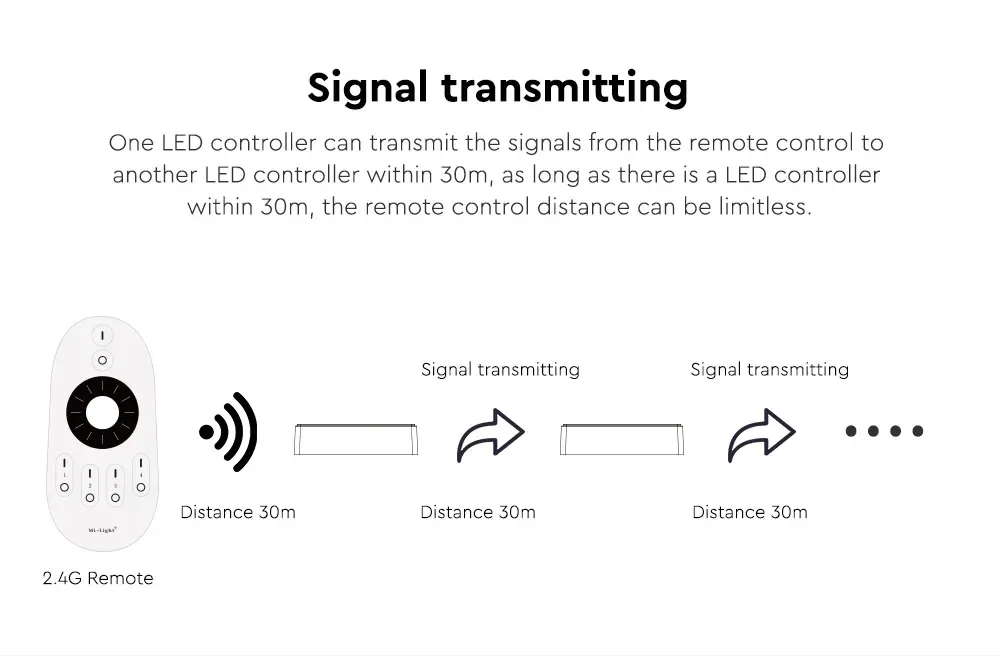

Auto Signal Transmitting
Two Power Interfaces: Wiring Port.5*2.1mm
Working Temperature: -10-40℃
Includes
1 * mobile app Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
