RGBIC+Dual White Bluetooth LED Light Controller
LumaCircuit offers RGBIC+Dual White Bluetooth LED Light Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: RGBIC+Dual White Bluetooth Controller CCT Output Current: Max 6A/Channel Support Number Of ICs: 600PCS The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Bluetooth LED light controller with SPI RGB + 2 channels PWM CCT design supports RGBIC+dual white LED lighting strips, which allows you to select the various RGB and white effects and adjust the brightness, speed, direction, and effect length for multiple scenes. The controller with SPI and PWM signal design, with 6 ports, allows the RGBIC and dual white LED strips to be lit up simultaneously.
- Type: RGBIC+Dual White Bluetooth Controller
- CCT Output Current: Max 6A/Channel
- Support Number Of ICs: 600PCS
- Input Ports: DC Ports 5.5*2.1mm V+ & V
- Output Ports: VCC, DAT, CW, WW, GND
- Built-in Dynamic RGB And White Effects, Pause Function, Support Brightness, Speed, Direction, And Effect Length Adjustable
- Built-in Music Dynamic RGB And White Effects, Support Effect Length, and Sensitive Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-5BQF06
- Size: 56*56*20mm(L*W*H)
- Input Voltage: -24V
- CCT Output Current: Max 6A/Channel
- Input Ports: DC Ports 5.5*2.1mm V+ & V
- Output Ports: VCC, DAT, CW, WW, GND
- Color Sequence Adjustable: YES
- Dimensions found: 56x56x20mm / 20mm / 5.5x2.1mm / 2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

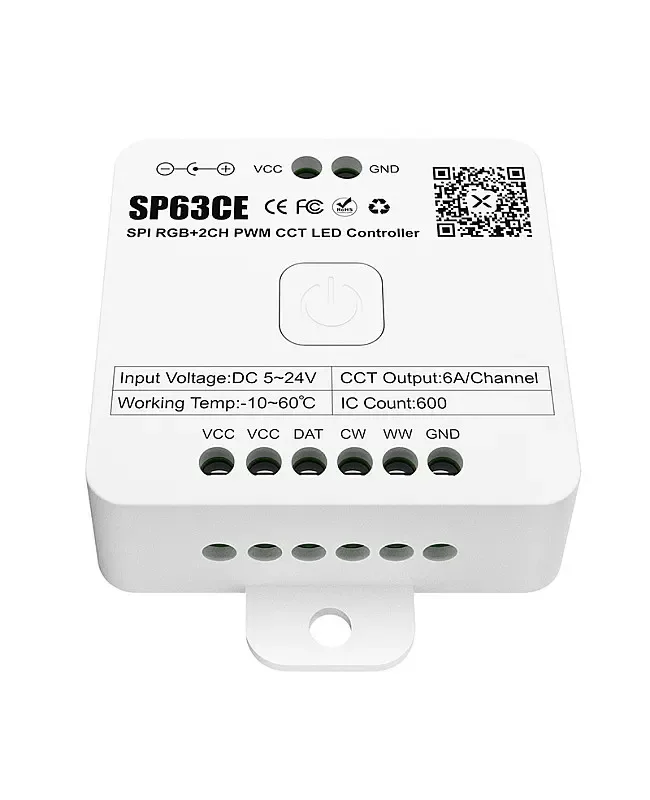

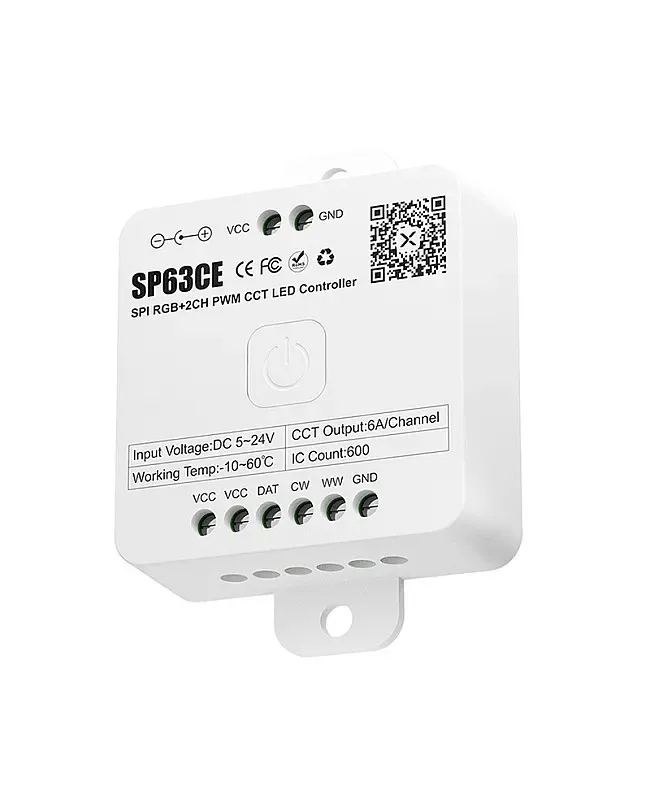

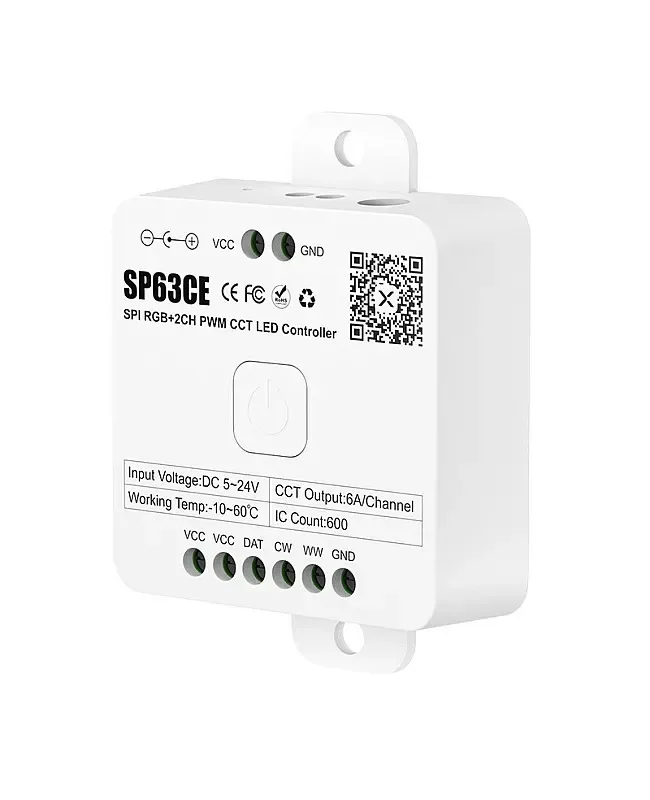

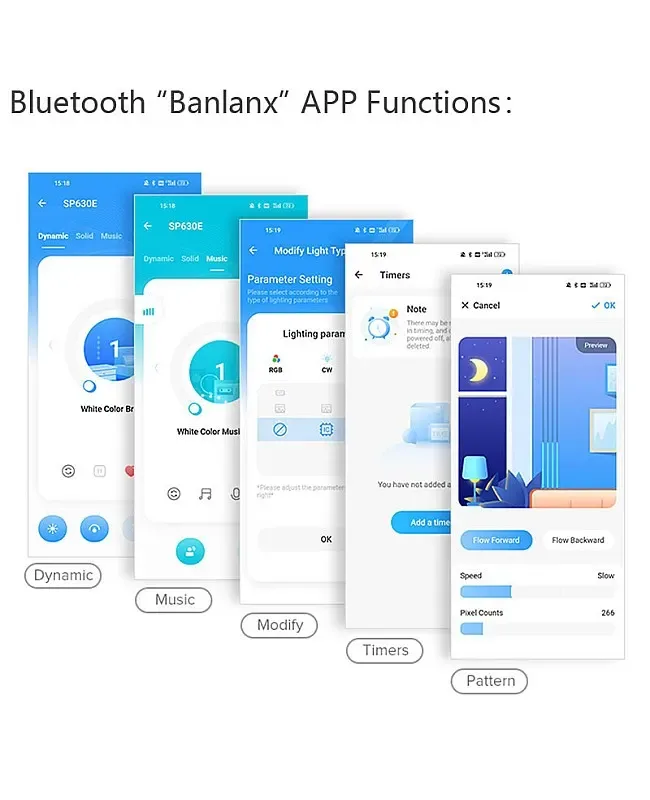

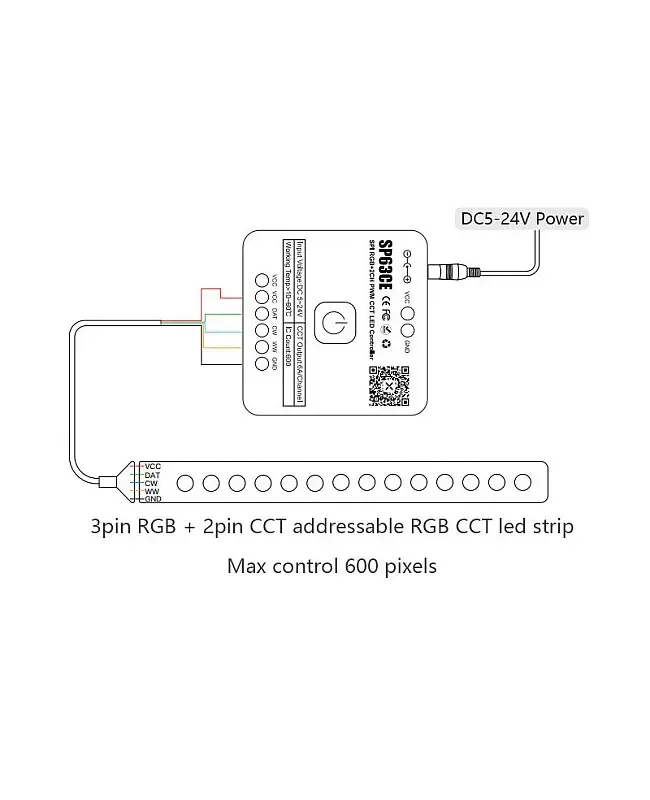

The Bluetooth LED light controller with SPI RGB + 2 channels PWM CCT design supports RGBIC+dual white LED lighting strips, which allows you to select the various RGB and white effects and adjust the brightness, speed, direction, and effect length for multiple scenes. The controller with SPI and PWM signal design, with 6 ports, allows the RGBIC and dual white LED strips to be lit up simultaneously. The SPI design allows controlling the common ICs like WS2811, WS2812B, WS2813, WS2814, WS2815, etc., and supports a maximum of 600 pieces of ICs is 600PCS, and the maximum output current of CW and WW is 6A per channel. 2.4 G RF Remotes and APP can control it. Download the app " " to your phone to achieve more remote functions, and it supports IOS 10.0 and above and Android 4.4 and above. The controllers have built-in multiple music and dynamic effects and support brightness, speed, direction, and effect length adjustments. Supports a cell phone microphone, player streaming, and an onboard microphone for music capture.
Specifications
Type: RGBIC+Dual White Bluetooth Controller
Model
Size: 56*56*20mm(L*W*H)
Input Voltage: -24V
Working Current
CCT Output Current: Max 6A/Channel
Support Number Of ICs: 600PCS
Input Ports: DC Ports 5.5*2.1mm V+ & V
Output Ports: VCC, DAT, CW, WW, GND
Built-in Dynamic RGB And White Effects, Pause Function, Support Brightness, Speed, Direction, And Effect Length Adjustable
Built-in Music Dynamic RGB And White Effects, Support Effect Length, and Sensitive Adjustable
APP Control And RF Remote Control
APP Name: BalanX
Mobile Operating Systems: Android 4.4 And Above, And IOS 10.0 And Above
Timer ON/OFF Function: YES
Color Sequence Adjustable: YES
Support OTA Firmware Upgrade
Includes
1 * Bluetooth LED Light Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
