K Programmable Controller With 4 Ports Supports SD Card

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The programmable controller for digital LED strip lights has four output ports, and each port can support up to 512/1024 Pixels(the max 512 pixels of the DMX luminaire is exemplified by 3 channels). The controller can be used in single set mode, and multiple controllers can cascade. The cascade distance between two controllers can reach up to 150 meters. A 0.5㎡ pure copper power cord is needed for anti-interference and better stability.
• Size: 180*110*35mm(L*W*H)
• Working Voltage: DC5V Or -24V Input
• 32 To 65536 Degree Gray Control, Gamma Correction Procession Handle
• Support Various Point, Line Light Source, And All Kinds Of Rules And Specific Shaped Handle
• With 4 Output Ports And Each Port Supports Up To 1024PCS Lights
• Supports SD Card From 128 MB to 32 GB
• Can Single Set use And Multiple Controllers Cascade

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V / 12-24 V
• Light engine: Addressable
• Size: 180*110*35mm(L*W*H)
• Colors: Black
• Working Voltage: DC5V Or -24V Input
• Power Consumption: 2W
• Working Temperature: -30℃-+85℃
• LumaCircuit model: LC-CTL-Y7GSDW
• Dimensions found: 180x110x35mm / 35mm

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

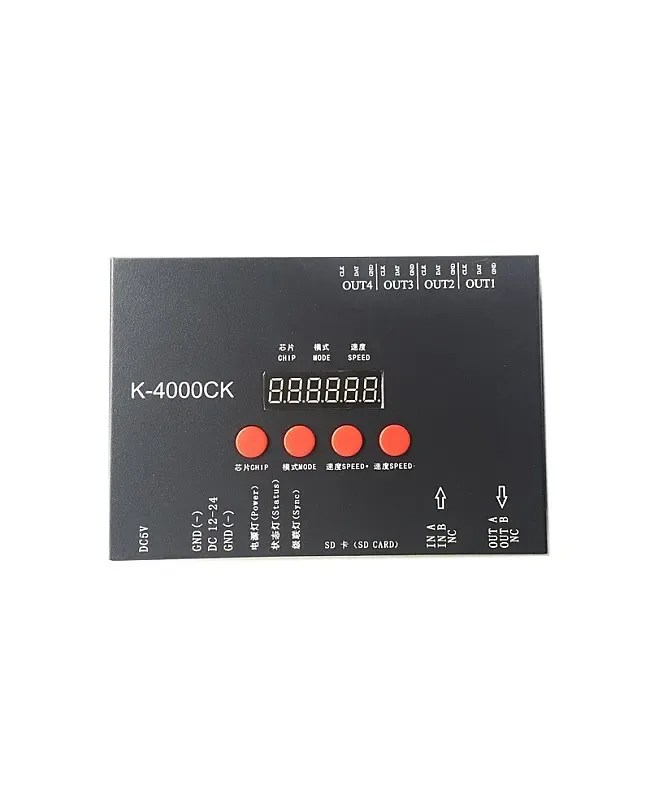

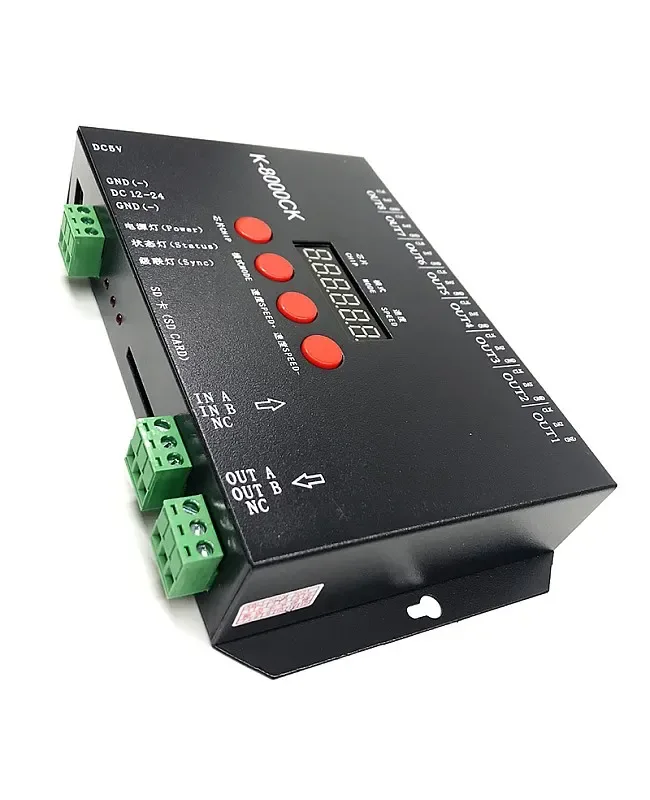

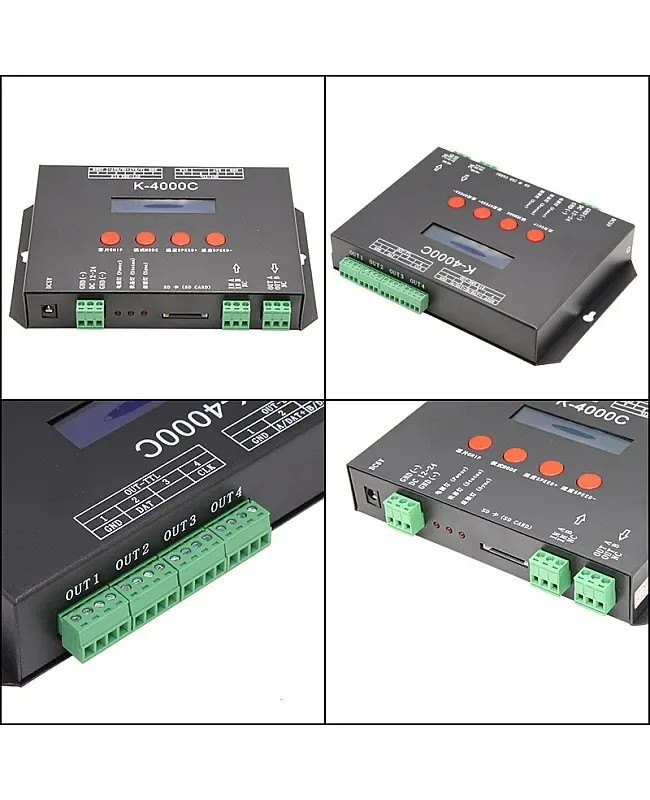

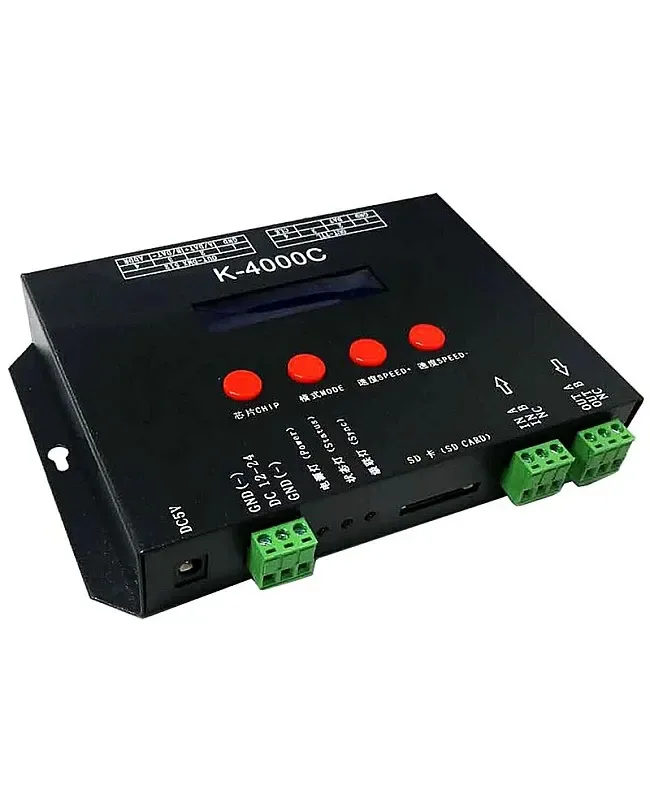

The programmable controller for digital LED strip lights has four output ports, and each port can support up to 512/1024 Pixels(the max 512 pixels of the DMX luminaire is exemplified by 3 channels). The controller can be used in single set mode, and multiple controllers can cascade. The cascade distance between two controllers can reach up to 150 meters. A 0.5㎡ pure copper power cord is needed for anti-interference and better stability. The support chip can lock the support IC in software or not lock the support IC in the software, and the support IC can be selected through the Controller CHIP button. This scheme is more flexible and convenient. The programmable controller supports an SD card that plays content stored in it, the SD card can store up to 32 effect files and has a capacity from to 32 GB. There are 3 built-in test effects that the installer can use to test the connected digital LED strips. Supports various point or line light sources, all kinds of rules, and specifically shaped handles, 32 to 65536-degree gray control, and a Gamma correction procession handle. The digital controller for DMX luminaire comes with a write address function. With the 2016 lighting editor.26 or higher version software, the one-click address function can be set. It supports on-board luminaires with four channels(RGBW) pixels or splits them into single-channel point pixels.

Specifications

Size: 180*110*35mm(L*W*H)

Colors: Black

Working Voltage: DC5V Or -24V Input

Power Consumption: 2W

32 To 65536 Degree Gray Control, Gamma Correction Procession Handle

Support Various Point, Line Light Source, And All Kinds Of Rules And Specific Shaped Handle

With 4 Output Ports And Each Port Supports Up To 1024PCS Lights

Supports SD Card From 128 MB to 32 GB

Format: FAT Or

Storage File: * led

Can Single Set use And Multiple Controllers Cascade

Can Lock The Support IC Type

Built-in 22 Test Effects And Comes With DMX512 Test Function

Enhanced TTL And 485 Differential(DMX) Signal Output

Support The Types Of ICs

UCS1903, 1909, 1912, 2903, 2904, 2909, 2912; TM1803, 1804, 1809, 1812; SM16703, 16709, 16712; WS2811, WS2812, WS2813, WS2815, WS2818; 1603, 1103;8206; SK6812, WS2801, LPD6803, TM1913, TM1914, DMX etc

Working Temperature: -30℃-+85℃

Support chips(PC Software Select K-4000-RGB)

00: UCS19**,UCS29**,*,SM167**,**,**,SK6812(Support max.1024*4=4096 pixels)

01: SM16716,16726(Support max.1024*4=4096 pixels)

02: (Support max.1024*4=4096 pixels)

03: LPD6803(Support max.1024*4=4096 pixels)

04,1203(Support max.1024*4=4096 pixels)

05: WS2801(Support max.1024*4=4096 pixels)

06: LPD1886(Support max.1024*4=4096 pixels)

07: TM1913(Support max.1024*4=4096 pixels)

08: TM1914(Support max.1024*4=4096 pixels)

09 (Support max.1024*4=4096 pixels)

10:DMX(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

11: DMX 500K(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

12: DMX 250K-CZF(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

13: DMX 500K-CZF(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

14: UCS5603-Test(Support max.1024*4=4096 pixels)

15: UCS5603A(Support max. 1024*4=4096 pixels)

16: UCS5603B(Support max. 1024*4=4096 pixels)

17: TM1814 ( Support max. 1024*4=4096 pixels )

18: ( Support max. 1024*4=4096 pixels)

19: APA102(Support max. 1024*4=4096 pixels)

20: UCS8904(Support max. 1024*4=4096 pixels)

21: SM16714(Support max. 1024*4=4096 pixels)

22: SM16813(Support max. 1024*4=4096 pixels)

23: (Support max. 512*4=2048 pixels, suggest to support ≤320 pixels *4=1280)

Remarks: 1. For RGBW four-channel luminaires needs to be selected K-4000-RGBW

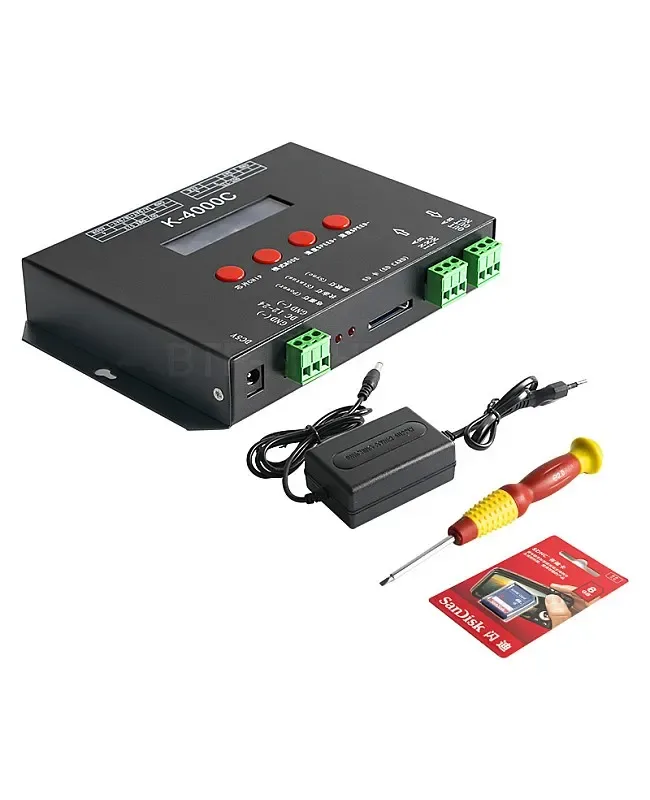

Includes

1 * Controller
