768W RGBW DMX512 Decoder

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The RGBW 4CH DMX512 decoders are designed for constant-voltage LED lights. It works on DC 12V or DC 24V, can accept the internationally used DMX512 standard digital control signal, and converts it into a PWM signal to actuate LED RGBW lights. It can work with constant voltage LED lamps, LED modules, LED strips, and string lighting, among others.
• Working Temperature: -20-60℃
• Size: 164*65*40mm(L*W*H)
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Output Gray: RGB Each 256 Levels
• Transmit Signal: DMX Signal

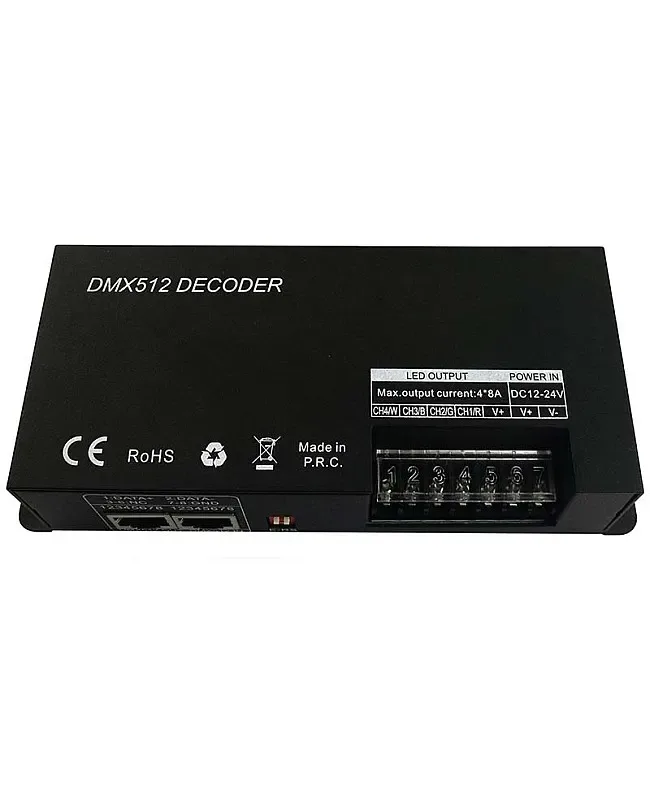

• Output Current: <8A(Each Channel)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V / 12 V / 24 V
• Light engine: RGBW
• Working Temperature: -20-60℃
• Size: 164*65*40mm(L*W*H)
• Working Voltage: -24V
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Output Gray: RGB Each 256 Levels
• Output Channels: 4
• Output Current: <8A(Each Channel)
• Output Power: 384W(DC12V); 768W(DC24V)
• Power Off Memory Function: YES

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

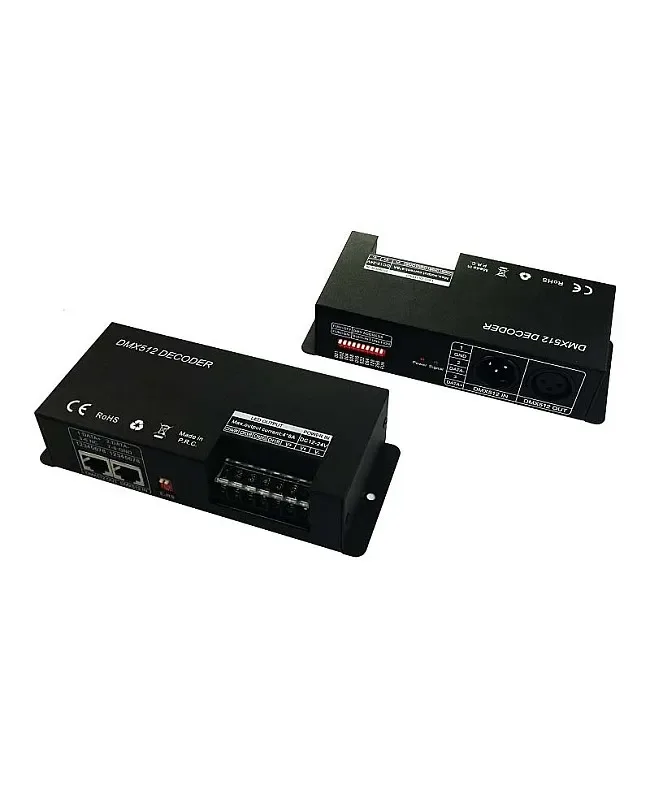

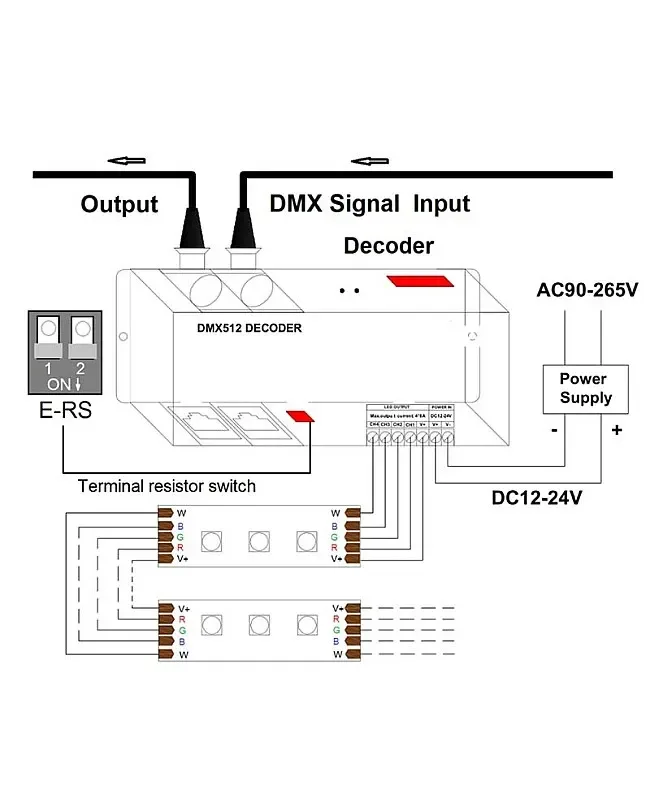

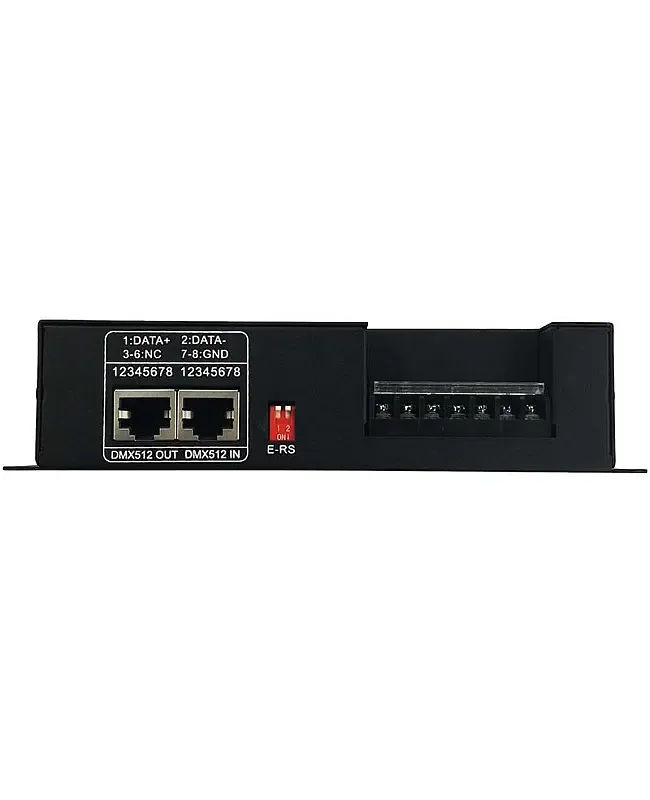

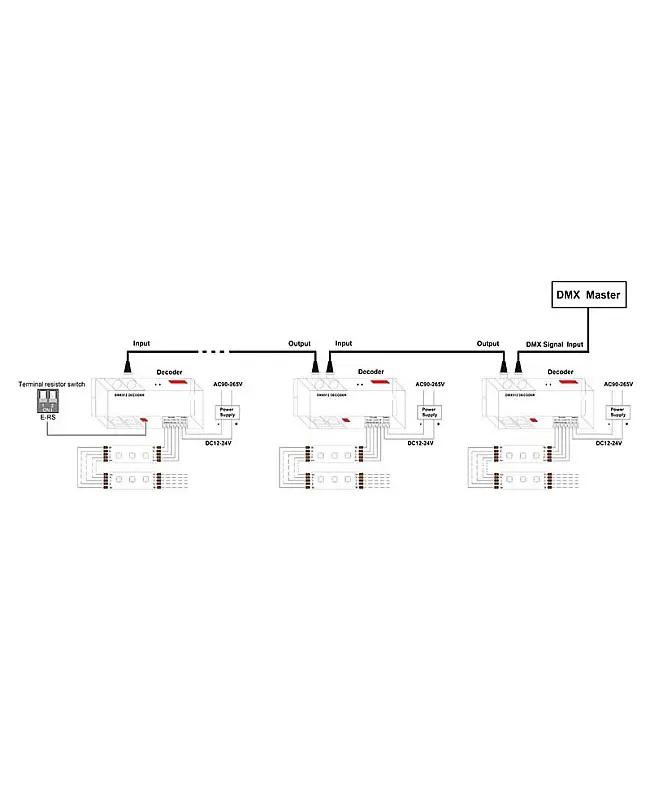

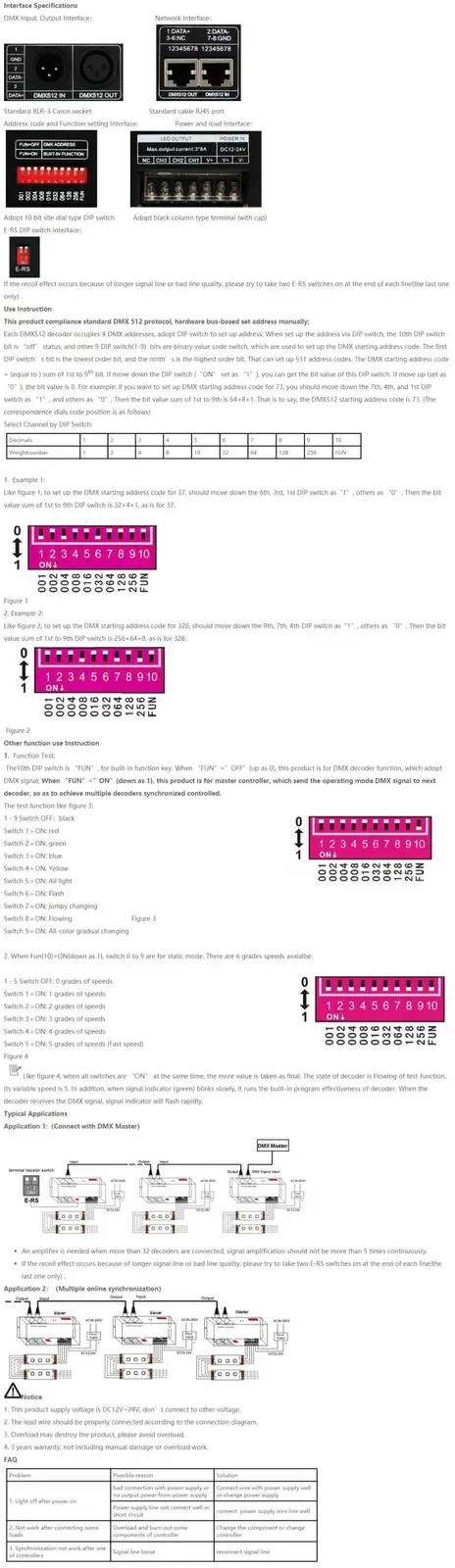

The RGBW 4CH DMX512 decoders are designed for constant-voltage LED lights. It works on DC 12V or DC 24V, can accept the internationally used DMX512 standard digital control signal, and converts it into a PWM signal to actuate LED RGBW lights. It can work with constant voltage LED lamps, LED modules, LED strips, and string lighting, among others. The DMX512 decoder 4 Channel can be connected via a signal line through network ports or an XLR plug to continue expanding the channel or accept a manual-setting address via the DIP switch. It also controls the synchronization of multiple decoders' lighting effects through the DMX Master Controller. The DMX 512 decoder with four output channels is designed, with a maximum output current of each channel is 8A, and a maximum loading power of up to 768W when working in DC24V. If the DMX decoder cannot connect to the master control, it can be set as a master controller by pressing the DIP switch. When it functions as a controller, with nine working modes, it can be changed using the dip switch.

Specifications

Working Temperature: -20-60℃

Size: 164*65*40mm(L*W*H)

Working Voltage: -24V

Static Power Consumption: <1W

Connecting Mode: Common Anode

Output Gray: RGB Each 256 Levels

Transmit Signal: DMX Signal

Output Channels: 4

Output Current: <8A(Each Channel)

Output Power: 384W(DC12V); 768W(DC24V)

Power Off Memory Function: YES

PWM Frequency: 1.95 KHz

Short Circuit Protection: YES

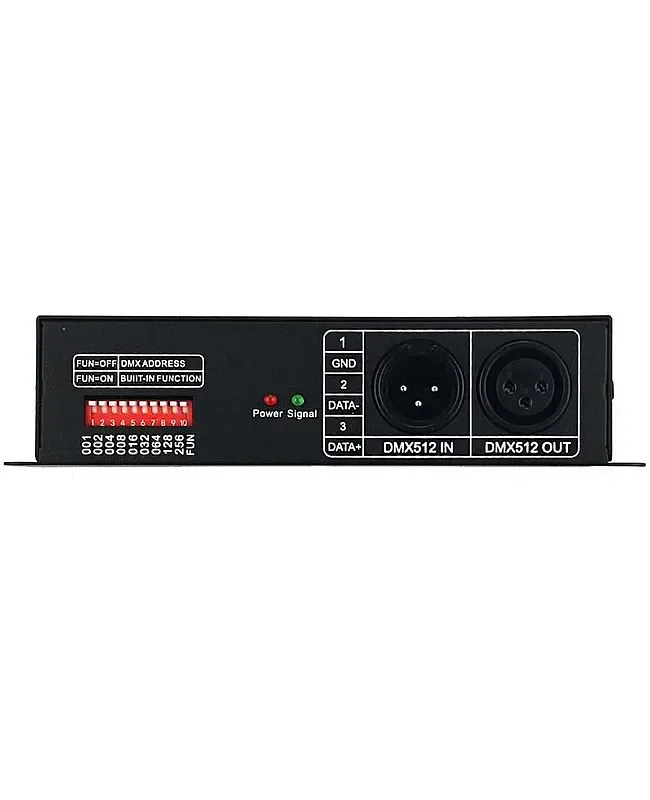

Could Set Channel Address Through The DIP Switch As Well

Can Be Changed By a DIP Switch To A Controller

Standard Cable Ports Included

Weight: 360g

1 * RGBW DMX512 Decoder
