576W RGB DMX Decoder With Port

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The 3 CH RGB DMX decoder can accept the internationally recognized DMX512 standard signal and convert it into a PWM signal to actuate RGB LED lights. The installer can use it for constant voltage RGB LED lamps, LED strips, LED modules, and more. The DMX 512 decoder features a 3-output-channel design, with a maximum output current of up to 8A per channel. The maximum loading power is 576W when operating at DC 24V.
• Working Temperature: -20-60℃
• Size: 164*66*39mm(L*W*H)
• Working Voltage: DC12V-24V
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Transmit Signal: DMX Signal
• Output Current: ≤8A Each Channel

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 24 V
• Light engine: RGB
• Working Temperature: -20-60℃
• Size: 164*66*39mm(L*W*H)
• Working Voltage: DC12V-24V
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Output Channels: 3
• Output Current: ≤8A Each Channel
• Output Power: 288W(DC12V), 576W(DC24V)
• Modes: 9
• PWM Frequency: 1.95 KHz

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

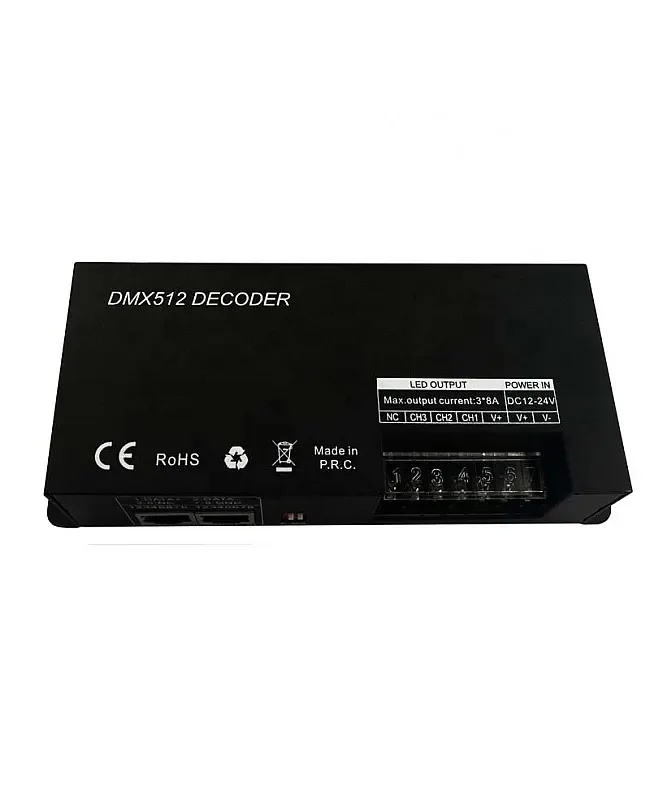

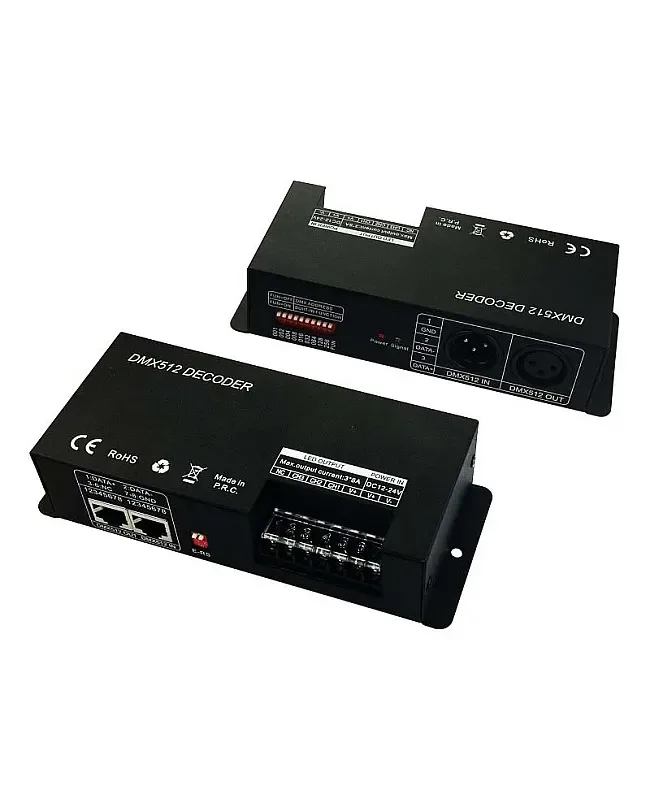

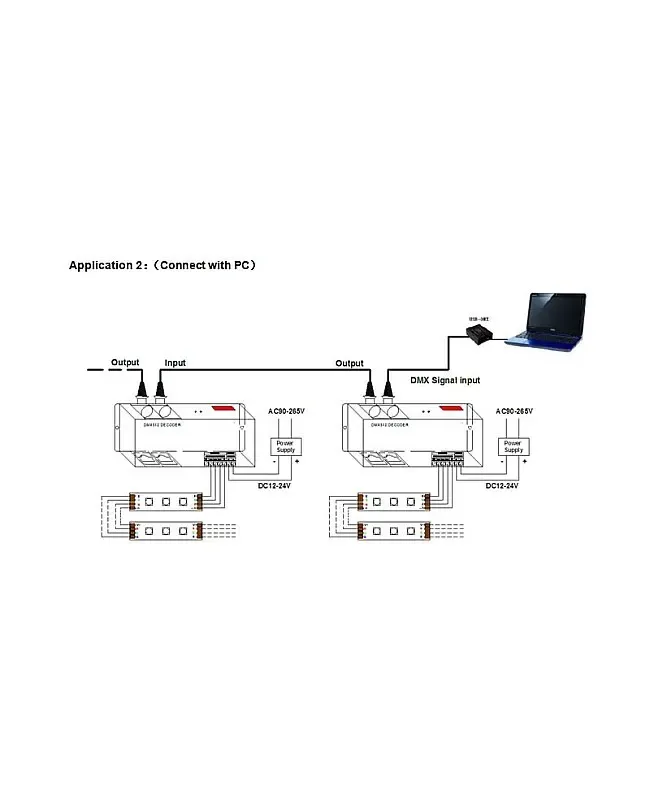

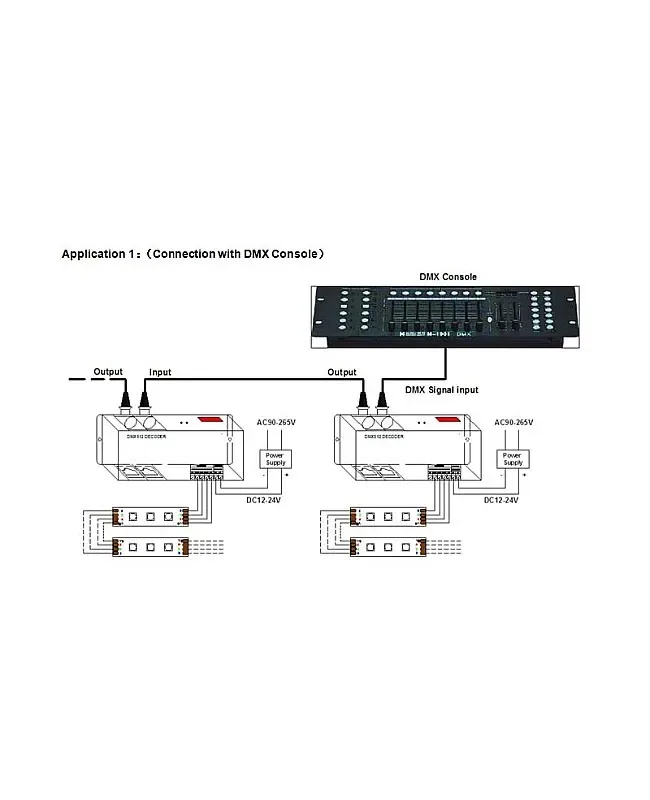

The 3 CH RGB DMX decoder can accept the internationally recognized DMX512 standard signal and convert it into a PWM signal to actuate RGB LED lights. The installer can use it for constant voltage RGB LED lamps, LED strips, LED modules, and more. The DMX 512 decoder features a 3-output-channel design, with a maximum output current of up to 8A per channel. The maximum loading power is 576W when operating at DC 24V. The RGB decoders can be connected via a signal line through the ports or XLR plug to continue expanding the channel, accept manual-setting addresses via DIP switches, and control the lighting effect synchronization of multiple decoders with a single DMX master controller. The RGB DMX 512 decoder can also be used as an RGB controller. There are 9 working modes, which can be changed using a DIP switch. The speed can be adjusted through a DIP switch when in static mode.

Specifications

Working Temperature: -20-60℃

Size: 164*66*39mm(L*W*H)

Working Voltage: DC12V-24V

Static Power Consumption: <1W

Connecting Mode: Common Anode

Transmit Signal: DMX Signal

Output Channels: 3

Output Current: ≤8A Each Channel

Output Power: 288W(DC12V), 576W(DC24V)

PWM Frequency: 1.95 KHz

Output Gray: RGB Each 256 Levels

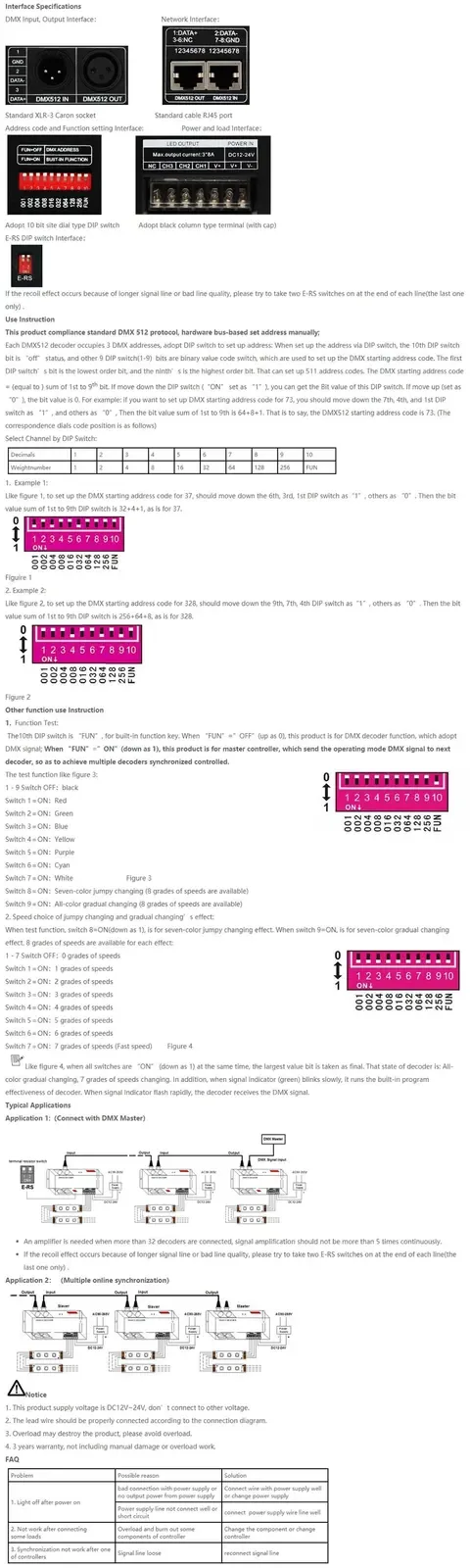

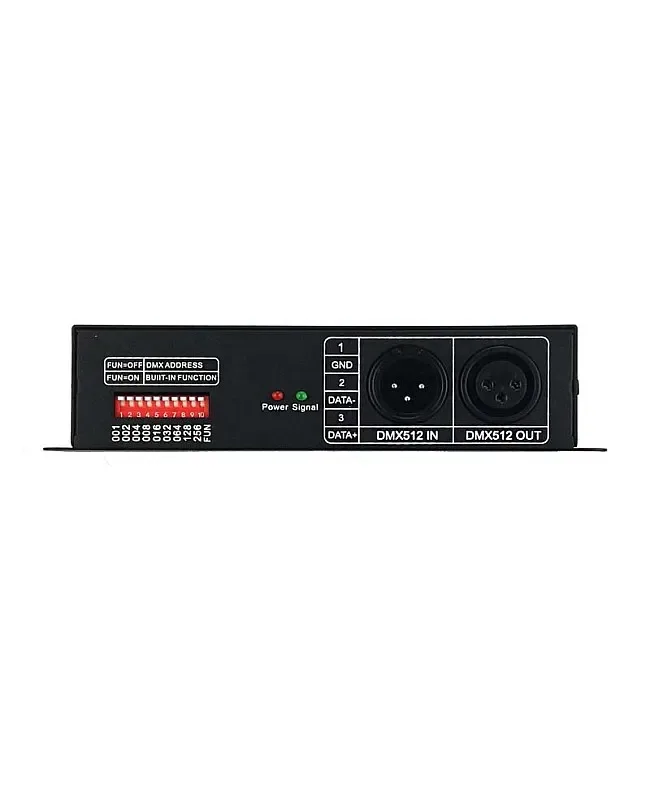

Could Set Channel Address Through The DIP Switch

Can Be Used As A Controller, 9 Working Modes, Can Be Changed By DIP Switch

Standard XLR- Caron Socket And Standard Cable Ports Included

Power Off Memory Function: YES

Short Circuit Protection: YES

Weight: 400g

1 * RGB DMX Decoder
