Product details
ZR Zigbee Smart Dimmer For Single Color/Dual White
LumaCircuit offers ZR Zigbee Smart Dimmer For Single Color/Dual White as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 2 In 1 Smart Dimmer For Single Color/Dual White LED Lights Size: 100.6*40*17.6mm(L*W*H) Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

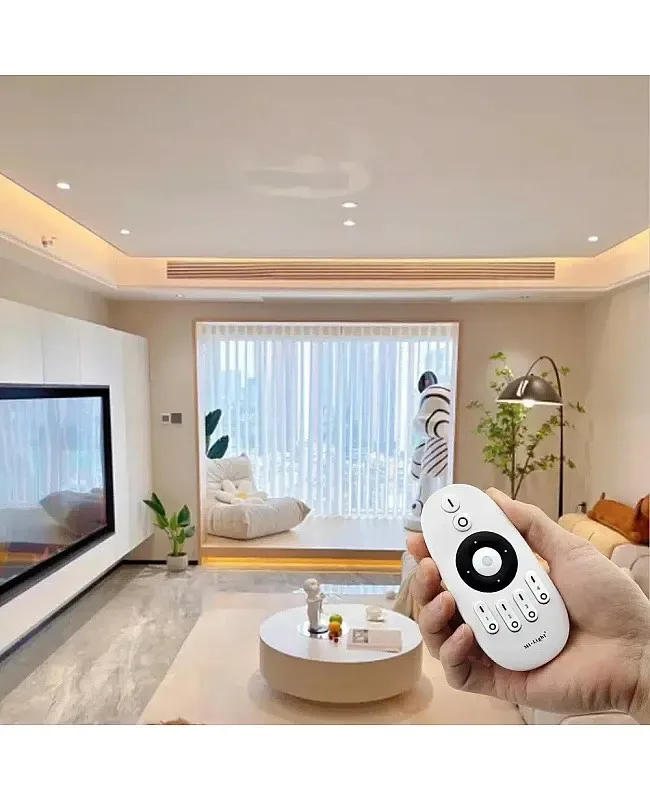

- The wireless controller Zigbee smart dimmer with 2 in 1 design for single color and dual white LED lights. Press the button " SET " on the controller to switch the output from single color to dual white. 2.4 G RF remote controls can adjust the brightness and color temperature for various scenes. The smart dimmer can transmit the signals from the remote control to another dimmer within 30 meters, and the dimmers will work synchronously.
- Type: 2 In 1 Smart Dimmer For Single Color/Dual White LED Lights
- Size: 100.6*40*17.6mm(L*W*H)
- Color Temperature Adjustable
- Stepless Dimming Brightness
- Switching 2 Output Mode(Single Color, Dual White) Via One Button
- Communication Protocol: Zigbee 3.0 + 2.
- Compatible With 2.4G RF Remote Controls B, T1, T2, B, B, B, W, G, WL
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-JCV8J5
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: -24V
- Output: 12A/Channel
- Total Output: 12A Max
- Communication Protocol: Zigbee 3.0 + 2.
- Compatible With 2.4G RF Remote Controls: B, T1, T2, B, B, B, W, G, WL
- Control Distance: Zigbee≤100m(Open Area); 2.4G RF≤30m
- Wireless Frequency: 2.400- 2.
- Support Third-party Voice Control: Amazon Alexa And Google Assistant
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

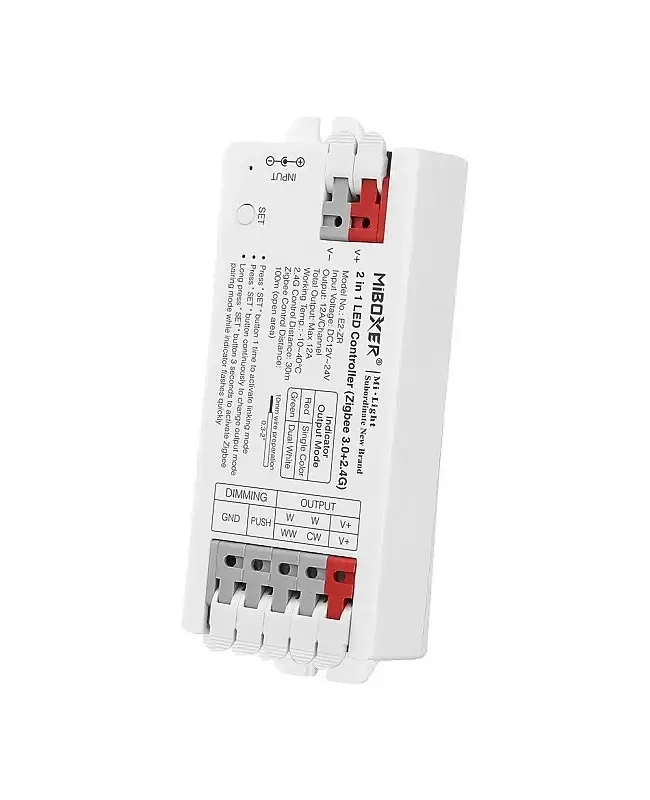

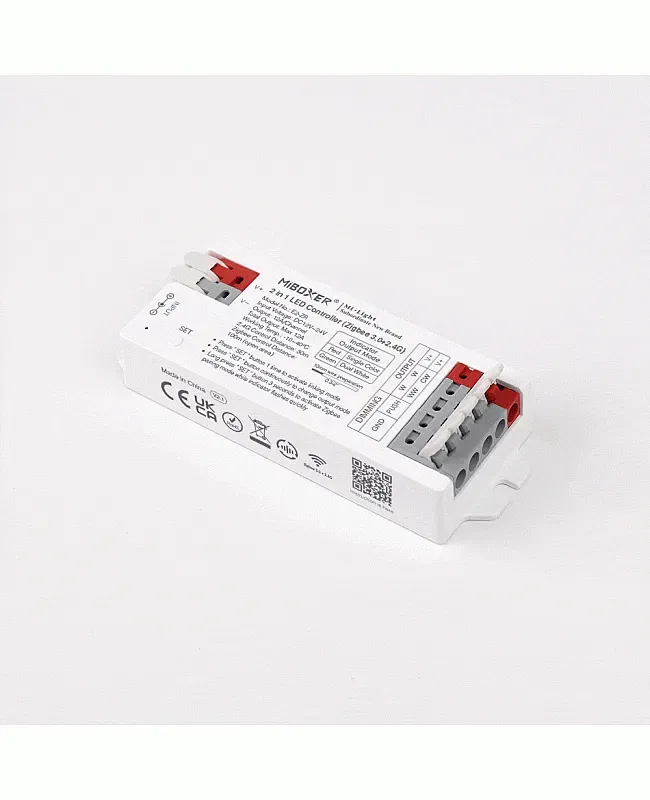

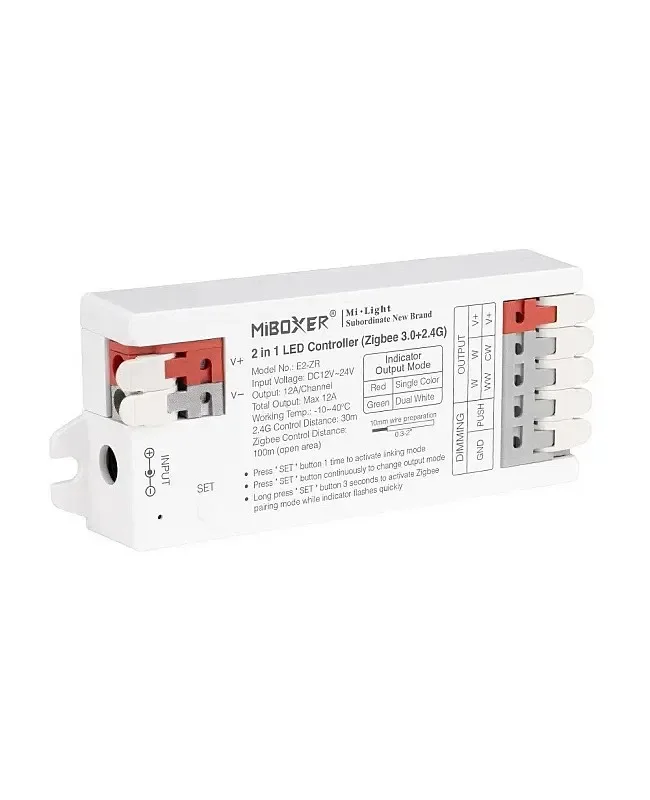

The wireless controller Zigbee smart dimmer with 2 in 1 design for single color and dual white LED lights. Press the button " SET " on the controller to switch the output from single color to dual white. 2.4 G RF remote controls can adjust the brightness and color temperature for various scenes. The smart dimmer can transmit the signals from the remote control to another dimmer within 30 meters, and the dimmers will work synchronously. After entering the standard Zigbee 3.0 gateways, the controllers can be controlled by a smartphone APP and third-party voice commands. The installer can achieve more functions on the app, like device sharing, scene customization, timing, and more. It can work with Amazon Alexa and Google Assistant, and the installer can use voice commands to control ON/OFF, brightness, colors, etc., through voice. The remote light dimmer can enter Philips Hue, IKEA TRADFRI, and Amazon ECHO series standard Zigbee 3.0 gateways. The mobile app dimmers have an instant wiring tool-free design, are easy to connect to a power supply, and LED lights.
Specifications
Type: 2 In 1 Smart Dimmer For Single Color/Dual White LED Lights
Model
Size: 100.6*40*17.6mm(L*W*H)
Input Voltage: -24V
Output: 12A/Channel
Total Output: 12A Max
Color Temperature Adjustable
Stepless Dimming Brightness
Switching 2 Output Mode(Single Color, Dual White) Via One Button
Communication Protocol: Zigbee 3.0 + 2.
Compatible With 2.4G RF Remote Controls B, T1, T2, B, B, B, W, G, WL
Control Distance: Zigbee≤100m(Open Area); 2.4G RF≤30m
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400- 2.
Tuya Smart APP Control(Zigbee 3.0 Gateway Needed)
Support Third-party Voice Control: Amazon Alexa And Google Assistant
High Frequency Low Frequency(250Hz) Can Be Switched
Auto Signal Transmitting
IP Rate: IP20 Non-waterproof
Two Power Interfaces: Wiring Ports,5*2.1mm
Tool-free Instant Wiring
Includes
1 * ZR Zigbee Smart Dimmer
1 * User Manual
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
