Tuya Smart WiFi Dual White LED Dimmers
LumaCircuit offers Tuya Smart WiFi Dual White LED Dimmers as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 2 In 1 WiFi LED Dimmer For Single Color/Dual White Size: 119*47*23mm(L*W*H) Color Temperature Adjustable From 2700K Warm White To 6500K Cool White The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller WiFi LED dimmers have 2 in 1 design for dual white and single-color LED lights and can be controlled by 2.4G remotes, a smartphone APP, and third-party voice commands to adjust the lighting remotely. The integrates WiFi, Bluetooth, and 2.4G wireless transmission modules, low power consumption, and strong anti-interference ability. The WiFi and Bluetooth connections can significantly enhance the network experience.
- Type: 2 In 1 WiFi LED Dimmer For Single Color/Dual White
- Size: 119*47*23mm(L*W*H)
- Color Temperature Adjustable From 2700K Warm White To 6500K Cool White
- Brightness, Saturation Adjustable
- Communication Protocol: WiFi + 2.
- Compatible With 2.4G RF Remote Controls: T1, T2, +,
- 4G RF Control Distance:≤30m
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-GUTO4C
- Size: 119*47*23mm(L*W*H)
- Input Voltage: -48V
- Output: 20A/Channel
- Output: 20A Max
- Communication Protocol: WiFi + 2.
- Compatible With 2.4G RF Remote Controls: T1, T2, +,
- 2.4G RF Control Distance: ≤30m
- Bluetooth Protocol: Bluetooth 3.2(Low Power Consumption)
- Support Third-party Voice Control: Amazon Alexa And Google Assistant
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller WiFi LED dimmers have 2 in 1 design for dual white and single-color LED lights and can be controlled by 2.4G remotes, a smartphone APP, and third-party voice commands to adjust the lighting remotely. The integrates WiFi, Bluetooth, and 2.4G wireless transmission modules, low power consumption, and strong anti-interference ability. The WiFi and Bluetooth connections can significantly enhance the network experience. When the WiFi router is disconnected, Bluetooth can also directly connect and control the light dimmers at a close range. The WiFi light dimmers can work with 2.4 GHz remote controls to adjust the tunable white LED strips ' brightness, saturation, and color temperature. One dimmer will transfer the signal from a remote control to the dimmers within 30 meters, and all of them will synchronize. The wireless controller WiFi dimmer can work with the Tuya Smart APP and third-party voice commands without needing a 2.4 GHz gateway. The installer can download the APP to your phone and connect to the dimmer to achieve more functions like device sharing, timing, tap-to-run, biorhythm, music rhythm, sleep/wake-up plan, etc.
Specifications

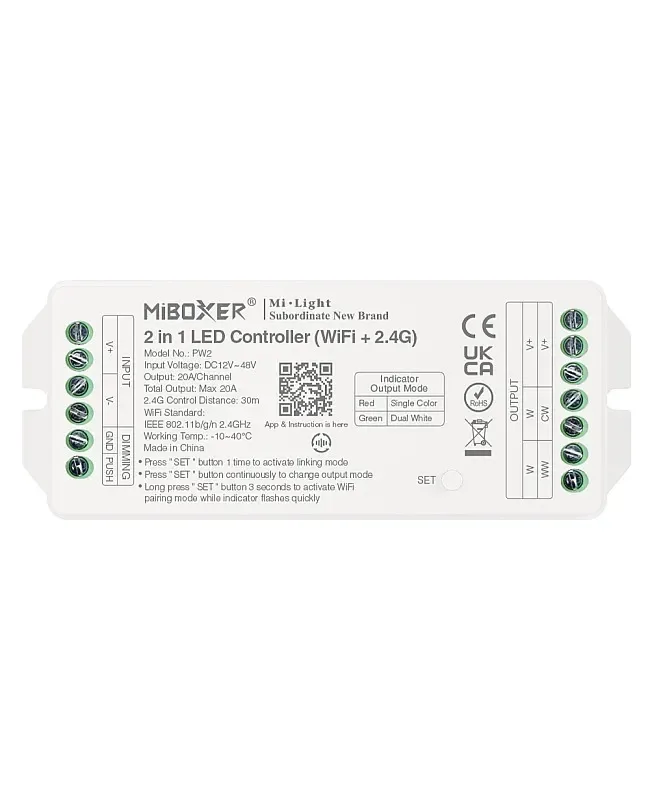

Type: 2 In 1 WiFi LED Dimmer For Single Color/Dual White
Model

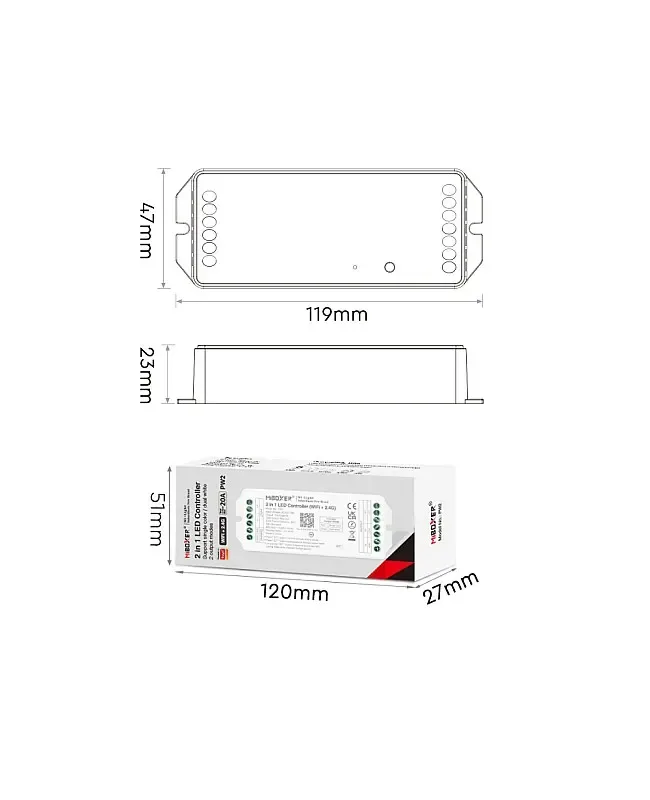

Size: 119*47*23mm(L*W*H)
Input Voltage: -48V
Output: 20A/Channel
Output: 20A Max
Color Temperature Adjustable From 2700K Warm White To 6500K Cool White
Brightness, Saturation Adjustable
Communication Protocol: WiFi + 2.
Compatible With 2.4G RF Remote Controls: T1, T2, +,
4G RF Control Distance:≤30m
WiFi Standard: IEEE 802./g/n 2.
Bluetooth Protocol: Bluetooth 3.2(Low Power Consumption)
Auto Transmitting(Only For Remote Control Dimming)
"Tuya Smart" Smartphon APP Control
Support Third-party Voice Control: Amazon Alexa And Google Assistant
Support PUSH Dimming
IP Rate: IP20 Non-waterproof

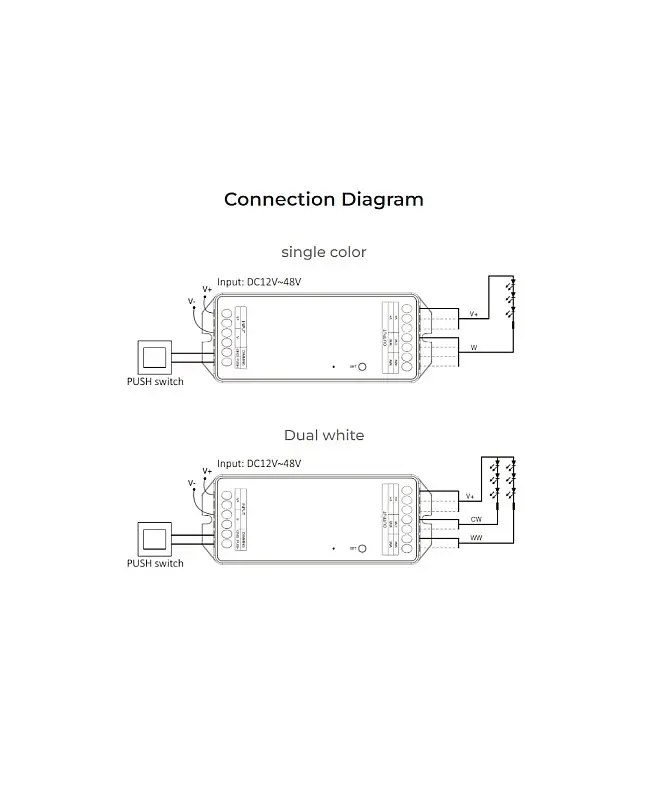

Switch 2 Output Modes Via One Button(Single Color/Dual White)
Working Temperature: -10-40℃
Includes

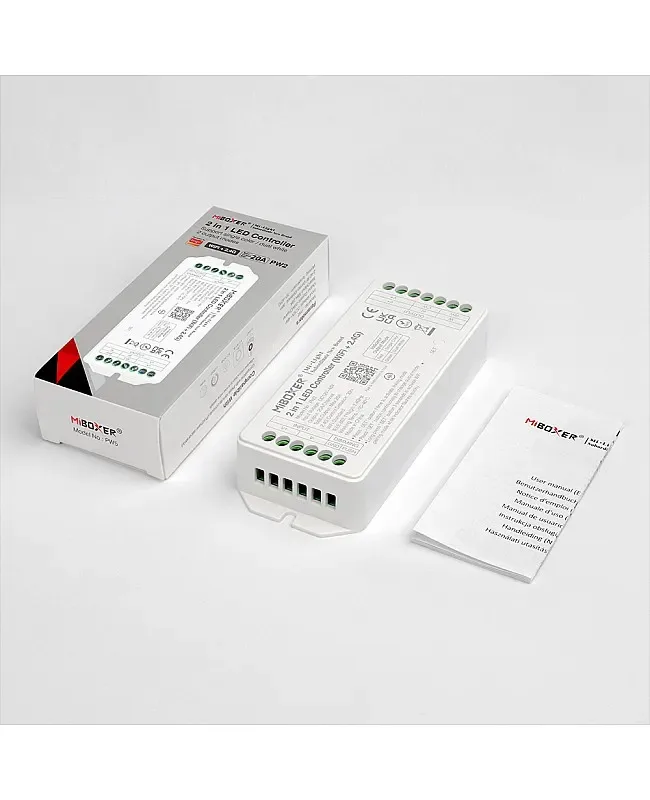

1 * Tuya WiFi Dual White LED Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
