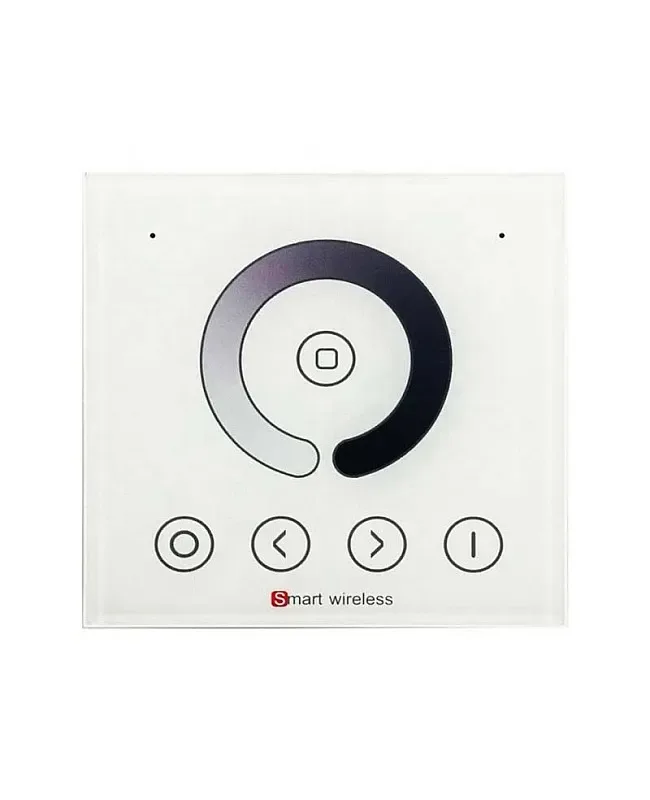

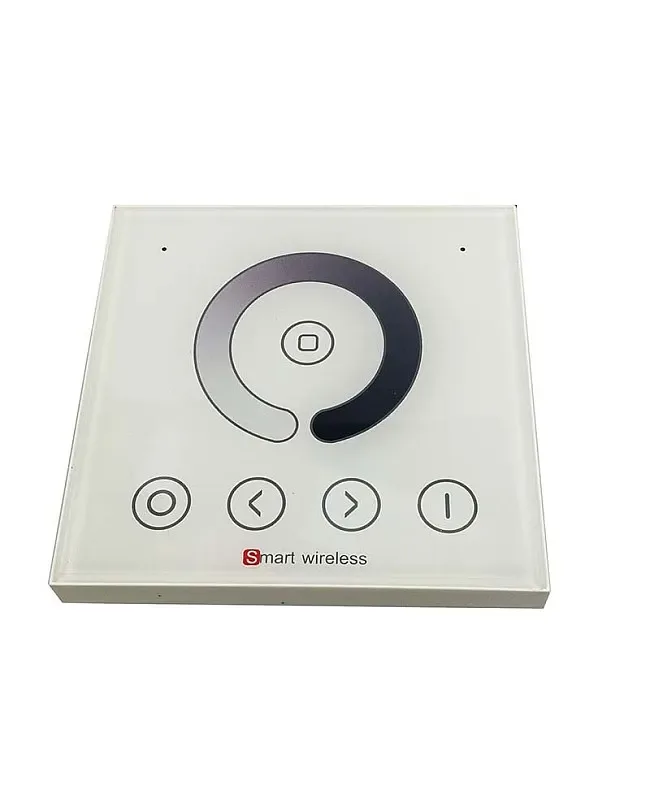

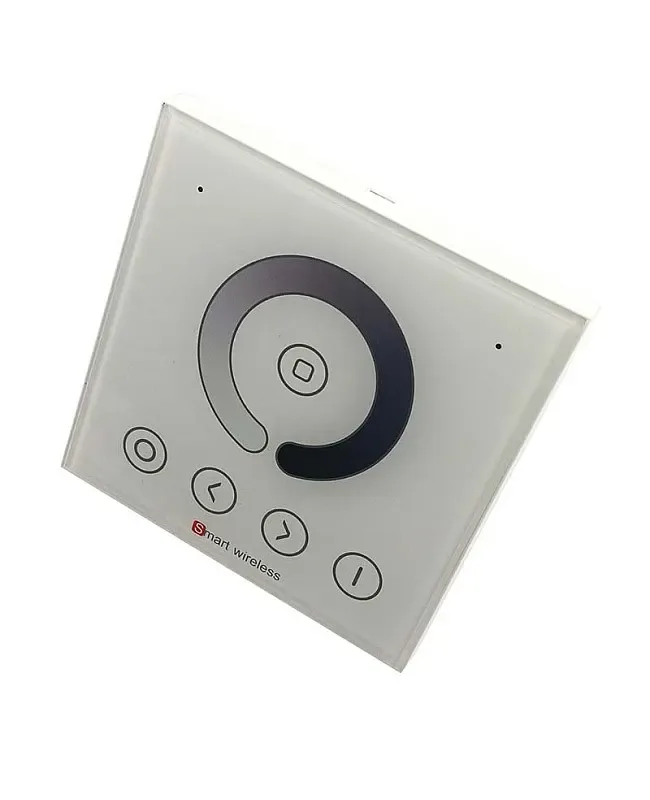

4G RF Single Zone Wall Panel LED Remote Control
LumaCircuit offers 4G RF Single Zone Wall Panel LED Remote Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Working Voltage: -265V(50/60Hz) Modes: Static 100% Light/Flash/Fade The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2.4G RF single zone wall panel LED remote control for dimming controller, with one dimming ring and 5 function buttons, the installer can press the buttons to turn on/off the LED light, adjust the brightness, static colors, and various dynamic changes in lighting effects through the RF remote control. Batch operation is available for RF code matching/clearing between the remote control and LED Dimmer Controllers.
- Working Temperature: -20-60℃
- Working Voltage: -265V(50/60Hz)
- Modes: Static 100% Light/Flash/Fade
- Compatible With Single Color LED Dimming Driver Or LED Dimmers

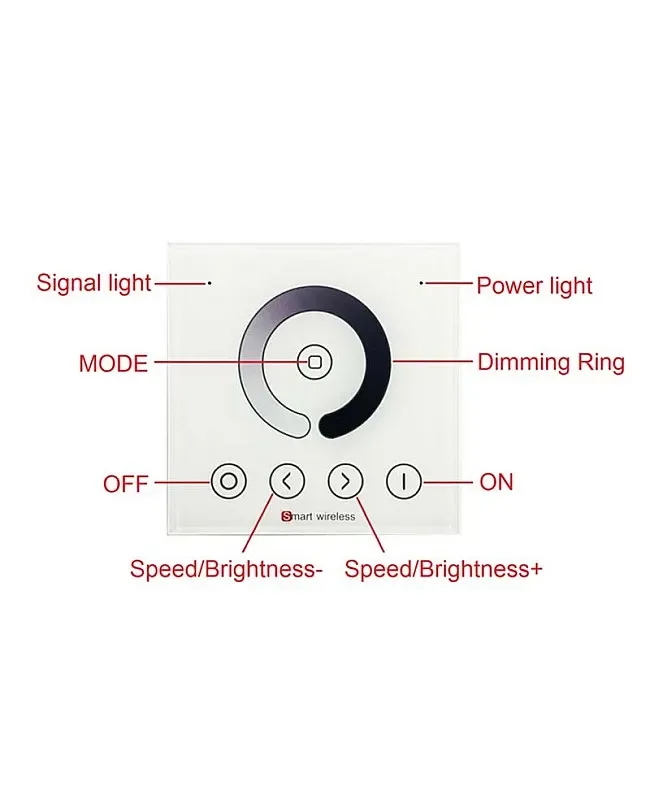

- One Dimming Ring And 5 Buttons On The Wall Panel
- 86-Type European Standard Structure
- 1 * 2.4G Single Zone Wall Panel LED Remote Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V

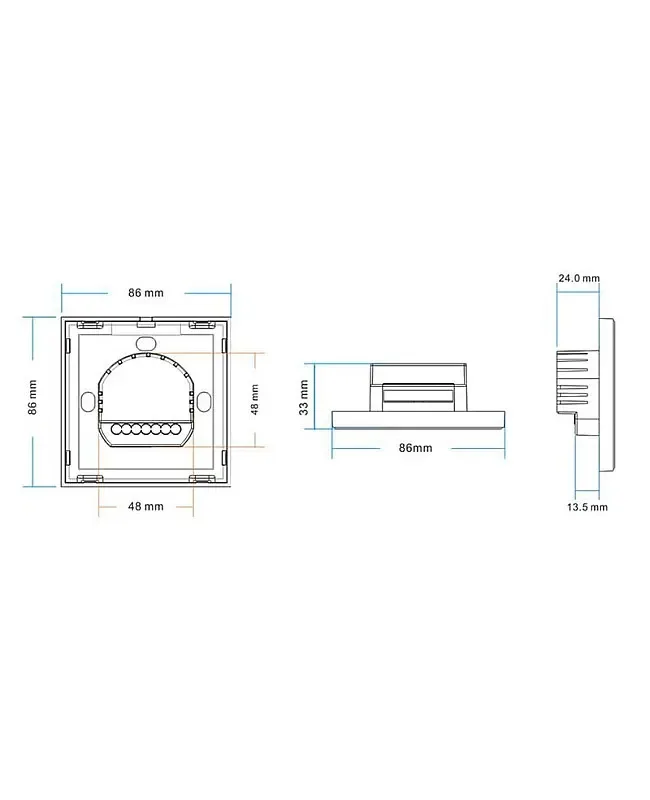

- Size: 86*86*34mm(L*W*H)
- Working Temperature: -20-60℃

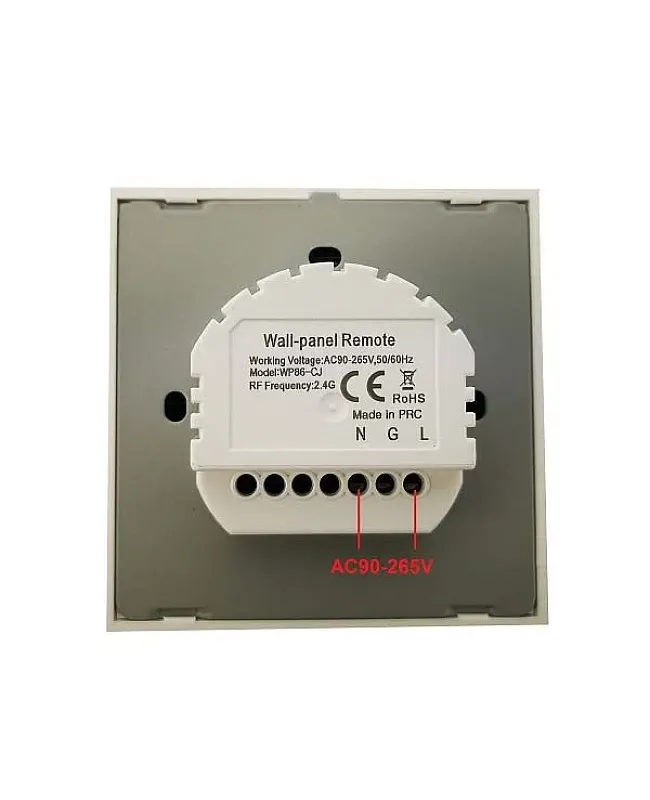

- Working Voltage: -265V(50/60Hz)
- RF Frequency: 2.
- Standby Power: 0.2W
- Working Power: 2W
- Modes: Static 100% Light/Flash/Fade
- LumaCircuit model: LC-CTL-44DXCU
- Dimensions found: 86x86x34mm / 34mm / 20m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 2.4G RF single zone wall panel LED remote control for dimming controller, with one dimming ring and 5 function buttons, the installer can press the buttons to turn on/off the LED light, adjust the brightness, static colors, and various dynamic changes in lighting effects through the RF remote control. Batch operation is available for RF code matching/clearing between the remote control and LED Dimmer Controllers.
Specifications
Size: 86*86*34mm(L*W*H)
Working Temperature: -20-60℃
Working Voltage: -265V(50/60Hz)
RF Frequency: 2.
RF Distance: ≤20m
Standby Power: 0.2W
Working Power: 2W
Modes: Static 100% Light/Flash/Fade
Compatible With Single Color LED Dimming Driver Or LED Dimmers
One Dimming Ring And 5 Buttons On The Wall Panel
86-Type European Standard Structure
Weight: 150g
Includes
1 * 2.4G Single Zone Wall Panel LED Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
