768W RGBW LED Controller With RF Touch Remote Control
LumaCircuit offers 768W RGBW LED Controller With RF Touch Remote Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Connecting Mode: Common Anode Working Voltage: DC12V-24V Output Channels: 4 Channels The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

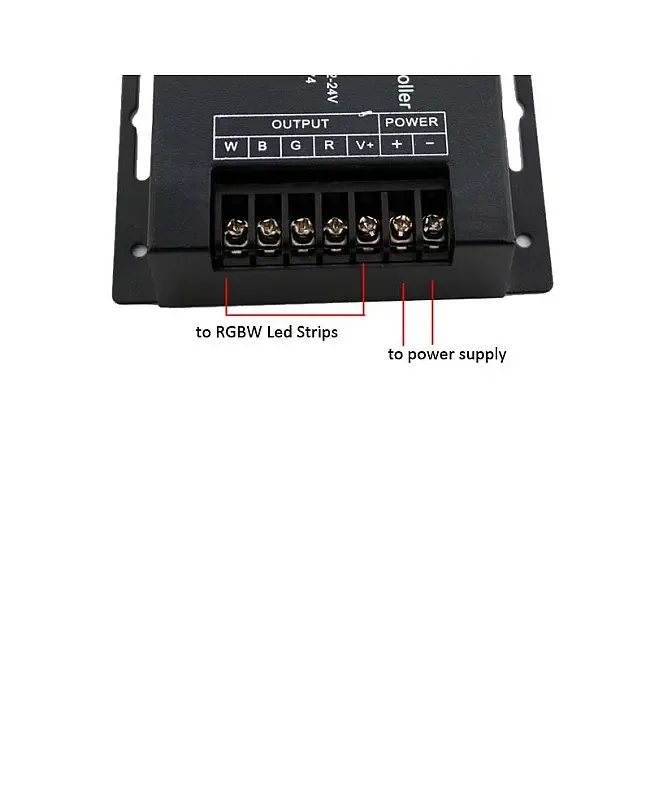

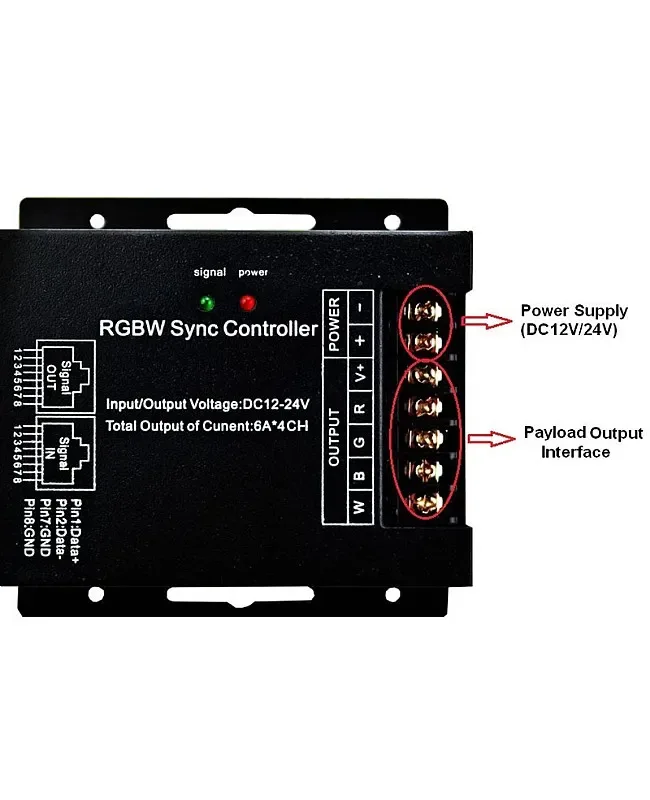

- The RGBW LED controller with RF touch remote control, which has a 4-output-channel design, is suitable for all kinds of constant voltage RGB and RGBW LED Lights. The RF LED controller has a 4-channel output design, with a max output current of up to 8A for each channel. Working on DC12V or DC24V, max loading power up to 768W when working in DC24V.
- Connecting Mode: Common Anode
- Working Voltage: DC12V-24V
- Output Channels: 4 Channels
- Output Current: <8A ( Each Channel )
- Output Power: 384W ( 12V ) / 768W ( 24V )
- Output Gray: 256 Levels (RGB Each)
- Dual Internet Cable Sync Interface
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGBW
- Size: 91*88*24mm(L*W*H)
- Connecting Mode: Common Anode
- Working Voltage: DC12V-24V
- Output Channels: 4 Channels
- Output Current: <8A ( Each Channel )
- Output Power: 384W ( 12V ) / 768W ( 24V )
- Output Gray: 256 Levels (RGB Each)
- RF Frequency: 433.
- LumaCircuit model: LC-CTL-8HIKOE
- Dimensions found: 91x88x24mm / 24mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

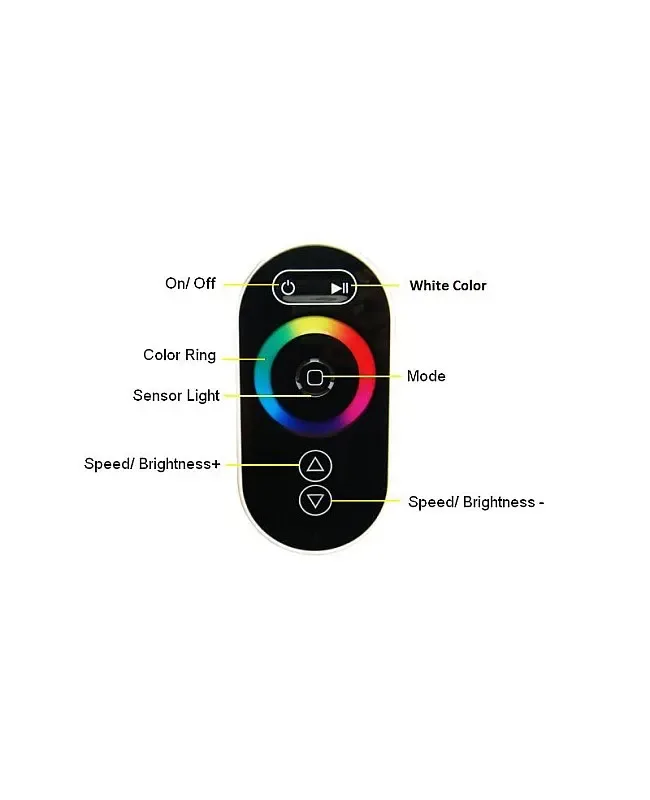

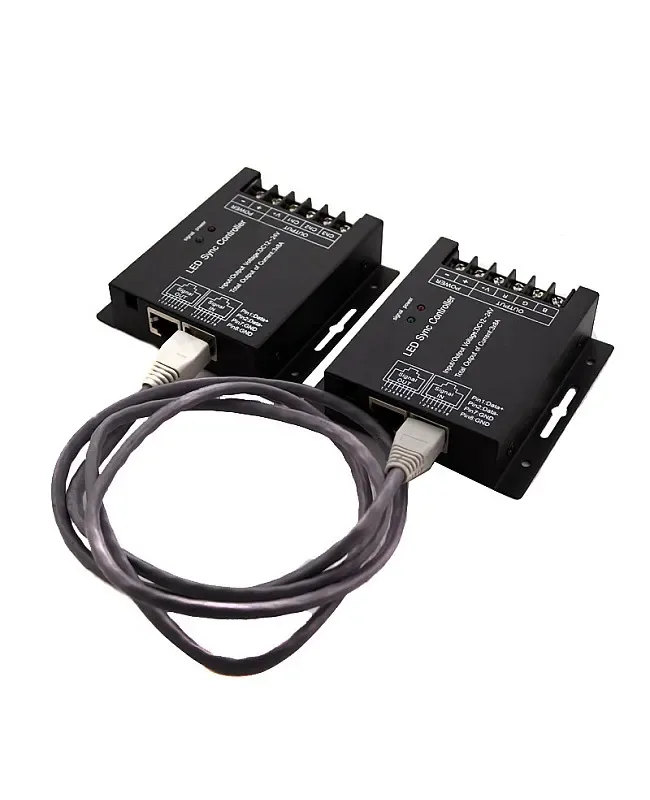

The RGBW LED controller with RF touch remote control, which has a 4-output-channel design, is suitable for all kinds of constant voltage RGB and RGBW LED Lights. The RF LED controller has a 4-channel output design, with a max output current of up to 8A for each channel. Working on DC12V or DC24V, max loading power up to 768W when working in DC24V. It adopts dual internet cable sync interfaces, and can use the Ports to connect multiple controllers and achieve the synchronization function of thousands of LED lamps or LED strips. The RF touch remote control has one color ring and a sensor light in the center. All the buttons are in the touch form, and the color ring has 128 levels in different colors. There are 9 working modes in total, 2 white static colors and 7 dynamic modes. The brightness of static colors and the speed of dynamic modes are adjustable.
Specifications
Size: 91*88*24mm(L*W*H)
Connecting Mode: Common Anode
Working Voltage: DC12V-24V
Output Channels: 4 Channels
Output Current: <8A ( Each Channel )
Output Power: 384W ( 12V ) / 768W ( 24V )
Output Gray: 256 Levels (RGB Each)
RF Frequency: 433.
Dual Internet Cable Sync Interface
RF Touch Remote Control With 5 Functions, 1 Color Ring, And 1 Color Sense Lamp In The Center Included
9 Working Modes In Total, 2 White Static Colors And 7 Dynamic Modes
Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
Weight: 350g
Includes

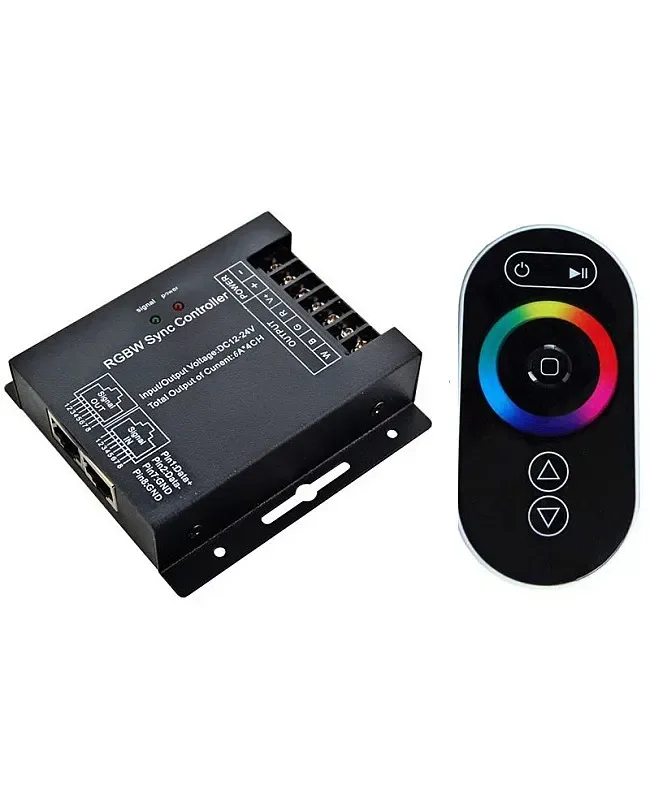

1 * RF LED Controller
1 * RF Touch Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
