4G LED Lighting Controller
LumaCircuit offers 4G LED Lighting Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 5 In 1 LED Lighting Controller Size: 119*47*23mm(L*W*H) Built-in 18 Dynamic Modes The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller LED Lighting Controllers feature a 5-in-1 design, compatible with single-color, dual-white, RGB, RGBW, and RGB+CCT LED Lights. They adopt widely used 2 wireless technology and can be controlled by compatible 2.4 GHz wireless remotes 2.4G Remote Controls. The lightweight design and compact size enable quick and convenient installation.
- Type: 5 In 1 LED Lighting Controller

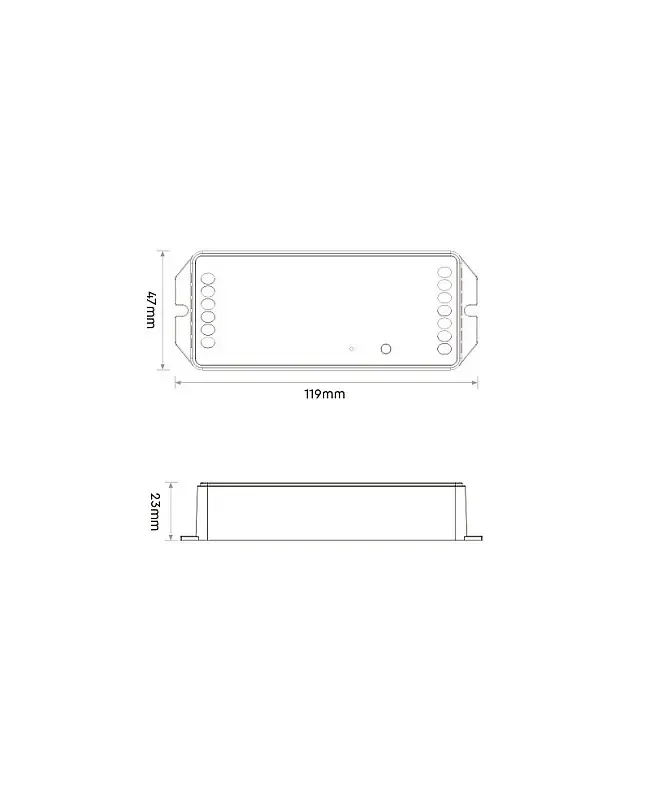

- Size: 119*47*23mm(L*W*H)
- Built-in 18 Dynamic Modes
- 16 Million Colors And Saturation Adjustable
- Brightness And Color Temperature Adjustable
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-5YJCTE
- Size: 119*47*23mm(L*W*H)
- Input Voltage: -48V
- Output Current: 20A Max
- Output Power: 960W Max
- Output Type: Constant Voltage
- Control Signal: 2.4G RF
- Remote Control Distance: ≤30M
- Working Temperature: -10-40℃
- Dimensions found: 119x47x23mm / 23mm / 30M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

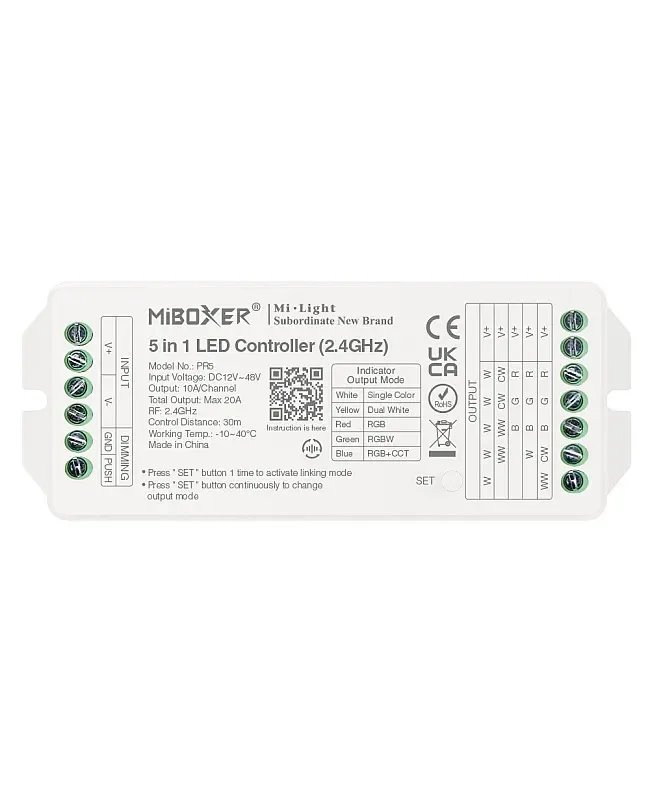

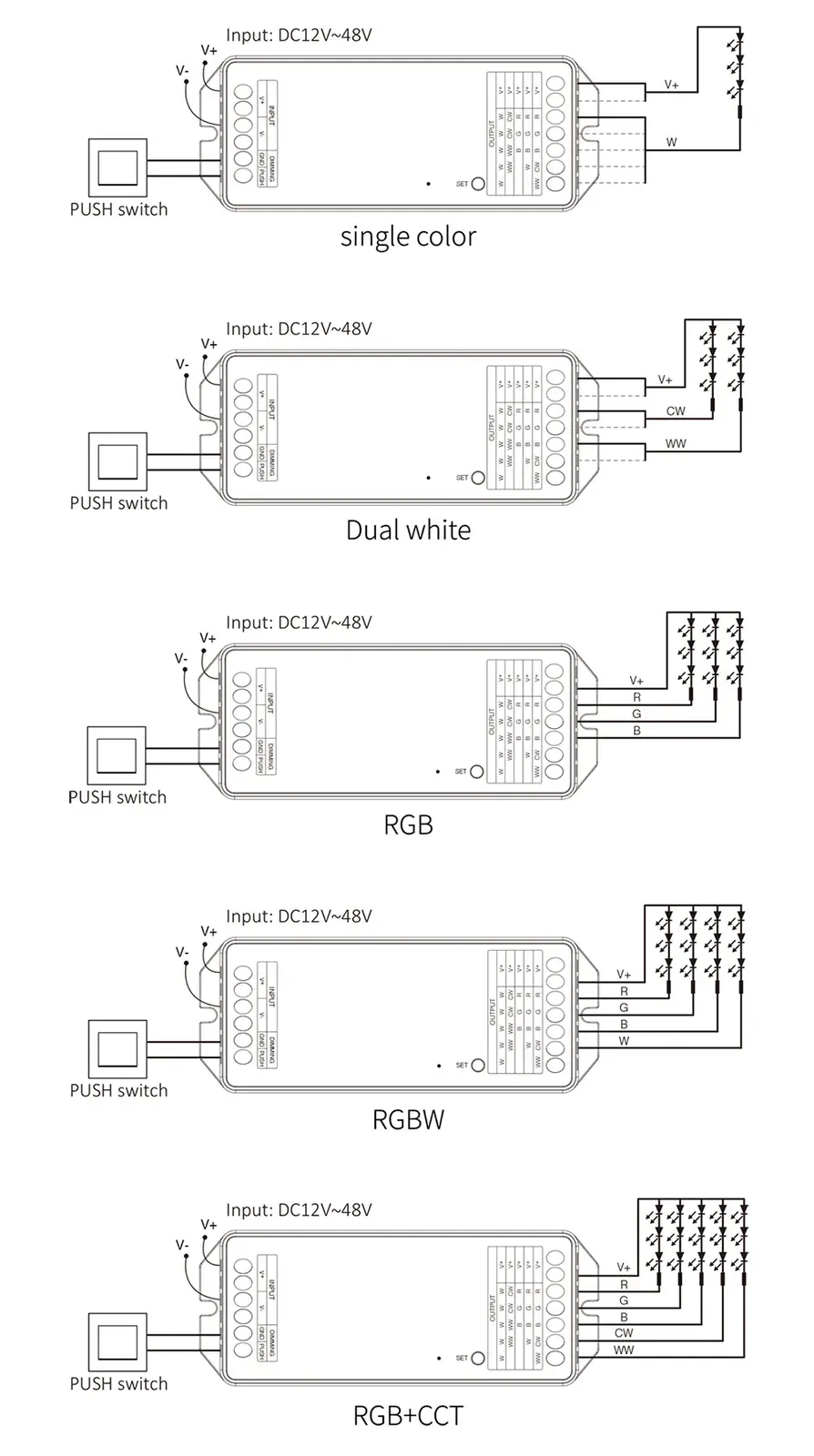

The wireless controller LED Lighting Controllers feature a 5-in-1 design, compatible with single-color, dual-white, RGB, RGBW, and RGB+CCT LED Lights. They adopt widely used 2 wireless technology and can be controlled by compatible 2.4 GHz wireless remotes 2.4G Remote Controls. The lightweight design and compact size enable quick and convenient installation. There is a physical button labeled "SET" on the controller, which the installer can press continuously to switch the output mode between single color, dual white, RGB, RGBW, and RGB+CCT. Built-in 18 dynamic modes, including jump and gradient. 16 million colors, saturation, brightness, and color temperature are adjustable for various scenes. One lighting controller can be paired with up to 12 remotes and has a control distance of up to 30 meters. The will forward the remote control signal to another device, effectively increasing the control distance to infinity, and the controllers will operate under the same color or dynamic pattern. After pairing with 2.4G Bridges, the wireless controller Lighting Controller supports Tuya Smart APP control and can be controlled by voice commands from Amazon Alexa or Google Assistant. They are suitable for residential and commercial modern LED lighting control applications.
Specifications
Type: 5 In 1 LED Lighting Controller
Model
Size: 119*47*23mm(L*W*H)
Input Voltage: -48V
Output Current: 20A Max
Output Power: 960W Max
Built-in 18 Dynamic Modes
16 Million Colors And Saturation Adjustable
Brightness And Color Temperature Adjustable
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Output Type: Constant Voltage
Control Signal: 2.4G RF
Support Tuya Smart APP Control(2.4G Bridge Needed)
Support Third Party Voice Control: Amazon Alexa, Google Assistant(2.4G Bridge Needed)
Support DMX512 Control(DMX512 LED Transmitter Needed)
Remote Control Distance: ≤30M
Compatible With wireless controller / 2.4 GHz wireless 2.4G Series Remote Controls
Working Temperature: -10-40℃
Includes

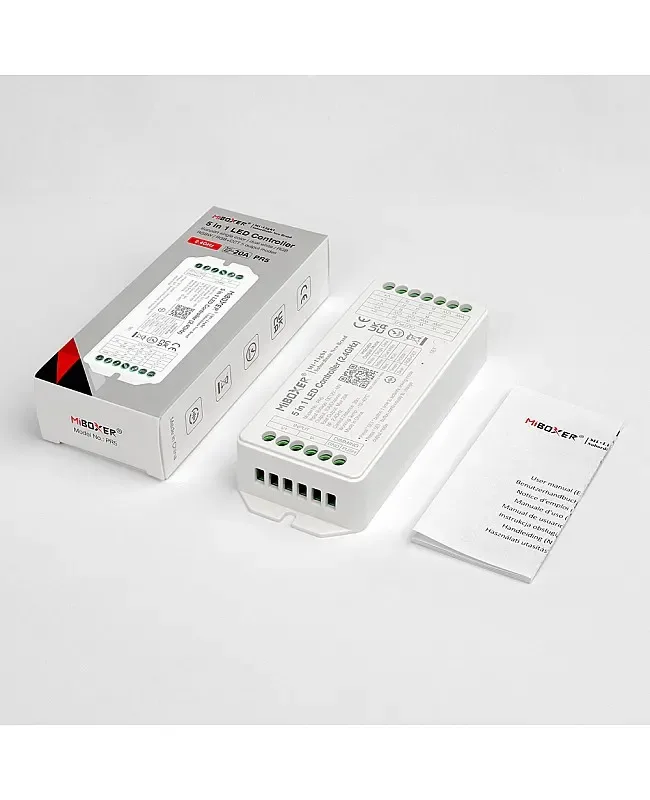

1* LED Lighting Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
