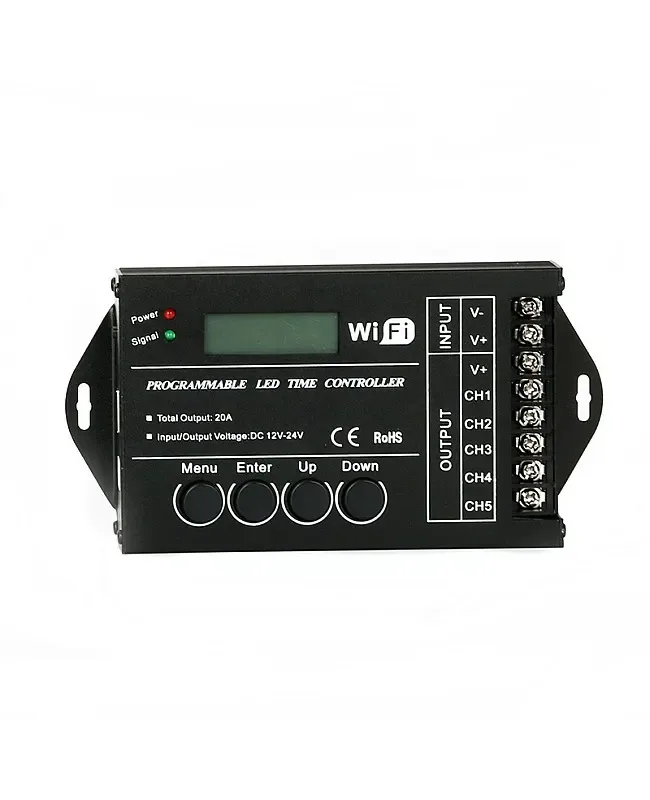

WiFi Programmable LED Time Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• LED time controllers are smart lighting control devices designed to remotely manage LED lights via WiFi, offering scheduling, timing, and automation features. The installer can use them to manage LED lights, such as aquarium lighting, grow lights, holiday lights, outdoor lights, or any other setting where precise LED lighting control is required.

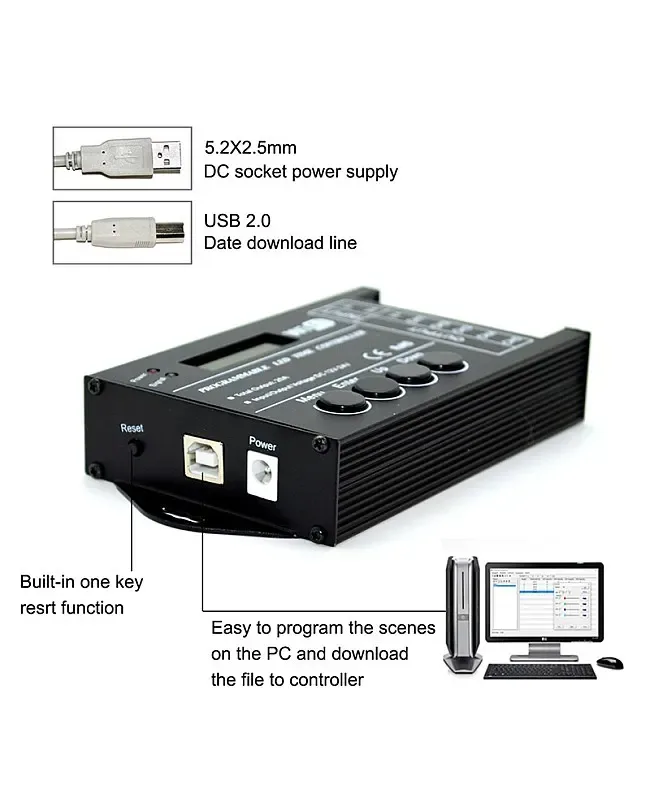

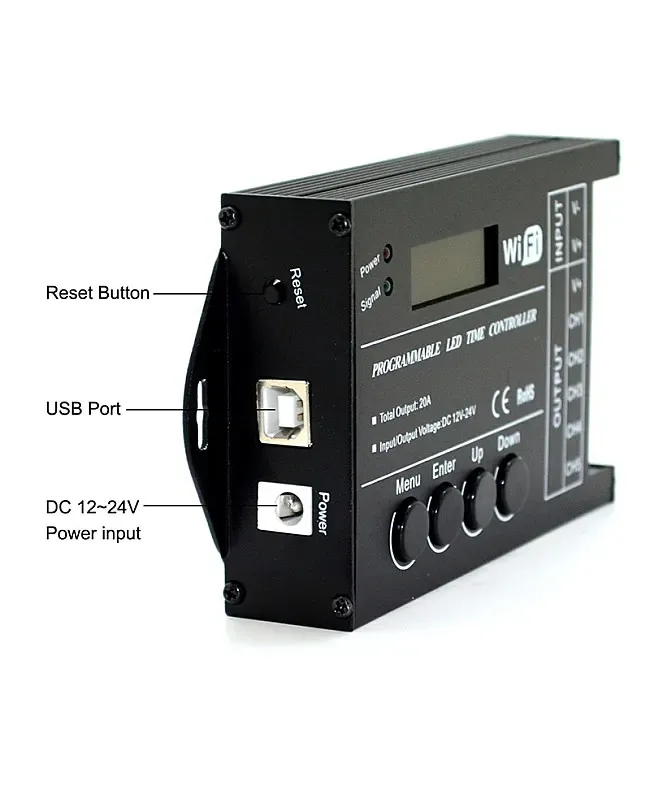

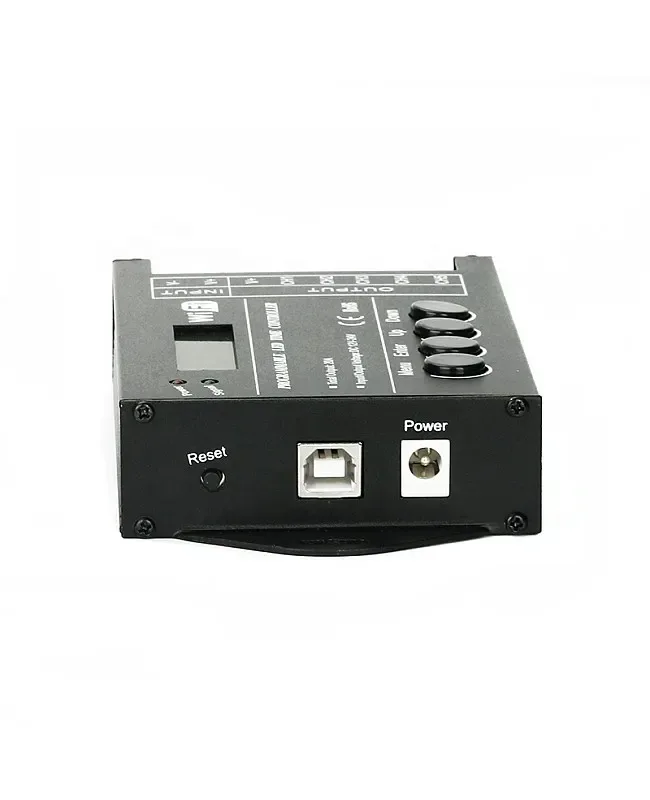

• The timer LED controller features 5 output channels, 24-hour cycle programming, and a 30-minute section control to adjust each channel's brightness and color. The installer can customize the schedule mode you want through your PC or app client, then download the required schedule to the controller via the USB port or WiFi. The installer can set the mode effect for a specific period, edit multiple modes, delete redundant modes, and preview modes directly.

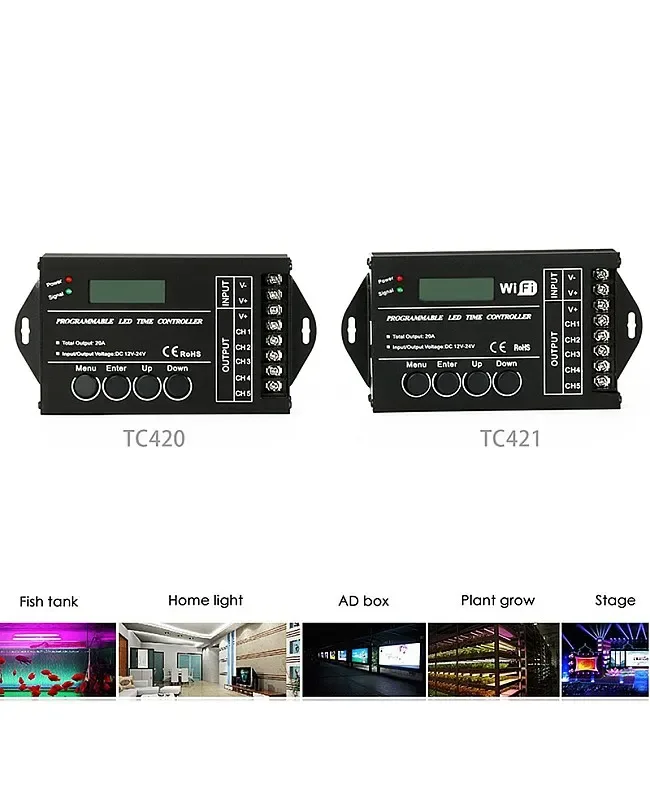

• the product has WiFi capabilities, operating in Access Point (AP) mode and Station (STA) mode. In AP mode, your phone can connect directly to the WiFi LED controller, while in STA mode, the connection is made through a router. The timer LED controller can control LED changing effects across up to five channels. The installer can use them for plant lighting, light boxes, signage, and home decoration. The version is also available for those who do not require WiFi capability.
• Size (L x W x H): 150 x 78.5 x 26mm/5.91"*3.09"*1.02"
• Max load current: 4A each channel
• Total output current: Max 20A

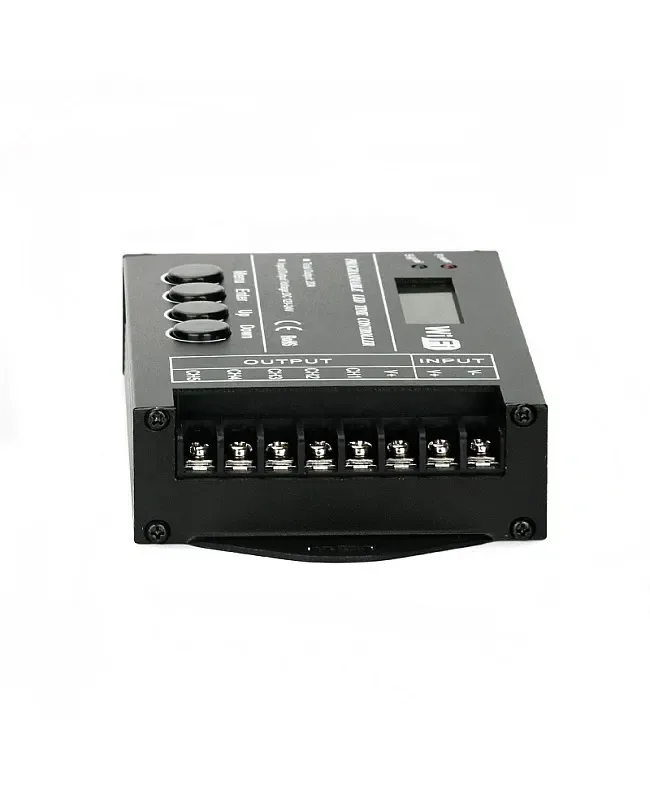

• Output: 5 CMOS drain-open output
• Connecting mode: Common anode

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V
• Size (L x W x H): 150 x 78.5 x 26mm/5.91"*3.09"*1.02"
• Colors: Black
• Working voltage: -24V
• Output channels: 5
• Max load current: 4A each channel
• Total output current: Max 20A
• Power: 240W, 480W
• Static power: <0.5W
• Output: 5 CMOS drain-open output
• Connecting mode: Common anode
• WiFi modes: AP mode/STA mode

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

LED time controllers are smart lighting control devices designed to remotely manage LED lights via WiFi, offering scheduling, timing, and automation features. The installer can use them to manage LED lights, such as aquarium lighting, grow lights, holiday lights, outdoor lights, or any other setting where precise LED lighting control is required.

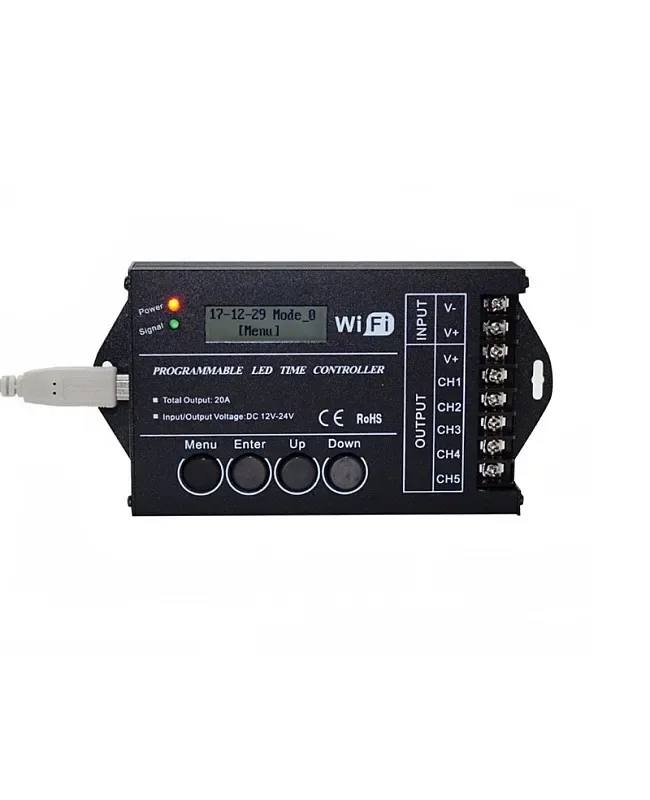

The timer LED controller features 5 output channels, 24-hour cycle programming, and a 30-minute section control to adjust each channel's brightness and color. The installer can customize the schedule mode you want through your PC or app client, then download the required schedule to the controller via the USB port or WiFi. The installer can set the mode effect for a specific period, edit multiple modes, delete redundant modes, and preview modes directly.

the product has WiFi capabilities, operating in Access Point (AP) mode and Station (STA) mode. In AP mode, your phone can connect directly to the WiFi LED controller, while in STA mode, the connection is made through a router. The timer LED controller can control LED changing effects across up to five channels. The installer can use them for plant lighting, light boxes, signage, and home decoration. The version is also available for those who do not require WiFi capability.

Quick Links

User Manual

Specifications

Size (L x W x H): 150 x 78.5 x 26mm/5.91"*3.09"*1.02"

Colors: Black

Working voltage: -24V

Output channels: 5

Max load current: 4A each channel

Total output current: Max 20A

Power: 240W, 480W

Static power: <0.5W

Output: 5 CMOS drain-open output

Connecting mode: Common anode

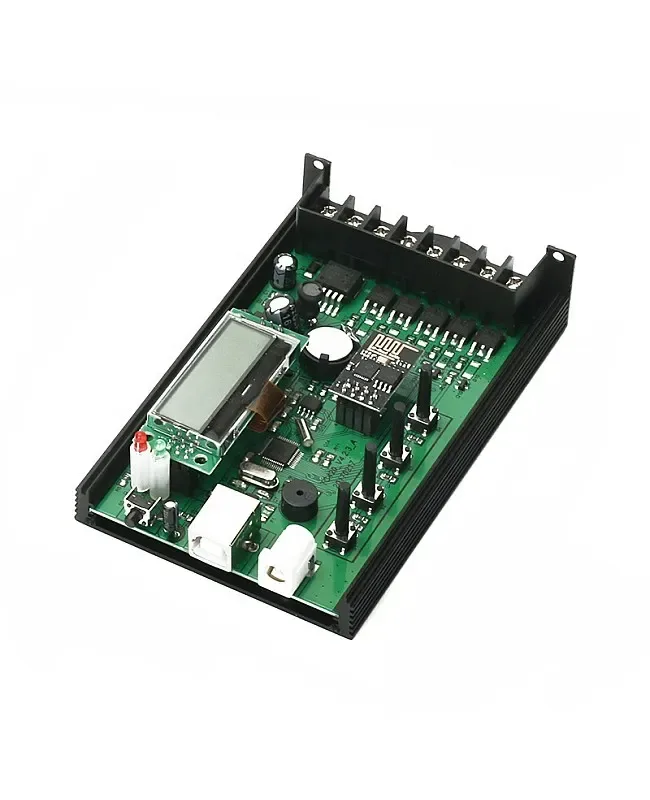

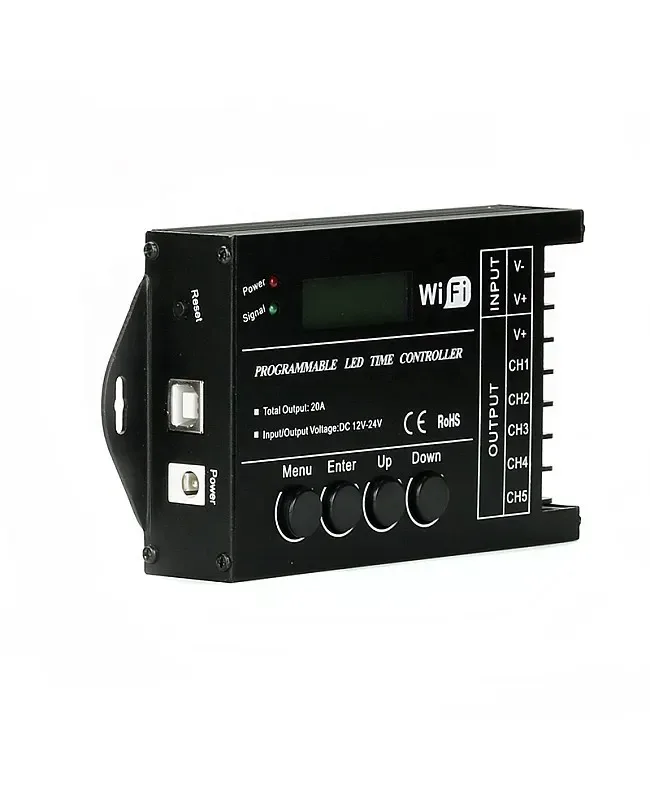

4 physical buttons on the timer controller

5-channel output design for single solor/CCT/RGB/RGBW LED lights

WiFi function: YES

WiFi modes: AP mode/STA mode

Working modes: Energy saving mode/setup mode

Color select/brightness and speed adjustable

Working temperature: -20℃-+60℃

Includes

1 * Smart time controller
