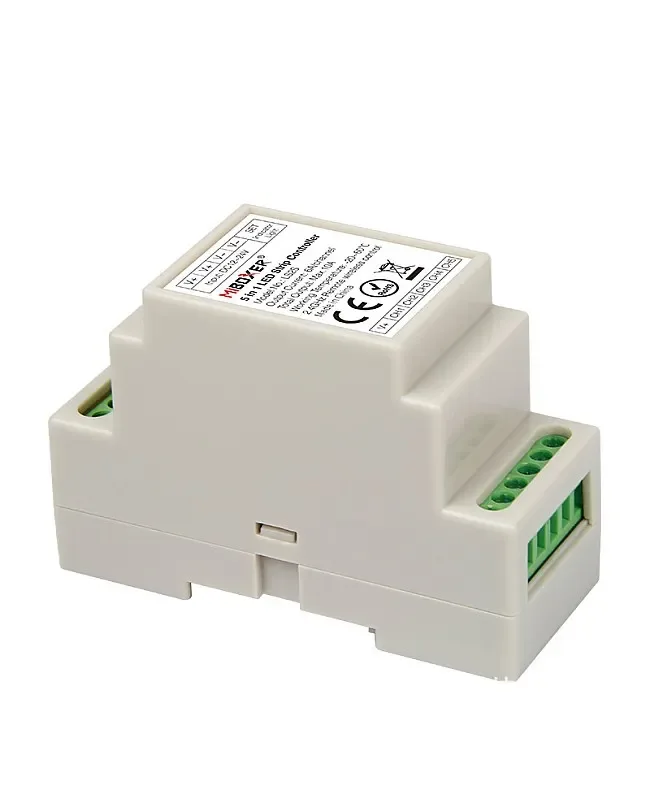

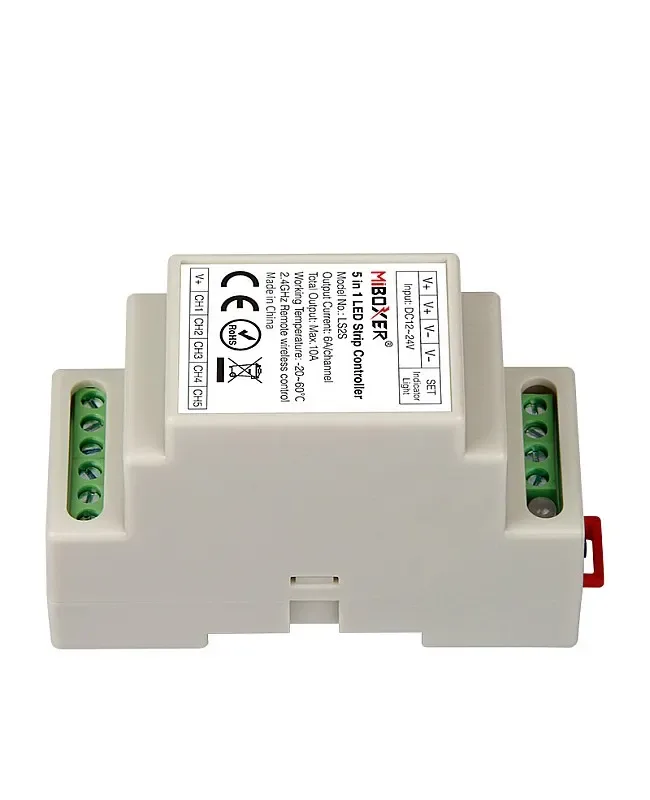

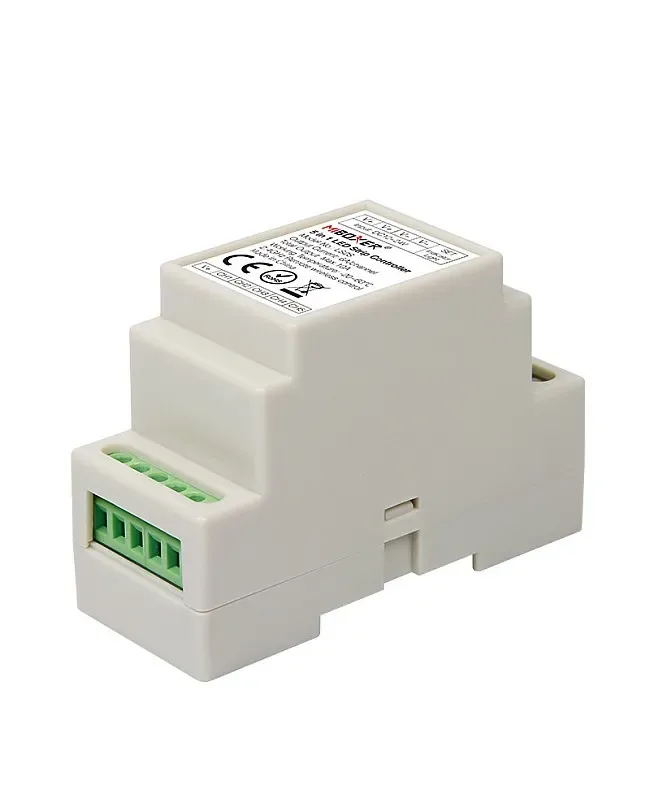

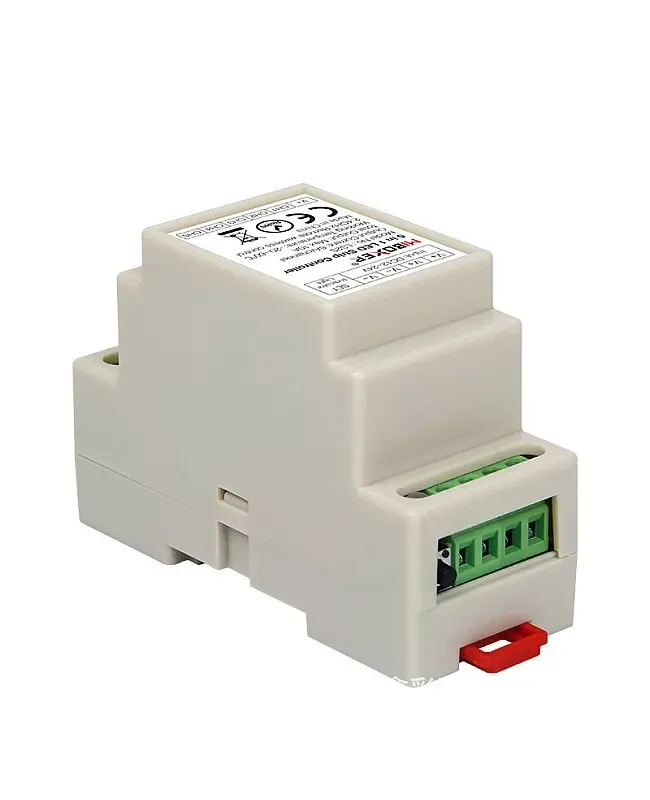

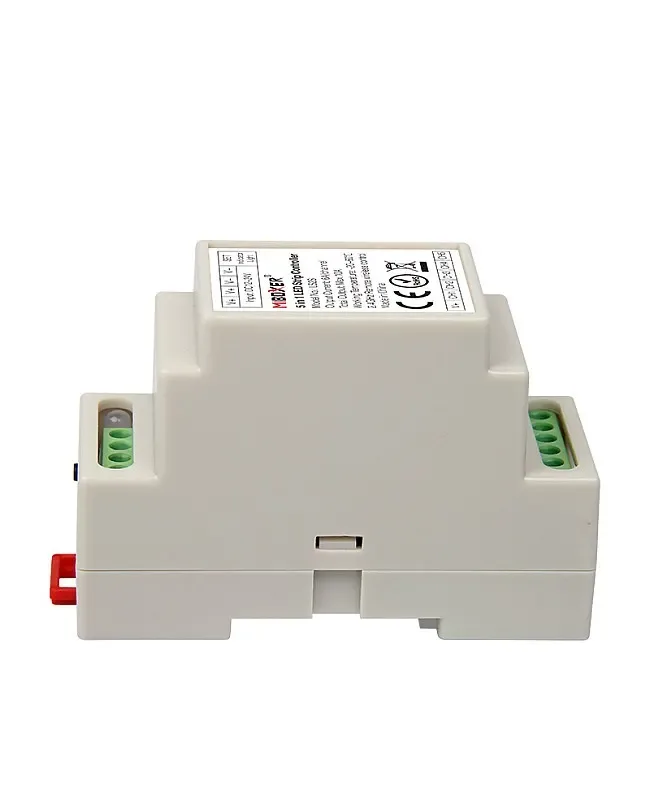

DIN Rail 5 in 1 Wireless LED Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller 5-In-1 wireless LED controller has a DIN rail design for 35mm standard rail installation and easy operation. It has a 5-in-1 function design for single color, CCT, RGB, RGBW, and RGBWW LED lights. There is one button on the LED controller, and the installer can dial it to switch the output mode. It can be controlled by a 2.4G RF remote and a smartphone app after adding a 2.4G gateway. The installer can set the color and adjust the brightness, saturation, and color temperature.
• wireless controller DIN Rail Wireless LED Controller User Manual
• Size: 92.5**59*36mm(L*W*H)
• Connection: Common Anode
• DIN Rail Mounting Size: TS-35/7.5 Or TS-35/15
• 5 In 1 Design For Single Color/CCT/RGB/RGBW/RGBWW
• Color Temperature, Brightness, And Saturation Adjustable
• Compatible With 2.4G Remote Control T4, T3, T2, T1,

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V
• Light engine: RGB+CCT
• Size: 92.5**59*36mm(L*W*H)
• Working Voltage: -24V
• Output: 6A/Channel
• Max Output Current: 10A
• Control Distance: ≤30m
• DIN Rail Mounting Size: TS-35/7.5 Or TS-35/15
• Compatible With 2.4G Remote Control: T4, T3, T2, T1,
• IP Rating: IP20 Non-Waterproof
• Working Temperature: -20-60℃
• LumaCircuit model: LC-CTL-MD2S3L

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The wireless controller 5-In-1 wireless LED controller has a DIN rail design for 35mm standard rail installation and easy operation. It has a 5-in-1 function design for single color, CCT, RGB, RGBW, and RGBWW LED lights. There is one button on the LED controller, and the installer can dial it to switch the output mode. It can be controlled by a 2.4G RF remote and a smartphone app after adding a 2.4G gateway. The installer can set the color and adjust the brightness, saturation, and color temperature. There are 16 million colors available to meet various scenes. One controller will receive the signals from the remote and transmit the signal to the same controller within 30 meters. All of the controllers will work synchronously, under the same dynamic mode and at the same speed.

Quick Links

wireless controller DIN Rail Wireless LED Controller User Manual

Specifications

Size: 92.5**59*36mm(L*W*H)

Working Voltage: -24V

Output: 6A/Channel

Max Output Current: 10A

Connection: Common Anode

Control Distance: ≤30m

DIN Rail Mounting Size: TS-35/7.5 Or TS-35/15

5 In 1 Design For Single Color/CCT/RGB/RGBW/RGBWW

16 Million Colors Available

Color Temperature, Brightness, And Saturation Adjustable

Compatible With 2.4G Remote Control T4, T3, T2, T1,

Smartphone APP Control(Need WiFi iBox)

Switching Mode By One Button

Auto-Transmitting And Auto-Synchronization

35mm Standard Rail Installation

IP Rating: IP20 Non-Waterproof

Working Temperature: -20-60℃

Includes

1 * DIN Rail 5-In-1 LED Controller
