Product details
+ Low Voltage Dimmer For Single Color/Dual White
LumaCircuit offers + Low Voltage Dimmer For Single Color/Dual White as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 74.5*36*17mm(L*W*H) Switching 2 Output Mode Via One Button For Single Color/Dual White Color Temperature Adjustable From 2700K To 6500K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller + 2 In 1 low-voltage light dimmers are designed for single-color and dual-white LED lights. The light dimmer follows Zigbee 3.0 standard protocol and 2.4G protocol, can be controlled by Zigbee 3.0 and 2.4G remote controls, smartphone APP, and third-party voice control to turn ON/OFF, adjust the color temperature from 2700K to 6500K, and stepless dimming brightness from 1% to 100%.
- Size: 74.5*36*17mm(L*W*H)
- Switching 2 Output Mode Via One Button For Single Color/Dual White
- Color Temperature Adjustable From 2700K To 6500K
- Stepless Dimming Brightness From 1% To 100%
- Working Frequency Switched From High To Low(250Hz)
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-B4R1MC
- Material: PC
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 12A/Channel
- Max Output: 12A
- Zigbee Wireless Frequency: 2.400- 2.
- Zigbee Control Distance: ≤100m(Open Area)
- Support Third-Party Voice Control: Amazon Alexa/Google Assistant
- Compatible With 2.4 GHz wireless/wireless controller 2. Series Remotes: T2, B, B, W, G
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

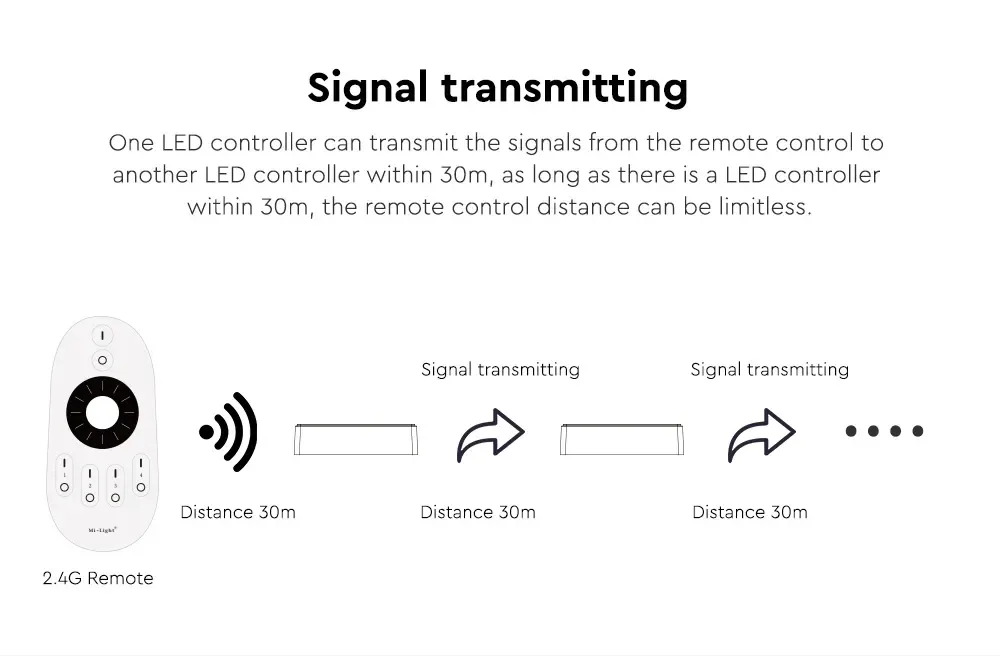

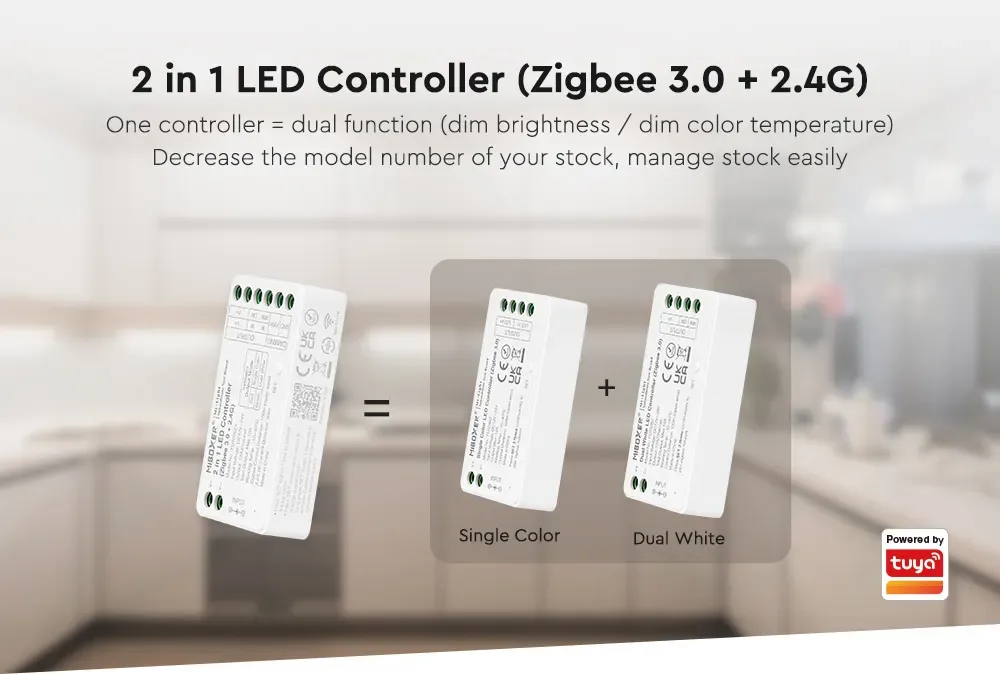

The wireless controller + 2 In 1 low-voltage light dimmers are designed for single-color and dual-white LED lights. The light dimmer follows Zigbee 3.0 standard protocol and 2.4G protocol, can be controlled by Zigbee 3.0 and 2.4G remote controls, smartphone APP, and third-party voice control to turn ON/OFF, adjust the color temperature from 2700K to 6500K, and stepless dimming brightness from 1% to 100%. There is one button on the controller; the installer can press it to switch the output mode from single color to dual white. The wireless controller dimmer can pair with the 2.4 GHz wireless Zigbee gateways and enter other standard Zigbee gateways like Philips Hue, IKEA TRADFRI, and Amazon Echo series. The installer can download the APP " Tuya Smart " to achieve more functions like timing, music rhythm, tap-to-run & automation, scene customization, device sharing, etc. It supports third-party voice control, can work with Amazon Alexa and Google Assistant, and can use the voice commands to control ON/OFF, brightness, etc. One controller will transmit the signals from the remote control to another lighting fixture within 30 meters, and all will work synchronously.

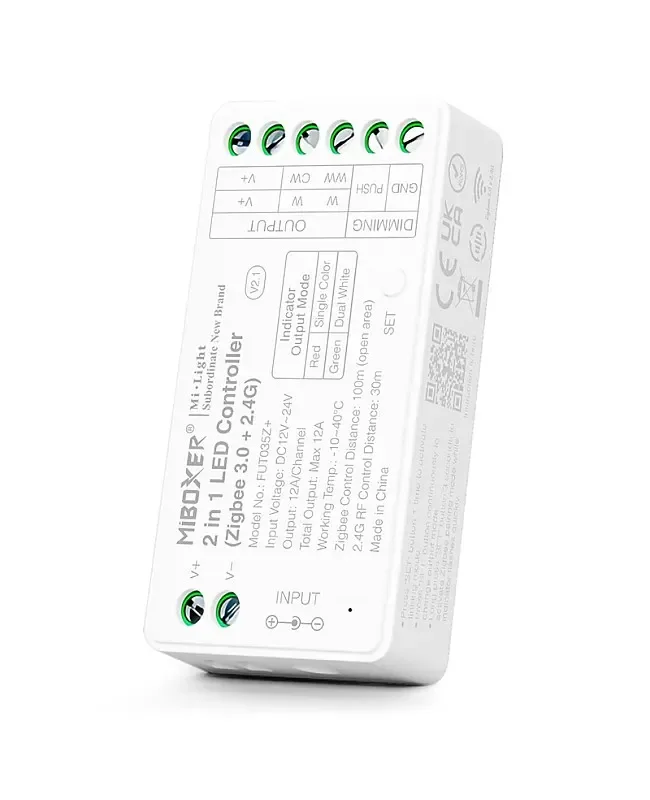

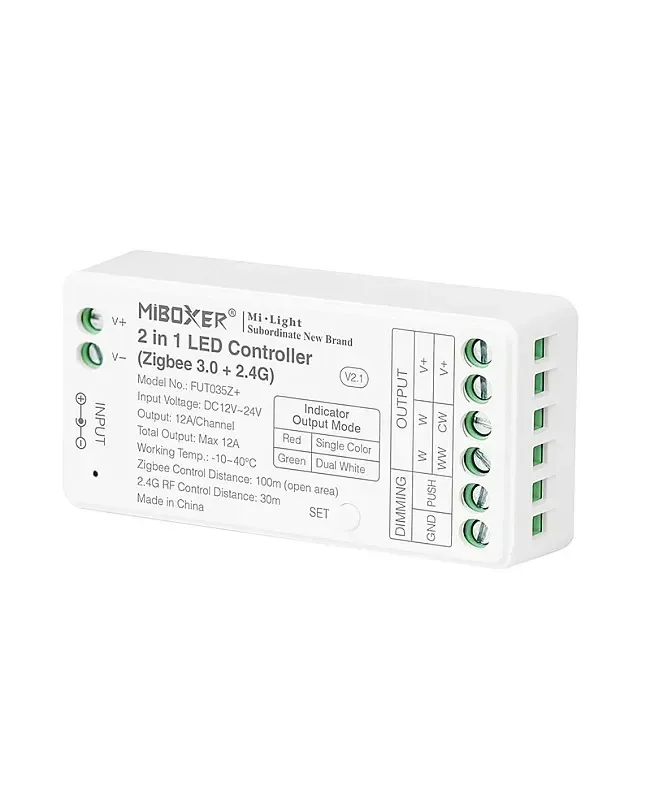

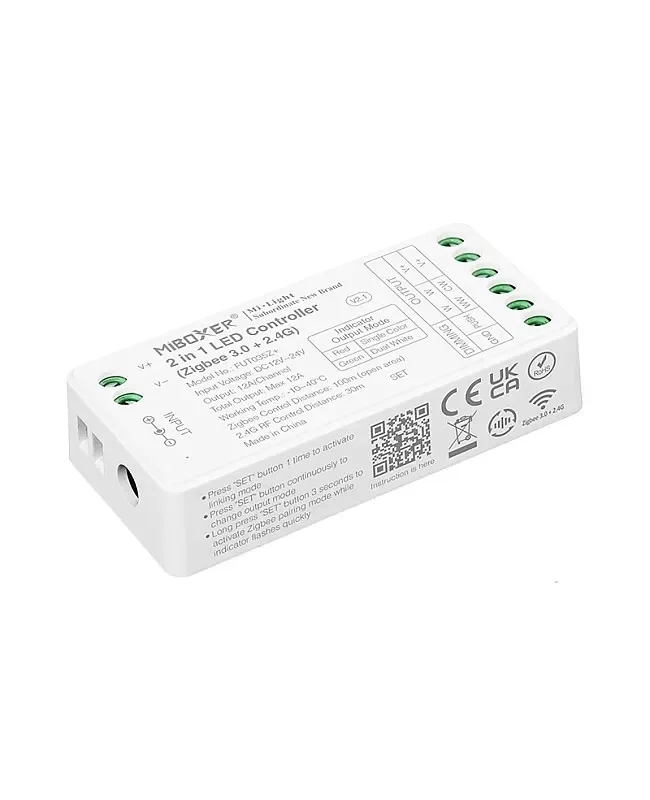

Specifications
Model: +
Material: PC

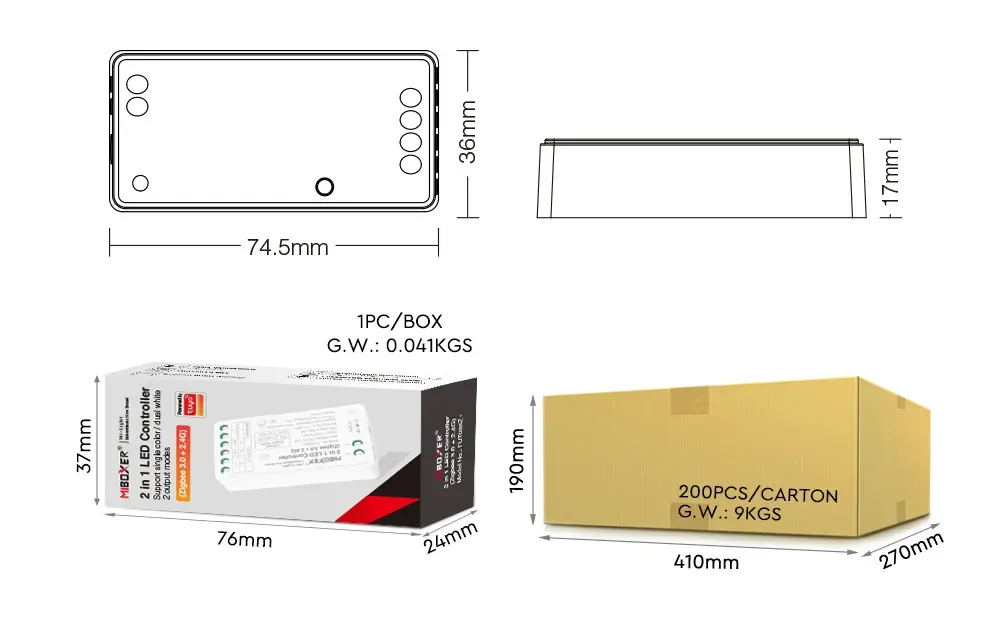

Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 12A/Channel
Max Output: 12A
Switching 2 Output Mode Via One Button For Single Color/Dual White
Color Temperature Adjustable From 2700K To 6500K
Stepless Dimming Brightness From 1% To 100%
Support PUSH Dimming
Working Frequency Switched From High To Low(250Hz)
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
Zigbee Control Distance: ≤100m(Open Area)
Smart Phone APP Controllable(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Support Third-Party Voice Control: Amazon Alexa/Google Assistant

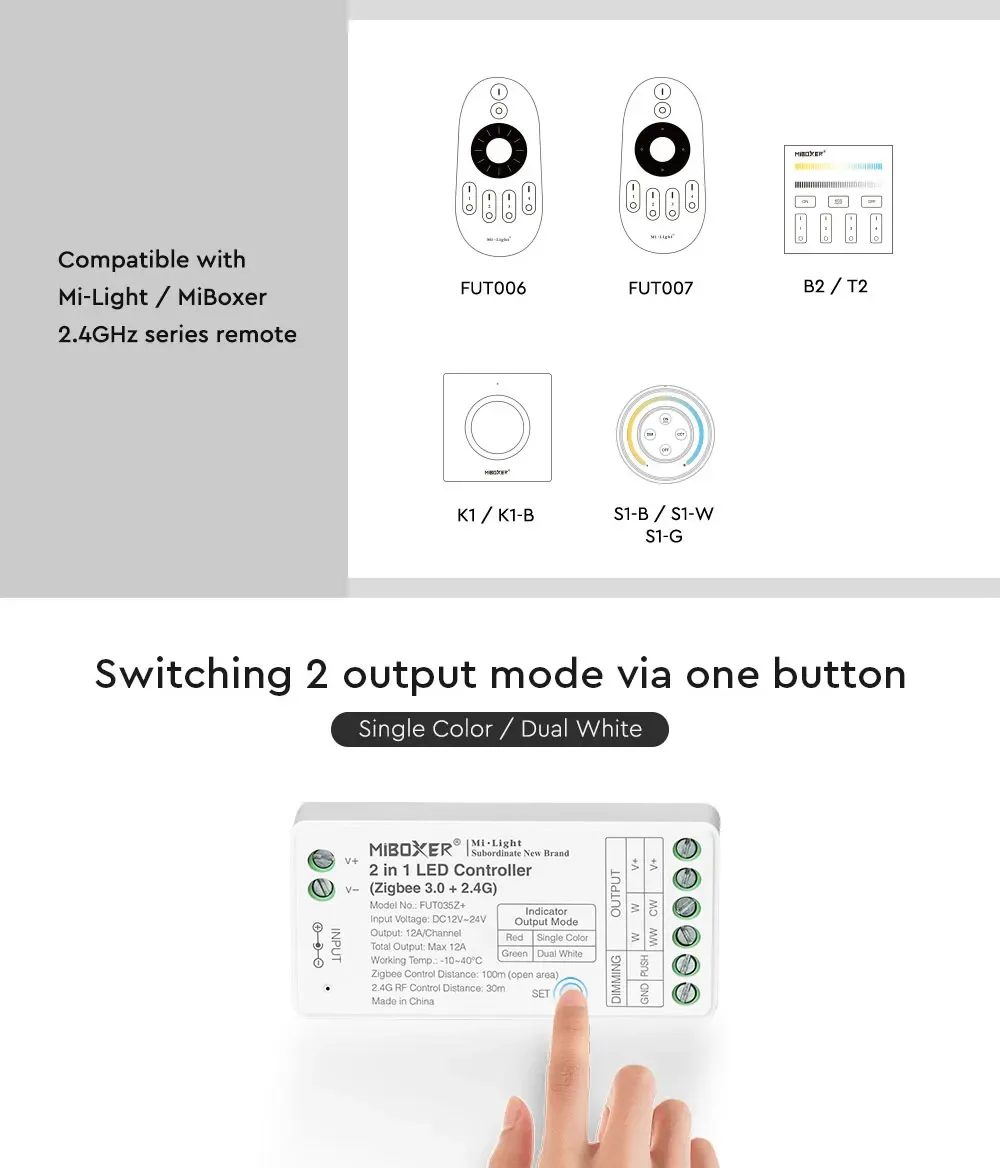

Compatible With 2.4 GHz wireless/wireless controller 2. Series Remotes T2, B, B, W, G
4G RF Remote Control Distance: ≤30m
Auto Signal Transmitting

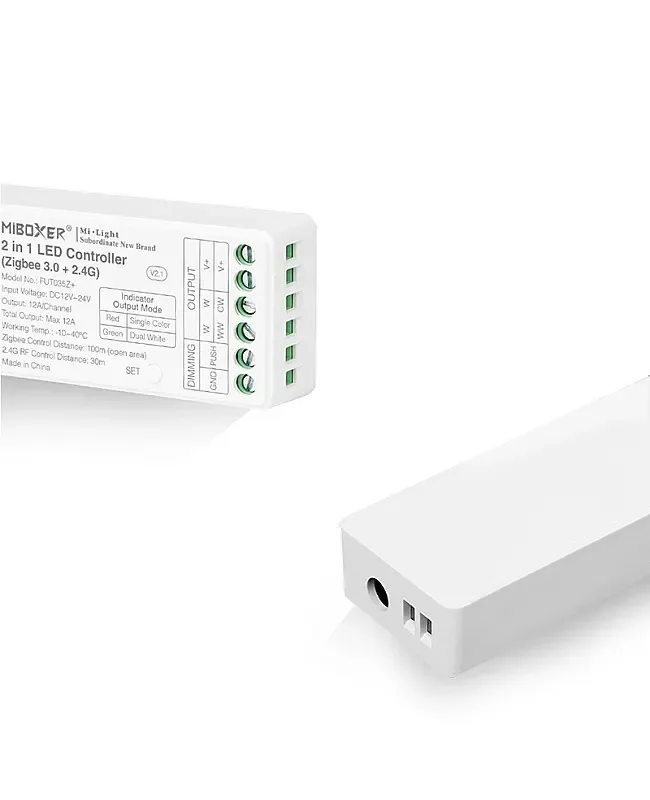

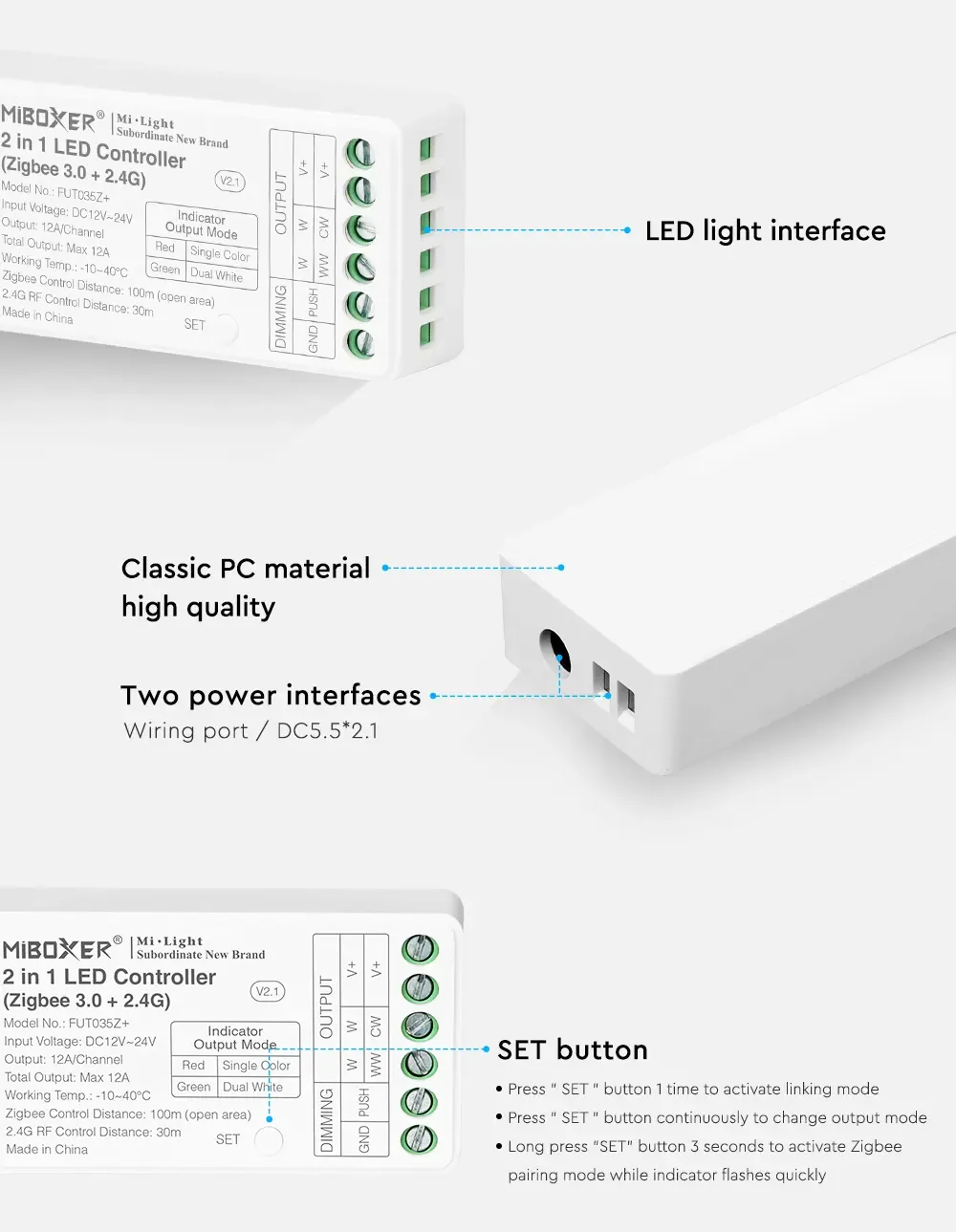

Two Power Interfaces: Wiring Port/DC 5.5*2.1mm
Includes
1 * wireless controller Low Voltage Light Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
