Product details
RGB Zigbee Controller
LumaCircuit offers RGB Zigbee Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller + 3 In 1 Zigbee 3.0 Light Controller For RGB/RGBW/RGB+CCT Size: 74.5*36*17mm(L*W*H) Total Output Current: 12A Max The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RGB Zigbee controller integrates Zigbee 3.0 standard protocol and can connect to Philips Hue, IKEA TRADFRI, AMAZON Echo Plus( Gen), Echo( Gen), Echo Studio, and Echo Show( Gen) standard Zigbee 3.0 gateways. After pairing with a Zigbee gateway, the controller can be controlled by a smartphone APP or third-party voice commands. It can work with Amazon Alexa and Google Assistant, and the installer can control the color and adjust the color saturation and brightness for various scenes.
- wireless controller + 3 In 1 Zigbee 3.0 Light Controller For RGB/RGBW/RGB+CCT
- Size: 74.5*36*17mm(L*W*H)
- Total Output Current: 12A Max
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
- Brightness And Saturation Adjustable
- Can Be Controlled By Smartphone APP And Third-Party Voice( Zigbee 3 Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 6A/Channel
- Total Output Current: 12A Max
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: ≤100m(Open Area)
- IP Rating: IP20 Non-Waterproof
- Working Temperature: -10-40℃
- LumaCircuit model: LC-CTL-OBP2SR
- Dimensions found: 74.5x36x17mm / 17mm / 100m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RGB Zigbee controller integrates Zigbee 3.0 standard protocol and can connect to Philips Hue, IKEA TRADFRI, AMAZON Echo Plus( Gen), Echo( Gen), Echo Studio, and Echo Show( Gen) standard Zigbee 3.0 gateways. After pairing with a Zigbee gateway, the controller can be controlled by a smartphone APP or third-party voice commands. It can work with Amazon Alexa and Google Assistant, and the installer can control the color and adjust the color saturation and brightness for various scenes. There are 16 million colors available, and the installer can work with RGB LED lights. The installer can use the APP " mobile app “ to achieve more functions like biorhythm, music rhythm, timing, scene customization, device sharing, etc.
wireless controller + 3 In 1 Zigbee 3.0 Light Controller For RGB/RGBW/RGB+CCT

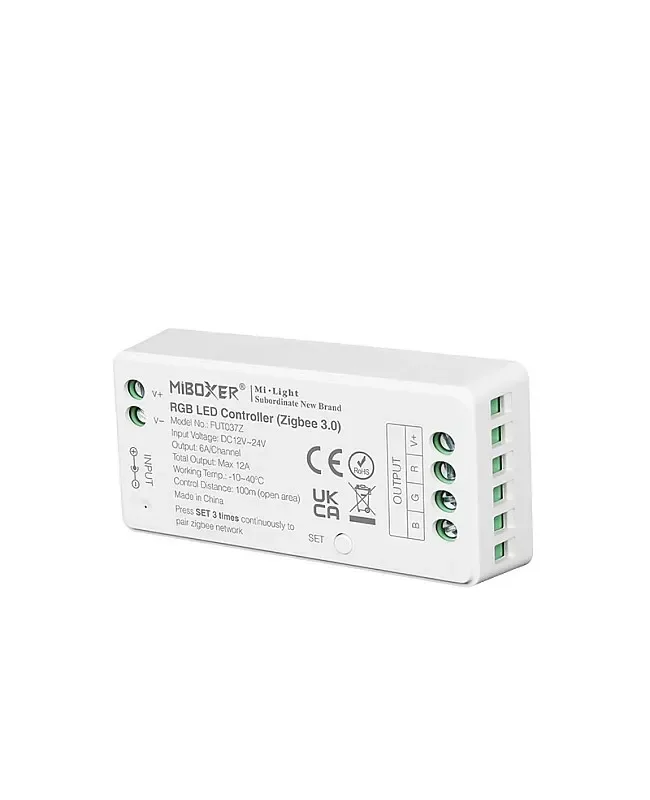

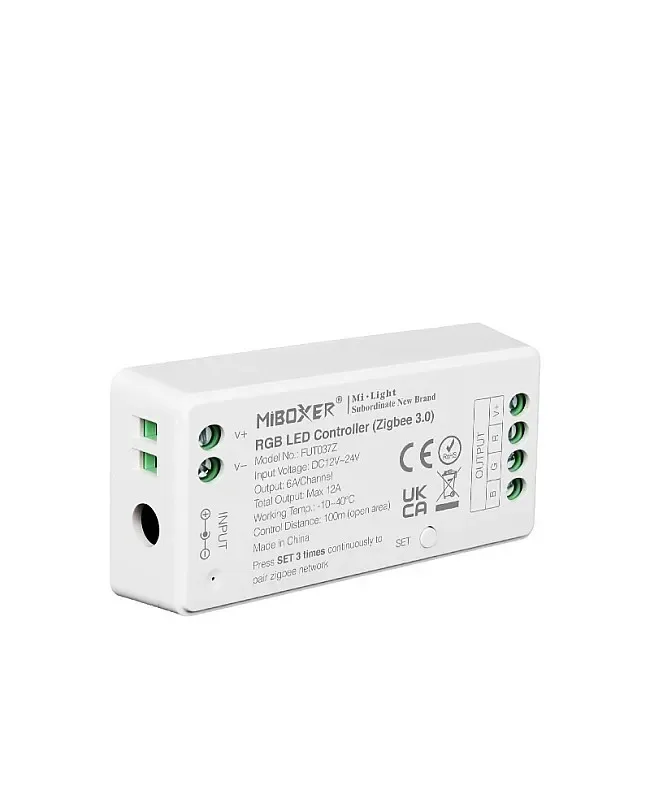

Specifications
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 6A/Channel
Total Output Current: 12A Max
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
16 Million Colors Available
Brightness And Saturation Adjustable
Can Be Controlled By Smartphone APP And Third-Party Voice( Zigbee 3 Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Control Distance: ≤100m(Open Area)
IP Rating: IP20 Non-Waterproof
APP Name: mobile app
Tap-To-Run & Automation
Timing Setting
Scene Customization
Device Sharing
Sleep/Wakeup Plan
Do Not Disturb Mode
Working Temperature: -10-40℃
Includes
1 * RGB Zigbee 3.0 Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
