4 Zones 2.4G CCT T2 Panel Remote Control

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller T2 CCT panel remote control has 4 individual zone control designs. The installer can control the zones individually or all at once, and each zone can control countless lamps or controllers. The 2.4 GHz wireless T2 has a sensitive touch panel design. The installer can touch the color temperature adjustable slider to adjust the CCT from 2700K to 6500 K. Or press the dimming slide to adjust the brightness from 1% to 100%.
• wireless controller T2 CCT Panel Remote Controls Manual
• Transmission Frequency: 2400- 2483.
• Transmitting Power: 6 dBm
• 4 Zones Individually And All Control
• Color Temperature Adjustable From 2700 K- 6500 K
• Sensitive Touching Panel
• Compatible With 2.4 GHz wireless And wireless controller Dual White Products: 2.4 GHz wireless wireless controller

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 240 V
• Light engine: CCT
• Size: 86*86*33mm(L*W*H)
• Working Voltage: -240V
• Transmission Frequency: 2400- 2483.
• Transmitting Power: 6 dBm
• Control Distance: 30m
• Compatible With 2.4 GHz wireless And wireless controller Dual White Products: 2.4 GHz wireless wireless controller
• Working Temperature: -10-+40℃
• LumaCircuit model: LC-CTL-F2NG75
• Dimensions found: 86x86x33mm / 33mm / 30m

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

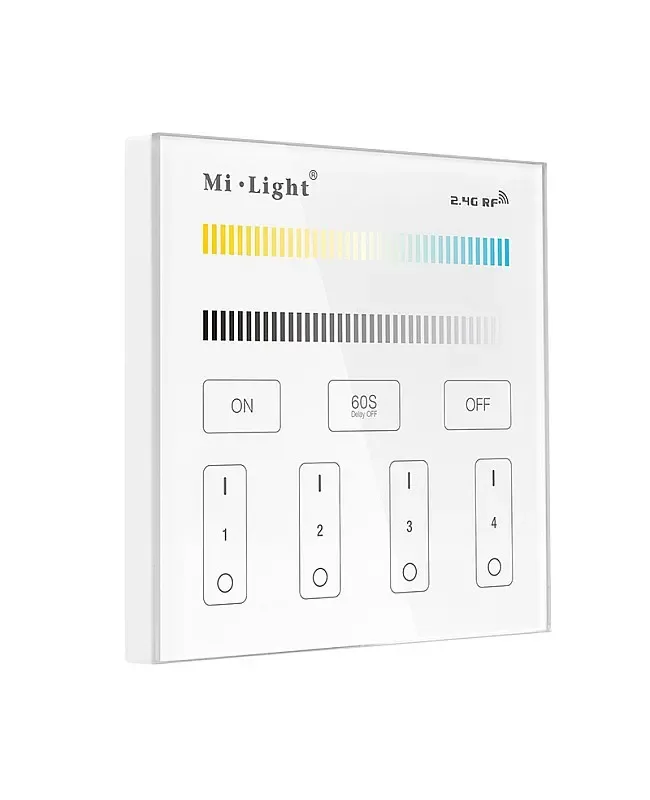

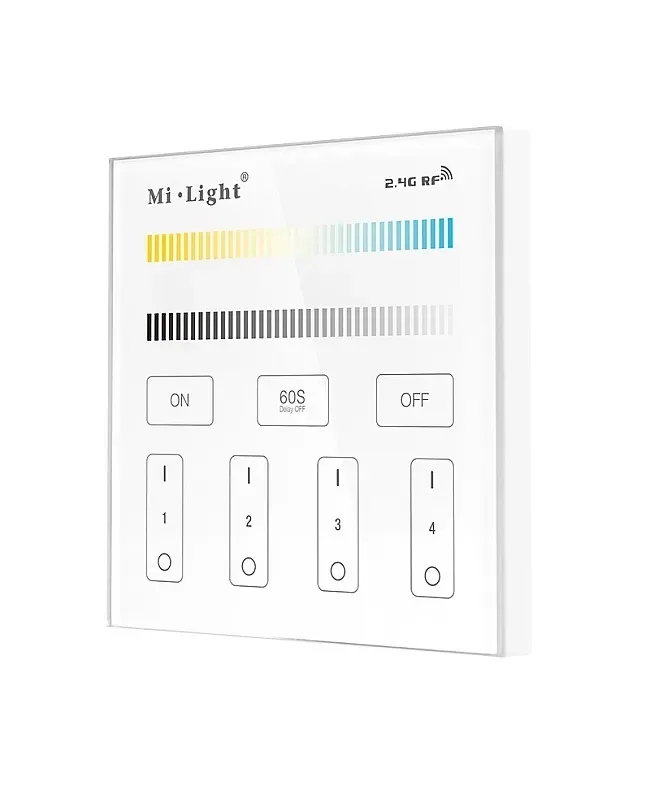

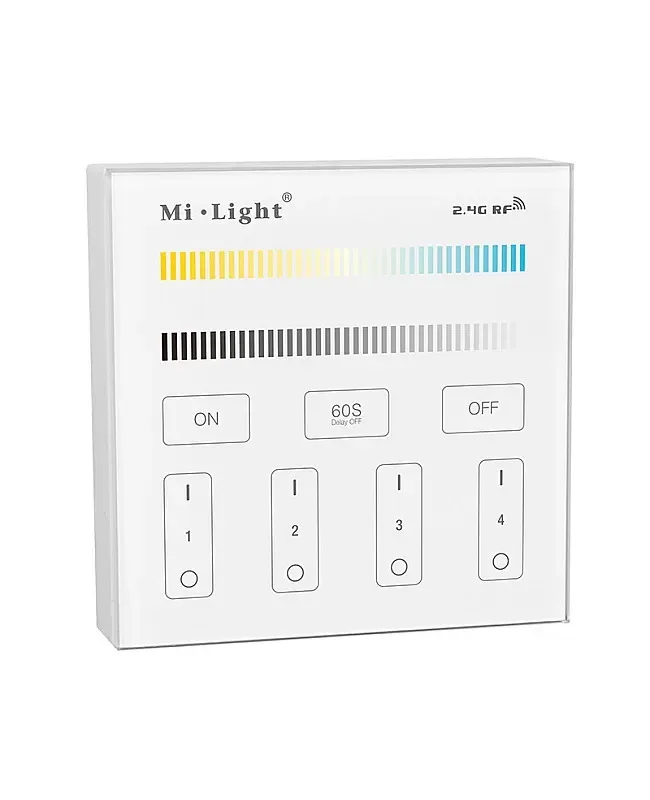

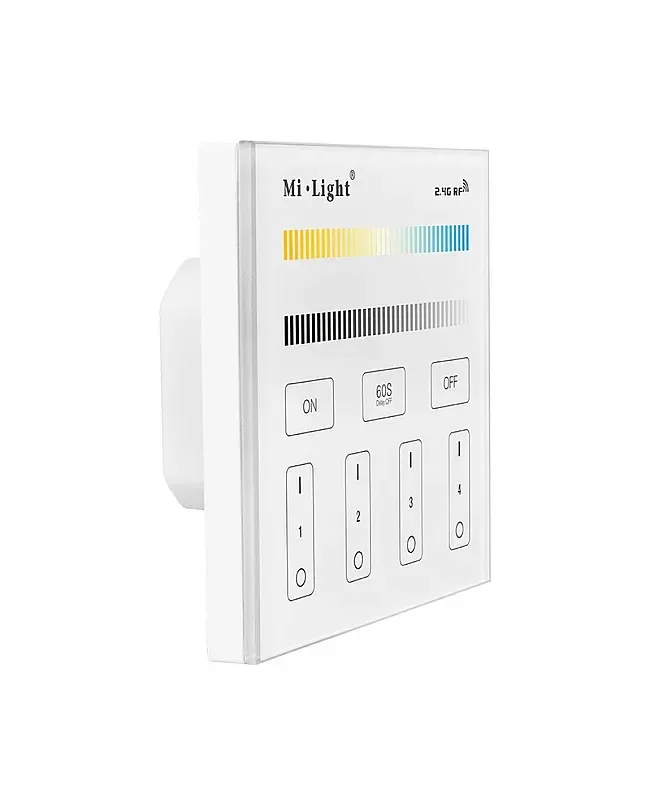

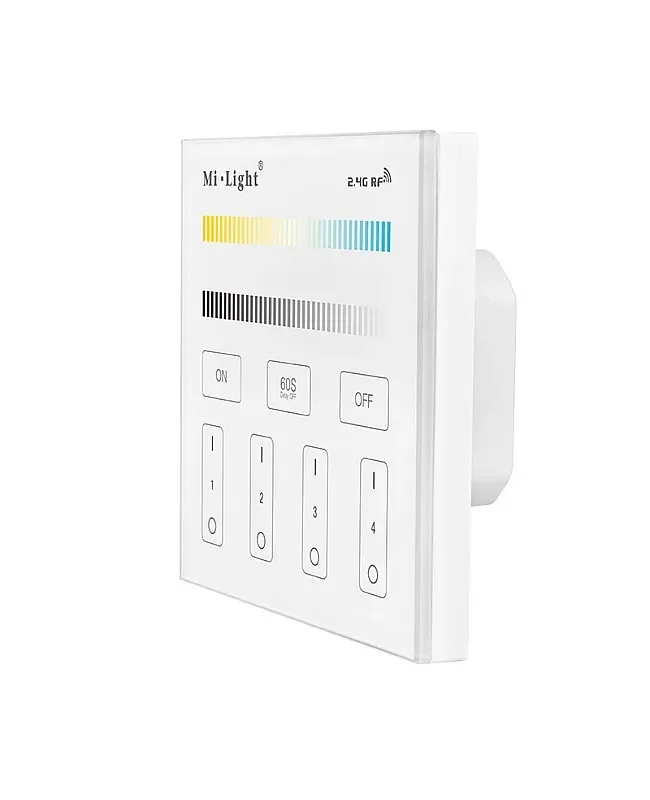

The wireless controller T2 CCT panel remote control has 4 individual zone control designs. The installer can control the zones individually or all at once, and each zone can control countless lamps or controllers. The 2.4 GHz wireless T2 has a sensitive touch panel design. The installer can touch the color temperature adjustable slider to adjust the CCT from 2700K to 6500 K. Or press the dimming slide to adjust the brightness from 1% to 100%. When touching the button, the indicator light will flash with different sounds. The wireless controller color temperature remote control has a delay-off function. Touch the button, and the LED light will turn off automatically after 60 seconds. A 2.4G wireless transmission module allows the LED controllers to be controlled within 30 meters.

Quick Links

wireless controller T2 CCT Panel Remote Controls Manual

Specifications

Size: 86*86*33mm(L*W*H)

Working Voltage: -240V

Transmission Frequency: 2400- 2483.

Modulation Method: GFSK

Transmitting Power: 6 dBm

Control Distance: 30m

4 Zones Individually And All Control

Delay-Off

Color Temperature Adjustable From 2700 K- 6500 K

1-100% Dimming

Sensitive Touching Panel

Compatible With 2.4 GHz wireless And wireless controller Dual White Products: 2.4 GHz wireless wireless controller

Working Temperature: -10-+40℃

Includes

1 * T2 Color Temperature Panel Remote Control

1 * User Manual
