+ 20A Smart Light Switch Dimmer 2 In 1 For Single Color/Dual White
LumaCircuit offers + 20A Smart Light Switch Dimmer 2 In 1 For Single Color/Dual White as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 119*47*23mm(L*W*H) Output Current: 20A/Channel Color Temperature And Brightness Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

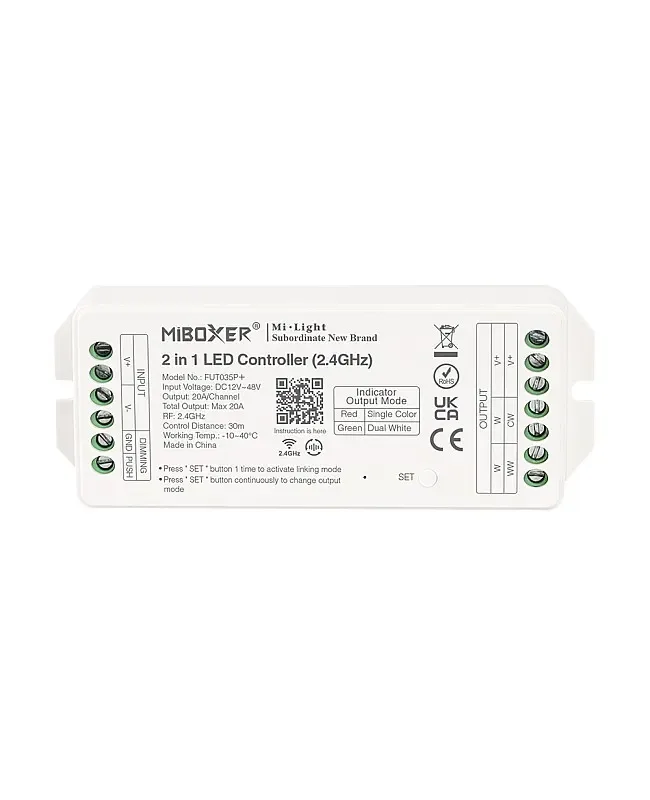

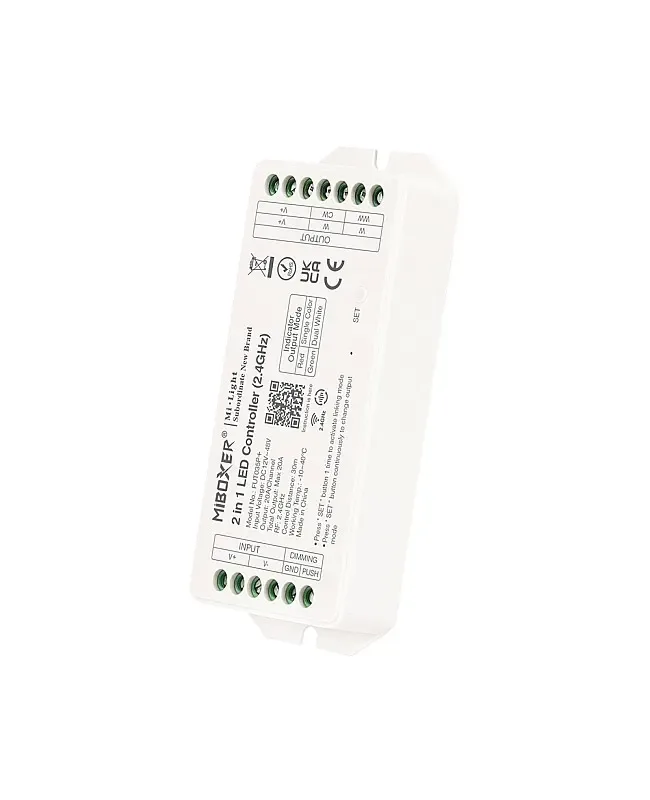

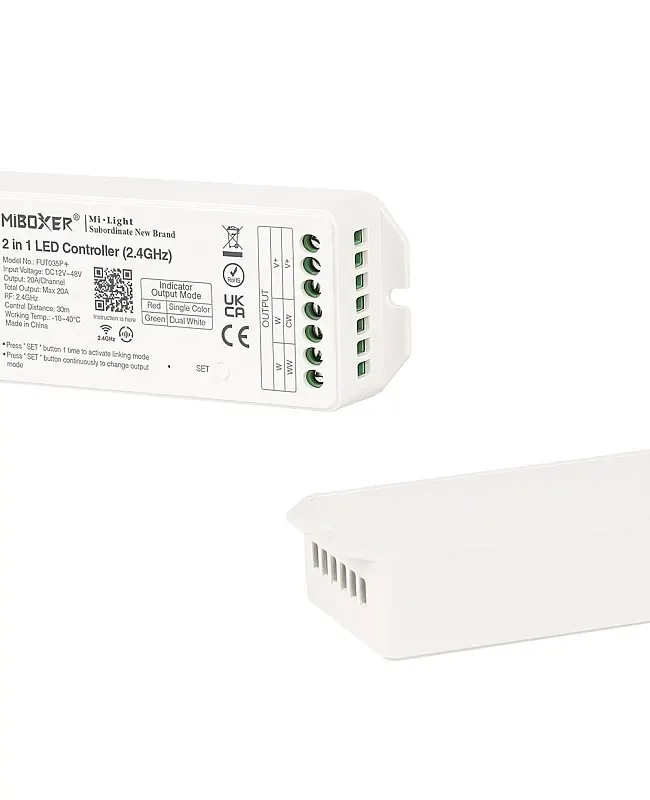

- The wireless controller + smart light switch dimmer is a smart device that allows you to control the brightness and color temperature of the LED Lights in your home and office, with a smooth transition without flicker. It's an excellent solution for single-color or dual-white lighting. The controller has a " SET " button; the installer can press the button to switch the output mode from single color to dual white. The max output current is up to 20A, allowing you to connect more LED lights.

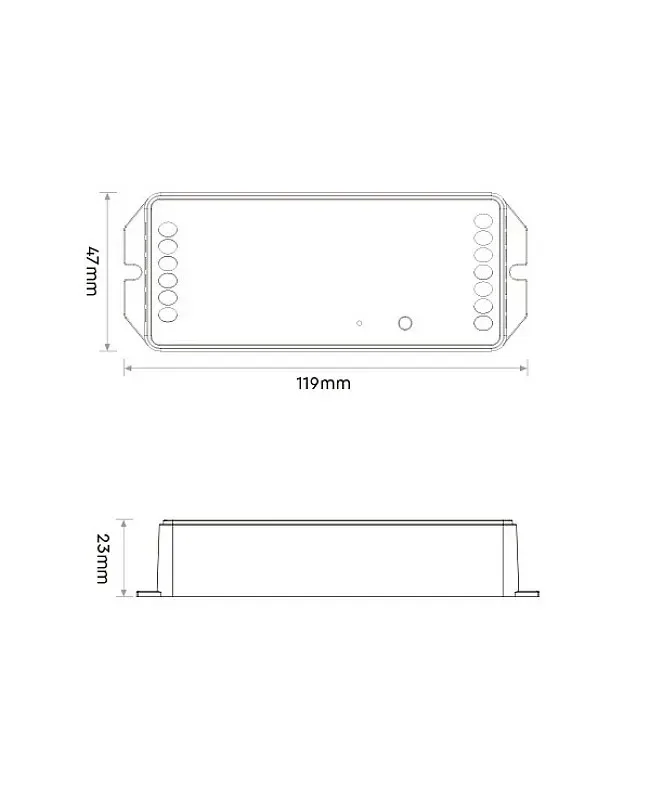

- Size: 119*47*23mm(L*W*H)
- Output Current: 20A/Channel
- Color Temperature And Brightness Adjustable
- Compatible With wireless controller/2.4 GHz wireless Single Color/Dual White Remote Controls
- Output Connection: Common Anode
- Switching 2 Output Mode Via One Button: Single Color/Dual White
- Auto Signal Transmitting
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-AH8MCE
- Size: 119*47*23mm(L*W*H)
- Input Voltage: -48V
- Output Current: 20A/Channel
- Total Output: 20A Max
- Output Connection: Common Anode
- Switching 2 Output Mode Via One Button: Single Color/Dual White
- Control Distance: ≤30m
- IP Rate: IP20
- Recommend Remote Controls: T2, (For Dual White) (For Single Color)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller + smart light switch dimmer is a smart device that allows you to control the brightness and color temperature of the LED Lights in your home and office, with a smooth transition without flicker. It's an excellent solution for single-color or dual-white lighting. The controller has a " SET " button; the installer can press the button to switch the output mode from single color to dual white. The max output current is up to 20A, allowing you to connect more LED lights. The mobile app dimmer integrates a 2.4G communication protocol and can be controlled by wireless controller or 2.4 GHz wireless single color and dual white LED remote controls. The installer can use a remote to control ON/OFF and adjust brightness and color temperature for various scenes. The plus dimmer can transmit the signals from the remote control to other same dimmers within 30 meters, and the remote control distance can be limitless. All of the dimmers will work synchronously. After matching to a 2 gateway, the installer can use a smartphone APP and third-party voice commands to control the light dimmers, which can work with Amazon Alexa and Google Assistant. Supports push dimming, stepless dimmable without any screen flickering.
Specifications
Model: +
Size: 119*47*23mm(L*W*H)
Input Voltage: -48V
Output Current: 20A/Channel
Total Output: 20A Max
RF: 2.
Color Temperature And Brightness Adjustable
4G RF Remote Control
Compatible With wireless controller/2.4 GHz wireless Single Color/Dual White Remote Controls
Output Connection: Common Anode
Switching 2 Output Mode Via One Button: Single Color/Dual White
Control Distance: ≤30m
IP Rate: IP20
Auto Signal Transmitting
High Frequency/Low Frequency Can Be Switched
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Support Push Dimmable
Recommend Remote Controls: T2, (For Dual White) (For Single Color)
Working Temperature: -10℃-+40℃
Includes
1 * + 20A Smart Light Switch Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
