Product details
480W 2. Wireless Sync RGBW Controller
LumaCircuit offers 480W 2. Wireless Sync RGBW Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. 4 Zones RF LED Remote Control Static Power Consumption: <1W Output Current: ≤4A(each channel) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2 wireless sync RGBW controller enables uniform or individual control of multiple zones; it includes the RGBW LED controller and RF remote control, which realizes the integrative control of the lights in various areas within the effective distance range and meets the increasingly high requirements of the market for LED lighting control.
- 4 Zones RF LED Remote Control
- Static Power Consumption: <1W
- Output Current: ≤4A(each channel)
- Max Output Power: 240W(DC12V)/480W(DC24V)
- Connecting Mode: Common Anode
- Short Circuit Protection
- Working Temperature: -20℃~60℃
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 12-24 V
- Light engine: RGBW

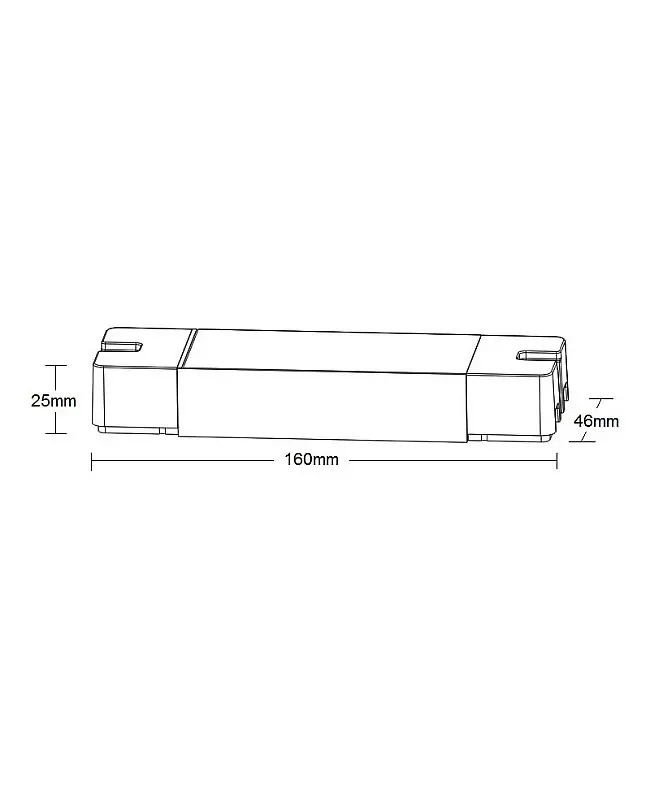

- Size: 160*46*25mm
- Working Voltage: -24V
- Static Power Consumption: <1W
- Output Channels: 5
- Output Current: ≤4A(each channel)
- Max Output Power: 240W(DC12V)/480W(DC24V)
- Connecting Mode: Common Anode
- RF Frequency: 2.
- PWM Frequency: 1.95 KHz
- Working Temperature: -20℃~60℃
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 2 wireless sync RGBW controller enables uniform or individual control of multiple zones; it includes the RGBW LED controller and RF remote control, which realizes the integrative control of the lights in various areas within the effective distance range and meets the increasingly high requirements of the market for LED lighting control. The RGBCW controller adopts the most advanced PWM(Pulse Width Modulation) digital control technology, working in DC12V or DC24V, with five output channels designed; the max output current of each channel is 4A, and the max loading power is up to 480W when working in Used for controlling constant voltage LED lamps that can achieve the full-RGB color and dual-color changes, such as R/G/G/CW/WW LED light or strip light, includes the Low-voltage DC power interface and six output interfaces, the V+ is a standard anode interface, and the other five are R/G/B/CW/WW. Adopts the 2.4G multi-group remote control, with no need for line of sight, a control range of up to 20 meters, up to 4 areas that can be controlled separately, and is compatible with other multi-group controller modes to achieve the synchronization effect. With memory function design, each time it powers on, it resumes the mode that was stopped at the last power-off. Long-pressing the brightness and speed keys can allow fast adjustment, which is convenient for operation.
Quick Links
4 Zones RF LED Remote Control
RGBW LED Controller Specifications
Size: 160*46*25mm
Working Voltage: -24V
Static Power Consumption: <1W
Output Channels: 5
Output Current: ≤4A(each channel)
Max Output Power: 240W(DC12V)/480W(DC24V)
Connecting Mode: Common Anode
Grayscale: 1024 Levels
Speed Stage: 1024 Grade
RF Frequency: 2.
RF Distance: ≤20m
Short Circuit Protection
Memory Function: YES
PWM Frequency: 1.95 KHz
Working Temperature: -20℃~60℃
Weight: 100g

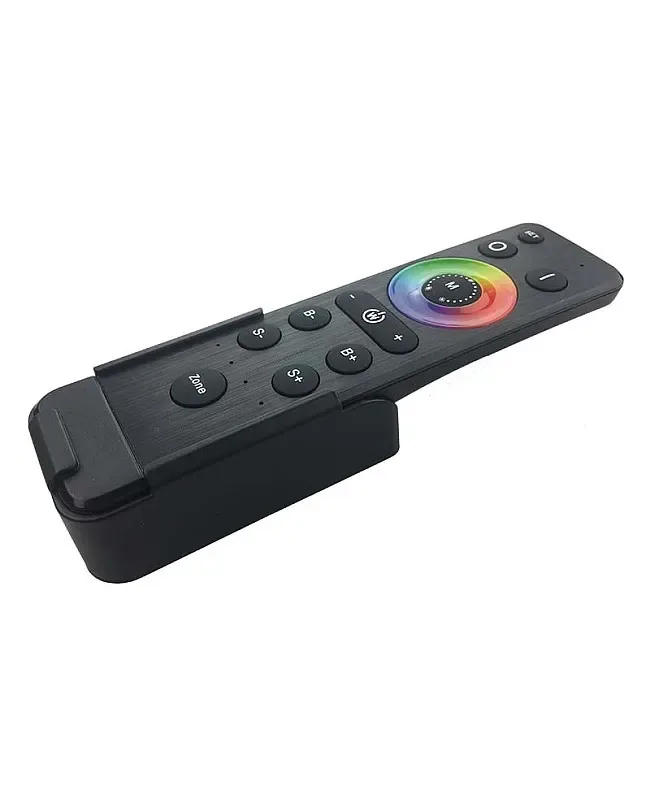

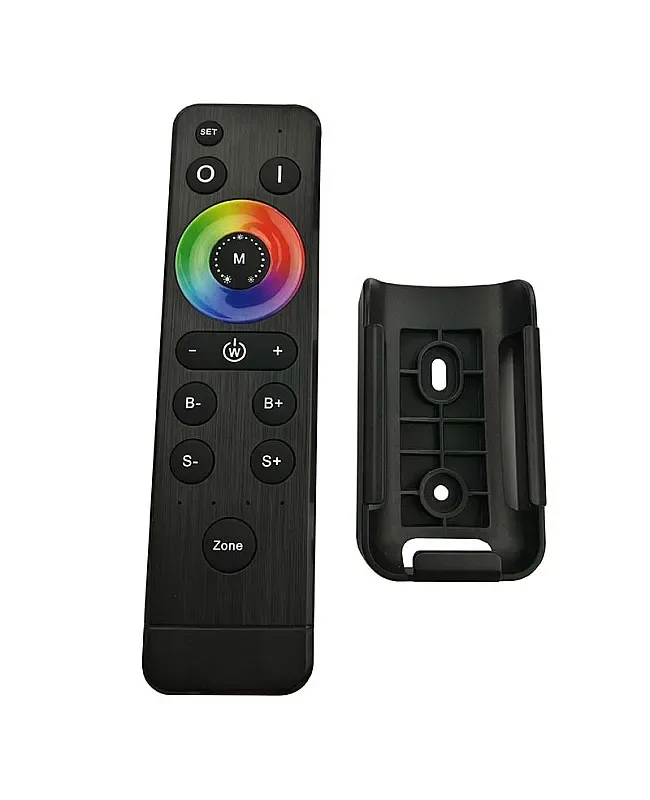

LED Remote Specifications
Size: 150*40*20mm
Working Temperature: -20℃~60℃
Supply Voltage: DC3V(AAA*2)
Standby Current: <
Working Current: <
Standby Power
Working Power
RF Distance: ≤20m
RF Frequency: 2.

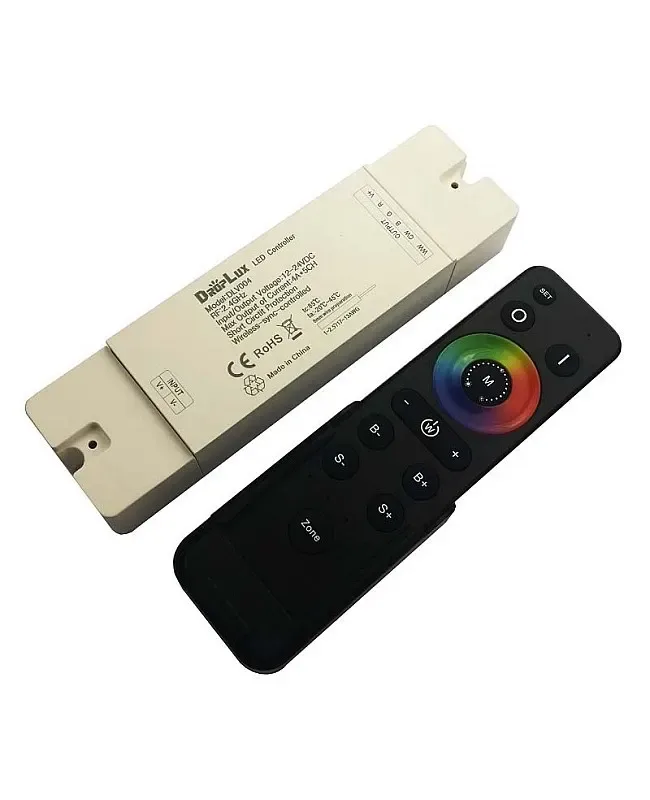

Includes
1 * Wireless RGBCW LED Controller
1 * 2.4G RF Multi-Zone Remote Control
