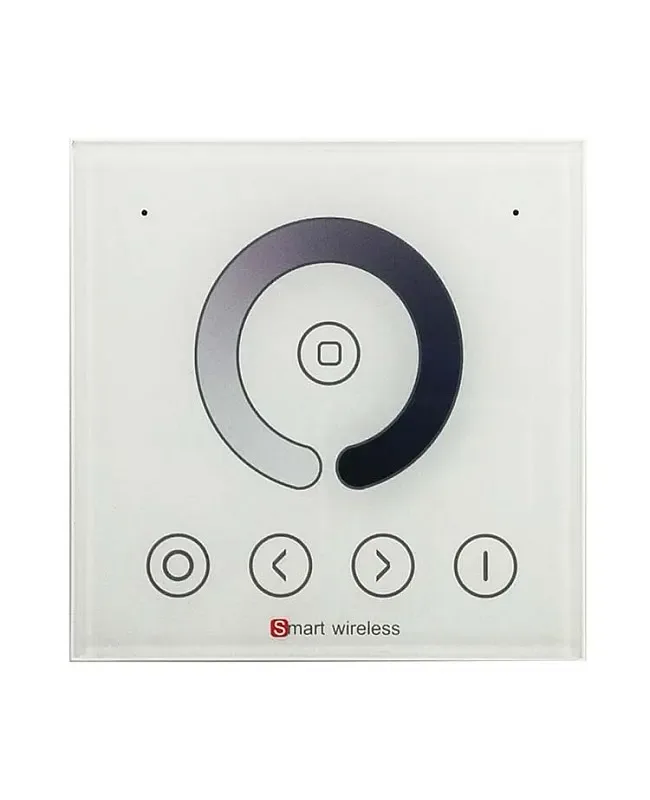

RF Full Touch Wall Panel LED Remote
LumaCircuit offers RF Full Touch Wall Panel LED Remote as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Wireless Sync LED Controller For DIM/CCT/RGB/RGBW Working Temperature: -20-60℃ Working Voltage: -265V(50/60Hz) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2. RF full-touch wall panel LED remote works on -265V, without an extra LED transformer. The LED remote has 2.4G wireless control technology, long-distance and non-directional control, with a full touch panel design, a unique interface, and is easy to use. The RF remote's structure, size, and installation method all comply with European standards. Four types of LED remotes are available: DIM, CCT, RGB, and RGBW. They are compatible with LED dimmers, LED dimming drivers, or lighting controllers.
- Wireless Sync LED Controller For DIM/CCT/RGB/RGBW
- Working Temperature: -20-60℃
- Working Voltage: -265V(50/60Hz)
- Types: DIM, CCT, RGB, RGBW
- Full Touch Panel, Unique Interface
- 1 * 2.4G RF Full-Touch Wall Panel LED Remote
- The Complete system should have a unique code value to achieve security and stability.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 220 V
- Light engine: RGBW
- Working Temperature: -20-60℃
- Size: 86*86*32mm(L*W*H)
- Working Voltage: -265V(50/60Hz)
- Standby Power: <0.2W
- Working Power: <2W
- RF Frequency: 2.
- LumaCircuit model: LC-CTL-DX5CZB
- Dimensions found: 86x86x32mm / 32mm / 20M

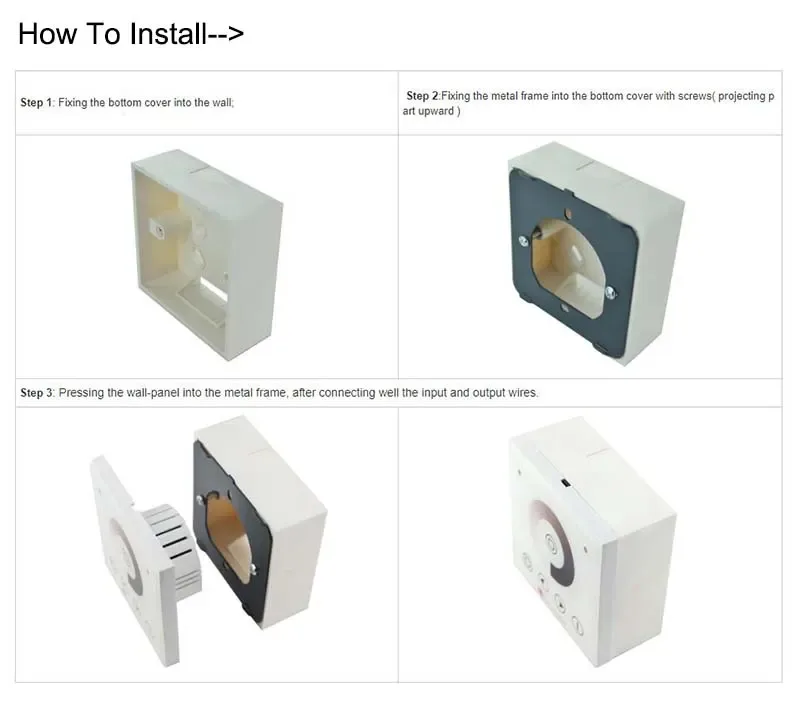

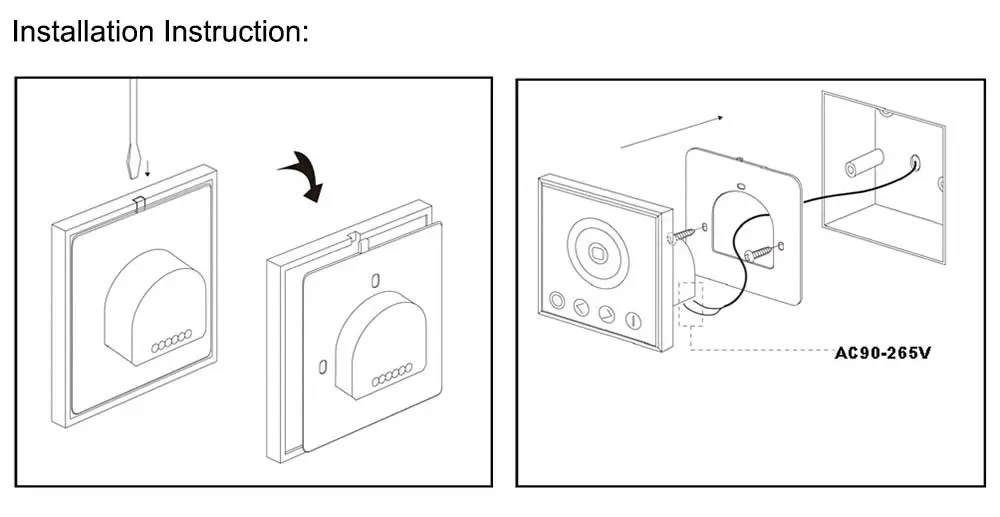

Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

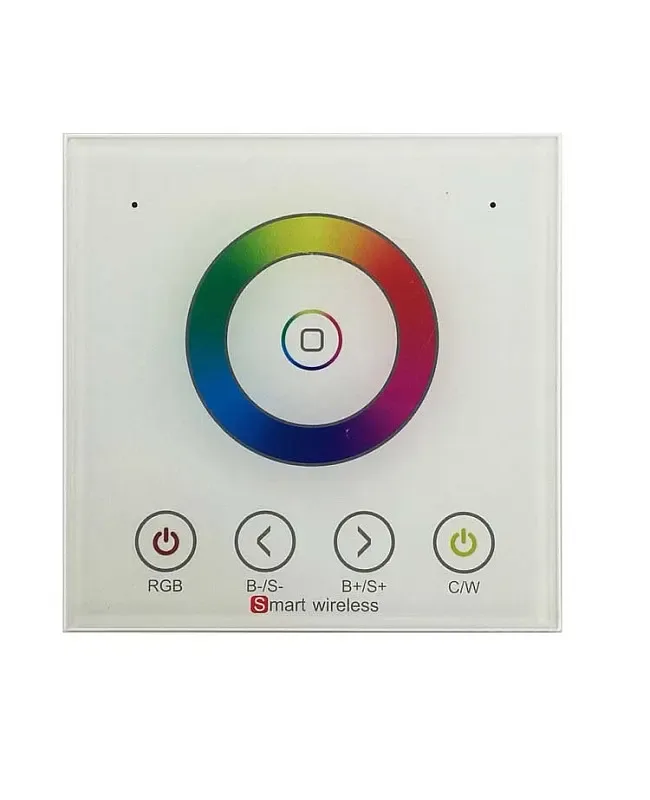

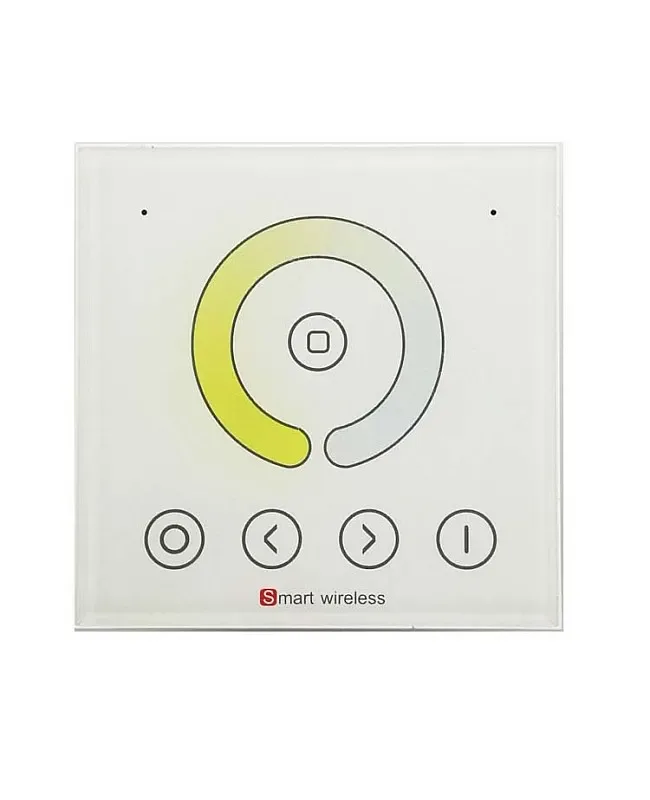

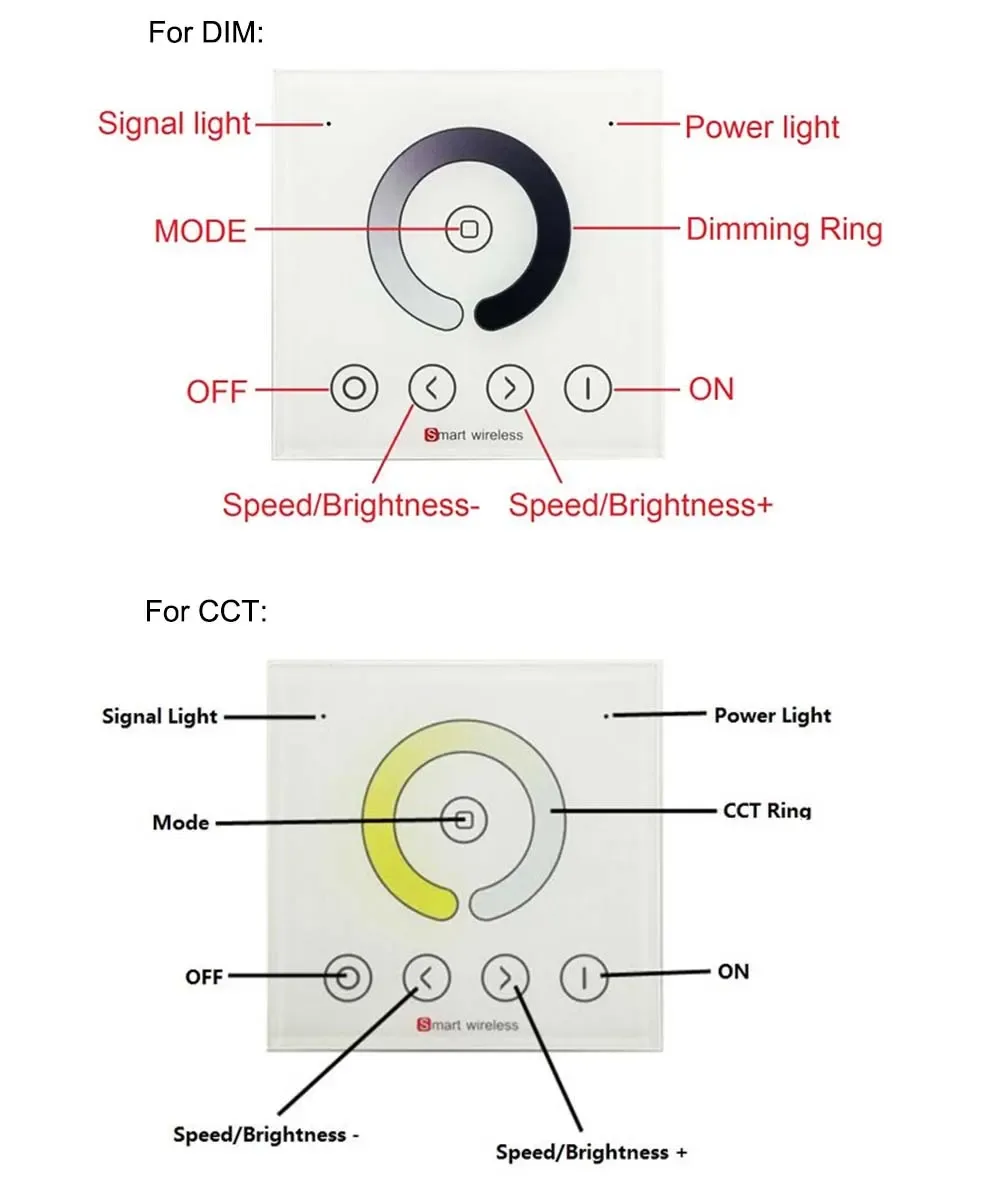

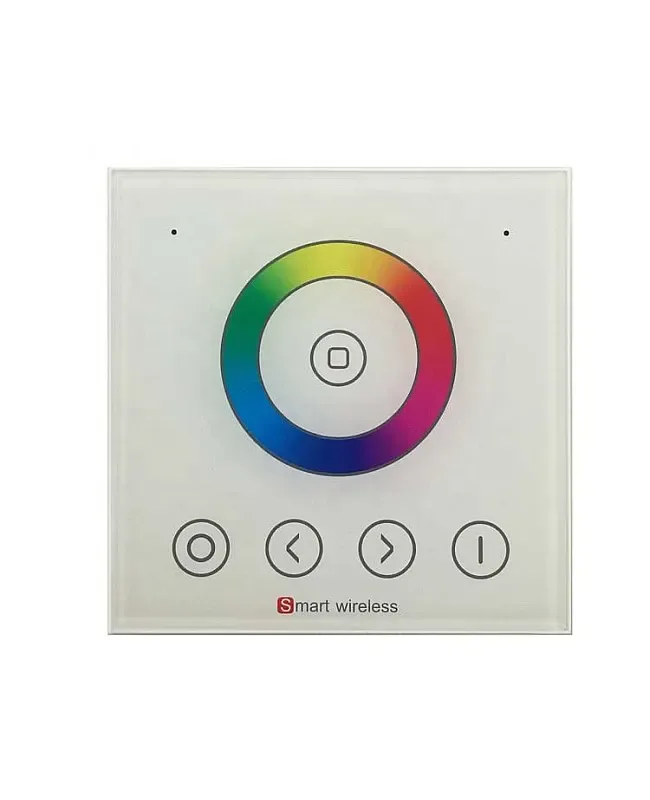

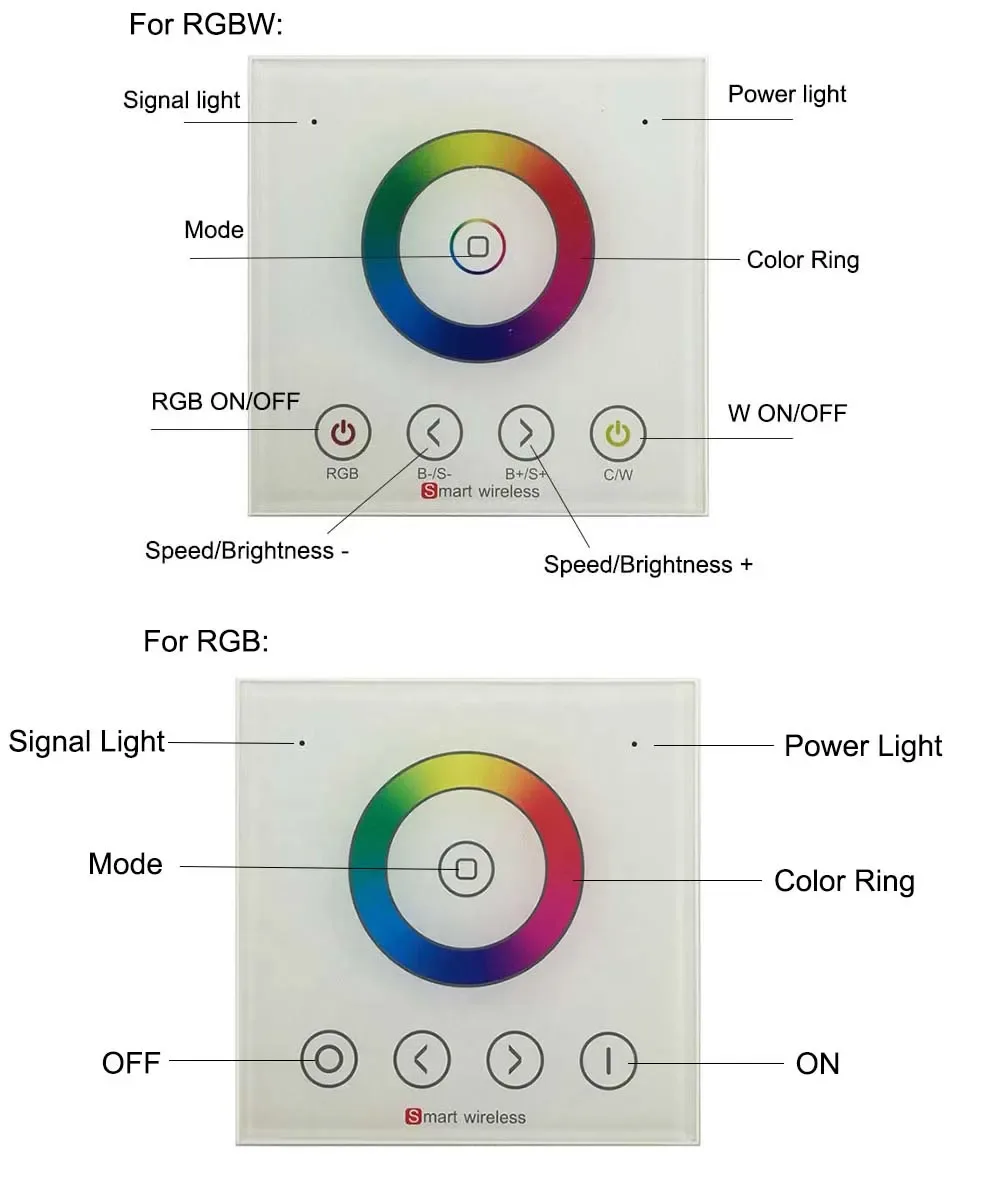

The 2. RF full-touch wall panel LED remote works on -265V, without an extra LED transformer. The LED remote has 2.4G wireless control technology, long-distance and non-directional control, with a full touch panel design, a unique interface, and is easy to use. The RF remote's structure, size, and installation method all comply with European standards. Four types of LED remotes are available: DIM, CCT, RGB, and RGBW. They are compatible with LED dimmers, LED dimming drivers, or lighting controllers.
Quick Links
Wireless Sync LED Controller For DIM/CCT/RGB/RGBW
Specifications
Working Temperature: -20-60℃

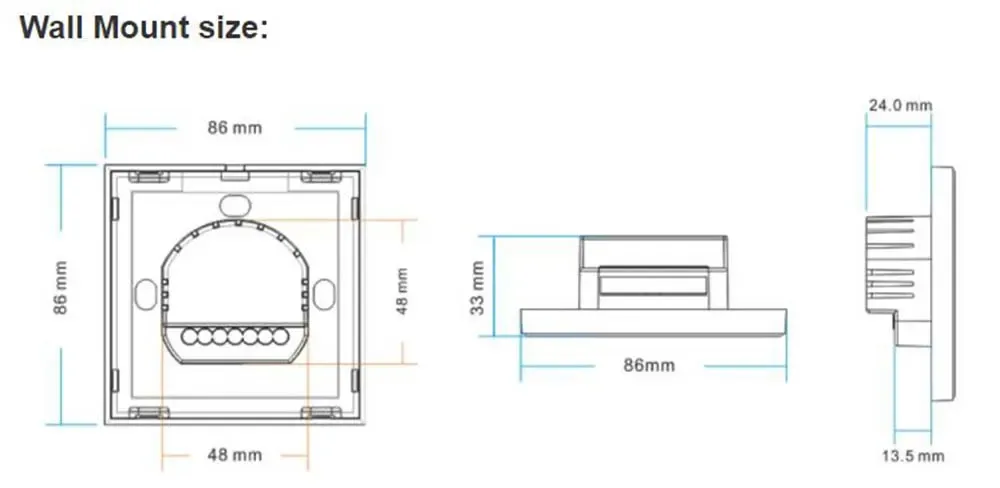

Size: 86*86*32mm(L*W*H)
Working Voltage: -265V(50/60Hz)
Standby Power: <0.2W
Working Power: <2W
RF Frequency: 2.
RF Distance: 20M
Types: DIM, CCT, RGB, RGBW
Full Touch Panel, Unique Interface
Weight: 120g
Includes
1 * 2.4G RF Full-Touch Wall Panel LED Remote
The Complete system should have a unique code value to achieve security and stability.

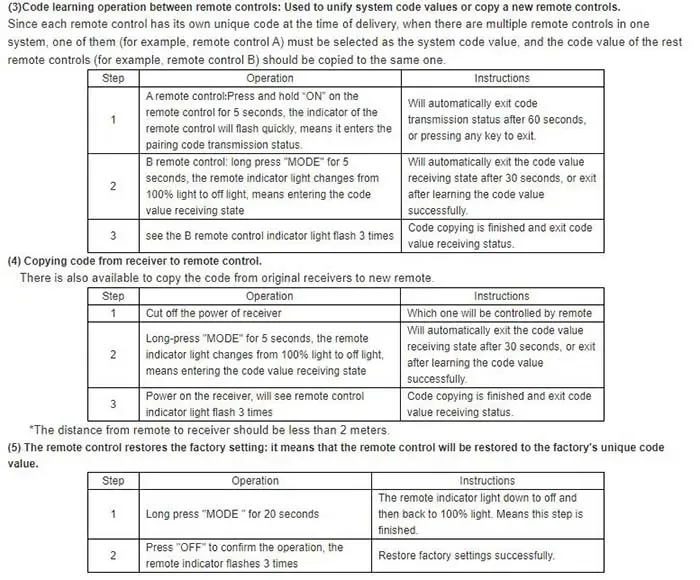

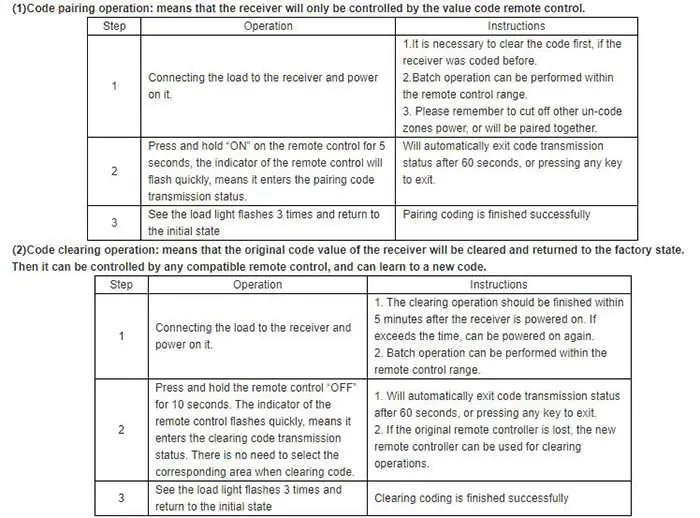

The Receiver can only store one code value and cannot be overwritten. Before learning the new code value, it's necessary to clear the original code from the receiver. The more controller can only save one code value, but it can be overwritten and restore the factory settings. To facilitate the later maintenance, the three components that may be involved in the system(receivers, handheld remote controls, panel remote controls) can realize the mutual learning of code values.
The Receiver performs code value learning in the power-on state. To avoid confusion in the area, it's recommended that each area have an independent power switch so that the power of other areas can be easily cut off when the code is being operated.
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
