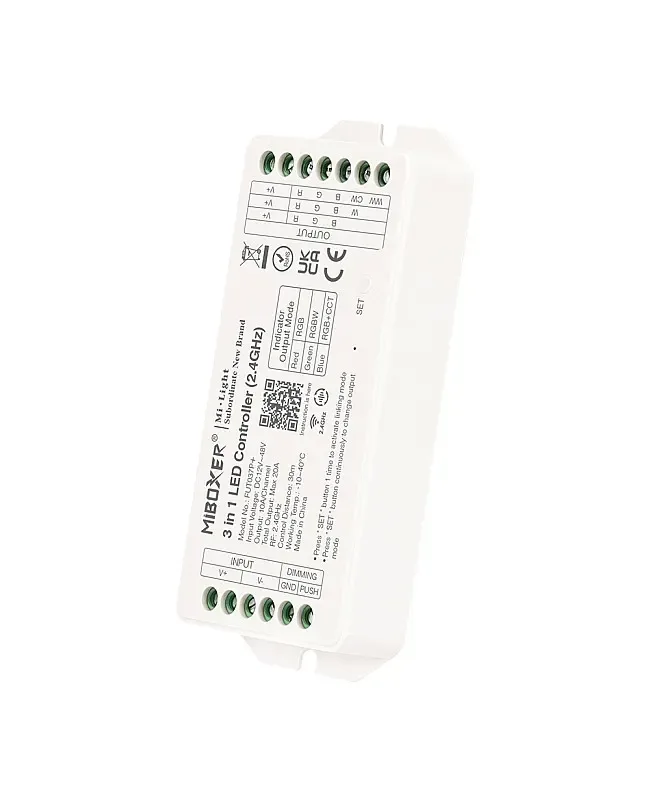

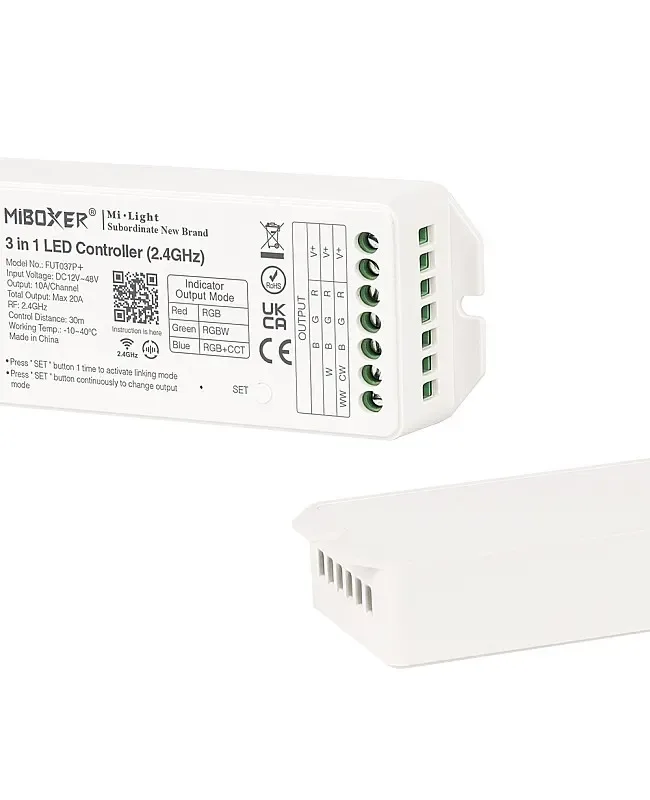

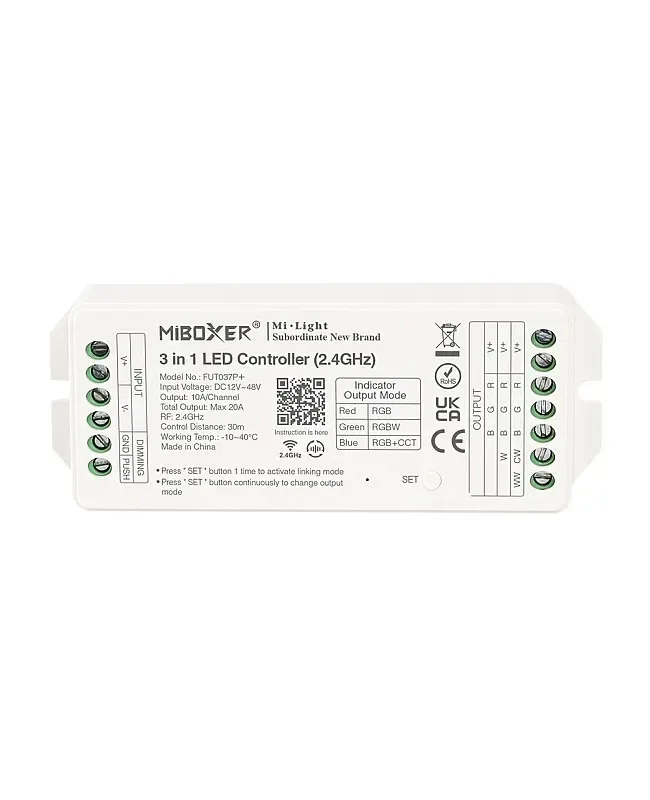

3 In 1 + LED Controller With 20A Output For RGB/RGBW/RGB+CCT
LumaCircuit offers 3 In 1 + LED Controller With 20A Output For RGB/RGBW/RGB+CCT as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 119*47*23mm(L*W*H) RGB/RGBW/RGB+CCT 3 In 1 Design Output Connection: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The + wireless controller LED controller has a 3-in-1 design for RGB, RGBW, and RGB+CCT LED lights, and it has a max 20A output current design, which supports more LED lights. The wireless controller controller adopts 2 wireless transmitting technology with low power consumption, a strong ability to build a network automatically, and anti-interference. 2.4 GHz wireless and wireless controller remote controls can control it.

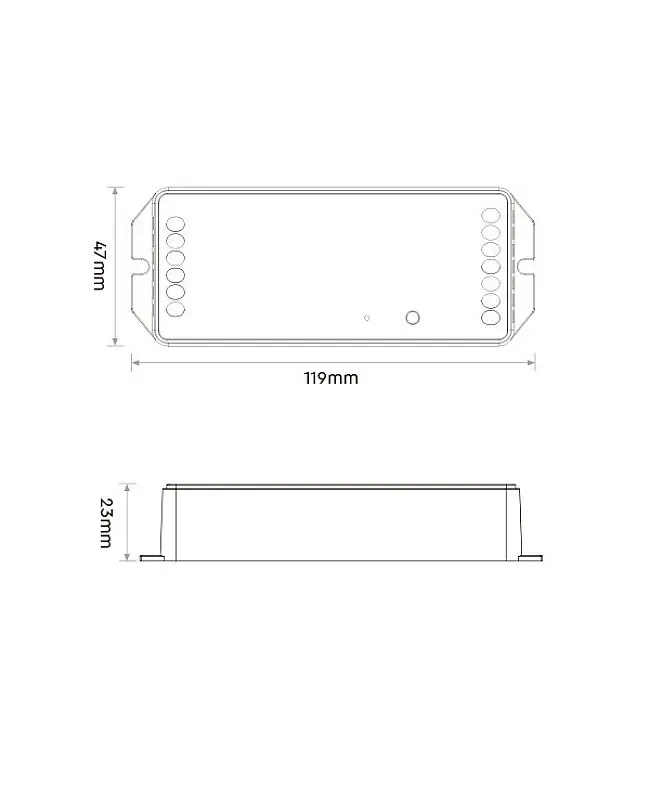

- Size: 119*47*23mm(L*W*H)
- RGB/RGBW/RGB+CCT 3 In 1 Design
- Output Connection: Common Anode
- 16 Million Colors To Choose
- Color Temperature And Brightness Adjustable
- Compatible With 2.4 GHz wireless & wireless controller 2.4G Remote Controls
- Recommend Remotes (Purchase Separately)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-GT0EZG
- Size: 119*47*23mm(L*W*H)
- Input Voltage: -48V
- Output: 10A/Channel
- Output Connection: Common Anode
- Total Output: Max 20A
- Control Distance: ≤30m
- Recommend Remotes: (Purchase Separately)
- IP Rate: IP20 Non-waterproof
- Working Temperature: -20℃-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The + wireless controller LED controller has a 3-in-1 design for RGB, RGBW, and RGB+CCT LED lights, and it has a max 20A output current design, which supports more LED lights. The wireless controller controller adopts 2 wireless transmitting technology with low power consumption, a strong ability to build a network automatically, and anti-interference. 2.4 GHz wireless and wireless controller remote controls can control it. Easy-to-use remote to select the color and adjust the color temperature and brightness for various scenes. The lighting fixtures can transmit the signals from one remote to another within 30 meters, and different lighting fixtures can work synchronously. The control distance can be limitless if LED lighting is within 30 meters. There is one button on the controller, and the installer can press it to switch the output mode from RGB, RGBW, and RGB+CCT. After pairing the controller to a wireless controller 2.4G gateway, a smartphone APP can control it; the installer can use the APP to control the LED lights or achieve more functions like timing, sharing, group control, etc can work with Amazon Alexa and Google Assistant, the installer can use voice commands to control the LED fixtures fully. The Plus is non-waterproof; the configured product only recommend indoor interior lighting.
Specifications
Model: +
Size: 119*47*23mm(L*W*H)
Input Voltage: -48V
RGB/RGBW/RGB+CCT 3 In 1 Design
Output: 10A/Channel
Output Connection: Common Anode
Total Output: Max 20A
16 Million Colors To Choose
Color Temperature And Brightness Adjustable
RF: 2.
4G RF Remote Control
Compatible With 2.4 GHz wireless & wireless controller 2.4G Remote Controls
Control Distance: ≤30m
Recommend Remotes (Purchase Separately)
PMW High Frequency Low Frequency(250Hz) Switchable
Auto Signal Transmitting And Modes Synchronization
Support Smart Phone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Support Push Dimmable
Support DMX512 Controllable For RGB+CCT Output Mode( DMX512 Transmitter Needed)
IP Rate: IP20 Non-waterproof
Working Temperature: -20℃-40℃
Includes
1 * Plus 3 In 1 LED Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
