Rotating CCT Panel Controllers
LumaCircuit offers Rotating CCT Panel Controllers as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: Tunable White LED Strip Rotating Panel Controller Output Type: Constant Voltage Output Dimming Grayscale: 4096 Levels The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

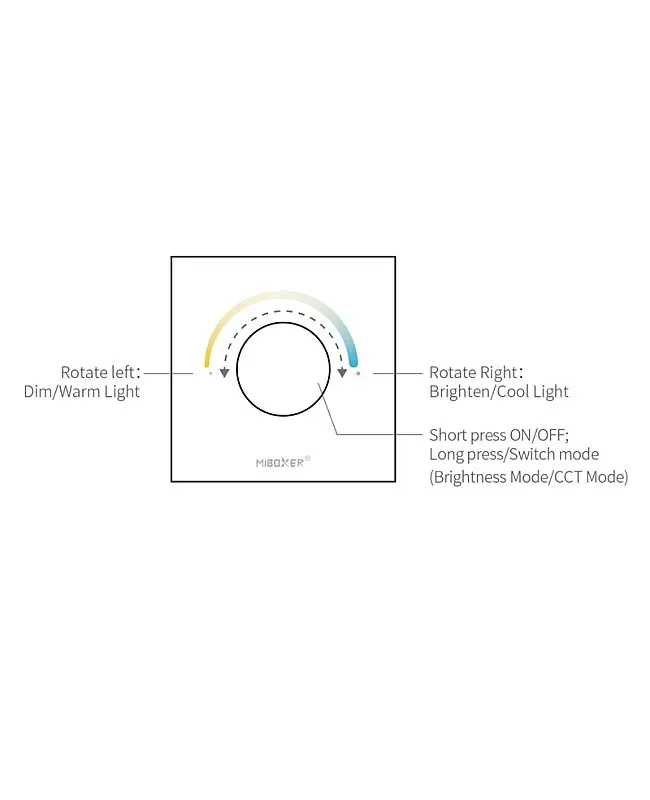

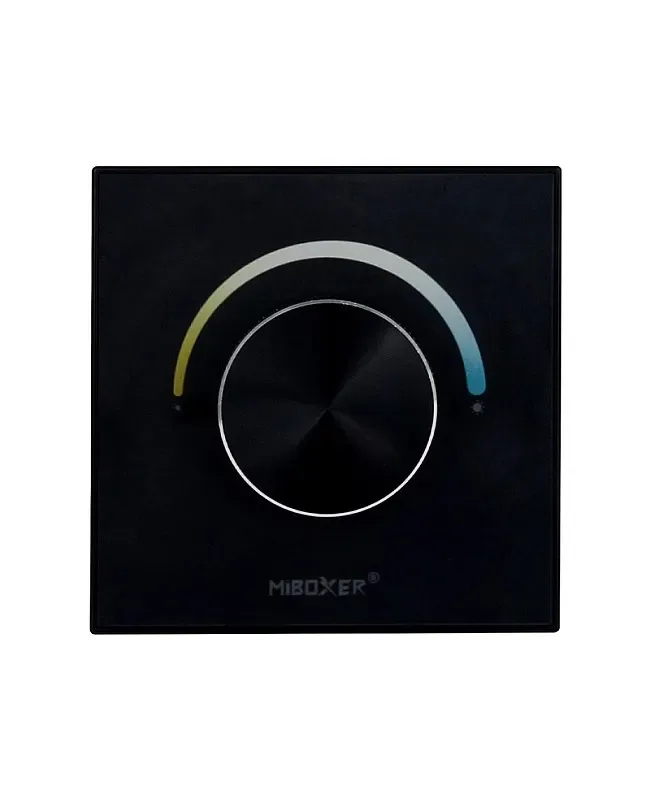

- The wireless controller CCT Panel Controllers are designed for single-color and Tunable White LED Strip Lights, which allow you to adjust the brightness or color temperature for various scenes. The panel controller features a rotating switch, allowing you to adjust the brightness or color temperature steplessly by rotating it. With 4096 levels of smooth dim, the minimum brightness can reach 0.1%.
- Type: Tunable White LED Strip Rotating Panel Controller
- Output Type: Constant Voltage Output
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- Compatible With wireless controller Remote Controls T1, T2,
- Support Tuya Smart APP Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-OGBN37

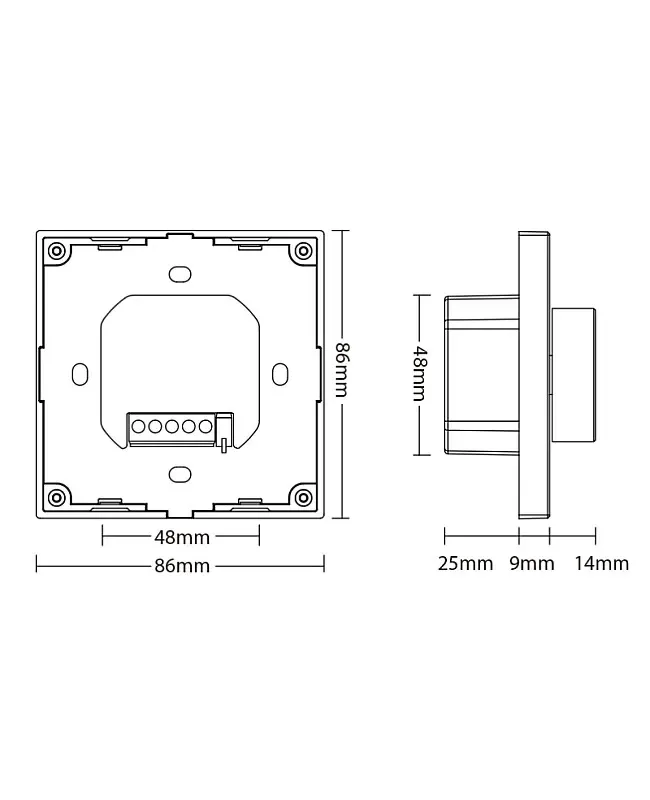

- Size: 86*86*48mm(L*W*H)
- Input Voltage: -48V
- Output Current: 12A Max
- Output Power: 144- 576W
- Output Type: Constant Voltage Output
- Control Distance: ≤30M
- Compatible With wireless controller Remote Controls: T1, T2,
- IP Rate: IP20 Non-waterproof
- Applications: Single Color And Dual White LED Strip Lights

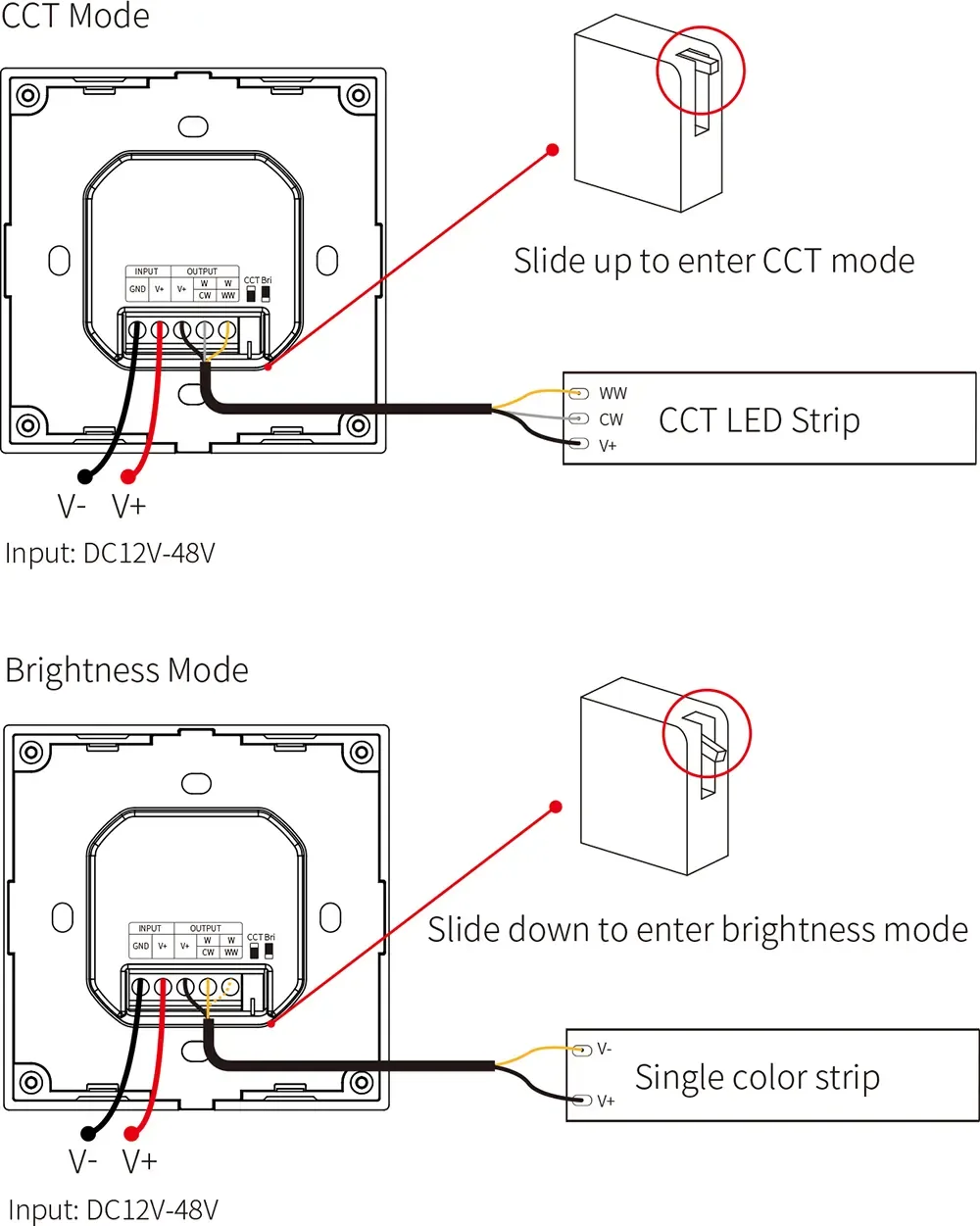

Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

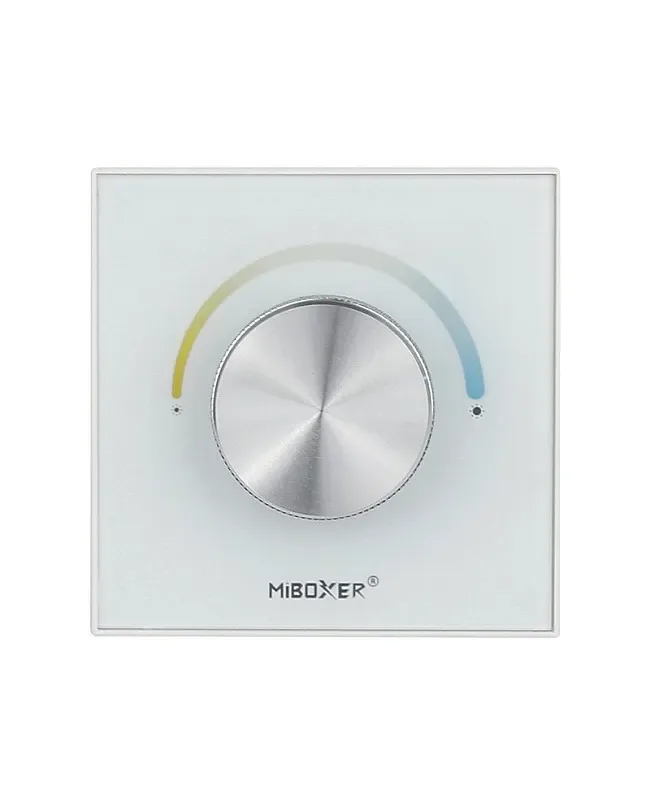

The wireless controller CCT Panel Controllers are designed for single-color and Tunable White LED Strip Lights, which allow you to adjust the brightness or color temperature for various scenes. The panel controller features a rotating switch, allowing you to adjust the brightness or color temperature steplessly by rotating it. With 4096 levels of smooth dim, the minimum brightness can reach 0.1%. It utilizes 2.4G wireless and remote control technology, ensuring efficient transmission, strong stability, and resistance to interference. They can be widely used in intelligent lighting control for commercial, hotel, and home lighting. The Controller can pair with up to 12 remote controllers and has a control distance of up to 30 meters. The CCT Panel will auto-forward the signal directly to other ones, which makes the remote control distance infinite.
Specifications
Type: Tunable White LED Strip Rotating Panel Controller
Model
Size: 86*86*48mm(L*W*H)
Input Voltage: -48V
Output Current: 12A Max
Output Power: 144- 576W
Output Type: Constant Voltage Output
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
RF: 2. RF
Control Distance: ≤30M
Compatible With wireless controller Remote Controls T1, T2,
Support Tuya Smart APP Control(2.4G Gateway Needed)
Support Third-Party Voice Control: Amazon Alexa And Google Assistant, Yandex Alice, voice assistant, Xiaodu, Xiaoai(2.4G Gateway Needed)
Support Do Not Disturb Mode Setting
EMC Standard(EMC): ETSI EN 301 489-1.2.3 ETSI EN 301 489-3.1.1
Safety Standard: EN 61347-1: 2015+: 2021 EN 61347-2-11: 2001+:2019
Radio Equipment: ETSI EN 300 440.2.1
IP Rate: IP20 Non-waterproof
Applications: Single Color And Dual White LED Strip Lights
Working Temperature: -10-40℃
Includes

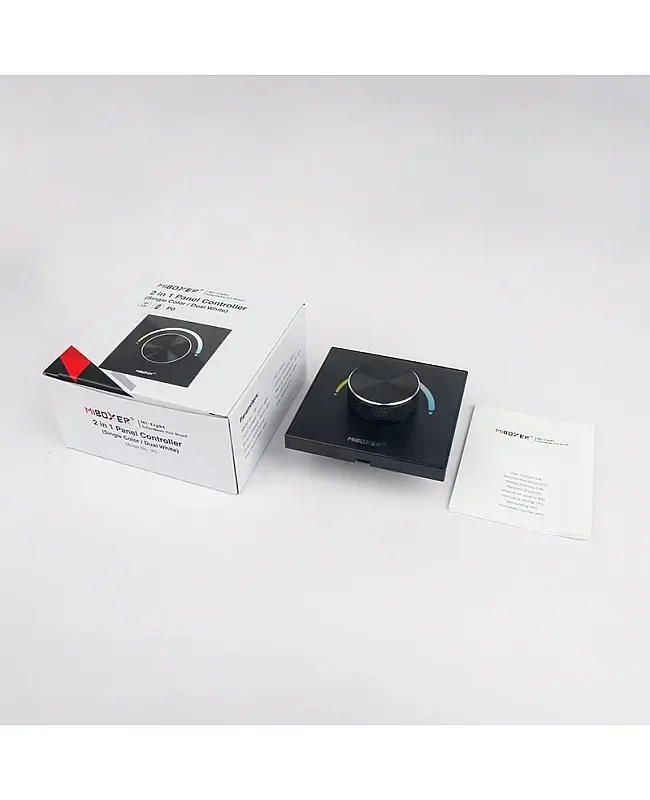

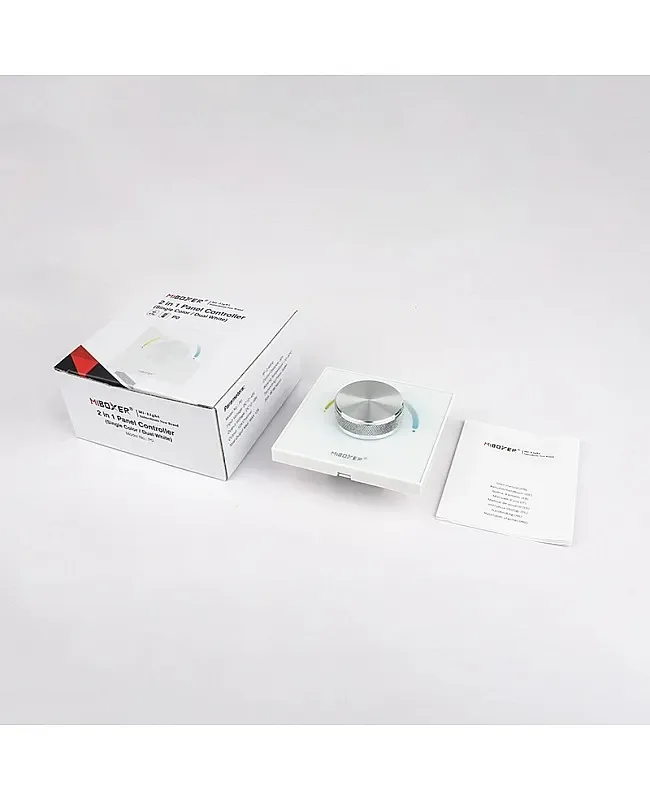

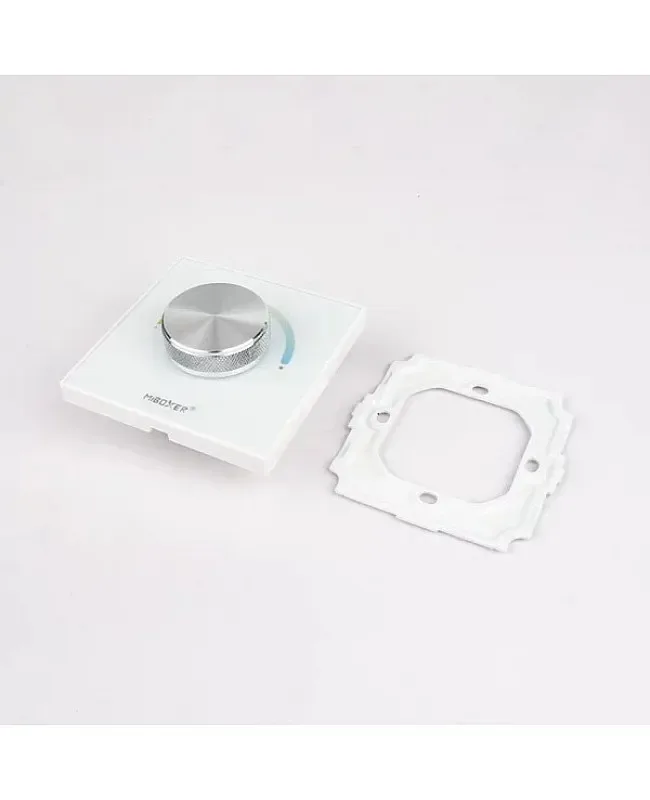

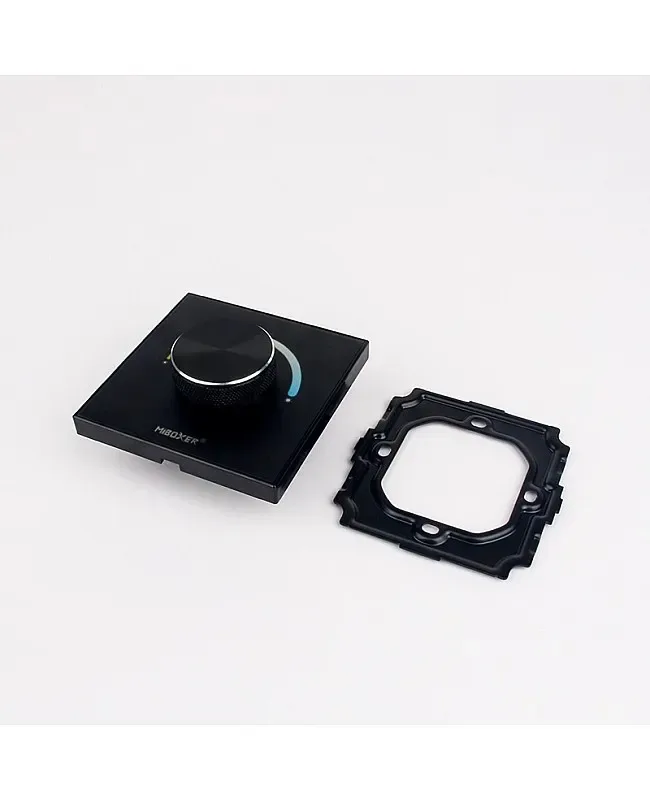

1 * Dual White LED Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
