400W CCT Tunable White PWM Dimmer With Knob Switch
LumaCircuit offers 400W CCT Tunable White PWM Dimmer With Knob Switch as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. 4G 4 Zones CCT Remote Control Working Temperature: -20℃-60℃ Size: 103*40*24mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The tunable white PWM dimmer with a knob switch, designed for constant-voltage CW+WW LED strips operating at -24V, with a 2-output-channel design, each channel with a max output current of 17A, and a max loading power of 400W at DC24V. The output PWM frequency is adjustable, with a default of 2 kHz and a range of 500 Hz to 115.6 kHz. The CCT PWM dimmer has a knob switch that the installer can rotate to adjust the PWM frequency, brightness, or color temperature.
- 4G 4 Zones CCT Remote Control
- Working Temperature: -20℃-60℃
- Size: 103*40*24mm(L*W*H)
- Static Power Consumption: <1W
- Max Output Current(Each Channel): 17A(PWM≤), 13A(PWM=4/7.), 10A(PWM=15.)
- Max Output Power: 200W/12V, 400W/24V(PWM≤); 150W/12V, 300W/24V(PWM=4/7.); 120W/12V, 240W/24V(PWM=15.)
- Brightness Range: 0-100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: CCT
- Working Temperature: -20℃-60℃
- Size: 103*40*24mm(L*W*H)
- Working Voltage: -24V
- Static Power Consumption: <1W
- Output Channels: 2
- Max Output Current(Each Channel): 17A(PWM≤), 13A(PWM=4/7.), 10A(PWM=15.)
- Max Output Power: 200W/12V, 400W/24V(PWM≤); 150W/12V, 300W/24V(PWM=4/7.); 120W/12V, 240W/24V(PWM=15.)
- CCT Range: 100%WW-100%CW
- PWM Frequency: (Default), 500Hz, 7., 15.
- Short Circuit Protection: YES
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

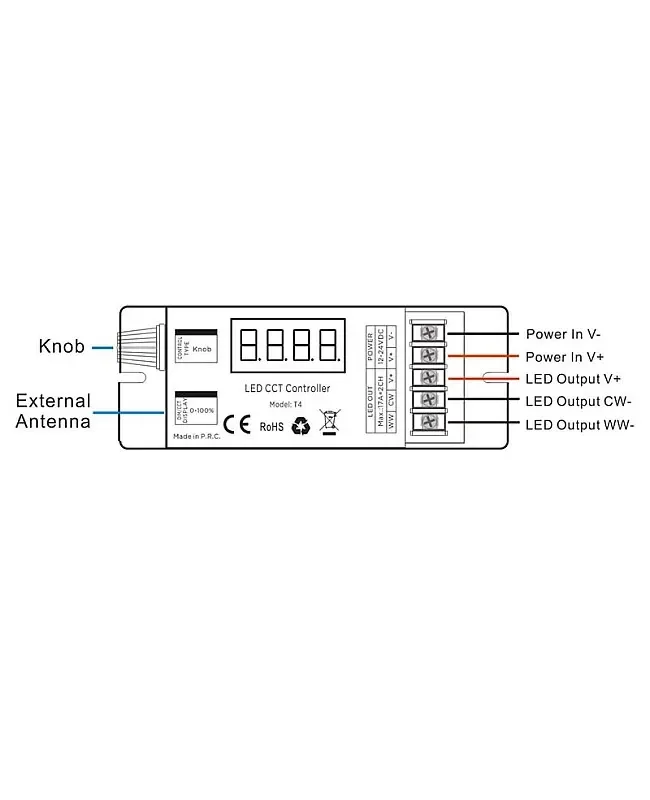

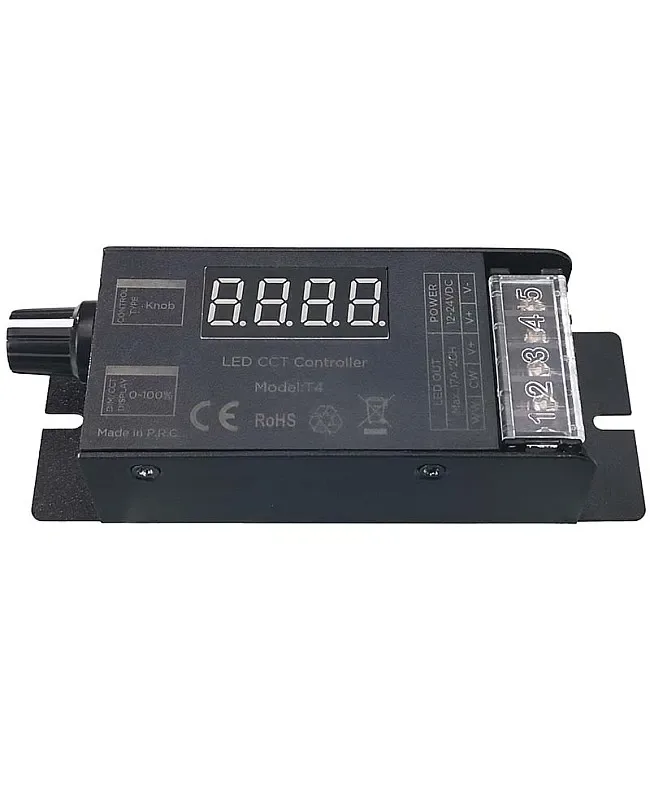

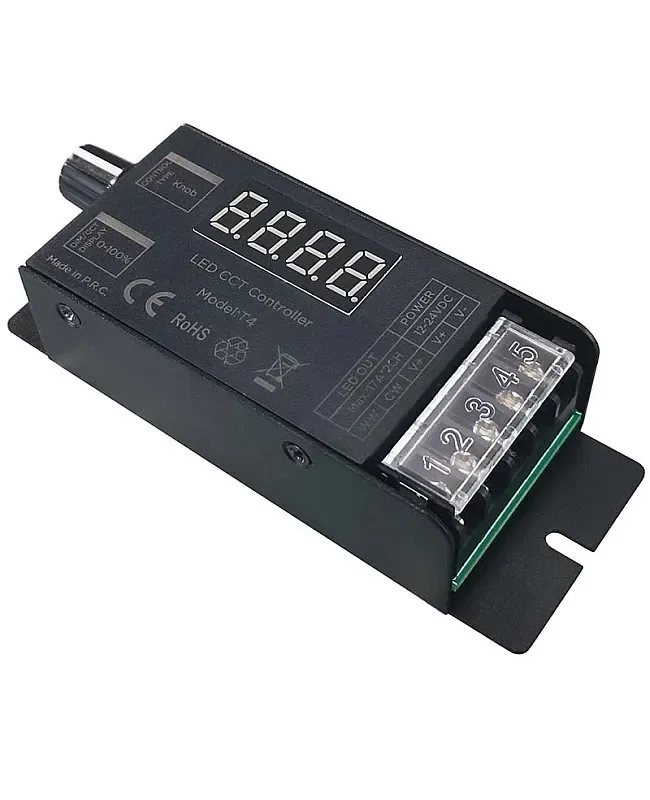

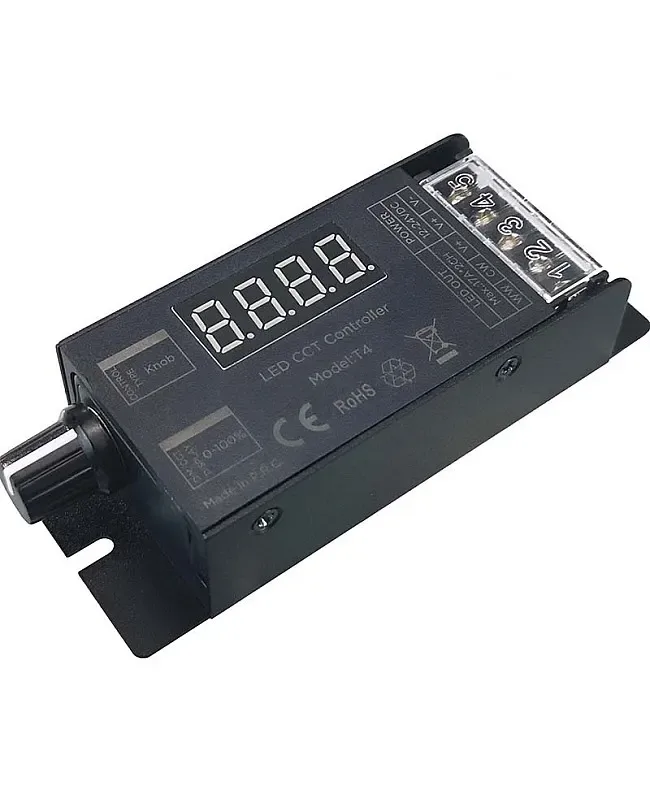

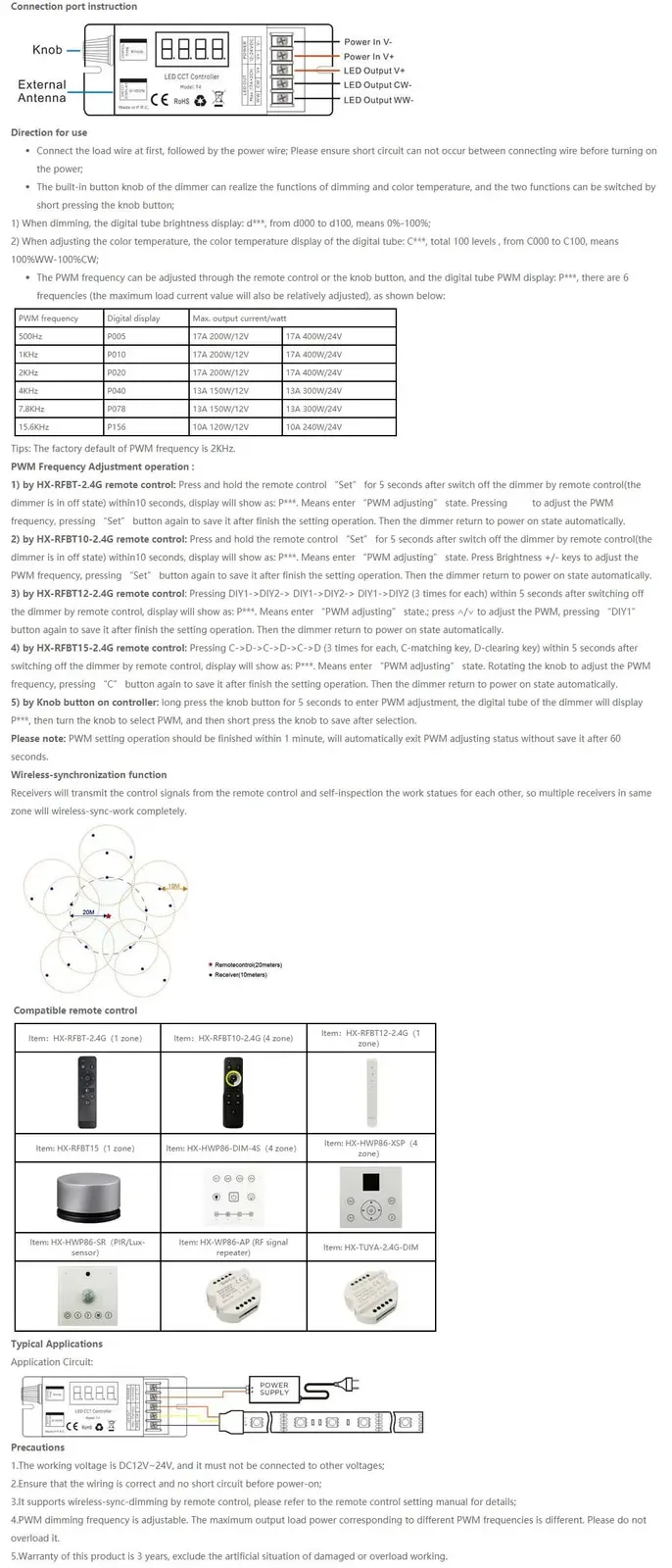

The tunable white PWM dimmer with a knob switch, designed for constant-voltage CW+WW LED strips operating at -24V, with a 2-output-channel design, each channel with a max output current of 17A, and a max loading power of 400W at DC24V. The output PWM frequency is adjustable, with a default of 2 kHz and a range of 500 Hz to 115.6 kHz. The CCT PWM dimmer has a knob switch that the installer can rotate to adjust the PWM frequency, brightness, or color temperature. The digital tube will display the brightness percentage intuitively when dimming ranges from 0% to 100%, and the digital tube will display from to When adjusting the color temperature, the range is from 100% WW to 100% CW, and the digital tube will display values from to When adjusting the PWM frequency, the digital tube will display P*** there are 6 frequencies available: 500Hz, 7 and 15. The 12V PWM Dimmer can work with a 2.4 GHz wireless remote control and realize synchronous control of countless controllers.
Quick Links
4G 4 Zones CCT Remote Control
Specifications
Working Temperature: -20℃-60℃
Size: 103*40*24mm(L*W*H)
Working Voltage: -24V
Static Power Consumption: <1W
Output Channels: 2
Max Output Current(Each Channel): 17A(PWM≤), 13A(PWM=4/7.), 10A(PWM=15.)
Max Output Power: 200W/12V, 400W/24V(PWM≤); 150W/12V, 300W/24V(PWM=4/7.); 120W/12V, 240W/24V(PWM=15.)
Brightness Range: 0-100%
CCT Range: 100%WW-100%CW
Memory Function: YES
PWM Frequency: (Default), 500Hz, 7., 15.
With Knob Switch To Adjust The Brightness And Color Temperature
Digital Tube Display: The Brightness Percentage Intuitively
Can Be Controlled By the 2.4G Remote Control(Sold Separately)
Short Circuit Protection: YES
Weight: 90g
Includes
1 * CCT PWM Dimmer With Knob Switch
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
