5 In 1 Ultra Mini Zigbee Controller
LumaCircuit offers 5 In 1 Ultra Mini Zigbee Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Fireproof And High-Temperature Resistance Material Output Current: 3A Max Per Channel Total Output Current: 6A Max The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.

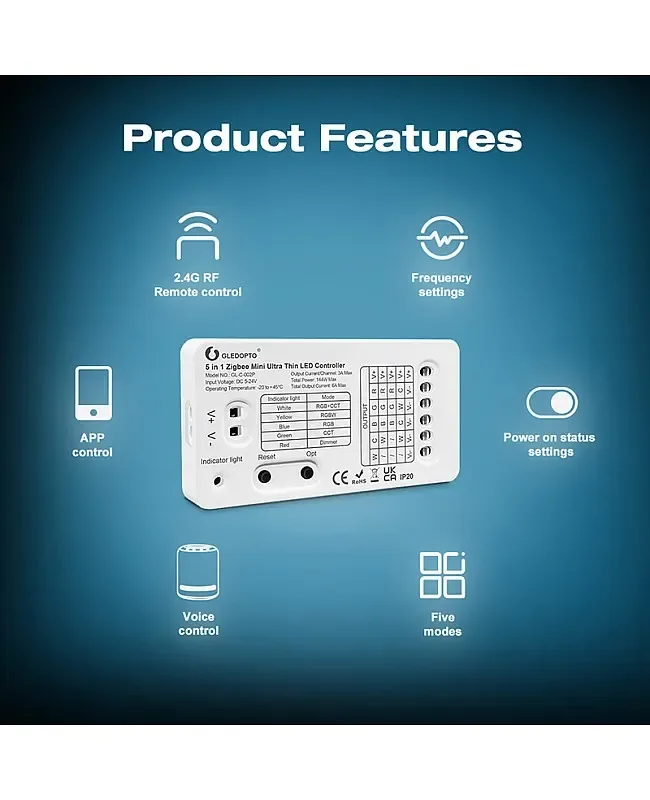

Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5-in-1 mini Zigbee controller, with a 5-working-mode switchable design, can be used for RGB+CCT, RGBW, RGB, CCT, and single color LED lights. The controller has an ultra-thin size and lightweight design, is smaller than one credit card, and weighs only 23.5 grams. It is easy to install in a small or narrow location. The works on DC5V to DC24V, with a max output current of 6A and a max loading power of 144W. There are two buttons on the surface.
- Fireproof And High-Temperature Resistance Material
- Output Current: 3A Max Per Channel
- Total Output Current: 6A Max
- Total Power Output: 144W
- 5-In-1 Modes Switchable: RGB+CCT, RGBW, RGB, CCT, Dimmer
- Compatible With Zigbee 3.0 Gateways: Philips HUE, Smarthings, Amazon Echo Studio, Conbee, Terncy, Tuya
- Intuitive LED Indicator Light
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-JFNS7I

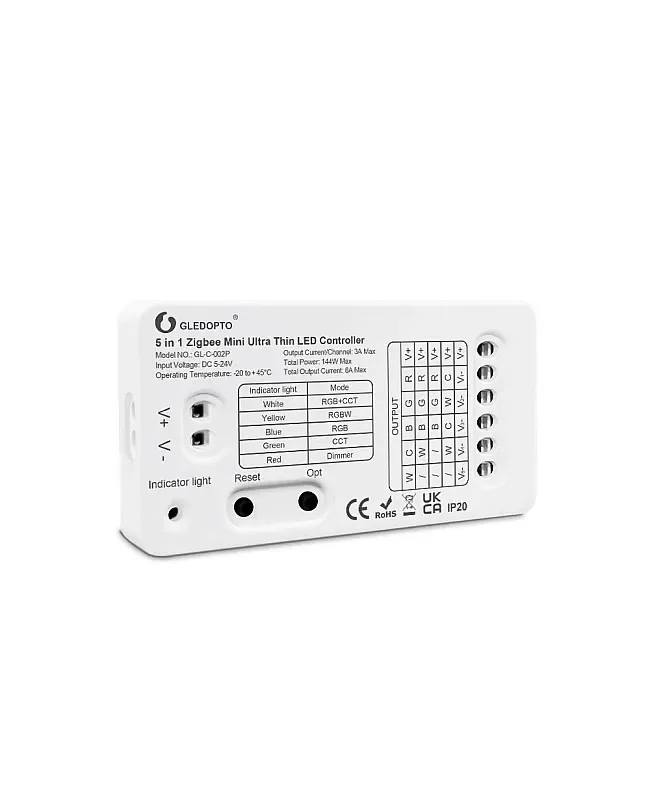

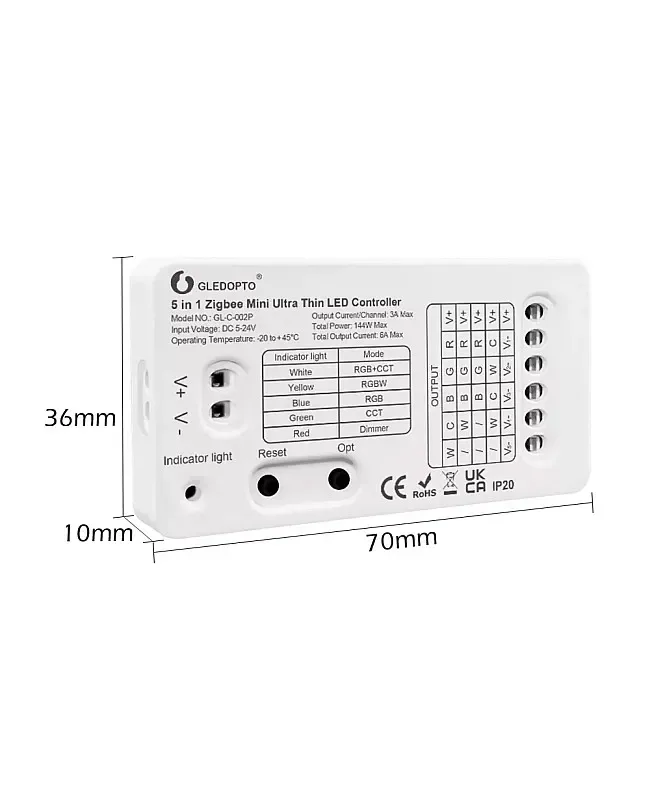

- Size: 70*10*36mm(L*W*H)
- Input Voltage: -24V
- Output Current: 3A Max Per Channel
- Total Output Current: 6A Max
- Total Power Output: 144W
- 5-In-1 Modes Switchable: RGB+CCT, RGBW, RGB, CCT, Dimmer
- Power-on Modes Optional: Remember The Status Of The ON/OFF Before Power Off/Lights Up By Default When Powered On
- Frequency Settings: 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz
- IP Rating: IP20
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

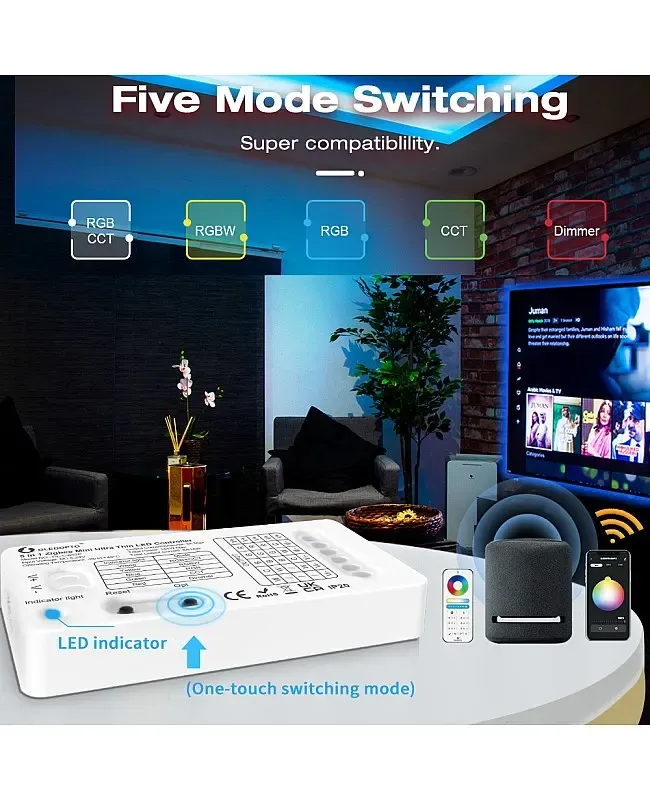

The 5-in-1 mini Zigbee controller, with a 5-working-mode switchable design, can be used for RGB+CCT, RGBW, RGB, CCT, and single color LED lights. The controller has an ultra-thin size and lightweight design, is smaller than one credit card, and weighs only 23.5 grams. It is easy to install in a small or narrow location. The works on DC5V to DC24V, with a max output current of 6A and a max loading power of 144W. There are two buttons on the surface. The installer can press the "Opt" button to switch the working modes; the intuitive LED indicator light will show various colors to indicate the different working modes. There are two power-on modes available, long-press the "opt" button to switch from the mode " remember the status of the ON/OFF before power off" or "lights up by default when powered on". The Zigbee LED controller is compatible with Zigbee 3.0 gateways like Philips HUE, Tuya, Amazon Echo Studio, Smarthings, etc., and can be controlled by a smartphone APP, 2.4G RF remote. The installer can set the color and adjust the color temperature and brightness. There are 16 million colors available, the color temperature changes from 2200K to 6500K, and brightness is adjustable from 1% to 100%. The Zigbee controller can work with Amazon Echo Plus, and the installer can adjust ON/OFF and brightness through voice commands. The working frequency setting is changeable to match more power supplies to reduce noise. Press the "Reset" button to change the frequency from 600Hz to 8000Hz.
Specifications
Size: 70*10*36mm(L*W*H)
Fireproof And High-Temperature Resistance Material
Input Voltage: -24V
Output Current: 3A Max Per Channel
Total Output Current: 6A Max
Total Power Output: 144W
5-In-1 Modes Switchable: RGB+CCT, RGBW, RGB, CCT, Dimmer
Compatible With Zigbee 3.0 Gateways: Philips HUE, Smarthings, Amazon Echo Studio, Conbee, Terncy, Tuya
Intuitive LED Indicator Light
Power-on Modes Optional: Remember The Status Of The ON/OFF Before Power Off/Lights Up By Default When Powered On
16 Million Colors Changing
Color Temperature Adjustable From 2200K To 6500K
Brightness Adjustable From 1% To 100%

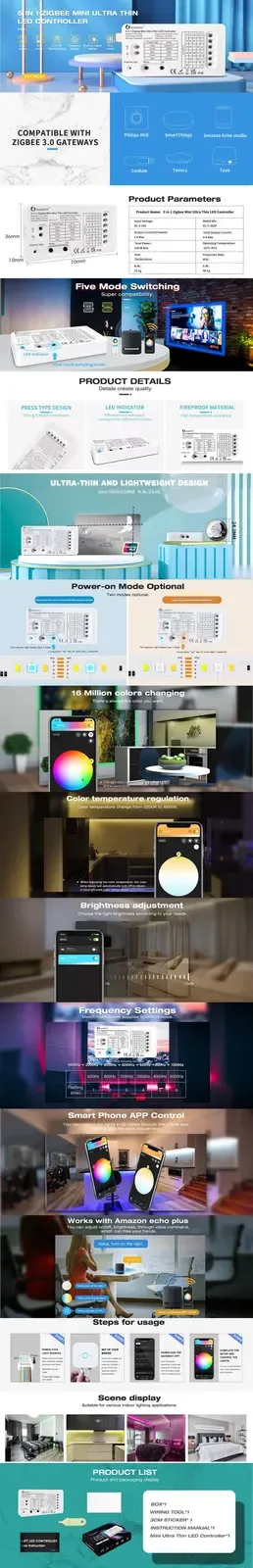

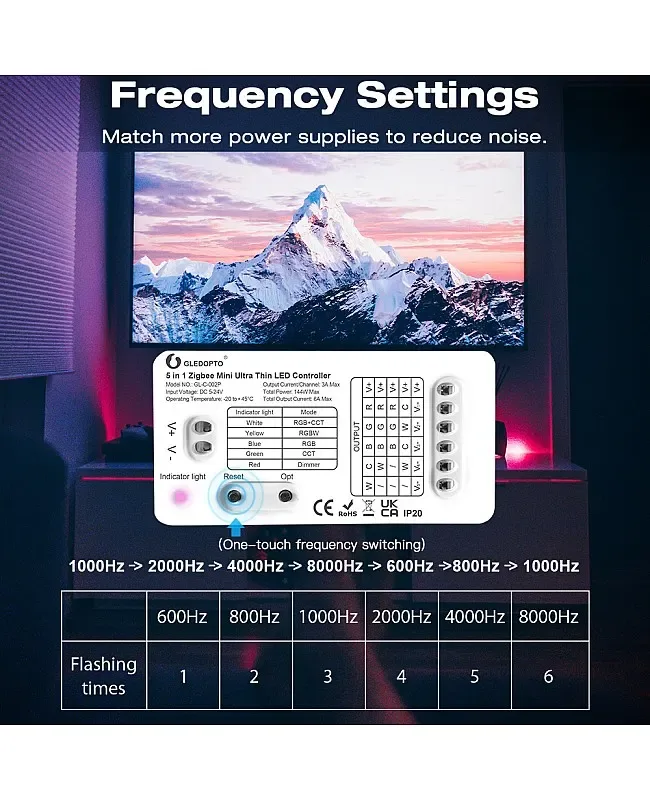

Frequency Settings: 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz
Smart Phone APP Control
Works With Amazon Echo Plus
4G RF Remote Control Controllable
IP Rating: IP20
Working Temperature: -20℃-45℃

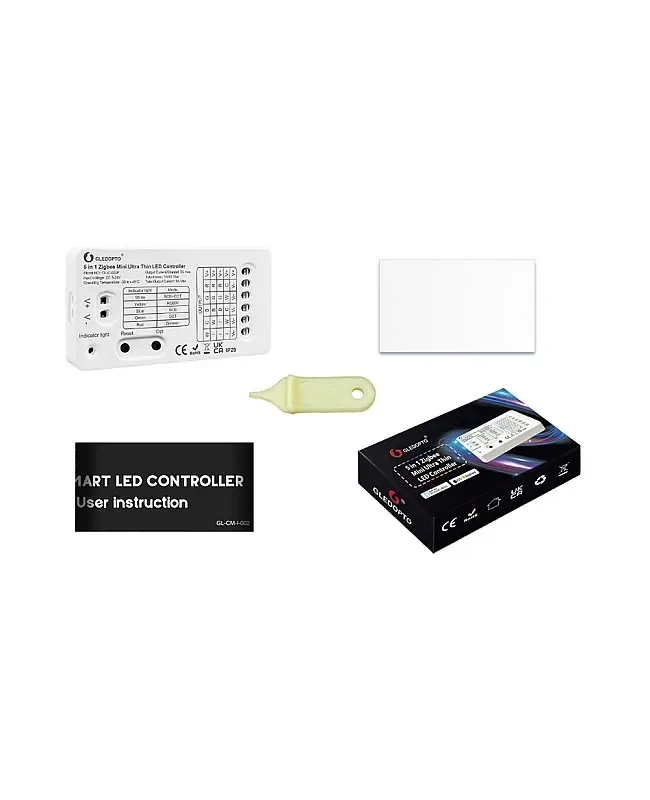

Includes
1 * 5-In-1 Mini Zigbee Controller
1 * Wiring Tool
1 * 3cm Sticker
1 * User Manual
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
