Product details

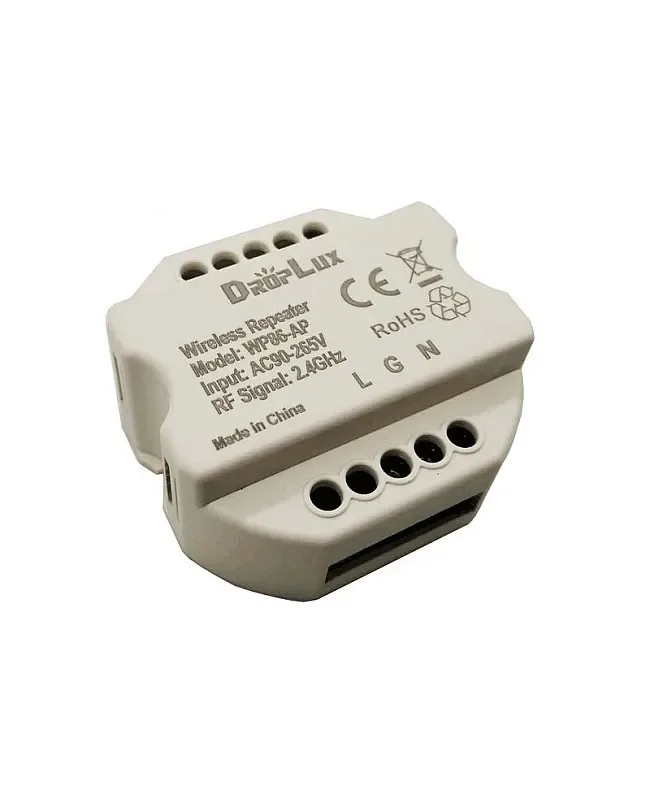

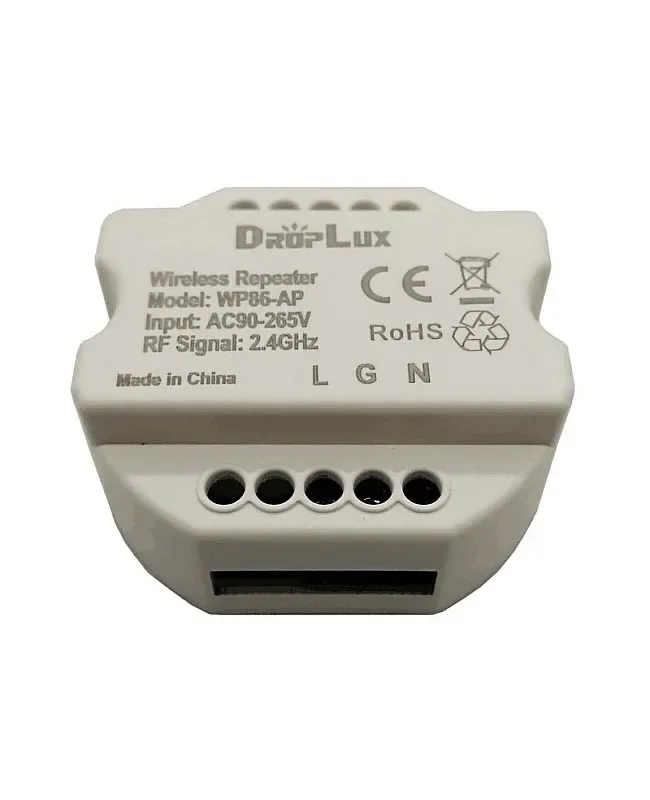

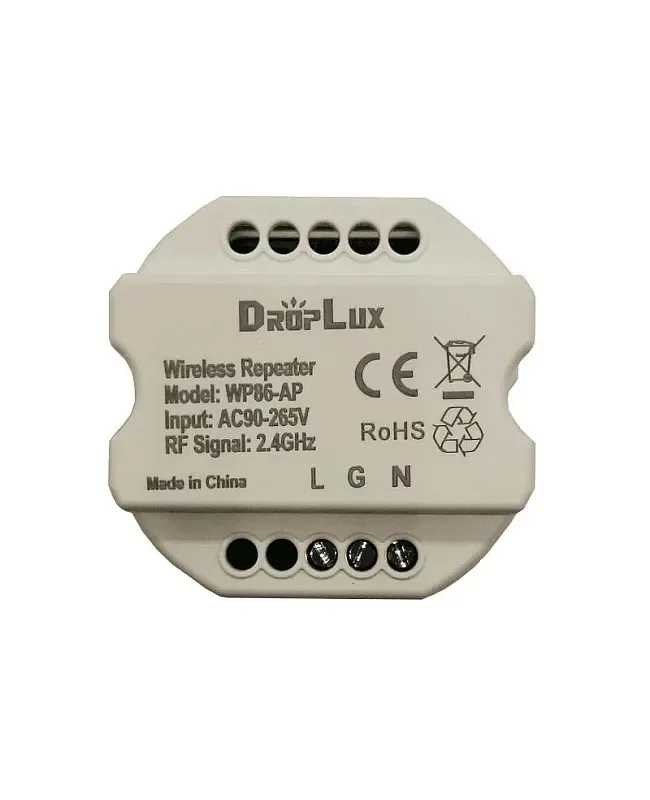

Wireless Signal LED Repeater For Sync Control
LumaCircuit offers Wireless Signal LED Repeater For Sync Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60 ℃ Working Voltage: -265V(50/60Hz) Waterproof Level: IP20 NO Waterproof The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless signal LED repeater for sync Control works in -265V; the installer can connect it directly to the 110V or 220V power system; there is no need for an extra transformer. The wireless LED amplifier works at 2 frequency, has reliable wireless-sync-work performance, does not need to pair, plug, and play, and is compatible with all Hoion 2. LED controllers. The max RF control distance can reach 30m. The installer can use it for wireless signal expansion, suitable for long-distance transmission.
- Working Temperature: -20-60 ℃
- Working Voltage: -265V(50/60Hz)
- Waterproof Level: IP20 NO Waterproof
- RF Distance: ≤ 30 meters
- Sleep Current: 0.008A(230V)
- Emission Current: 0.02A(230V)
- Sleep Power Consumption: 0.7W(230V)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 110 V / 220 V / 230 V
- Size: 52*51*25mm(L*W*H)
- LumaCircuit model: LC-CTL-H2JHH3
- Working Temperature: -20-60 ℃
- Working Voltage: -265V(50/60Hz)
- RF Signal Frequency: 2.
- Sleep Current: 0.008A(230V)
- Emission Current: 0.02A(230V)
- Sleep Power Consumption: 0.7W(230V)
- Emission Power Consumption: 2W(230V)
- Dimensions found: 52x51x25mm / 25mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless signal LED repeater for sync Control works in -265V; the installer can connect it directly to the 110V or 220V power system; there is no need for an extra transformer. The wireless LED amplifier works at 2 frequency, has reliable wireless-sync-work performance, does not need to pair, plug, and play, and is compatible with all Hoion 2. LED controllers. The max RF control distance can reach 30m. The installer can use it for wireless signal expansion, suitable for long-distance transmission.
Specifications
Size: 52*51*25mm(L*W*H)
Model
Working Temperature: -20-60 ℃
Working Voltage: -265V(50/60Hz)
RF Signal Frequency: 2.
Waterproof Level: IP20 NO Waterproof
RF Distance: ≤ 30 meters
Sleep Current: 0.008A(230V)
Emission Current: 0.02A(230V)
Sleep Power Consumption: 0.7W(230V)
Emission Power Consumption: 2W(230V)

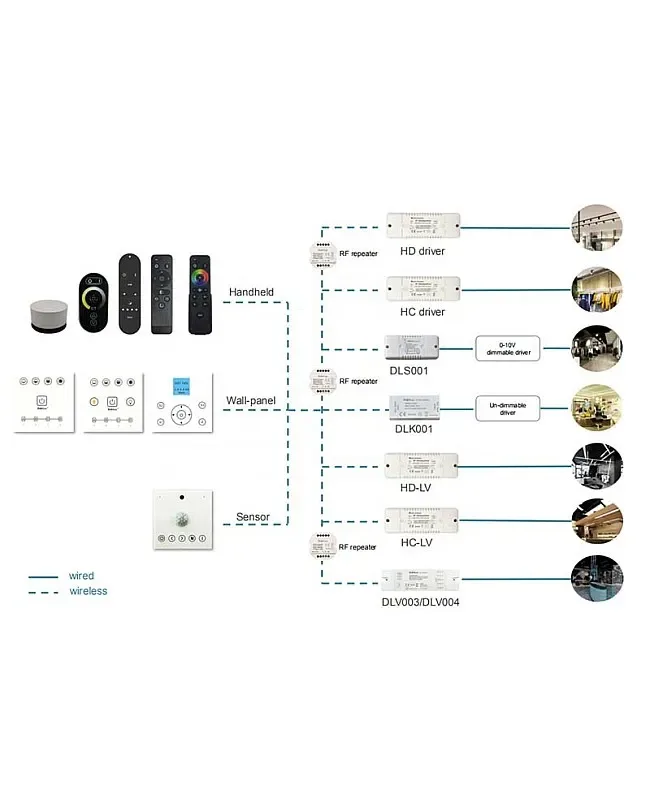

Used For Wireless Signal Expansion, Suitable For Long-Distance Transmission
Compatible With All the configured product 2. LED Controllers
No Need To Pair, Plug And Play

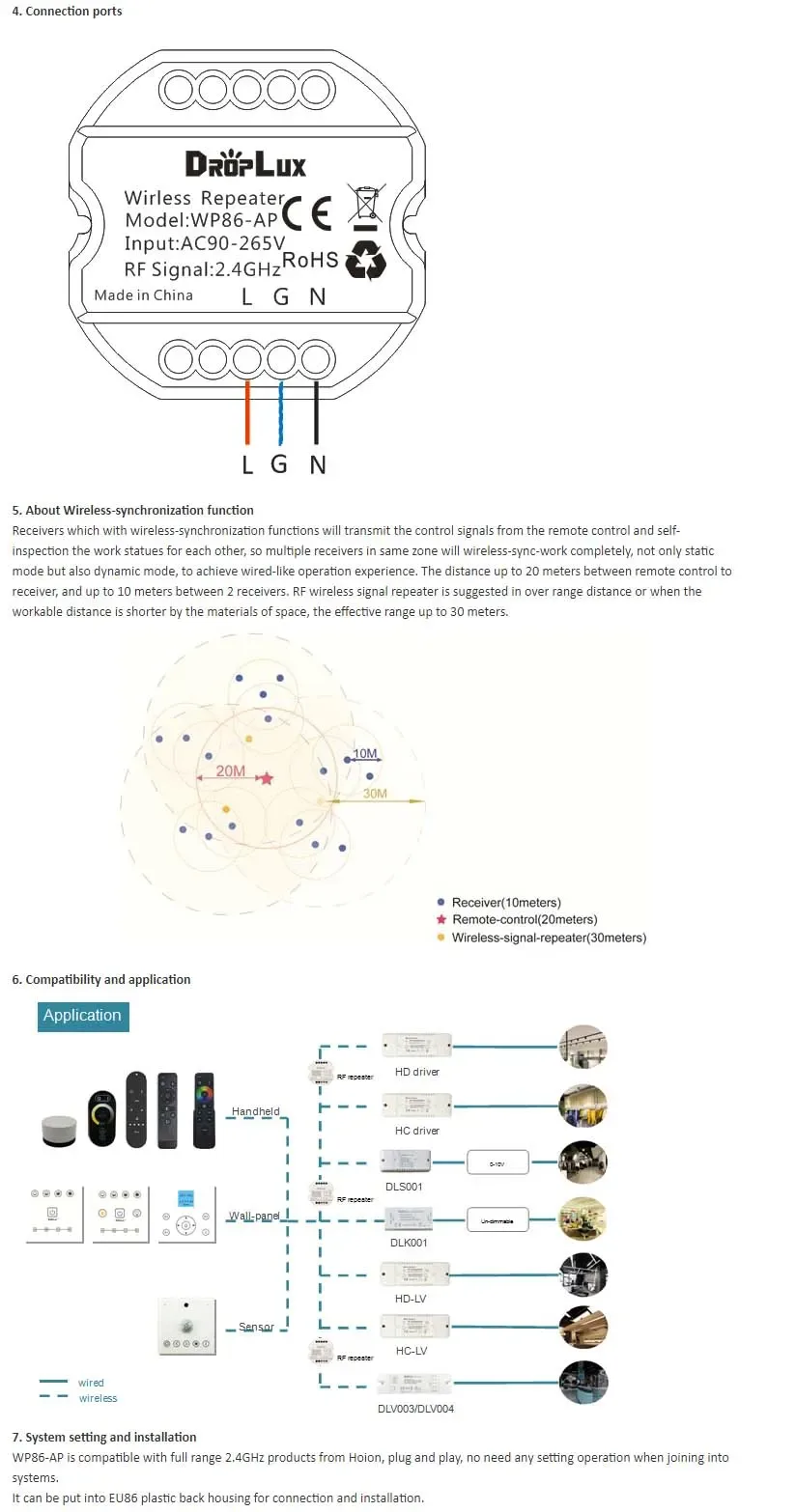

Can Be Put Into One Plastic Back Housing For Connection And Installation
Includes
1 * Wireless Signal LED Repeater
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
