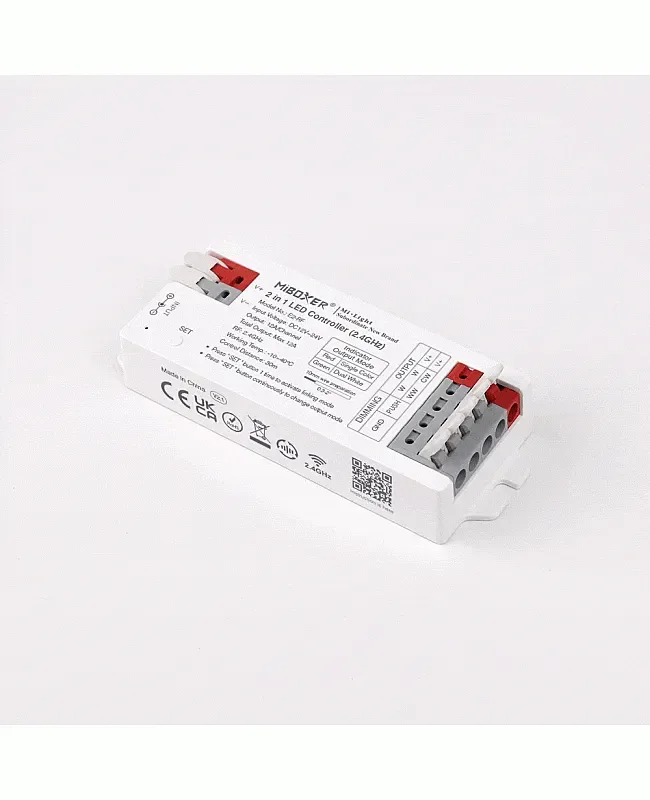

RF 2 In 1 3 Way Dimmer For Single Color/Dual White
LumaCircuit offers RF 2 In 1 3 Way Dimmer For Single Color/Dual White as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 2 In 1 3 Way Dimmer For Single Color/Dual White Size: 100.6*40*17.6mm(L*W*H) Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 3-way dimmer, with 2 in 1 design for single color and dual white LED lights, can be controlled by RF remote controls, a smartphone APP, and third-party voice commands to adjust the brightness and color temperature for various scenes. With an instant wiring tool-free design, connecting the controller to the power supply and LED lights without tools is super easy. A button " SET " on the controller lets you conveniently switch the output mode from single-color LED stripes to dual white.
- Type: 2 In 1 3 Way Dimmer For Single Color/Dual White
- Size: 100.6*40*17.6mm(L*W*H)
- Color Temperature Adjustable
- 4G RF Remote Control B, T1, T2, B, B, B, W, G, WL
- Output Connection: Common Anode
- Switching 2 Output Mode(Single Color/Dual White) Via One Button
- Auto Signal Transmitting
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-EZQPLG
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: -24V
- Output: 12A/Channel
- Total Output: 12A Max
- 2.4G RF Remote Control: B, T1, T2, B, B, B, W, G, WL
- Output Connection: Common Anode
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- Dimensions found: 100.6x40x17.6mm / 17.6mm / 5x2.1mm / 2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

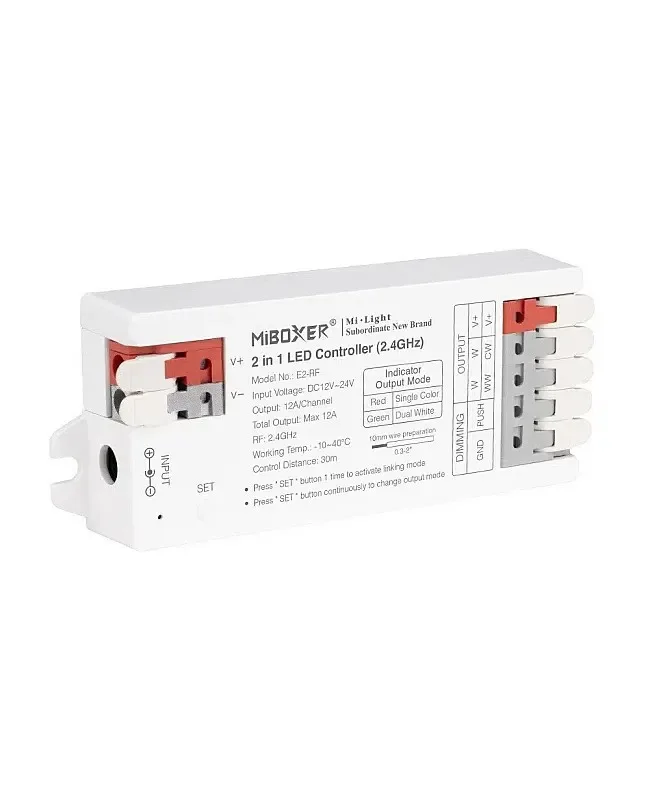

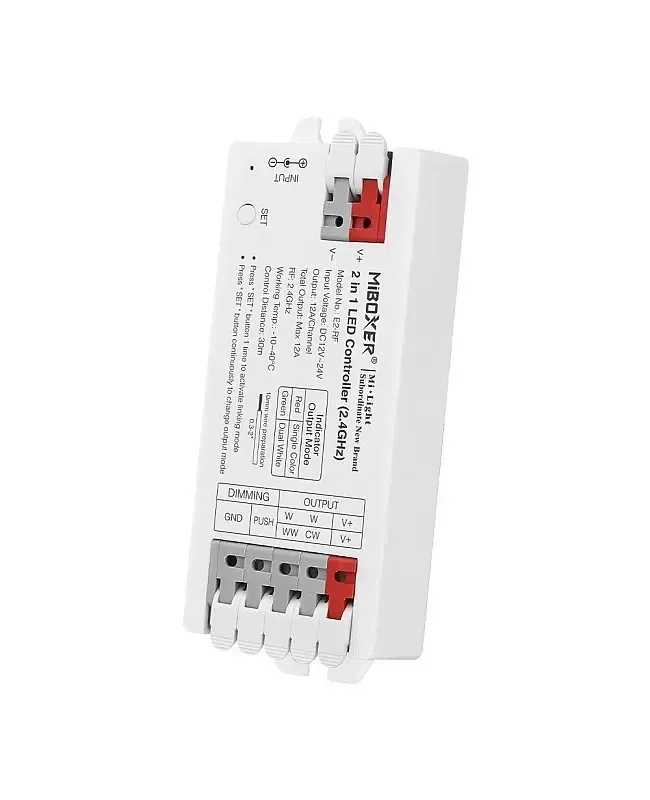

The wireless controller 3-way dimmer, with 2 in 1 design for single color and dual white LED lights, can be controlled by RF remote controls, a smartphone APP, and third-party voice commands to adjust the brightness and color temperature for various scenes. With an instant wiring tool-free design, connecting the controller to the power supply and LED lights without tools is super easy. A button " SET " on the controller lets you conveniently switch the output mode from single-color LED stripes to dual white. The installer can adjust the brightness of the single-color LED lights and the color temperature of the dual-white LED lights. The wireless controller remote dimmers can transmit the signals from the remote control to another dimmer within 30 meters; if there is a dimmer within 30m, the remote control distance can be limitless. After pairing with a 2.4G LED gateway, smartphone apps, and third-party voice commands can control the dimmer and work with Amazon Alexa and Google Assistant.
Specifications
Type: 2 In 1 3 Way Dimmer For Single Color/Dual White
Model
Size: 100.6*40*17.6mm(L*W*H)
Input Voltage: -24V
Output: 12A/Channel
Total Output: 12A Max
Color Temperature Adjustable
Brightness Adjustable
RF: 2.
4G RF Remote Control B, T1, T2, B, B, B, W, G, WL
Control Distance≤30m
Output Connection: Common Anode
Switching 2 Output Mode(Single Color/Dual White) Via One Button
Auto Signal Transmitting
High Frequency/Low Frequency(250Hz) Can Be Switched
Support Smartphone APP Control And Third-party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Support Push Dimmable
Instant Wiring Tool-free
Two Port Interfaces: Wiring Ports,5*2.1mm
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
1 * 3 Way Dimmer
1 * User Manual
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
